5188835-9 datasheet, PDF - EEWORLD Datasheet

5188835-9: Descriptionconn 2mm header 154pos vert gold; CategoryThe connector; File Size204KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5188835-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5188835-9	-	-	View	Buy Now

conn 2mm header 154pos vert gold

Parameter Name	Attribute value
Datasheets
5188835-1
RoHS Informati
5188835-9 Statement of Compliance
RoHS 2 Stateme
3D Model

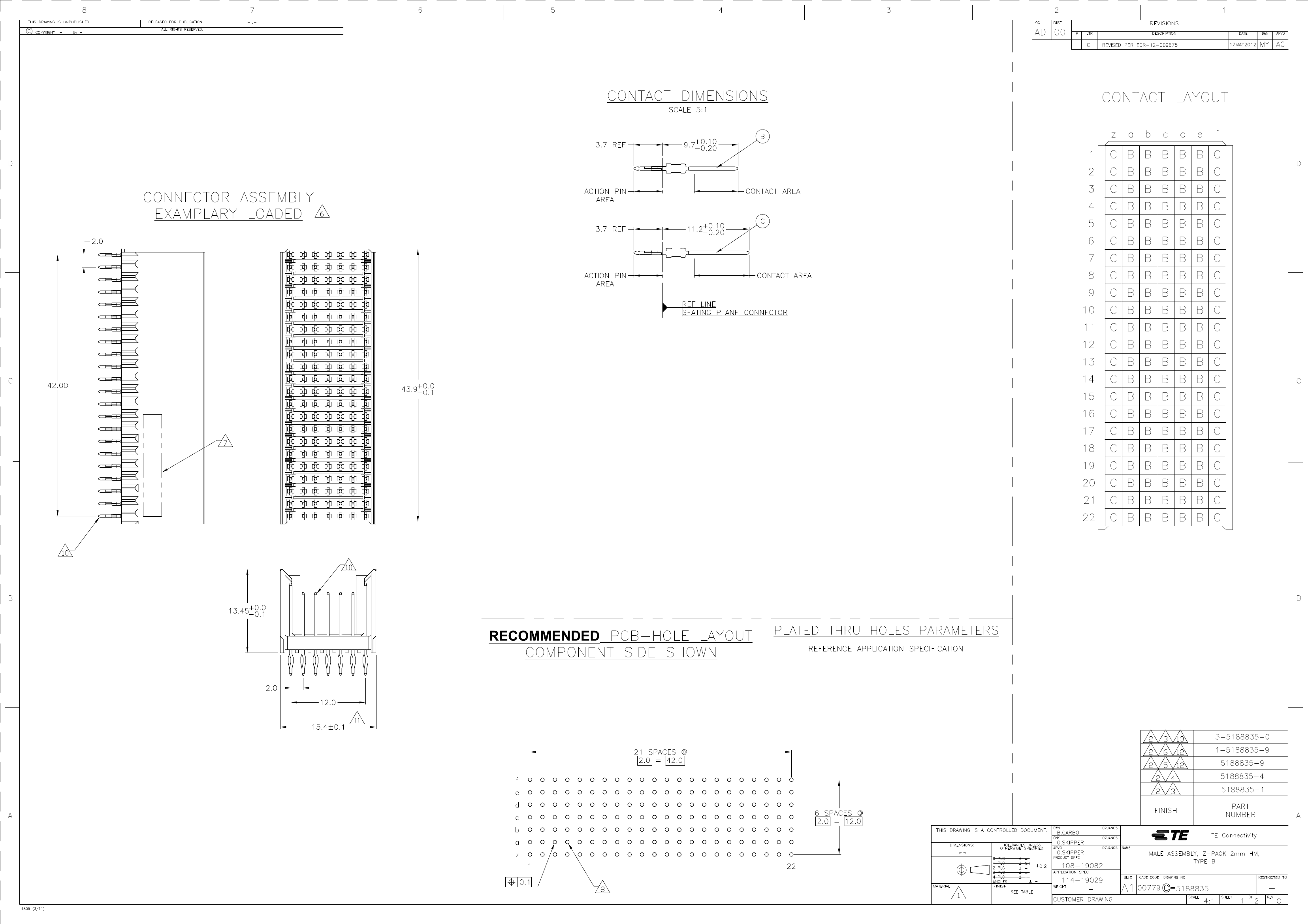

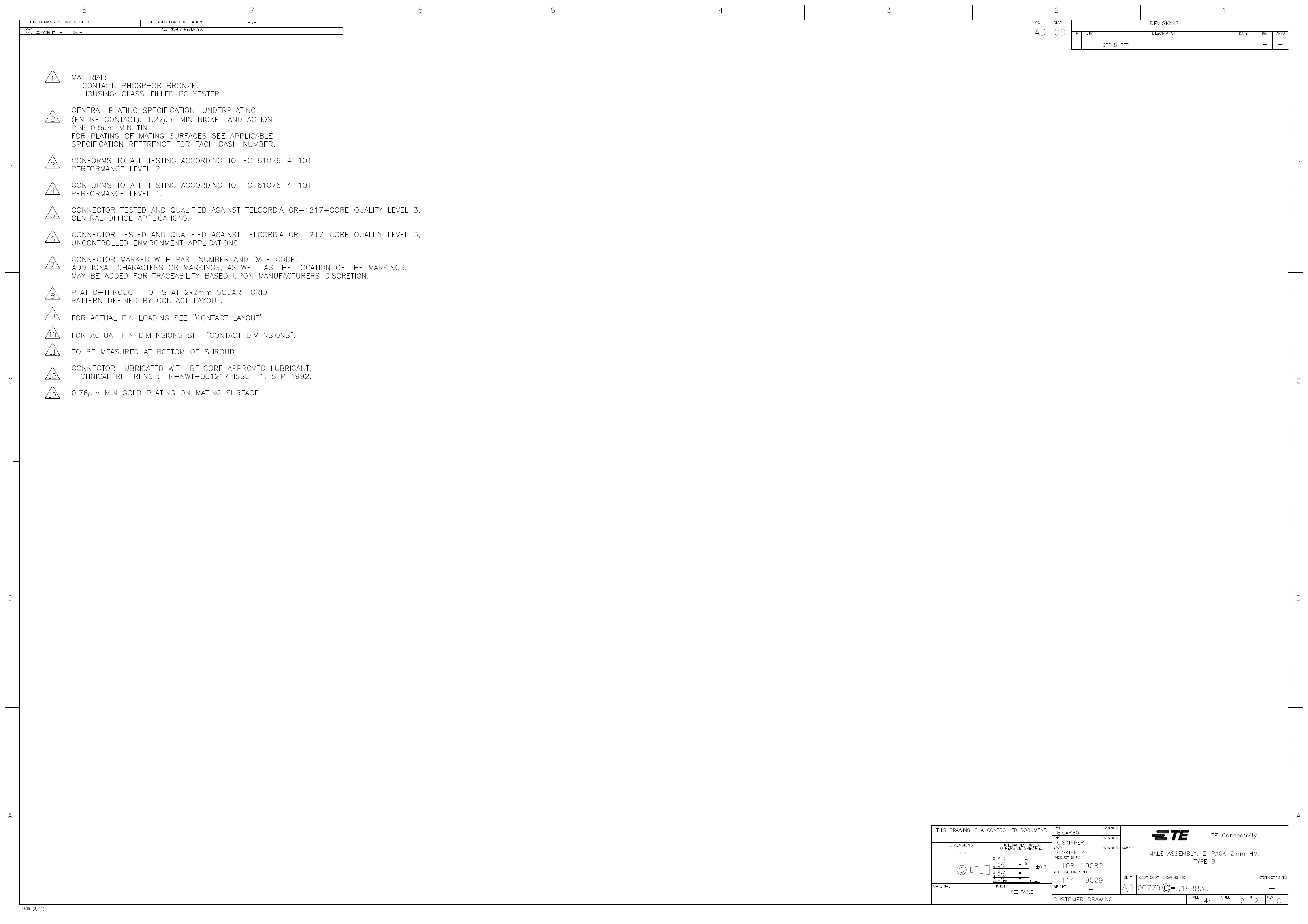

5188835-9.pdf
Standard Package	1,078
Category	Connectors, Interconnects
Family	Backplane Connectors - Hard Metric, Standard
Packaging	Tube
Connector Type	Header, Male Pins
Connector Style	A 22
Number of Positions	154 (110 + 44 Ground)
Number of Positions Loaded	All
Pitch	0.079" (2.00mm)
Number of Rows	5 + 2
Mounting Type	Through Hole
Terminati	Press-Fi
Connector Usage	Backplane
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Current Rating	1.5A
Voltage Rating	500V
Operating Temperature	-55°C ~ 125°C
Features	-
Associated Produc	352129-7-ND - Z-PACK/B SPACER 1,9352129-5-ND - CONN SPACER 154 POS 2MM GRAY

	5188835-9	5188835-4	5188256-9
Description	conn 2mm header 154pos vert gold	conn 2mm header 154pos vert gold	conn 2mm header 175pos str gold
Standard Package	1,078	660	150
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Backplane Connectors - Hard Metric, Standard	Backplane Connectors - Hard Metric, Standard	Backplane Connectors - Hard Metric, Standard
Packaging	Tube	Tube	Tube
Connector Type	Header, Male Pins	Header, Male Pins	Header, Male Pins
Connector Style	A 22	B 22	B 25
Number of Positions	154 (110 + 44 Ground)	154 (110 + 44 Ground)	175 (125 + 50 Ground)
Number of Positions Loaded	All	All	All
Pitch	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Number of Rows	5 + 2	5 + 2	5 + 2
Mounting Type	Through Hole	Through Hole	Through Hole
Terminati	Press-Fi	Press-Fi	Press-Fi
Connector Usage	Backplane	Backplane	Backplane
Contact Finish	Gold	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	50µin (1.27µm)	30µin (0.76µm)
Current Rating	1.5A	1.5A	1.5A
Voltage Rating	500V	500V	500V
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Associated Produc	352129-7-ND - Z-PACK/B SPACER 1,9352129-5-ND - CONN SPACER 154 POS 2MM GRAY	352129-7-ND - Z-PACK/B SPACER 1,9352129-5-ND - CONN SPACER 154 POS 2MM GRAY	-
