510E1A48F209PC: DescriptionENcodeR 9 cycle gray code pcb; CategoryThe sensor; File Size42KB，2 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/; Environmental Compliance

Download Datasheet Parametric View All

510E1A48F209PC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	510E1A48F209PC	-	-	View	Buy Now

510E1A48F209PC Overview

ENcodeR 9 cycle gray code pcb

510E1A48F209PC Parametric

Parameter Name	Attribute value
Datasheets
510E1A48F209PC
Rotary Position Sensor Line Guide
Product Photos
510E1A48F209PC
Standard Package	128
Category	Sensors, Transducers
Family	Encoders
Encoder Type	Mechanical
Output Type	Quadrature (Incremental)
Pulses per Revoluti	9
Voltage - Supply	-
Actuator Type	1/4" Dia Flatted End
Dete	Yes
Built in Switch	N
Mounting Type	Panel, PCB Through Hole
Orientati	Vertical
Termination Style	PC Pi
Rotational Life (Cycles Min)	100K
Dynamic Catalog	510 Series
Other Names	480-3277

Preview

Download Datasheet

View All

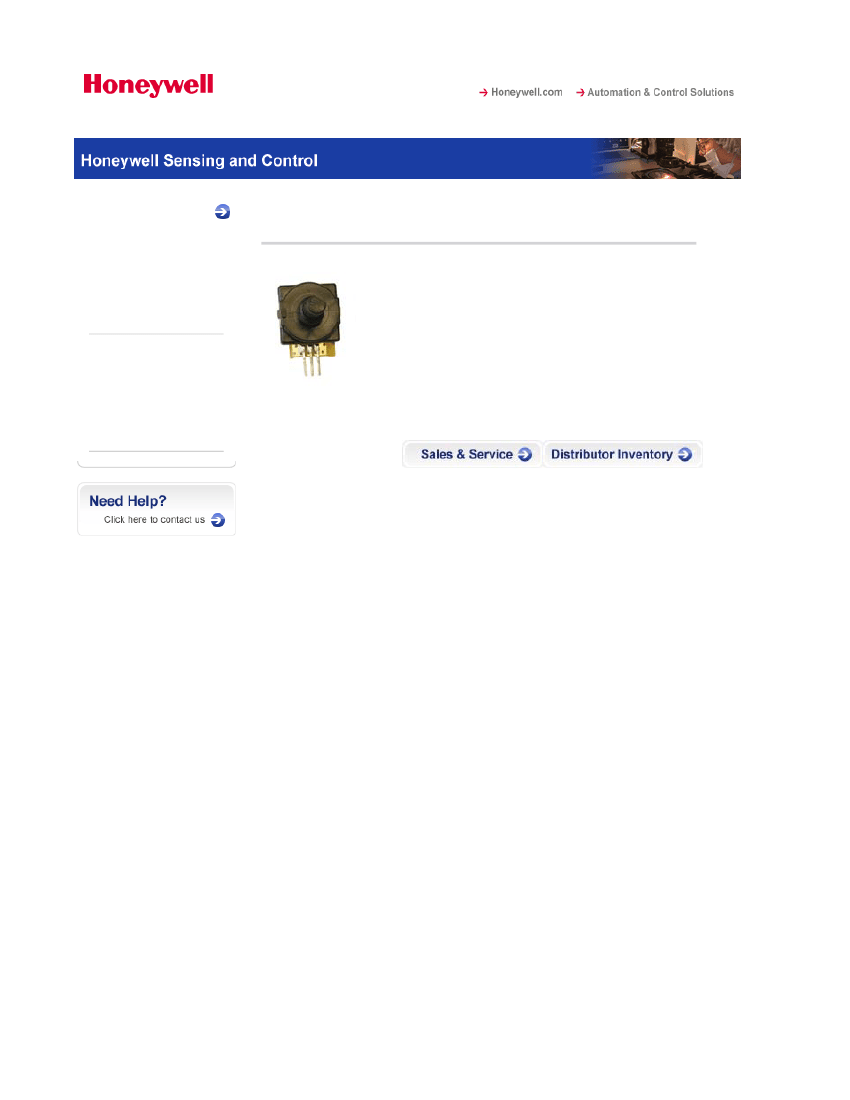

Page 1 of 2

HOME

ABOUT US

PRODUCTS & INFORMATION

NEWS & EVENTS

SALES & SUPPORT

510E1A48F209PC Encoders

(

Home

Products

)

narrow your search

Products

Controls Monitoring

and Lighting

(354)

Machine Safety

(1726)

Sensors

(7016)

Switches

(9736)

Technology

Control and

Instrumentation

(1063)

Electromechanical

(9297)

510 Series Encoder, Mechanical 9 pulse/rev/channel 2-bit Gray

code

Microstructure

(2298)

NTC Thermistors

(147)

Thick Film

(1764)

Actual product

appearance may

vary.

Overview

Specs

Documentation

Application Notes

Product Specifications

Encoder Type

Pulse Per Revolution

Detents

Pulse

Dome Switch

Output

Contact Resistance

Open Resistance

Contact Rating

Jitter (Bounce)

Dielectric Withstanding

Voltage

Electrical Travel

Operating Speed

Operating Torque

Body Size (Single

Module)

Terminal

Housing Type

Mechanical Travel

Rotational Life

Shaft Pull Force

Shaft Side Load Force

Shaft Material

Shaft Diameter

Shaft Length

Bushing Material

Bushing Diameter

Mechanical

9 cycles/rev

1/4 cycle per detent

2-bit gray code, Channel L leads Channel R by 90° electrically in clockwise

direction

5 Ohm

100 kOhm

28 Vdc max at 250 mA

5 ms/cycle at 15 RPM

1000 Vac at sea level

Continuous

50 RPM

0,0216 N m to 0,036 N m [3.0 oz in to 5.0 oz in]

21,1 mm [0.83 in] square, ±0,127 mm [0.005 in]

PC terminals bent back Type C-30 (Vertical mount)

Molded thermoplastic

Continuous

100,000 detented cycles at rated load typical (1 cycle=720 degrees)

4,536 kg [10 lb]

1,13 N m [7 lb in] max.

Plastic

6,35 mm [0.25 in]

19,05 mm [0.75 in]

Plastic

9,53 mm [0.375 in] x 32 NEF-2A

Panel Mounting Torque 1,13 N m [7.0 lb] max.

http://sensing.honeywell.com/index.cfm?ci_id=140301&la_id=1&pr_id=151844

5/28/2009
