51114-0500: Description3.50mm (.138") pitch wire-to-wire plug housing, positive lock, with optional panel mount, 5 circuits; CategoryThe connector The connector; File Size94KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

51114-0500 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	51114-0500	-	-	View	Buy Now

51114-0500 Overview

3.50mm (.138") pitch wire-to-wire plug housing, positive lock, with optional panel mount, 5 circuits

51114-0500 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compli
Samacsys Descripti	Headers & Wire Housings 3.50mm (.138) Pitch Wire-to-Wire Plug Housing, Positive Lock, With Optional Panel Mount, 5 Circuits
Other features	POSITIVE LOCK, COMPATIBLE CONTACTS: 50419-9001; 50419-9101
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Number of rows loaded	1
Options	GENERAL PURPOSE
Total number of contacts	5
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

This document was generated on 03/15/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

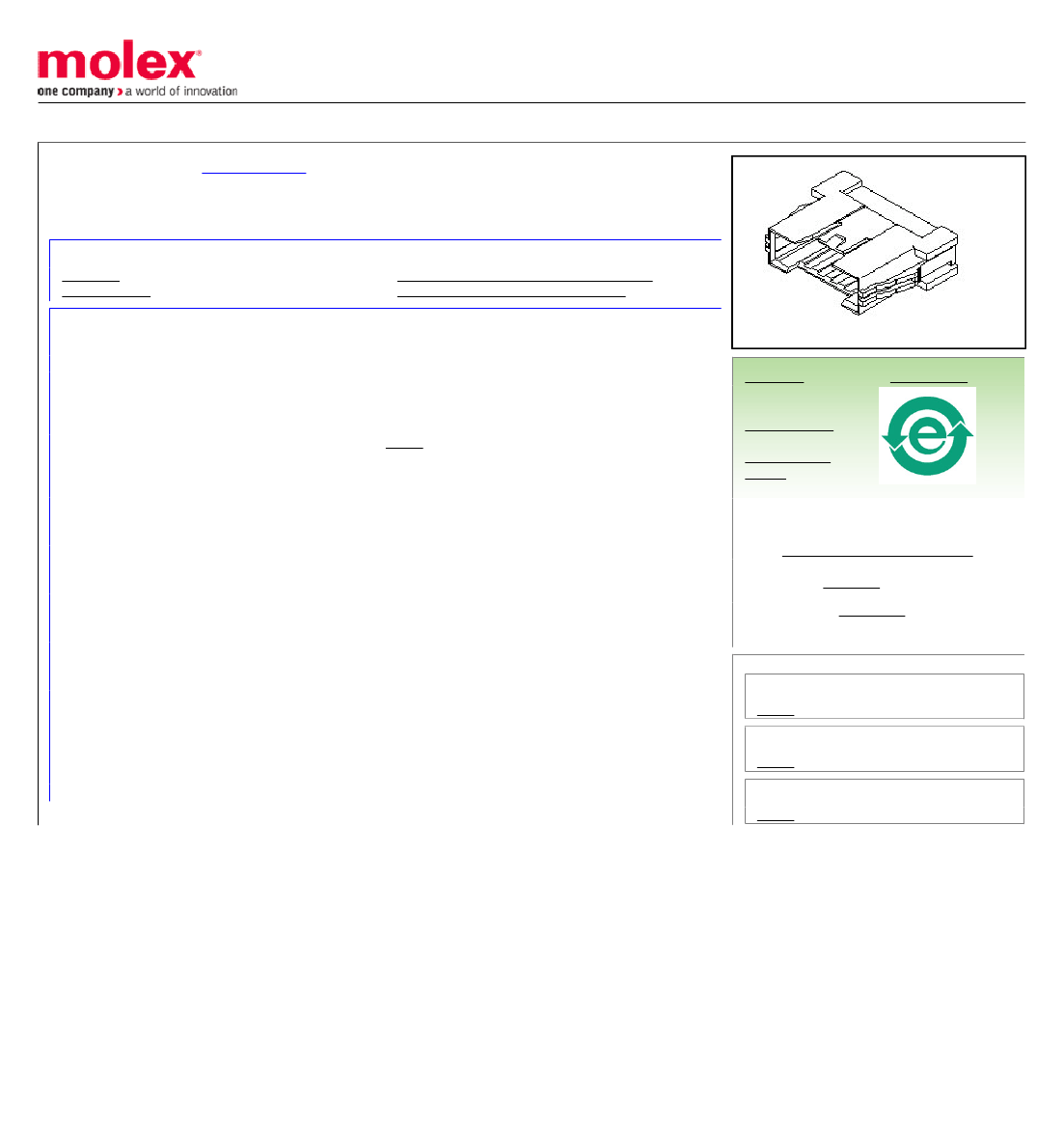

0511140500

Active

3.50mm (.138") Pitch Wire-to-Wire Plug Housing, Positive Lock, With Optional Panel

Mount, 5 Circuits

Documents:

3D Model

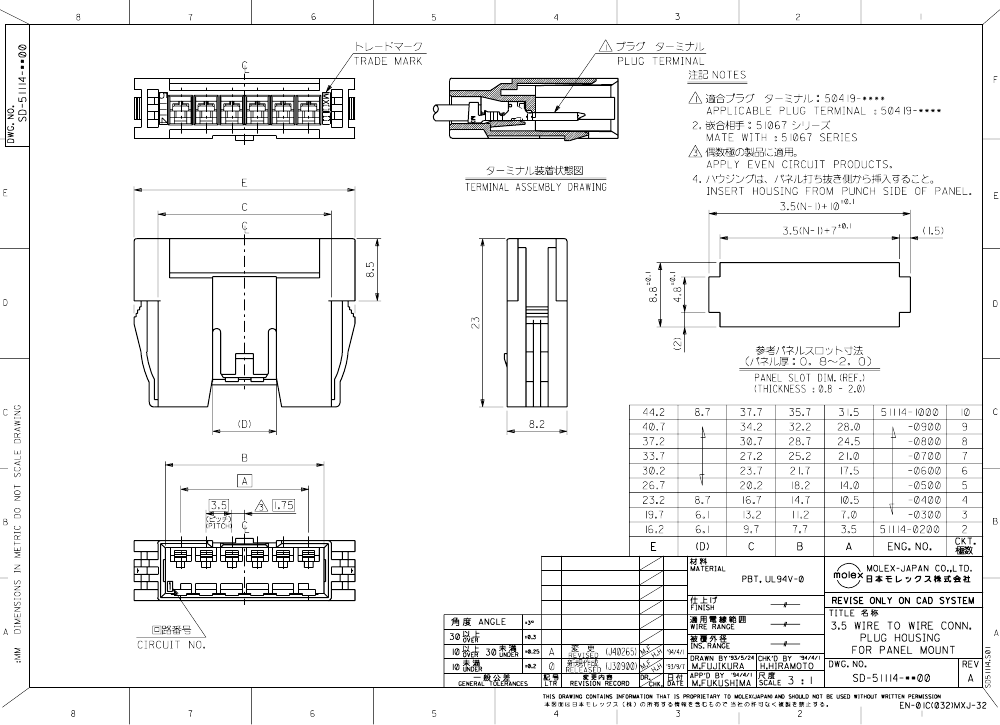

Drawing (PDF)

Product Specification PS-51067-008 (PDF)

RoHS Certificate of Compliance (PDF)

Series

LR19980

R72081037

E29179

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

TUV

UL

General

Product Family

Series

Product Name

Crimp Housings

51114

N/A

Physical

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Stackable

Temperature Range - Operating

5

Natural

94V-0

Male

No

Polyester

1

Bag

Yes

0.138 In

3.50 mm

No

-40°C to +105°C

Search Parts in this Series

51114Series

Mates With

51067

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-51067-008, RPS-51067-020

SD-51114-**00

Use With

50419

This document was generated on 03/15/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

51114-0500 Related Products

	51114-0500	HKQ0603W6N8H-T	51114-0800	51114-0900	51114-1000
Description	3.50mm (.138") pitch wire-to-wire plug housing, positive lock, with optional panel mount, 5 circuits	High-Q Multilayer Chip Inductors for High Frequency	3.50mm (.138") pitch wire-to-wire plug housing, positive lock, with optional panelmount, 8 circuits	3.50mm (.138") pitch wire-to-wire plug housing, positive lock, with optional panelmount, 9 circuits	3.50mm (.138") pitch wire-to-wire plug housing, positive lock, with optional panel mount, 10 circuits
Is it Rohs certified?	conform to	-	conform to	conform to	conform to
Maker	Molex	-	Molex	Molex	Molex
Reach Compliance Code	compli	-	compli	compliant	compli
Other features	POSITIVE LOCK, COMPATIBLE CONTACTS: 50419-9001; 50419-9101	-	POSITIVE LOCK, COMPATIBLE CONTACTS: 50419-9001; 50419-9101	POSITIVE LOCK, COMPATIBLE CONTACTS: 50419-9001; 50419-9101	POSITIVE LOCK, COMPATIBLE CONTACTS: 50419-9001; 50419-9101
Body/casing type	PLUG	-	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	-	MALE	MALE	MALE
Contact material	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	-	NO	NO	NO
Filter function	NO	-	NO	NO	NO
IEC compliance	NO	-	NO	NO	NO
MIL compliance	NO	-	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	-	NO	NO	NO
Installation type	PANEL	-	PANEL	PANEL	PANEL
Number of rows loaded	1	-	1	1	1
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Total number of contacts	5	-	8	9	10
UL Flammability Code	94V-0	-	94V-0	94V-0	94V-0
Manufacturer's serial number	-	-	51114	51114	51114
