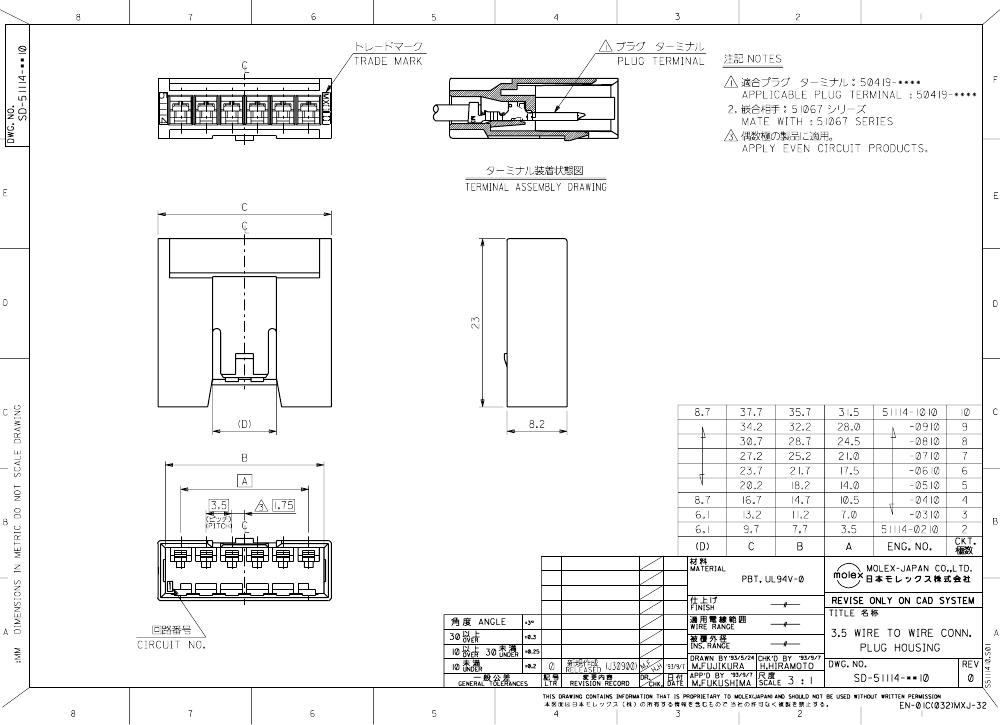

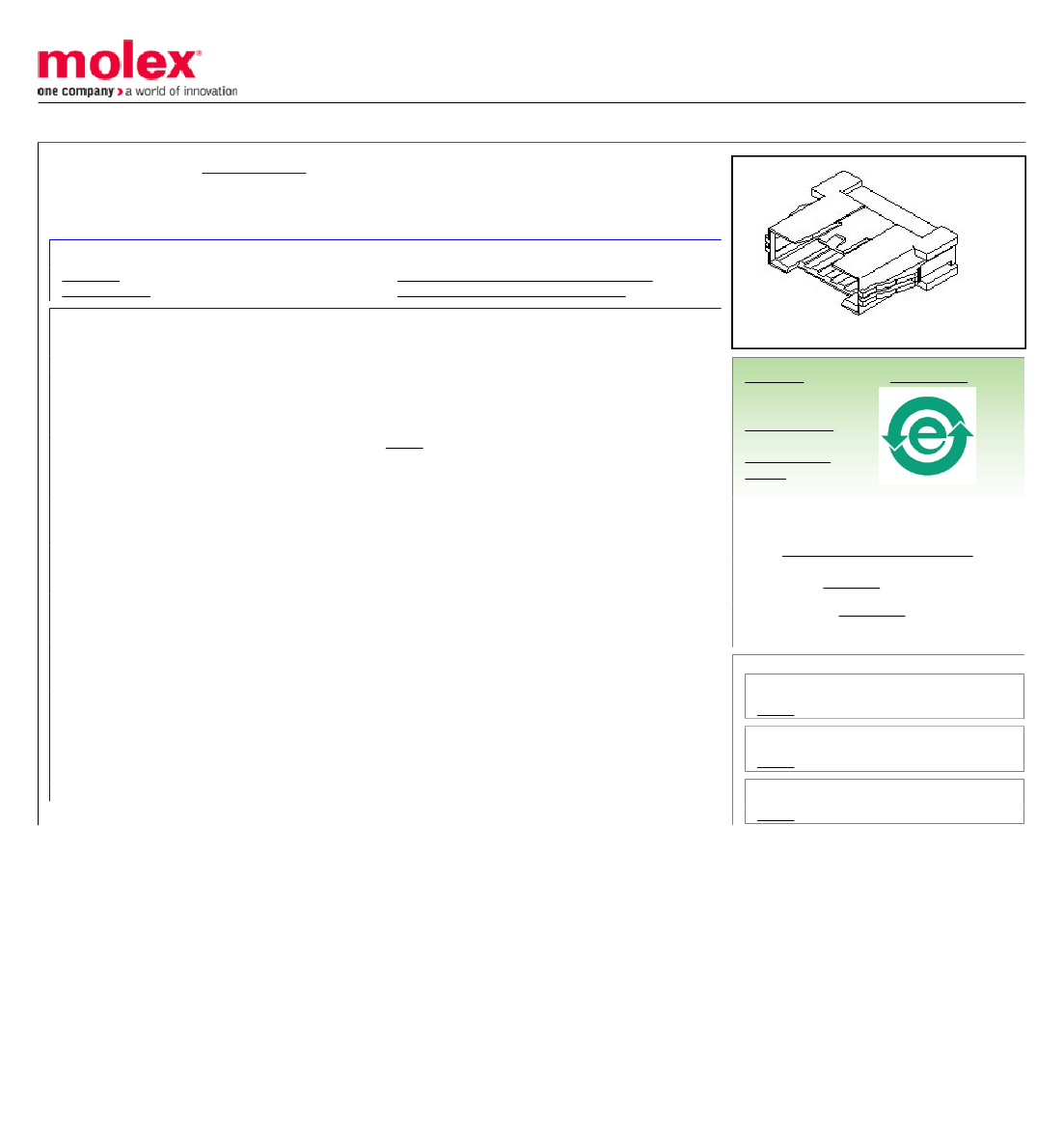

3.50mm (.138") pitch wire-to-wire plug housing, positive lock, with optional panelmount, 10 circuits
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | Molex |
| Reach Compliance Code | compliant |
| Other features | POSITIVE LOCK, COMPATIBLE CONTACTS: 50419-9001; 50419-9101 |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| MIL compliance | NO |
| Manufacturer's serial number | 51114 |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation type | CABLE |
| Number of rows loaded | 1 |
| Options | GENERAL PURPOSE |
| Total number of contacts | 10 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| 51114-1010 | HKQ0603W6N2J-T | 51114-0710 | 51114-0810 | 51114-0910 | |
|---|---|---|---|---|---|
| Description | 3.50mm (.138") pitch wire-to-wire plug housing, positive lock, with optional panelmount, 10 circuits | High-Q Multilayer Chip Inductors for High Frequency | 3.50mm (.138") pitch wire-to-wire plug housing, positive lock, with optional panelmount, 7 circuits | 3.50mm (.138") pitch wire-to-wire plug housing, positive lock, with optional panelmount, 8 circuits | 3.50mm (.138") pitch wire-to-wire plug housing, positive lock, with optional panelmount, 9 circuits |
| Is it Rohs certified? | conform to | - | conform to | conform to | conform to |
| Maker | Molex | - | Molex | Molex | Molex |
| Reach Compliance Code | compliant | - | unknown | unknown | compliant |
| Other features | POSITIVE LOCK, COMPATIBLE CONTACTS: 50419-9001; 50419-9101 | - | POSITIVE LOCK, COMPATIBLE CONTACTS: 50419-9001; 50419-9101 | POSITIVE LOCK, COMPATIBLE CONTACTS: 50419-9001; 50419-9101 | POSITIVE LOCK, COMPATIBLE CONTACTS: 50419-9001; 50419-9101 |
| Body/casing type | PLUG | - | PLUG | PLUG | PLUG |
| Connector type | BOARD CONNECTOR | - | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact point gender | MALE | - | MALE | MALE | MALE |
| Contact material | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| DIN compliance | NO | - | NO | NO | NO |
| Filter function | NO | - | NO | NO | NO |
| IEC compliance | NO | - | NO | NO | NO |
| MIL compliance | NO | - | NO | NO | NO |
| Manufacturer's serial number | 51114 | - | 51114 | 51114 | - |
| Plug information | MULTIPLE MATING PARTS AVAILABLE | - | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO | - | NO | NO | NO |
| Installation type | CABLE | - | CABLE | CABLE | CABLE |
| Number of rows loaded | 1 | - | 1 | 1 | 1 |
| Options | GENERAL PURPOSE | - | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Total number of contacts | 10 | - | 7 | 8 | 9 |
| UL Flammability Code | 94V-0 | - | 94V-0 | 94V-0 | 94V-0 |
| Base Number Matches | 1 | - | 1 | 1 | 1 |
| body width | - | - | 0.323 inch | 0.323 inch | 0.323 inch |
| subject depth | - | - | 0.906 inch | 0.906 inch | 0.906 inch |
| body length | - | - | 1.071 inch | 1.209 inch | 1.346 inch |
| contact mode | - | - | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | - | - | 10 mΩ | 10 mΩ | 10 mΩ |
| Contact style | - | - | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| Dielectric withstand voltage | - | - | 1500VAC V | 1500VAC V | 1500VAC V |
| Durability | - | - | 30 Cycles | 30 Cycles | 30 Cycles |
| maximum insertion force | - | - | 8.896 N | 8.896 N | 8.896 N |
| Insulation resistance | - | - | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| Insulator color | - | - | WHITE | WHITE | WHITE |
| insulator material | - | - | POLYBUTYLENE TEREPHTHALATE | POLYBUTYLENE TEREPHTHALATE | POLYBUTYLENE TEREPHTHALATE |
| Plug contact pitch | - | - | 0.138 inch | 0.138 inch | 0.138 inch |
| Installation option 1 | - | - | LOCKING | LOCKING | LOCKING |
| Maximum operating temperature | - | - | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | - | - | -40 °C | -40 °C | -40 °C |
| polarization key | - | - | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | - | - | 6 A | 6 A | 6 A |
| Guideline | - | - | UL | UL | UL |
| reliability | - | - | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Termination type | - | - | CRIMP | CRIMP | CRIMP |
| Maximum wire diameter | - | - | 18 AWG | 18 AWG | 18 AWG |
| Minimum wire diameter | - | - | 24 AWG | 24 AWG | 24 AWG |
| Evacuation force-minimum value | - | - | .5004 N | .5004 N | .5004 N |
