54561-6401 Overview

2.54mm (.100") pitch QF-50? flat cable strain relief, 64 circuits

Preview

Download Datasheet

View All

This document was generated on 06/02/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0545613001

Active

qf50

2.54mm (.100") Pitch QF-50™ Flat Cable Strain Relief, 30 Circuits

Documents:

Drawing (PDF)

Product Specification PS-54559-004 (PDF)

Product Specification PS-54559-005 (PDF)

RoHS Certificate of Compliance (PDF)

Series

Accessories

54561

572525100

Strain Relief

qf50

QF-50™

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

PS-54559-004, PS-54559-005, RPS-54559-008,

RPS-54559-010, RPS-54559-012, RPS-54559-014,

RPS-54559-015, RPS-54559-016, RPS-54559-017

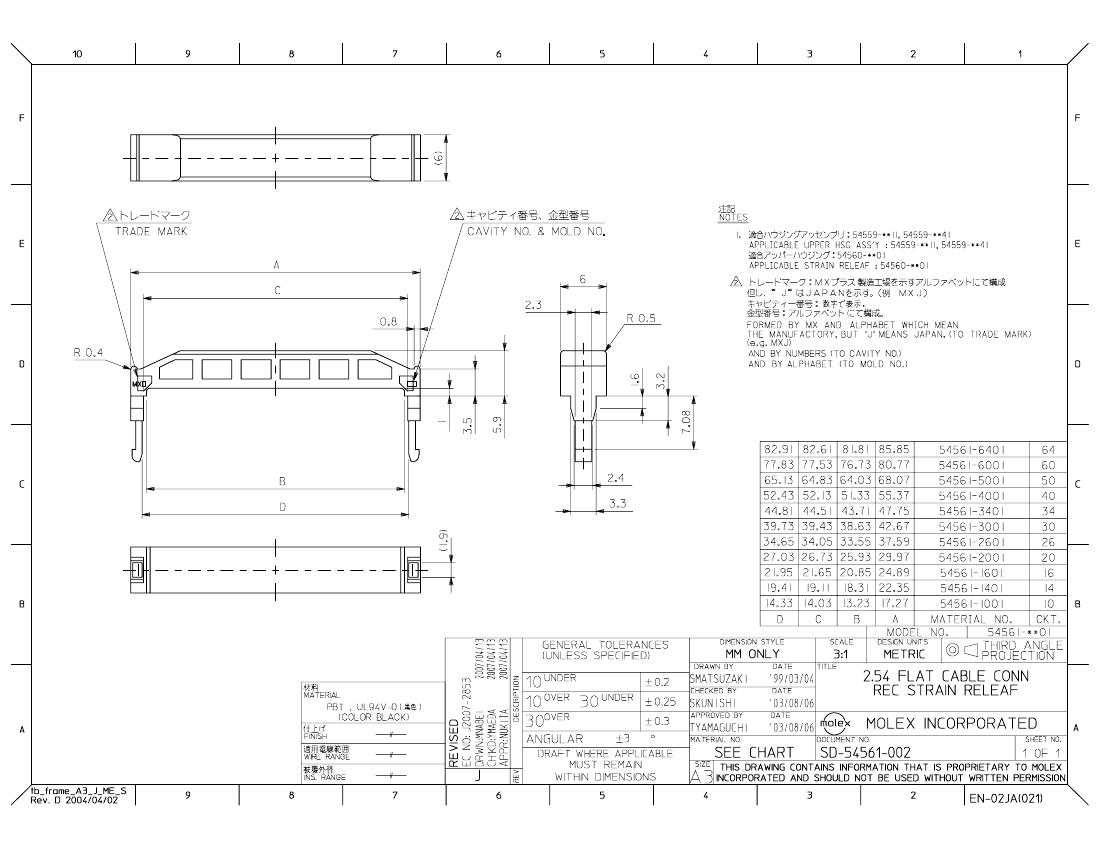

SD-54561-002

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application Tooling Part Link

Component Type

Overview

Product Name

Physical

Circuits (Loaded)

Gender

Packaging Type

Temperature Range - Operating

N/A

Tray

-40°C to +85°C

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

Search Parts in this Series

54561Series

Use With

54560 Upper Housing, 54559 Receptacle

Housing

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Japan

Description

Product #

Clamp Tool For MIL 0572525100

IDT Connector

This document was generated on 06/02/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
