Embedded Wireless
Device Server
Upgrade to wireless – quickly and easily
Form factor compatible with our Micro and
Micro100 boards
“Plug and Play” wireless connectivity
Wireless security using 128-bit WEP and WPA-PSK, TKIP
End-to-end security using 256-bit Rijndael encryption
WiMicro – The Easy Way to Upgrade Ethernet-enabled
Products to 802.11 Wireless Networking
The WiMicro
™
board provides a quick and easy
solution for adding 802.11 wireless connectivity for
Lantronix customers who already integrate our Cobox-
Micro or Micro100 embedded Ethernet device servers.
Usually requiring minimal, or zero, modification to
the existing design, WiMicro not only provides the
flexibility for existing OEM customers to offer Ethernet
and/or wireless in their products, but makes the
transition smooth without increasing engineering
investment or time-to-market.
speed serial ports. To enable access to a local
network or the Internet, WiPort integrates a feature
rich TCP/IP network stack, OS and an embedded
web server. Flash memory provides maintenance-free,
non-volatile storage of web pages, and allows remote
download of any future system software/firmware
upgrades. All of this combines to give you a complete,
easy-to-deploy wireless networking solution.
FCC Certified
Furthermore, WiPort is certified by the Federal
Communications Commission (FCC). This offers
solution providers and OEMs automatic FCC approval
for devices implementing WiPort, ultimately eliminating
the need for companies to run specific 802.11 testing.
You can leverage the Lantronix FCC license grant by
simply adding the grant number to your label. No
additional 802.11 intentional radiator testing must be
done to satisfy the FCC. This simplifies the process,
accelerates time to market and significantly reduces
the cost of bringing a product to market.
Proven WiPort Technology
The WiMicro board allows a Lantronix WiPort
™
embedded 802.11 wireless device server to plug
directly into the existing interface and uses the same
mounting holes as the original Micro and Micro100
products. The LEDs and antenna are positioned in the
same locations as the original Micro/Micro100 LEDs
and Ethernet RJ45 connector making this a simple
drop in solution.
Bulletproof Security
With 128-bit WEP and WPA (PSK, TKIP) encryption,
WiPort offers the highest level security available in
an embedded device server. It also features 256-bit
Advanced Encryption Standards (AES, Rijndael) for
an end-to-end encrypted connection.
Compact Size – Powerful Functionality
About the size of a matchbook, WiPort offers the
highest level of integration available in a device
server. Within a compact package are a DSTni x86
processor, memory, 802.11 transceiver and dual high-
Embedded Wireless Device Server
WiMicro
Embedded web server

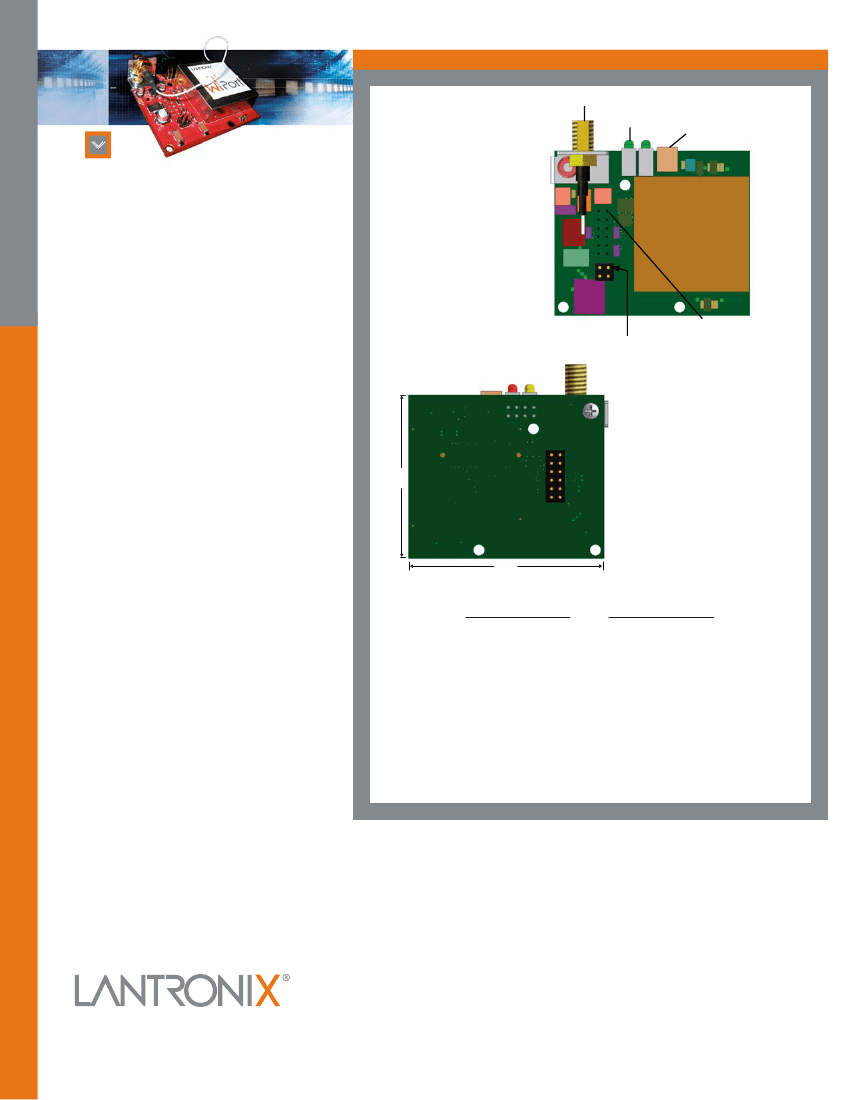

WiMicro Board Layout and Pinouts
Antenna Connector
(con4) LED's
Reset Switch
Features and Specifications
Serial Interface
(One Full serial port,One 3-wire serial port with Rx,Tx,GND)
TTL Level
(Asynchronous)
– 5volt tolerant
TOP VIEW
WiMicro
Data Rates
300 bps to 230 Kbps
Serial Line Formats
Characters:
7 or 8 data bits
Stop Bits:
1 or 2
Parity:
Odd, even, none
Modem Controls
DTR, RTS, CTS, DCD
Flow Control
XON/XOFF
(Software)
CTS/RTS
(Hardware)
Wireless Interface
802.11
Indicators (LED)
Serial Channel Status
Wireless Link Status
Diagnostics
Management
HTTP
SNMP
Serial Login
Telnet Login
Protocol Support
ARP, UDP,TCP, ICMP,Telnet,TFTP, AutoIP, DHCP for network
communications
TCP, UDP and Telnet for connections to the serial port
TFTP for firmware updates
IP for addressing, routing and data block handling over
the network
UDP for typical datagram applications in which devices
interact with other devices without maintaining a
point-to-point connection
Security
Optional 256-bit AES
(End to End)
128-bit Wireless WEP Encryption
WPA Wireless
(PSK authentication,TKIP encryption)
Architecture
Lantronix DSTni
™
Processor
SRAM:
256 KB – zero wait
Internal Flash:
1 MB
Integrated WiPort
(wireless 802.11b)
Internal Web Server
System Software (Firmware)
Flash ROM standard:
Downloadable from a TCP/IP host
(TFTP)
or across the serial port
I/O Control
4 GPIO pins on a header
Physical Dimensions (W x L)
58.6mm x 49.0mm
(2.3" x 1.9")
2.3"
JP1 (2 x 6 Pins) TTL
Pin
1
2
3
4
5
6
7
8
9
10
11
12
Function
+5V
GND
RXA (Input)
TXA (Output)
RTSA (Output)
DTRA (Output)
CTSA (Input)
DCDA (Input)
RVA/TX_EN
RESET #
RXB (Input)
TXB (Output)
Embedded Wireless Device Server
(JP1) Main Connector Pin#1
(JP3) CP Connector Pin#1
BOTTOM VIEW
Power
WiMicro Voltage:
5VDC +/- 5%
WiMicro Current:
460mA peak current
Environmental
Standard Temperature Range:
0°C to 70°C
(32°F to 158°F)
Storage Temperature:
-40°C to 85°C
(-40°F to 185°F)
1 9"
Pin
1
2
3
4
(JP3) CP Connector
Function
CP1
CP7
CP4
CP8
Warranty
2-year limited warranty
Part Number and Description
WM11A0002-01
WiMicro board with LEDS, TTL
pin header on bottom, GPIO pin
header on top
15353 Barranca Parkway
|
Irvine
|
CA 92618
|
USA
|
Tel: 800.526.8764
|
Fax: 949.450.7249
|
www.lantronix.com
©2006, Lantronix, Inc. Lantronix is a registered trademark and WiMicro and WiPort are trademarks of Lantronix, Inc. All other trademarks are the property of their respective owners. Specifications subject to
change without notice. All rights reserved. 910-478 03/06 DGS2500
