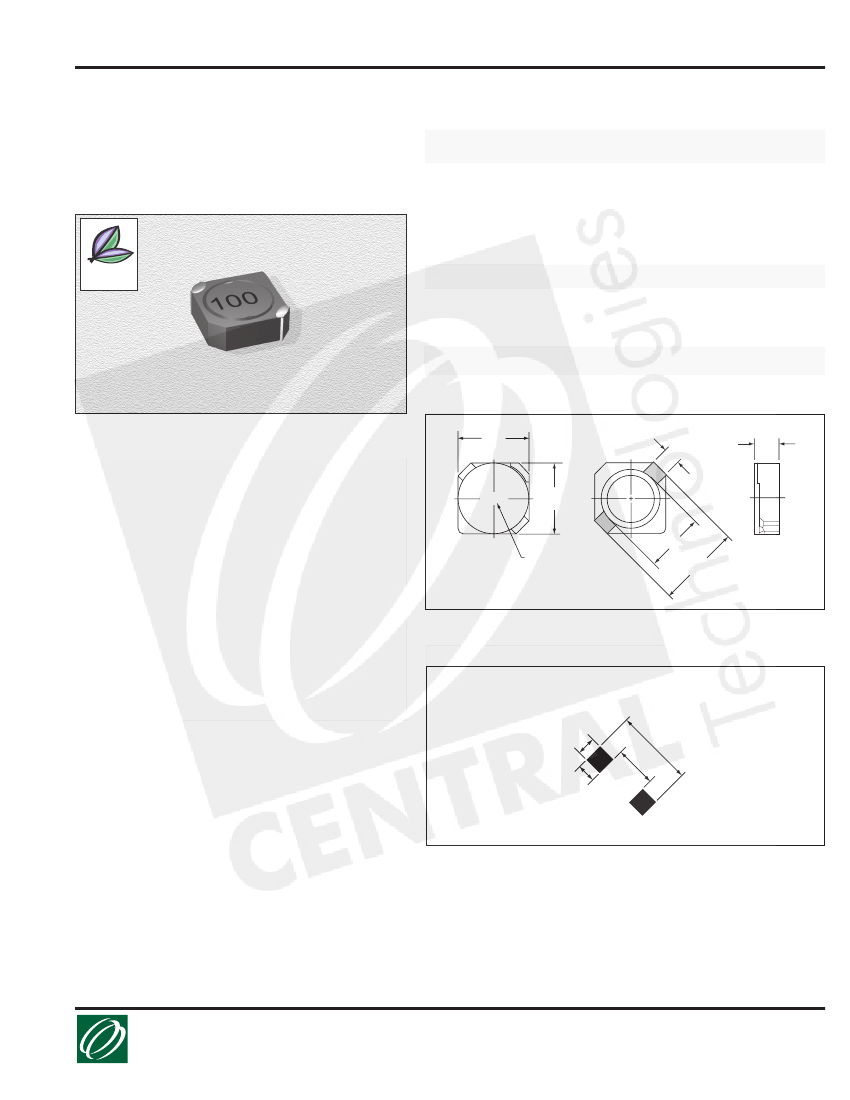

Power Inductors - Shielded
ctparts.com
CTCDRH2D14F
Series
From 1.5 µH to 12 µH
Not shown at actual size.
SPECIFICATIONS
Part are available in ±30% tolerance only
Test
Freq.
(KHz)
100
100
100
100
100
100
100
100
100
100
100
100
DCR
Max.
Ω
(mΩ)
63
75
114
116
158
205
238
256
282
307
338
470
Rated DC
Current
(A)
1.80
1.65
1.50
1.35
1.20
1.10
1.00
0.95
0.85
0.80
0.70
0.62
Temp. Rise
Current Typ.
(A)
1.80
1.80
1.50
1.40
1.24
1.12
1.00
0.98
0.92
0.80
0.76
0.64
Part
Number
CTCDRH2D14F-1R5N
CTCDRH2D14F-1R8N
CTCDRH2D14F-2R2N
CTCDRH2D14F-2R7N
CTCDRH2D14F-3R3N
CTCDRH2D14F-3R9N
CTCDRH2D14F-4R7N
CTCDRH2D14F-5R6N
CTCDRH2D14F-6R8N
CTCDRH2D14F-8R2N
CTCDRH2D14F-100N
CTCDRH2D14F-120N
Inductance
(µH)
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
Compliant
RoHS
PHYSICAL DIMENSIONS
Size
mm
inches
A
Max.
3.2
0.126
B
Max.
3.2
0.126
C
1.0
0.04
D
2.1
0.08
E
3.3
0.130
F
Max.
1.55
0.061
CHARACTERISTICS
Description:
SMD (shielded) power inductor
Applications:
Power supplies for VTR, OA equipment, LCD
televisions, PC notebooks, portable communication equipment,
DC/DC converters, etc.
Operating Temperature:
-30°C to +100°C
Rated Current:
The rated current indicates the current when the
inductance decreases to 65% over it’s nominal or D.C. current
when the temperature rising
ΔT=40°C
lower, whichever is lower.
Inductance Tolerance:
±30%
Testing:
Tested on a HP4285A at 100 KHz , 0.25Vrms , 0Adc
Packaging:
Tape & Reel
Marking:
Parts are marked with inductance code.
Miscellaneous:
RoHS Compliant
Additional Information:
Additional electrical & physical
information available upon request
Samples available. See website for ordering information.
B
F
C
XXX
A
Marking
D
PAD LAYOUT
Unit: mm
3
1.
12.26.06
Technologies
Manufacturer of Passive and Discrete Semiconductor Components
800-684-5322
Inside US
949-453-1811
Outside US
Copyright © 2005 by CT Magnetics, DBA Central Technologies. All rights reserved.
CT Magnetics reserves the right to make improvements or change specifications without notice
CENTRAL
1.
3
E
4.
3
1.
7
