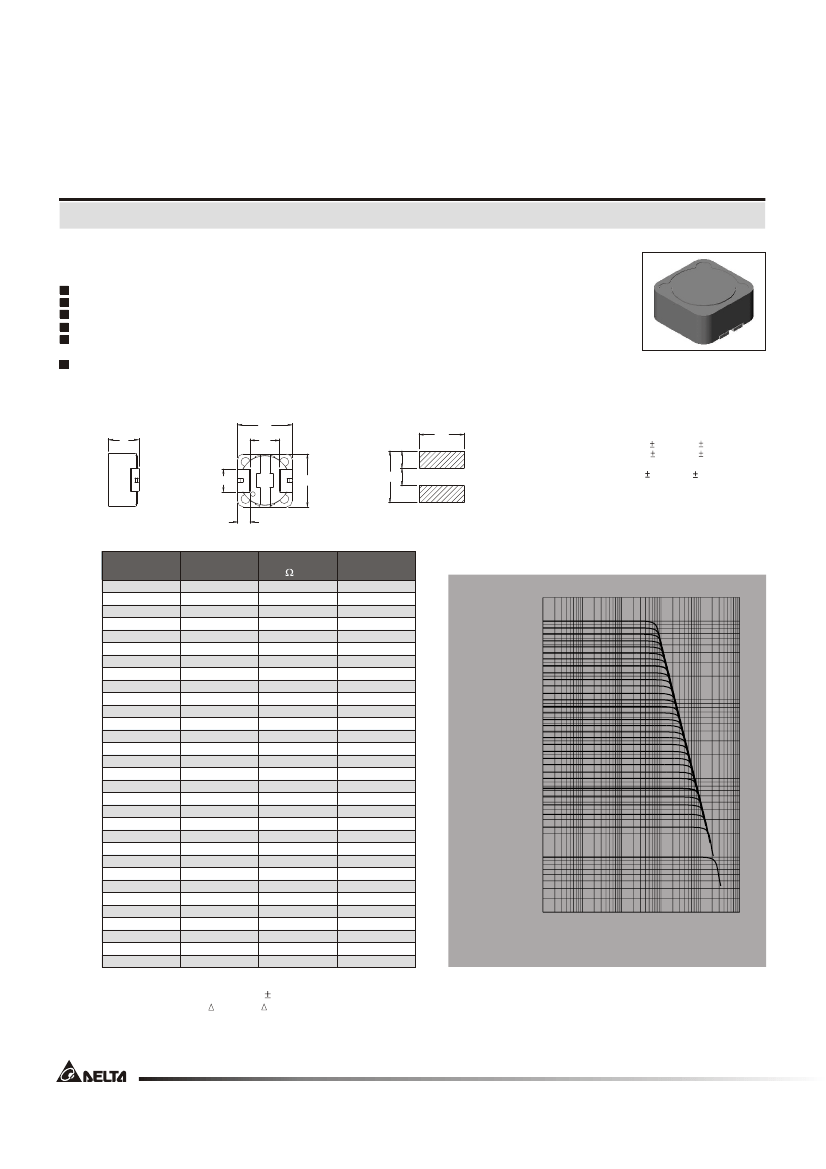

SMT Power Inductor

SIQ127RL Type

Features

Low profile(8.0mm max. height), high current(10A,1.2uH) SMD type.

Magnetically shielded, suitable for high density mounting.

High energy storage and low DCR.

Provided with embossed carrier tape packing.

Ideal for power source circuits, DC-DC converter, DC-AC inverters

inductor applications.

In addition to the standard versions shown here, customized inductors

are available to meet your exact requirements.

Mechanical Dimension :

¡Ó

RECOMMENDED PAD

5.4

2.9

¡Ó

12.8

7.0

UNIT:mm/inch

A = 12.2 0.3/0.480 0.012

B = 12.2 0.3/0.480 0.012

C = 8.0/0.315 Max.

D = 7.6 0.3/0.299 0.012

E = 5.0/0.197

F = 2.2/0.087

Electrical Characteristics :

PART NO.

SIQ127RL -1R0

SIQ127RL -2R4

SIQ127RL -3R5

SIQ127RL -4R6

SIQ127RL -5R8

SIQ127RL -7R4

SIQ127RL -100

SIQ127RL -120

SIQ127RL -150

SIQ127RL -180

SIQ127RL -220

SIQ127RL -270

SIQ127RL -330

SIQ127RL -390

SIQ127RL -470

SIQ127RL -560

SIQ127RL -680

SIQ127RL -820

SIQ127RL -101

SIQ127RL -121

SIQ127RL -151

SIQ127RL -181

SIQ127RL -221

SIQ127RL -271

SIQ127RL -331

SIQ127RL -391

SIQ127RL -471

SIQ127RL -561

SIQ127RL -681

SIQ127RL -821

SIQ127RL -102

At 25

: 1.0~7.4uH 100KHz, 0.1V 10~1000uH 1KHz, 1V

(uH)

1.0

2.4

3.5

4.6

5.8

7.4

100

120

150

180

220

270

330

390

470

560

680

820

1000

DCR

(m )

MAX

6.5

10.5

12.4

13.8

16.2

17.7

19.5

21.3

26.4

28.0

36.4

41.6

53.3

60.5

78.0

90.0

120.0

119.0

151.0

169.0

227.0

299.0

338.0

419.0

471.0

572.0

741.0

852.0

1130.0

1240.0

1500.0

RATED

(Adc)

14.00

10.30

9.30

9.10

8.60

7.40

6.70

6.45

5.65

5.10

4.70

4.20

3.90

3.50

3.25

2.90

2.60

2.40

2.10

1.90

1.80

1.55

1.45

1.30

1.20

1.10

1.00

0.95

0.85

0.75

0.70

1000.00

100.00

INDUCTANCE (uH)

10.00

102

821

681

561

471

391

331

271

221

181

151

121

101

820

680

560

470

390

330

270

220

180

150

120

100

7R4

5R8

4R6

3R5

2R4

1R0

1.00

0.00

0.01

0.10

1.00

10.00

100.00

CURRENT (A)

1. Tolerance of inductance

1.0~7.4uH+40/-20%, 10~1000uH 20%

2. I

RATED

: rated current L<25% , T< 45

at I

RATED.

3. Operating temperature : -20

to 105

(including self-temperature rise)

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG)

252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.

TEL: 886-3-3591968; FAX: 886-3-3591991

http://www.deltaww.com
