DT12J11B202QF Overview

miniature double pole rocker switches

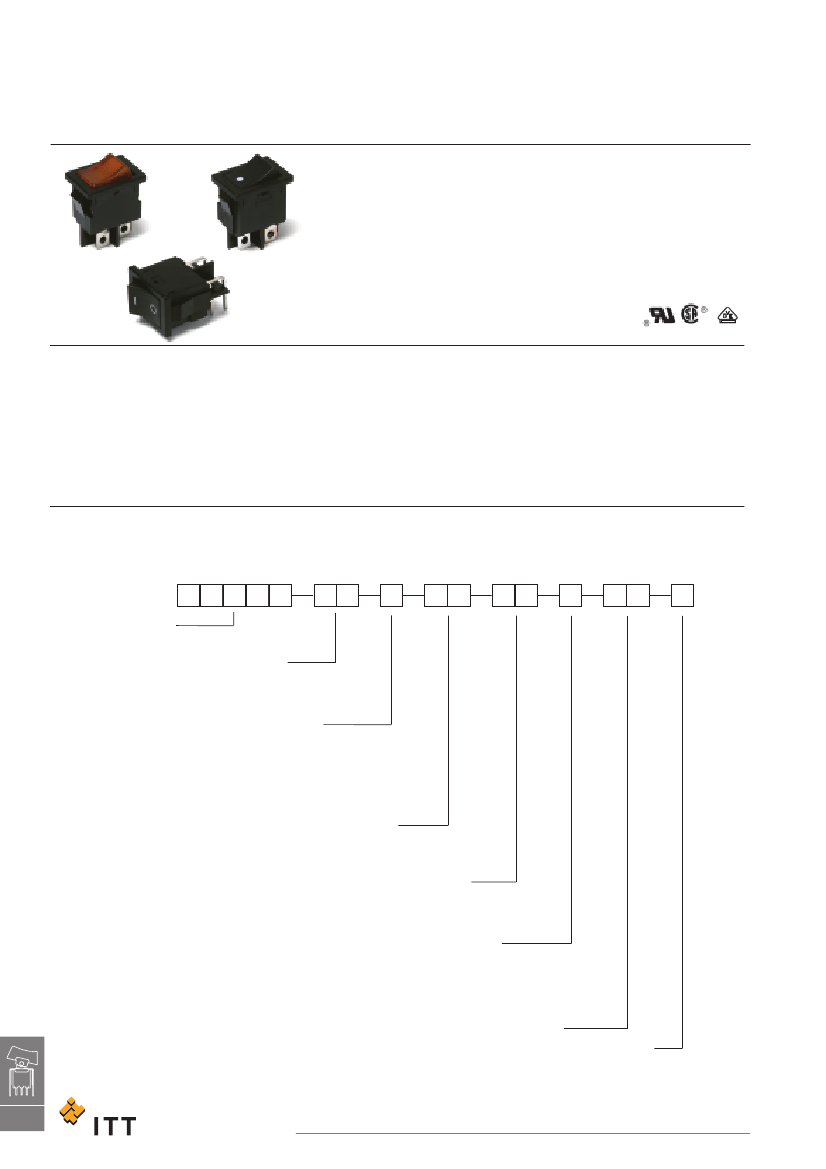

DT Series
Miniature Double Pole Rocker Switches
NEW!
Features/Benefits
Typical Applications
Illuminated versions available
Small appliances
Double pole switching in
Computers and peripherals
miniature package
Medical instrumentation
Snap-in mounting
RoHS compliant
Models Available
Specifications
CONTACT RATING:
UL/CSA: 8 AMPS @ 125 VAC, 4 AMPS @ 250 VAC
VDE: 10 AMPS @ 125 VAC, 6 AMPS @ 250 VAC.
QH version: 16 AMPS @ 125 VAC, 10 AMPS @ 250 VAC
ELECTRICAL LIFE: 10,000 make and break cycles at full load.
INSULATION RESISTANCE: 10
8
min.
DIELECTRIC STRENGTH: 1,500 VRMS @ sea level.
OPERATING TEMTERATURE: -20ºC to +85ºC
Materials
HOUSING AND ACTUATOR: 6/6 nylon (UL94V-2), black, matte finish.
ILLUMINATED ACTUATOR: Polycarbonate, matte finish.
CENTER CONTACTS: Silver plated, copper alloy.
END CONTACTS: Silver plated AgCdo.
ALL TERMINALS: Silver plated, copper alloy.
NOTE:
For the latest information regarding RoHS compliance, please go
to: www.ittcannon.com/rohs.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown
and described on pages H–67 through H–70. For additional options not shown in catalog, consult Customer Service Center.
Switch Function
DT12
SPST On-None-Off
DT22
DPST On-None-Off
Actuator
J1
Rocker
J2
Two-tone rocker
J3
Illuminated rocker
Actuator Color
2
Black
1
White
3
Red
R
Red, illuminated
A
Amber, illuminated
G
Green, illuminated
Mounting Style/Color
S2
Snap-in, black
S1
Snap-in, white
B2
Recessed snap-in bracket, black
G2
Guard, black
Termination
15
.187” quick connect
02
PC Thru-hole
A
Right angle, PC thru-hole
Rocker
Actuator Marking
(NONE)
No marking
D
ON-OFF
H
”O l” - international ON-OFF
N
Large dot
P
”O -” international ON-OFF
* QF available with termination 15 only.
Contact Rating
QA
Silver (UL/CSA)
QF
Silver (VDE)*
QH
Silver (High current)*
Lamp Rating
(NONE)
No lamp
7
125 VAC neon
8
250 VAC neon

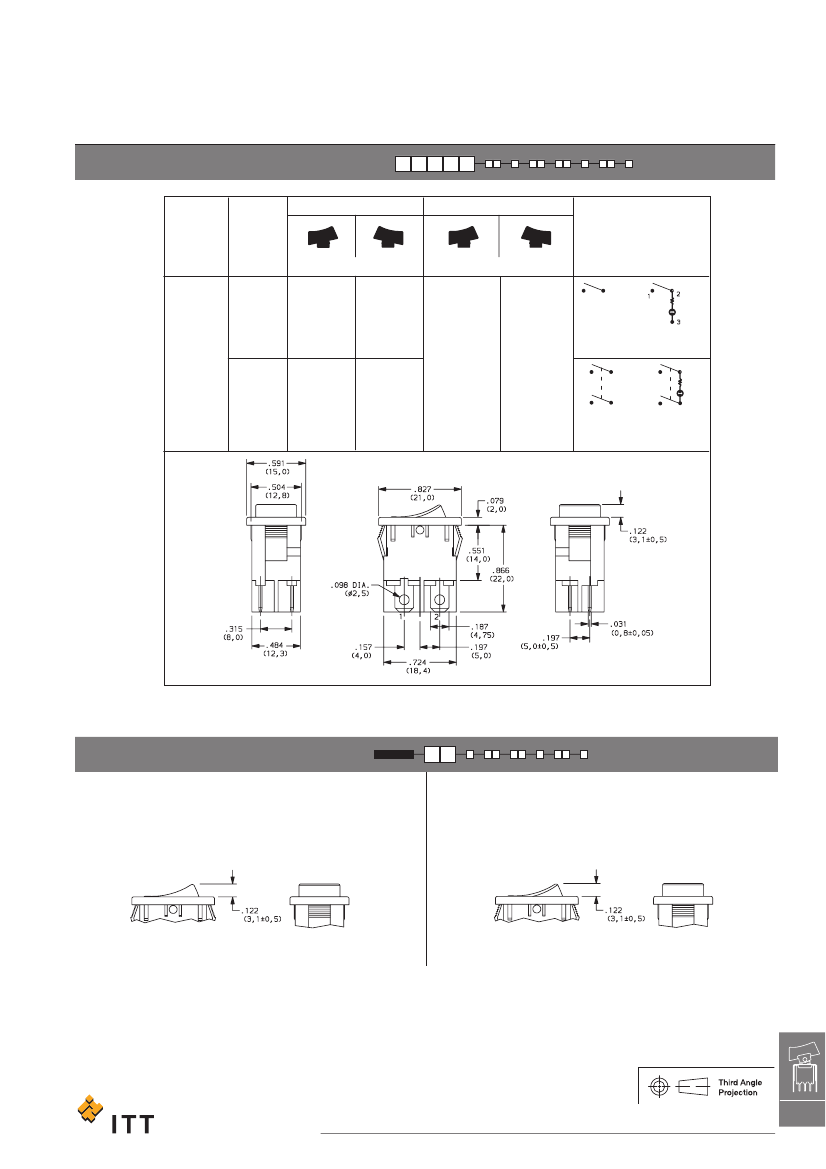

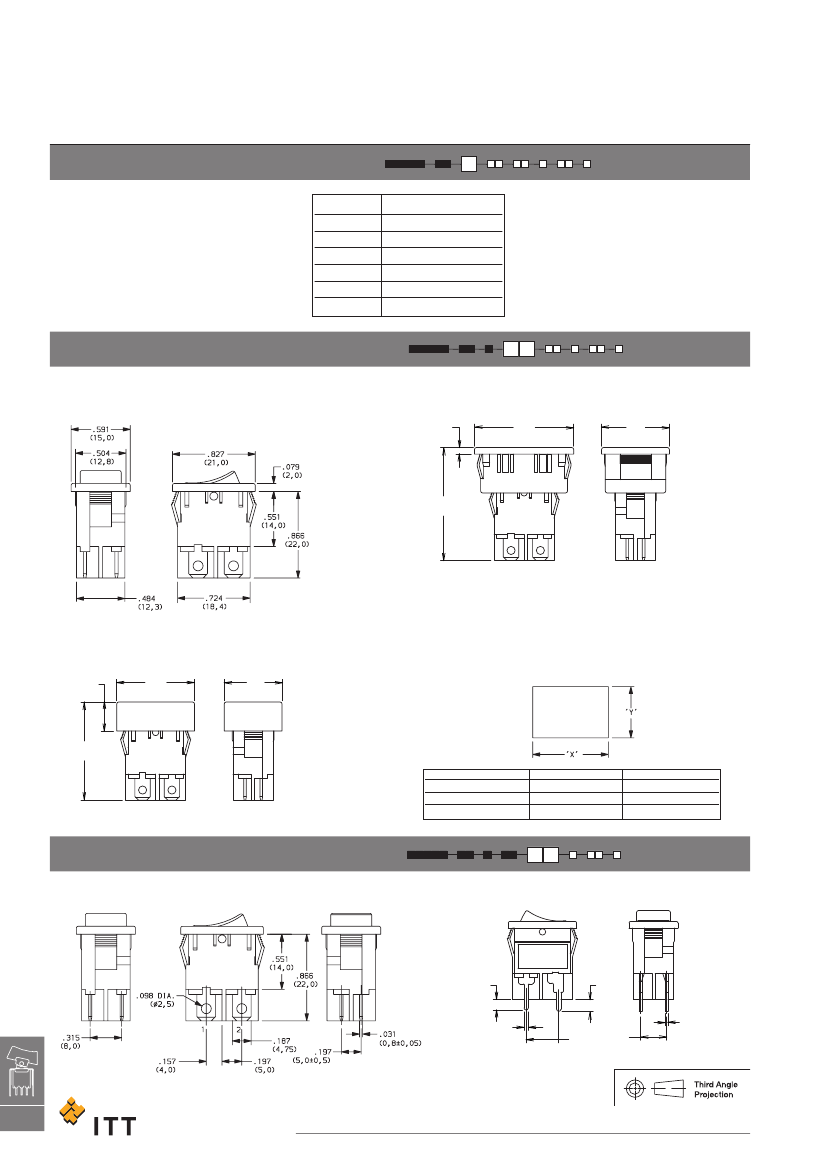

Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
H
H–67
www.ittcannon.com
