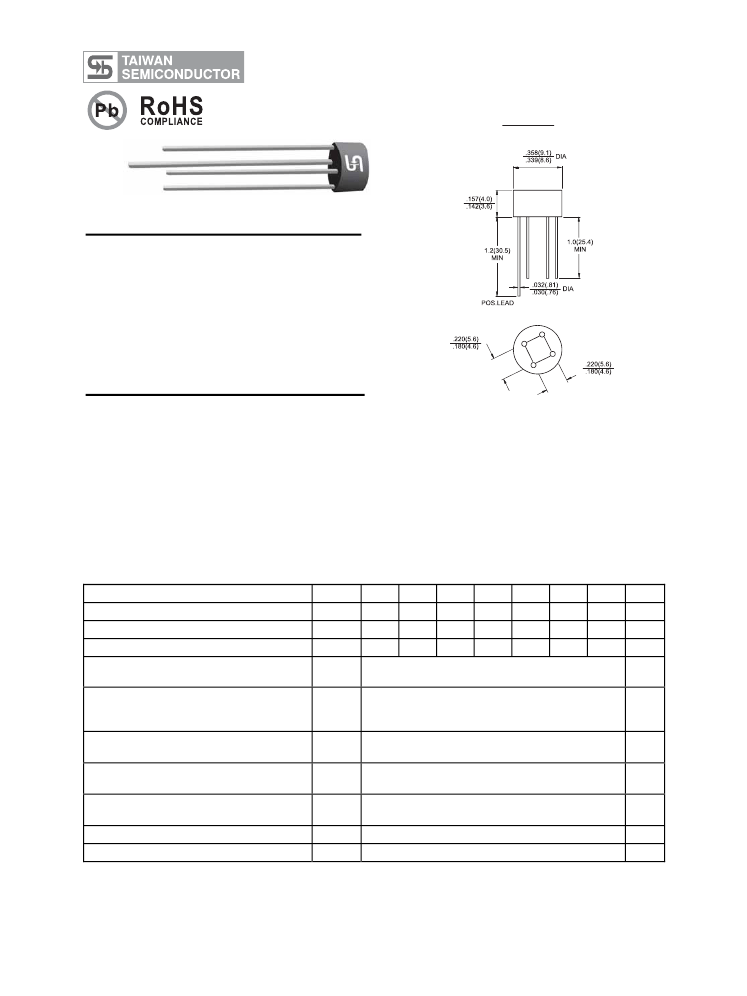

W005 - W10
Single Phase 1.5 AMPS. Silicon Bridge Rectifiers
RB-15
Features
UL Recognized File # E-96005
Surge overload ratings to 40 amperes peak
Ideal for printed circuit board
Reliable low cost construction technique
results in inexpensive product
High temperature soldering guaranteed:
260
o
C / 10 seconds / 0.375” ( 9.5mm )
lead length at 5 lbs., ( 2.3 kg ) tension
Mechanical Data
Case: Molded plastic
Lead: solder plated
Polarity: As marked
Weight: 1.07 grams
Dimensions in inches and (millimeters)
Maximum Ratings and Electrical Characteristics
Rating at 25
o
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
@T
A
= 50
o
C
Peak Forward Surge Current, 8.3 ms Single
Half Sine-wave Superimposed on Rated Load
(JEDEC method )
Maximum Instantaneous Forward Voltage
@ 1.5A
Maximum DC Reverse Current @ T
A
=25
o
C
at Rated DC Blocking Voltage @ T
A
=125
o
C
Symbol W005 W01 W02 W04 W06 W08 W10
Units
V
RRM
50
100 200 400 600 800 1000
V
V
RMS
35
70
140 280 420 560 700
V
V
DC
50
100 200 400 600 800 1000
V
I
(AV)
I
FSM
V
F
I
R
1.5
40
1.0
A
A
V
10
uA
500
uA
Typical Thermal Resistance (Note)
R
θJA
36
o
C/W
R
θJL
13
o
Operating Temperature Range
T
J
-55 to +125
C
o
Storage Temperature Range
T
STG
-55 to +150
C
Note: Thermal Resistance from Junction to Ambient and from Junction to Lead Mounted on P.C.B.
With 0.4” x 0.4” (10mm x 10mm) Copper Pads.
Version: A06
RATINGS AND CHARACTERISTIC CURVES (W005 THRU W10)
FIG.1- MAXIMUM FORWARD CURRENT DERATING
CURVE
FIG.2- TYPICAL REVERSE CHARACTERISTICS
PER BRIDGE ELEMENT
1.6
10
AVERAGE FORWARD CURRENT. (A)
1.4
INSTANTANEOUS REVERSE CURRENT. ( A)
1.2
1.0
0.8
0.6
0.4
0.2
0
20
40
80
100
60
o
AMBIENT TEMPERATURE. ( C)
120
140
Tj=125
0
C
1
0.1
50
FIG.3- MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT PER BRIDGE ELEMENT
Tj=25
0
C
PEAK FORWARD SURGE CURRENT. (A)
0.01
40
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE. (%)
30
1000
20
600
10
JUNCTION CAPACITANCE.(pF)
FIG.4- TYPICAL JUNCTION CAPACITANCE
500
Tj=25
0
C
0
1
2
5
10
20
NUMBER OF CYCLES AT 60Hz
50
100
400
300
200
100
0
0.1
20
10
FIG.5- TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS PER BRIDGE ELEMENT
0.5
1
2
5
10
20
50 100
200
500 800
INSTANTANEOUS FORWARD CURRENT. (A)
REVERSE VOLTAGE. (V)
Tj=25
o
C
Pulse Width=300 s
1% Duty Cycle
1
0.1
0.01
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
FORWARD VOLTAGE. (V)
