7021X5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 7021X5

7021X5: DescriptionStandard led - smd grn 2.1V 20ma; CategoryLED optoelectronic/LED photoelectric; File Size66KB，1 Pages; ManufacturerChicago Miniature; Environmental Compliance

Download Datasheet Parametric Compare View All

7021X5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	7021X5	-	-	View	Buy Now

7021X5 Overview

Standard led - smd grn 2.1V 20ma

7021X5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Chicago Miniature
package instruction	PLASTIC PACKAGE-2
Reach Compliance Code	unknown
color	GREEN
Configuration	SINGLE
Maximum forward current	0.02 A
Lens type	DIFFUSED
Nominal luminous intensity	6.9 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.1 mm
method of packing	TAPE AND REEL
peak wavelength	560 nm
shape	RECTANGULAR
size	1.6 mm
surface mount	YES
perspective	70 deg
Base Number Matches	1

Preview

Download Datasheet

View All

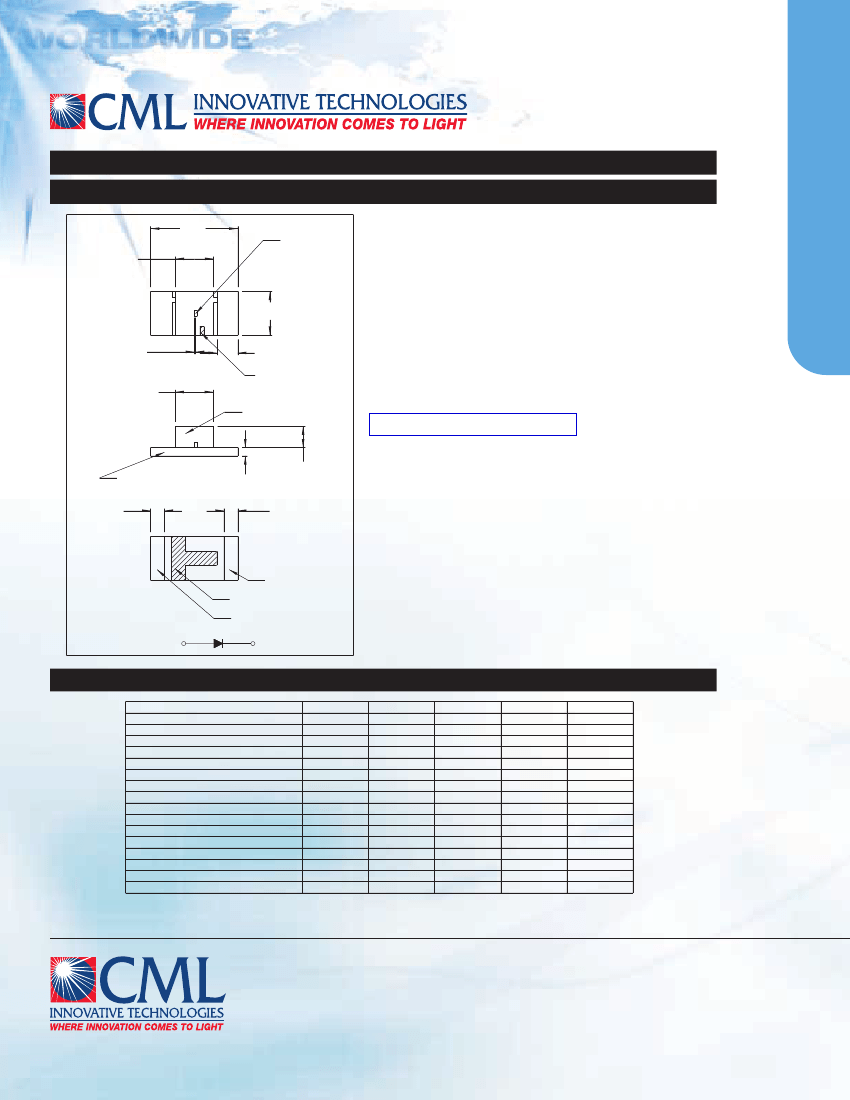

7021X Series Surface Mount LEDs Reverse Mounting

DESCRIPTION AND FEATURES

3.20

LE D C HIP

1.40

Surface Mount Technology

• Tape and reel packaged for high-speed autoinsertion.

• Convection and vapor-phase reflow compatible.

• Compact form enables high density placement.

• Packaged 3000 per reel.

Leading Edge LED Optoelectronic Performance

• Consistent high brightness.

Exceptional Reliability

• Stringent process controls assure quality.

• Extensive qualification testing to meet strictest

requirements.

• Designed to permit easy post-reflow solder joint

inspection.

• Solder pad geometry on page 1-X1.

1.60

0.10

0.75

C AT HODE MAR K

1.40

P LAS T IC

0.80

S UB S T R AT E

0.30

0.50

C AT HODE

P OLAR IT Y MAR K

ANODE

All dimensions

in mm.

ELECTRO-OPTICAL CHARACTERISTICS AND RATINGS

P AR T NUMB E R

Output C olor

Diffused/Non-Diffused

P ackage C olor

P ower Dissipation (mW)

P eak F orward C urrent Max. (mA)

R everse V oltage (IR =100µA) (V )

Operating temperature (°C )

S torage T emperature (°C )

F orward Voltage Typ. (IF =20mA)

F orward Voltage Max. (IF =20mA)

Lead S older Time @ 260°C (seconds)

Luminous Intensity Min. (IF=20mA)

Luminous Intensity Typ. (IF=20mA)

P eak Wavelength (IF =20mA)

V iewing Angle (degrees)

R ated C urrent (mA)

7021X1

R ed

Diffused

C lear

57.5

-30 to +85

-40 to +100

1.7

2.3

7.6

12.7

660

7021X3

Orange

Diffused

C lear

-30 to +85

-40 to +100

2.2

2.8

2.2

3.7

605

7021X5

G reen

Diffused

C lear

-30 to +85

-40 to +100

2.1

2.8

4.1

6.9

560

7021X7

Y ellow

Diffused

C lear

-30 to +85

-40 to +100

2.2

2.8

2.2

3.7

580

7021X15

G reen

Diffused

C lear

-30 to +85

-40 to +100

2.1

2.8

1.6

2.7

555

America:

CML Innovative Technologies,Inc.

147 Central Avenue

Hackensack -NJ 07601 -USA

Tel:1-201-489 -8989

Fax:1-201-489 -6911

e-mail:americas@cml-it.com

Europe:

CML Technologies GmbH &Co.KG

Robert-Bunsen-Str.1

67098 Bad Dürkheim -GERMANY

Tel:+49 (0)6322 9567-0

Fax:+49 (0)6322 9567-88

e-mail:europe@cml-it.com

Asia:

CML Innovative Technologies,Inc.

61 Aida Street

Singapore 459975

Tel:(65)9630 -5003

e-mail:asia@cml-it.com

CML-IT reserves the right to make specification revisions that enhance the design and/or performance of the product

7021X Series Surface Mount LEDs

Reverse Mounting

7021X5 Related Products

	7021X5	7021X1	7021X15	7021X3	7021X7
Description	Standard led - smd grn 2.1V 20ma	Standard LED - smd red 1.7V 20ma	Standard led - smd grn 2.1V 20ma	Standard led - smd org 2.2V 20ma	Standard led - smd yel 2.1V 20ma
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Chicago Miniature	Chicago Miniature	Chicago Miniature	Chicago Miniature	Chicago Miniature
package instruction	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2
Reach Compliance Code	unknown	unknow	unknow	unknow	unknow
color	GREEN	RED	GREEN	ORANGE	YELLOW
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A
Lens type	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED
Nominal luminous intensity	6.9 mcd	12.7 mcd	2.7 mcd	3.7 mcd	3.7 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	1.1 mm	1.1 mm	1.1 mm	1.1 mm	1.1 mm
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
peak wavelength	560 nm	660 nm	555 nm	605 nm	580 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm
surface mount	YES	YES	YES	YES	YES
perspective	70 deg	75 deg	70 deg	70 deg	70 deg
Base Number Matches	1	1	1	1	1
