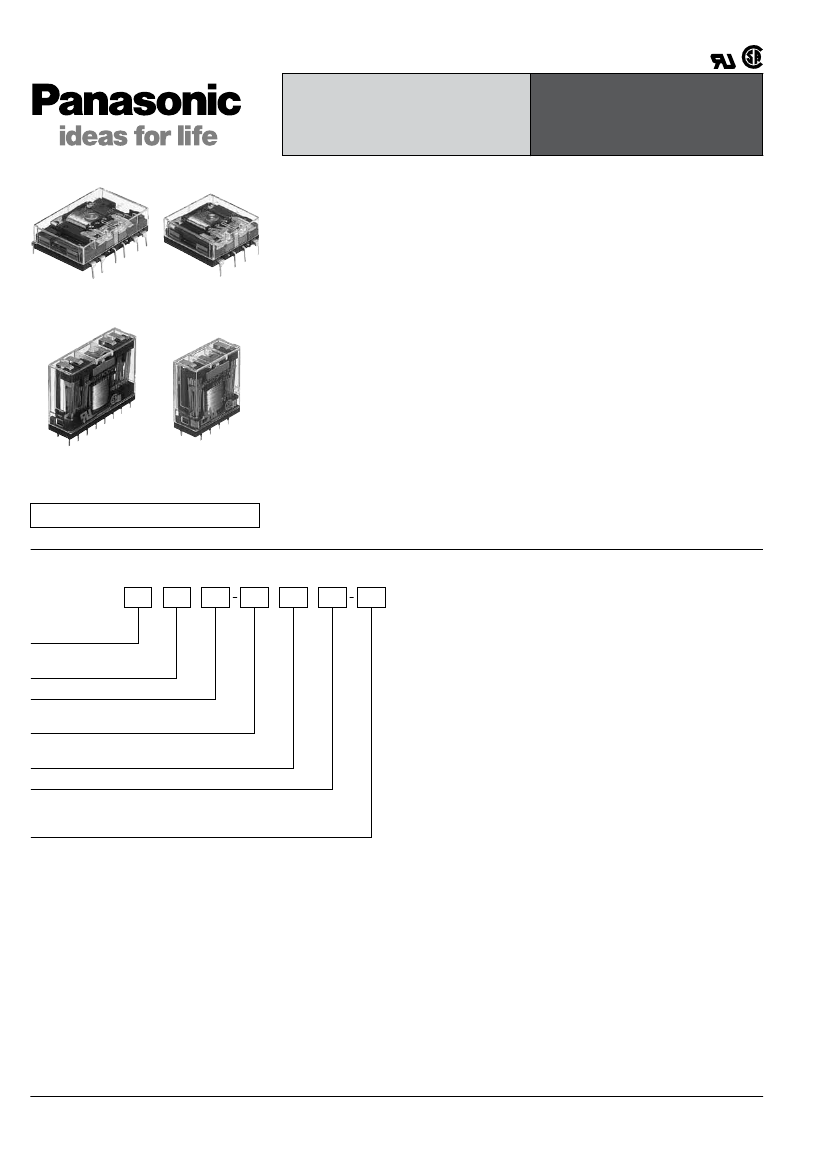

NC
Transistor drive
2c/4c 5A slim power relays
NC RELAYS
TYPICAL APPLICATIONS
1. Information processing and telecom
equipment such as computers and
terminal devices.
2. Gas hot air heating equipment and
air conditioners.
3. Timer, temperature controller and
other equipment that requires form
factor reduction.
4. Transmission and measuring
devices such as facsimile machines
and electronic counting devices.
5. Control panels for industrial
equipment such as machine tools,
factory automation devices, and NC
machines.
FEATURES
1. Compact, slim design
Use of high-performance flat
electromagnetic design achieves
10.9 mm
.429 inch
profile, flat type thin
package. Slim type, with width of
11.2 mm
.441 inch,
enables high-density
mounting on PC boards.
2. High reliability
Provides stable contact pressure needed
for card lift-off contact driver method. The
use of Ac clad twin contacts provides
stable contact resistance and ensures
high contact reliability.
3. Compatible with all major safety
standards
UL and CSA certified, and complies with
Japanese Electrical Appliance and
Material Control Law.
4. Socket and terminal are available.
NC4 Flat type
(PC board type)
NC2 Flat type
(PC board type)
NC4 Slim type
(Plug-in type)
NC2 Slim type
(PC board type)
Compliance with RoHS Directive
ORDERING INFORMATION
NC
2: 2 Form C
4: 4 Form C
Nil: Standard type
EB: Amber sealed type
D: Twin (bifurcated) contact
Nil: Slim type
J: Flat type
Nil: Plug-in type
P: PC board type
Nil: Single side stable
Nominal coil voltage
DC 3, 5, 6, 12, 24, 48, 100V
AC 12, 24, 48, 100V
Notes: 1. Certified by UL and CSA
2. Amber sealed types are sealed and filled with inert gas (nitrogen gas).
Sealed construction with terminals, case and base sealed shut with sealing resin.
D
All Rights Reserved © COPYRIGHT Panasonic Electric Works Co., Ltd.
NC
TYPES
1. Standard type
1) Flat type
Contact arrangement
Nominal coil voltage
12V AC
24V AC
48V AC
100V AC
2 Form C
3V DC
5V DC
6V DC
12V DC
24V DC
48V DC
100V DC
12V AC
24V AC
48V AC
100V AC
3V DC
4 Form C
5V DC
6V DC
12V DC
24V DC
48V DC
100V DC
Standard packing: Carton: 20 pcs.; Case: 200 pcs.
PC board type
Part No.
NC2D-JP-AC12V
NC2D-JP-AC24V
NC2D-JP-AC48V
NC2D-JP-AC100V
NC2D-JP-DC3V
NC2D-JP-DC5V
NC2D-JP-DC6V
NC2D-JP-DC12V
NC2D-JP-DC24V
NC2D-JP-DC48V
NC2D-JP-DC100V
NC4D-JP-AC12V
NC4D-JP-AC24V
NC4D-JP-AC48V
NC4D-JP-AC100V
NC4D-JP-DC3V
NC4D-JP-DC5V
NC4D-JP-DC6V
NC4D-JP-DC12V
NC4D-JP-DC24V
NC4D-JP-DC48V
NC4D-JP-DC100V
2) Slim type
Contact arrangement
Nominal coil voltage
12V AC
24V AC
48V AC
100V AC
3V DC
5V DC
6V DC
12V DC
24V DC
48V DC
100V DC
12V AC
24V AC
48V AC
100V AC
3V DC
5V DC
6V DC
12V DC
24V DC
48V DC
100V DC
Plug-in type
Part No.
NC2D-AC12V
NC2D-AC24V
NC2D-AC48V
NC2D-AC100V
NC2D-DC3V
NC2D-DC5V
NC2D-DC6V
NC2D-DC12V
NC2D-DC24V
NC2D-DC48V
NC2D-DC100V
NC4D-AC12V
NC4D-AC24V
NC4D-AC48V
NC4D-AC100V
NC4D-DC3V
NC4D-DC5V
NC4D-DC6V
NC4D-DC12V
NC4D-DC24V
NC4D-DC48V
NC4D-DC100V
PC board type
Part No.
NC2D-P-AC12V
NC2D-P-AC24V
NC2D-P-AC48V
NC2D-P-AC100V
NC2D-P-DC3V
NC2D-P-DC5V
NC2D-P-DC6V
NC2D-P-DC12V
NC2D-P-DC24V
NC2D-P-DC48V
NC2D-P-DC100V
NC4D-P-AC12V
NC4D-P-AC24V
NC4D-P-AC48V
NC4D-P-AC100V
NC4D-P-DC3V
NC4D-P-DC5V
NC4D-P-DC6V
NC4D-P-DC12V
NC4D-P-DC24V
NC4D-P-DC48V
NC4D-P-DC100V
2 Form C
4 Form C
Standard packing: Carton: 20 pcs.; Case: 200 pcs.
All Rights Reserved © COPYRIGHT Panasonic Electric Works Co., Ltd.
NC
2. Amber type
1) Flat type
Contact arrangement
Nominal coil voltage
3V DC
5V DC
6V DC
2 Form C
12V DC
24V DC
48V DC
100V DC
3V DC
5V DC
6V DC
4 Form C
12V DC
24V DC
48V DC
100V DC
Standard packing: Carton: 20 pcs.; Case: 200 pcs.
PC board type
Part No.
NC2EBD-JP-DC3V
NC2EBD-JP-DC5V
NC2EBD-JP-DC6V
NC2EBD-JP-DC12V
NC2EBD-JP-DC24V
NC2EBD-JP-DC48V
NC2EBD-JP-DC100V
NC4EBD-JP-DC3V
NC4EBD-JP-DC5V
NC4EBD-JP-DC6V
NC4EBD-JP-DC12V
NC4EBD-JP-DC24V
NC4EBD-JP-DC48V
NC4EBD-JP-DC100V
2) Slim type
Contact arrangement
Nominal coil voltage
3V DC
5V DC
6V DC
2 Form C
12V DC
24V DC
48V DC
100V DC
3V DC
5V DC
6V DC
12V DC
24V DC
48V DC
100V DC
Plug-in type
Part No.
NC2EBD-DC3V
NC2EBD-DC5V
NC2EBD-DC6V
NC2EBD-DC12V
NC2EBD-DC24V
NC2EBD-DC48V
NC2EBD-DC100V
NC4EBD-DC3V
NC4EBD-DC5V
NC4EBD-DC6V
NC4EBD-DC12V
NC4EBD-DC24V
NC4EBD-DC48V
NC4EBD-DC100V
PC board type
Part No.
NC2EBD-P-DC3V
NC2EBD-P-DC5V
NC2EBD-P-DC6V
NC2EBD-P-DC12V
NC2EBD-P-DC24V
NC2EBD-P-DC48V
NC2EBD-P-DC100V
NC4EBD-P-DC3V
NC4EBD-P-DC5V
NC4EBD-P-DC6V
NC4EBD-P-DC12V
NC4EBD-P-DC24V
NC4EBD-P-DC48V
NC4EBD-P-DC100V
4 Form C
Standard packing: Carton: 20 pcs.; Case: 200 pcs.
* For sockets, see page 88.
RATING
1. Coil data
1) Single side stable type (AC)
No. of
poles
Nominal
coil
voltage
12V AC
2 Form C
24V AC
48V AC
100V AC
12V AC
24V AC
48V AC
100V AC
80%V or less of
nominal voltage
(Initial)
10%V or more of
nominal voltage
(Initial)
Pick-up voltage
(at 20°C
68°F)
Drop-out voltage
(at 20°C
68°F)
Nominal operating
current [±10%]
(at 20°C
68°F)
41.5mA
22.5mA
14.0mA
10.5mA
92mA
80%V or less of
nominal voltage
(Initial)
10%V or more of
nominal voltage
(Initial)
45mA
22.5mA
13.0mA
Coil inductance
N.C. condition
—
—
—
—
—
—
—
—
N.O. condition
—
—
—
—
—
—
—
—
Nominal operating
power
0.50VA
0.54VA
0.67VA
1.05VA
1.10VA
1.08VA
1.08VA
1.30VA
110%V of
nominal voltage
110%V of
nominal voltage
Max. applied
voltage
(at 50°C
122°F)
4 Form C
All Rights Reserved © COPYRIGHT Panasonic Electric Works Co., Ltd.
NC
2) Single side stable (DC)
No. of
poles
Nominal
coil
voltage
3V DC
5V DC
6V DC
12V DC
24V DC
48V DC
100V DC
3V DC
5V DC
6V DC
4 Form C
12V DC
24V DC
48V DC
100V DC
* At 20°C
68°F
(Amber type)
80%V or less of
nominal voltage
(Initial)
10%V or more of
nominal voltage
(Initial)
80%V or less of
nominal voltage
(Initial)
10%V or more of
nominal voltage
(Initial)
Pick-up voltage
(at 20°C
68°F)
Drop-out voltage
(at 20°C 68°F)
Nominal operating
current [±10%]
(at 20°C
68°F)
120mA
72mA
60mA
30mA
15mA
7.5mA
7.4mA
240mA
144mA
120mA
60mA
30mA
15mA
7.4mA
Coil resistance
[±10%]
(at 20°C
68°F)
25Ω
69.4Ω
100Ω
400Ω
1,600Ω
6,400Ω
13,500Ω
12.5Ω
34.7Ω
50Ω
200Ω
800Ω
3,200Ω
13,500Ω
Nominal operating
power
360mW
360mW
360mW
360mW
360mW
360mW
740mW
720mW
720mW
720mW
720mW
720mW
720mW
740mW
Coil inductance
N.C.
condition
24.2mH
69.5mH
99.4mH
388mH
1,590mH
6,270mH
9,470mH
12.8mH
34.3mH
50.7mH
203mH
812mH
2,820mH
14,100mH
N.O.
condition
30.0mH
86.0mH
123mH
480mH
1,970mH
7,680mH
11,700mH
15.8mH
42.4mH
62.7mH
252mH
1,000mH
3,480mH
17,400mH
110%V of
nominal voltage
110%V of
nominal voltage
135%V of
nominal voltage
Max. applied
voltage
(at 50°C
122°F)*
2 Form C
2. Specifications
Specifications
Characteristics
Item
Arrangement
Contact
Contact resistance (Initial)
Contact material
Nominal switching capacity
(resistive load)
Max. switching power
(resistive load)
Max. switching voltage
Max. switching current
Nominal operating power
Min. switching capacity
(Reference value)*
1
Insulation resistance (Initial)
Between open
contacts
Breakdown
Between
voltage
contact sets
(Initial)
Between
contact and coil
Temperature rise (coil)
Operate time (at 20°C
68°F)
Release time (at 20°C
68°F)
Shock
resistance
Vibration
resistance
Mechanical
Expected life
Electrical (resistive load)
Conditions for operation,
transport and storage*
4
(Not freezing and condensing
at low temperature)
Max. Operating speed
Unit weight
Functional
Destructive
Functional
Destructive
DC
Single side stable
2 Form C
AC
Single side stable
DC
Single side stable
4 Form C
Au-clad AgNi type
Standard: 4A 250V AC, 5A 30V DC
Amber: 2A 250V AC, 5A 30V DC
Standard: 1,000VA, 150W
Amber: 500VA, 150W
Standard: 4A
Amber: 2A (AC), 5A (DC)
720mW*
2
100µA 1VDC
AC
Single side stable
Max. 50 mΩ (By voltage drop 6 V DC 1A)
Au-clad AgNi type
Standard: 5A 250V AC, 5A 30V DC
Amber: 3A 250V AC, 5A 30V DC
Standard: 1,250VA, 150W
Amber: 750VA, 150W
250 V AC
Standard: 5A
Amber: 3A (AC), 5A (DC)
360mW (740mW: 100V DC) 0.50VA to 1.05VA
100µA 1V DC
Max. 50 mΩ (By voltage drop 6 V DC 1A)
Rating
1.08VA to 1.30VA
Min. 100MΩ (at 500V DC) Measurement at same location as “Breakdown voltage” section.
1,000 Vrms for 1min. (Detection current: 10mA.)
1,000 Vrms for 1min. (Detection current: 10mA.)
2,000 Vrms for 1min. (Detection current: 10mA.)
Max. 65°C [Max. 85°C (100V AC)] (By resistive method, nominal coil voltage)
Max. 20ms
Max. 20ms
Max. 30ms*
3
Max. 10ms
Max. 40ms*
3
Max. 10ms
2
(Half-wave pulse of sine wave: 11 ms; detection time: 10µs.)
Min. 98 m/s
Min. 980 m/s
2
(Half-wave pulse of sine wave: 6 ms.)
Electrical
characteristics
Max. 30ms*
3
Max. 40ms*
3
Mechanical
characteristics
10 to 55 Hz at double amplitude of 1 mm (Detection time: 10µs.)
10 to 55 Hz at double amplitude of 2 mm
Min. 10
7
Min. 5×10
7
Min. 10
7
Min. 5×10
7
Standard: Min. 10
5
(5A 250V AC), Min. 5×10
5
(5A 30V DC) Standard: Min. 10
5
(4A 250V AC), Min. 5×10
5
(5A 30V DC)
Amber: Min. 10
5
(3A 250V AC), Min. 5×10
5
(5A 30V DC)
Amber: Min. 10
5
(2A 250V AC), Min. 5×10
5
(5A 30V DC)
–40°C to +70°C
–40°F to +158°F
(Max.48V DC),
–40°C to +55°C
–40°F to +131°F
(100V DC)
50 cps
16 g
.56 oz
–40°C to +60°C
–40°F to +140°F*
5
–40°C to +55°C
–40°F to +131°F
–40°C to +40°C
–40°F to +104°F
Conditions
18 g
.63 oz
Notes: *1 This value can change due to the switching frequency, environmental conditions, and desired reliability level, therefore it is recommended to check this with the
actual load.
*2. 100V DC: 740mW
*3. For the AC type, the operate and release time differs depending on the phase of the input and cutoff times.
*4. The upper limit of the ambient temperature is the maximum temperature that can satisfy the coil temperature rise value. Refer to Usage, transport and storage
conditions in NOTES.
*5. 100V DC: –40°C to +40°C
–40°F to +104°F
All Rights Reserved © COPYRIGHT Panasonic Electric Works Co., Ltd.
NC

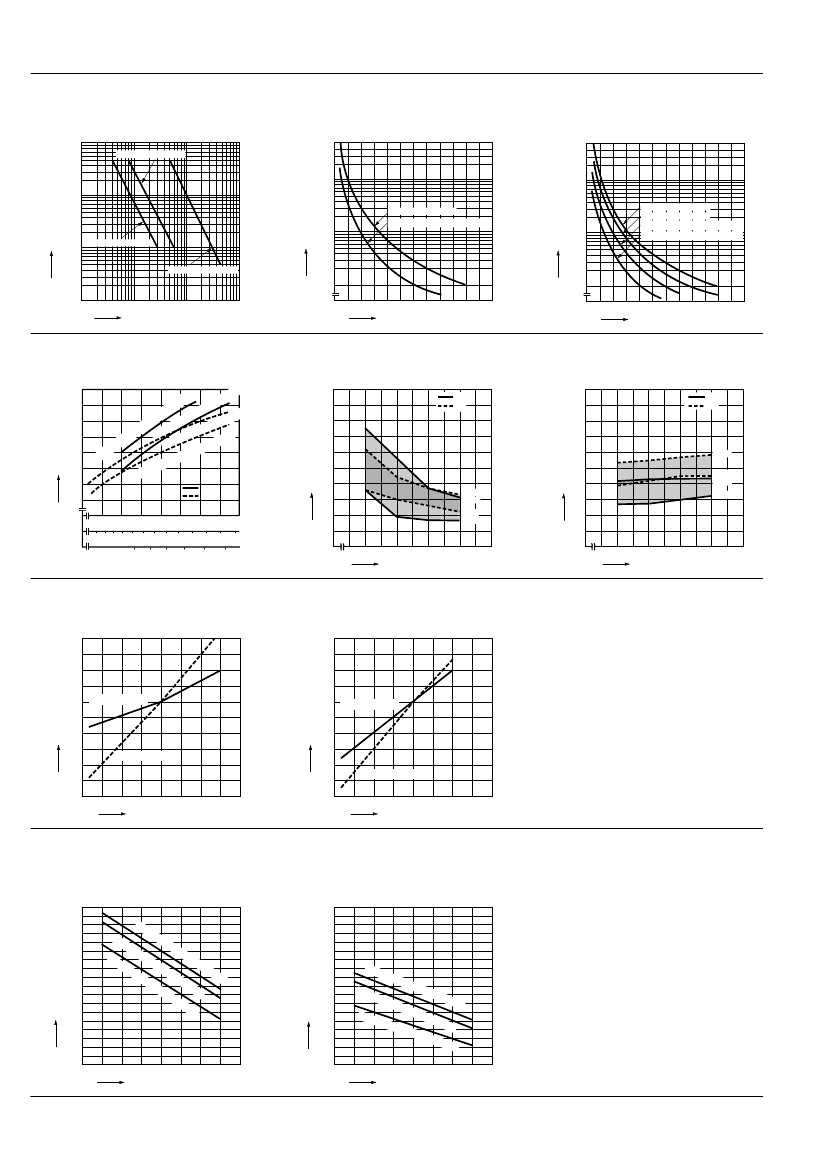

REFERENCE DATA (Standard type)
1.-(1) Life curve
(AC/DC load 2 Form C, 4 Form C)
10,000
110 V DC resistive
Expected life,
×10
4
Expected life,
×10
4
Expected life,
×10
4
1,000
1,000
125 V AC resistive
250 V AC resistive
125 V AC inductive (pf=0.4)
250 V AC inductive (pf=0.4)
1.-(2) Life curve (AC/DC load 2 Form C)
5,000
1.-(3) Life curve (AC/DC load 4 Form C)
5,000
1,000
250 V AC resistive
250 V AC inductive (pf=0.4)
100
100
100
220 V DC resistive
30 V DC resistive
10
0.1
1.0
10
0
1
2
3
4
5
10
0
1
2
3
4
5
Contact carrying current, A
Contact carrying current, A
Contact carrying current, A
2. Temperature rise characteristics
(single side stable)
Measured portion: Inside the coil
nt)
rre
cu
g
e
t)
rrin
urr
ren
ca
cur
gc
ct
in
ta
ing
r
on
arr
car
(C
tc
act
t)
3 A
(Cont
tac
ren
on
cur
5A
(C
ng
ri
car
5A
act
ont
(C
3A
nt)
3. Operate time (single side stable)
4. Release time (single side stable)
Temperature rise,
°C
20
18
16
Operate time, ms
14
12
10
8
6
4
2
80
80
70
60
50
40
30
20
4c
2c
Release time, ms
5
4c
2c
4
3
Max.
Min.
Max.
Min.
4C
2C
0.4
0.6 0.8 1.0 1.2 1.4 1.6 1.8W
180
200
220%V
2
Max.
Max.
Min.
Min.
Operating
power
Coil voltage
2C : up to
(
48 V DC
)
(
2C :: 100 V DC
)
4C all types
1
100 120 140 160
100 110 120 130 140 150%V
100
90
110
Coil applied voltage,%V
80
100
90
110
Coil applied voltage,%V
5.-(1) Rate of change of pick-up and drop-out
voltage
(2 Form C single side stable)
120
5.-(2) Rate of change of pick-up and drop-out
voltage
(4 Form C single side stable)
120
Rated of change, %
100
Pick-up voltage
Rated of change, %
110
110
100
Pick-up voltage
90
Drop-out voltage
80
90
80
Drop-out voltage
–40 –20
0 20 40 60 80
Ambient temperature,
°C
–40 –20
0 20 40 60 80
Ambient temperature,
°C
6.-(1) Ambient temperature vs Max. applied
voltage
Tested sample:
NC2D-P-DC24 V (2 Form C slim single side stable)
6.-(2) Ambient temperature vs Max. applied
voltage
Tested sample:
NC2D-P-DC110 V (2 Form C slim single side stable),
NC4D-P-DC24 V (4 Form C slim single side stable)
Max. applied voltage, %V
Max. applied voltage, %V
250
0A
3A
5A
(C
on
on
(C
250
on
200
(C
tac
tac
tc
ing
tc
arr
tac
arr
ing
en
t)
cu
rr
t)
tc
arr
ing
cu
rr
en
200
t)
0A
3A
(Co
nta
ct c
cu
rr
150
en
(Co
arri
ng
nta
150
5A
ct c
cur
(Co
ntac
arri
ren
t)
t)
ng
t ca
cur
ren
rring
curr
ent)
50
100
40
50
60
70
Ambient temperature,
°C
100
30
40
Ambient temperature,
°C
All Rights Reserved © COPYRIGHT Panasonic Electric Works Co., Ltd.
京公网安备 11010802033920号
EEWORLD
