This document was generated on 05/17/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0850010452
Active
din_41612
2.54mm (.100") Pitch DIN 41612 B Style Male Header, PCT, Right Angle, Through
Hole, 0.60µm (24µ") Selective Gold (Au) Plating, 64 Circuits, with Mounting Clips, No
Flux Proof
Documents:
Drawing (PDF)
Product Specification PS-85003-0001 (PDF)
RoHS Certificate of Compliance (PDF)
EU RoHS
China RoHS
Compliance Status
Not Reviewed
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Application
Comments
Component Type
Overview
Product Name
Style
Backplane Connectors
85001
Backplane
With Mounting Clips. No Flux Proof
PCB Header
din_41612
IEC 603-2/DIN 41612
B
Search Parts in this Series
85001Series
Physical
Circuits (Loaded)
Circuits (maximum)
Circuits Detail
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Guide to Mating Part
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Columns
Number of Pairs
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
64
64
Contact Positions: a1-a32; b1-b32
Natural
400
Yes
94V-0
No
Yes
Brass
Gold
Tin
Polyester
16
Open Pin Field
2
Right Angle
0.154 In
3.90 mm
No
Yes
Carton
0.100 In
2.54 mm
0.100 In
2.54 mm
24
0.60
98
2.5
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Yes
No
No
-55°C to +125°C
Through Hole
Electrical
Current - Maximum per Contact
Data Rate
Voltage - Maximum
1A
622.0 Mbps
250V AC (RMS)
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
PK-36507-001
PS-85003-0001

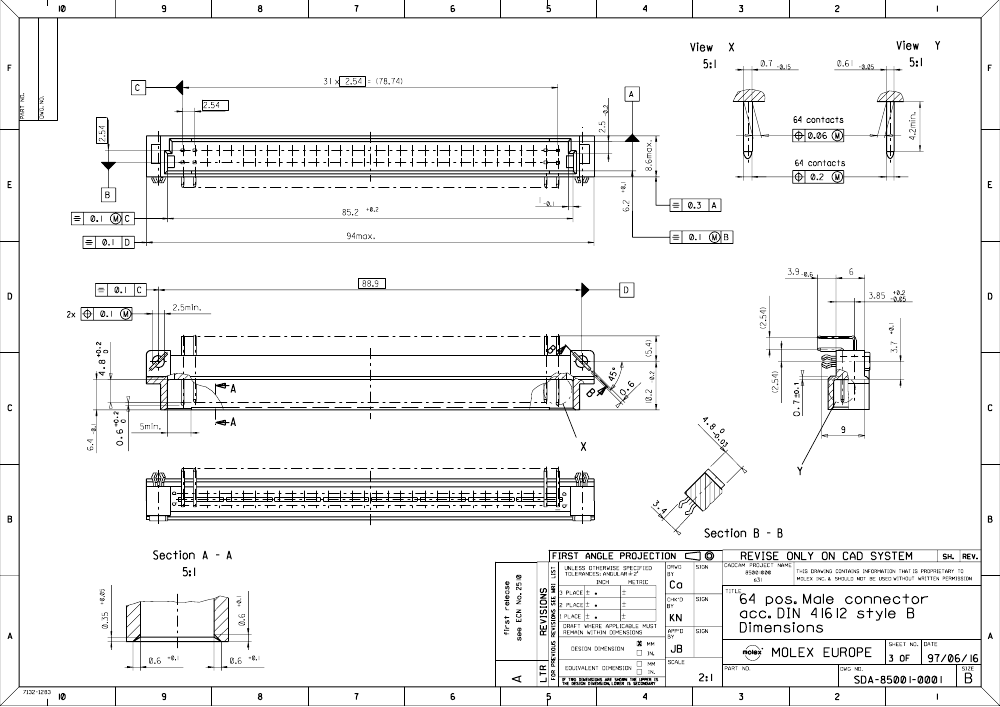

SDA-85001-0001, SDA-85001-0452
