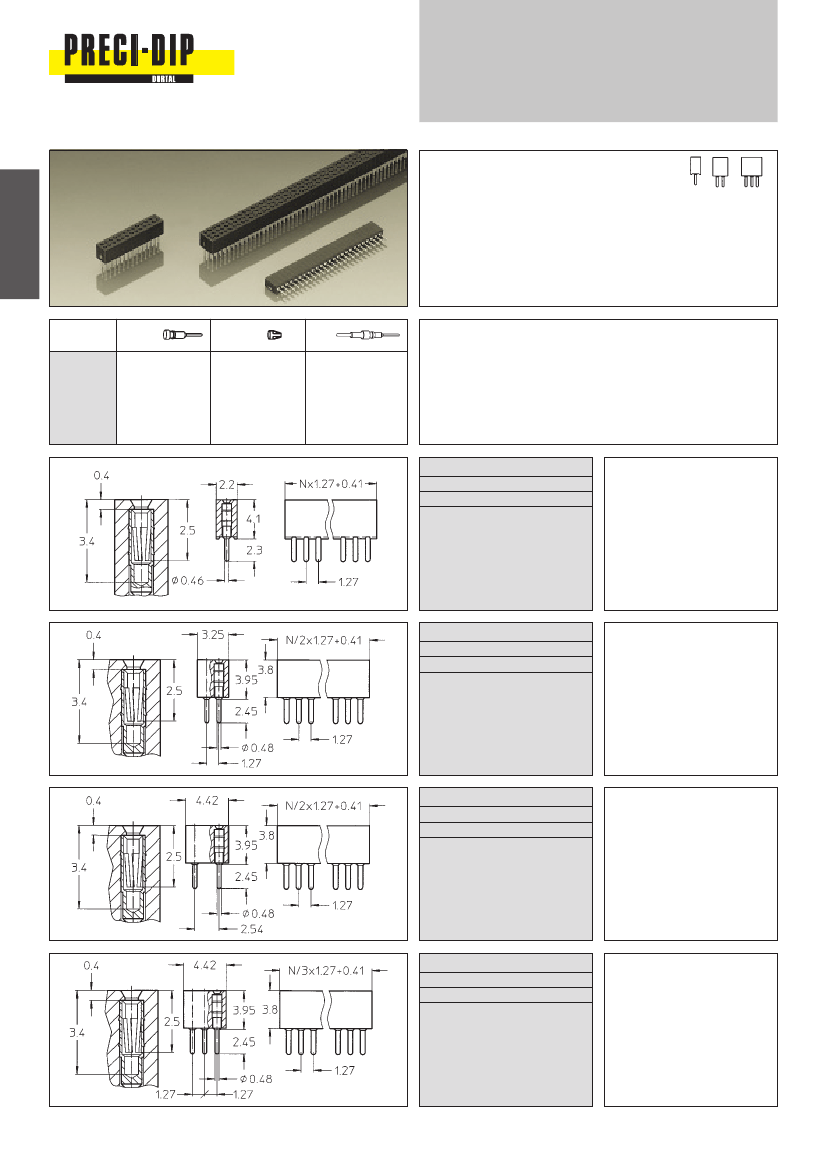

Series 850

10

PCB connectors 1.27 mm

Single row / double row / triple row

Solder tail

Ultraminiature PCB receptacles,

solder tail

Grid spacing 1.27

×1.27

mm

Receptacle for pins

∅

0.35–0.45 mm

For corresponding pin connectors see pages 13, 14 and 15

Platings

91

93

99

Sleeve

5

µm

Sn Pb

5

µm

Sn Pb

5

µm

Sn Pb

Clip

0.25

µm

Au

0.75

µm

Au

5

µm

Sn Pb

Ordering information

Replace

xxx

with the number of poles, e.g. 853-91-xxx-10-001

for a double row version with 8 pins per row becomes:

853-91-016-10-001

851-91-xxx-10-001

851-93-xxx-10-001

851-99-xxx-10-001

Straight receptacle: solder tail,

single row

Availability from: 1 to 50 contacts

Standard number of contacts 25

and 50

853-91-xxx-10-001

853-93-xxx-10-001

853-99-xxx-10-001

Straight receptacle: solder tail,

double row

Availability from: 4 to 100

contacts

Standard number of contacts 50

and 100

853-91-xxx-10-002

853-93-xxx-10-002

853-99-xxx-10-002

Straight receptacle: solder tail,

double row with 2.54 mm row to

row distance

Availability from: 4 to 100

contacts

Standard number of contacts 100

855-91-xxx-10-001

855-93-xxx-10-001

855-99-xxx-10-001

Straight receptacle: solder tail,

triple row

Availability from: 9 to 150

contacts

Standard number of contacts 150
