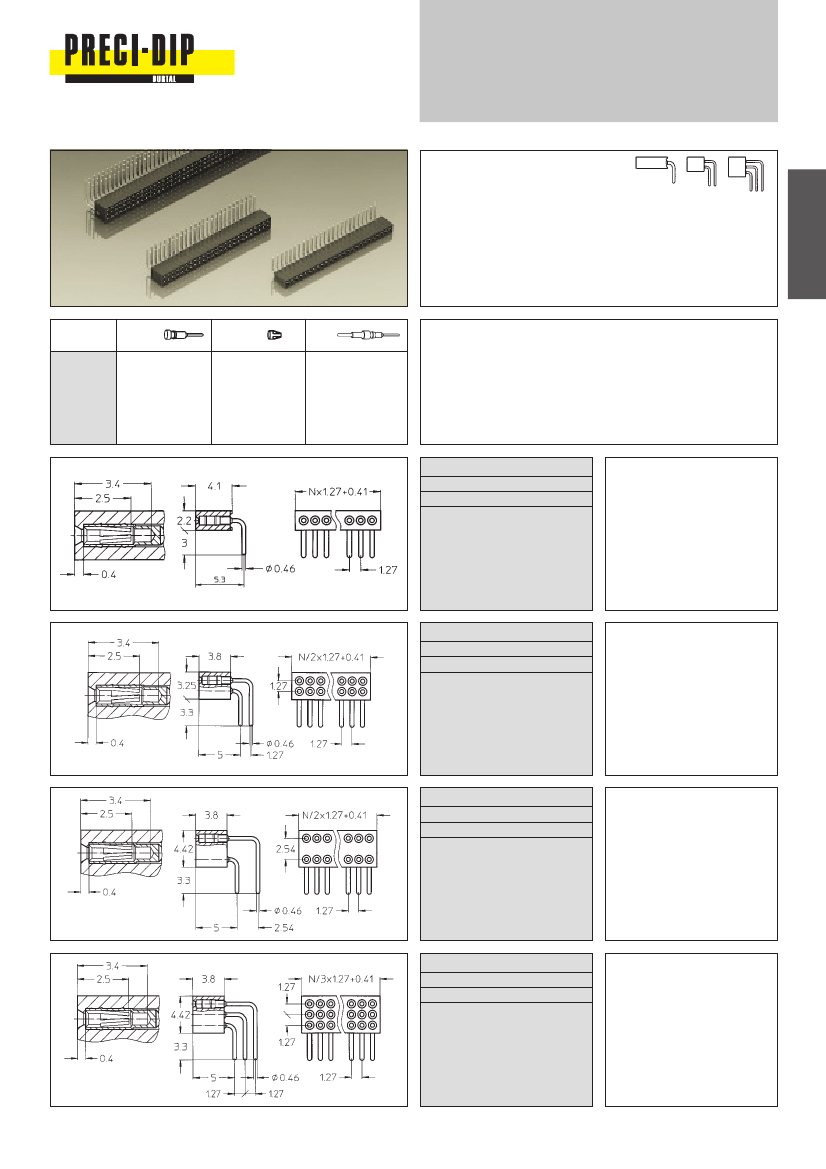

Preview

855-99-016-20-001: Descriptionpcb connectors 1.27 mm single row / double row / triple row solder tail; File Size50KB，1 Pages; ManufacturerPRECI-DIP; Websitehttp://www.precidip.com/en/index.html

Download Datasheet Compare View All

855-99-016-20-001 Overview

pcb connectors 1.27 mm single row / double row / triple row solder tail

Preview

Download Datasheet

View All

Series 850

PCB connectors 1.27 mm

Single row / double row / triple row

Solder tail

Ultraminiature PCB receptacles,

solder tail

Grid spacing 1.27

×1.27

Receptacle for pins

∅

0.35–0.45 mm

For corresponding pin connectors see pages 13, 14 and 15

Platings

Sleeve

µm

Sn Pb

µm

Sn Pb

µm

Sn Pb

Clip

0.25

µm

0.75

µm

Sn Pb

Ordering information

Replace

xxx

with the number of poles, e.g. 853-91-xxx-20-001

for a double row version with 8 pins per row becomes:

853-91-016-20-001

851-91-xxx-20-001

851-93-xxx-20-001

851-99-xxx-20-001

Right angle receptacle: solder tail,

single row

Availability from: 1 to 50 contacts

Standard number of contacts 25

and 50

853-91-xxx-20-001

853-93-xxx-20-001

853-99-xxx-20-001

Right angle receptacle: solder tail,

double row

Availability from: 4 to 100

contacts

Standard number of contacts 50

and 100

853-91-xxx-20-002

853-93-xxx-20-002

853-99-xxx-20-002

Right angle receptacle: solder tail,

double row with 2.54 mm row to

row distance

Availability from: 4 to 100

contacts

Standard number of contacts 100

855-91-xxx-20-001

855-93-xxx-20-001

855-99-xxx-20-001

Right angle receptacle: solder tail,

triple row

Availability from: 6 to 150

contacts

Standard number of contacts 150
