8581230000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> 8581230000

8581230000: Descriptionpoz 24/24vac/DC 1A; CategoryPower/power management The power supply circuit; File Size66KB，2 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/; Environmental Compliance

Download Datasheet Parametric View All

8581230000 Overview

poz 24/24vac/DC 1A

8581230000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Weidmuller
package instruction	,
Reach Compliance Code	compli
Factory Lead Time	12 weeks 1 day
Is Samacsys	N
Other features	ALSO CONFIGURES UPTO 475V AC
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	45 V
Minimum input voltage
Nominal input voltage	30 V
JESD-30 code	X-XXMA-X11
Number of functions	1
Output times	1
Number of terminals	11
Maximum operating temperature	50 °C
Minimum operating temperature
Maximum output voltage	10 V
Minimum output voltage
Package body material	UNSPECIFIED
Package shape	UNSPECIFIED
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	0.2 W
Fine-tuning/adjustable output	YES
Base Number Matches	1

Preview

Download Datasheet

View All

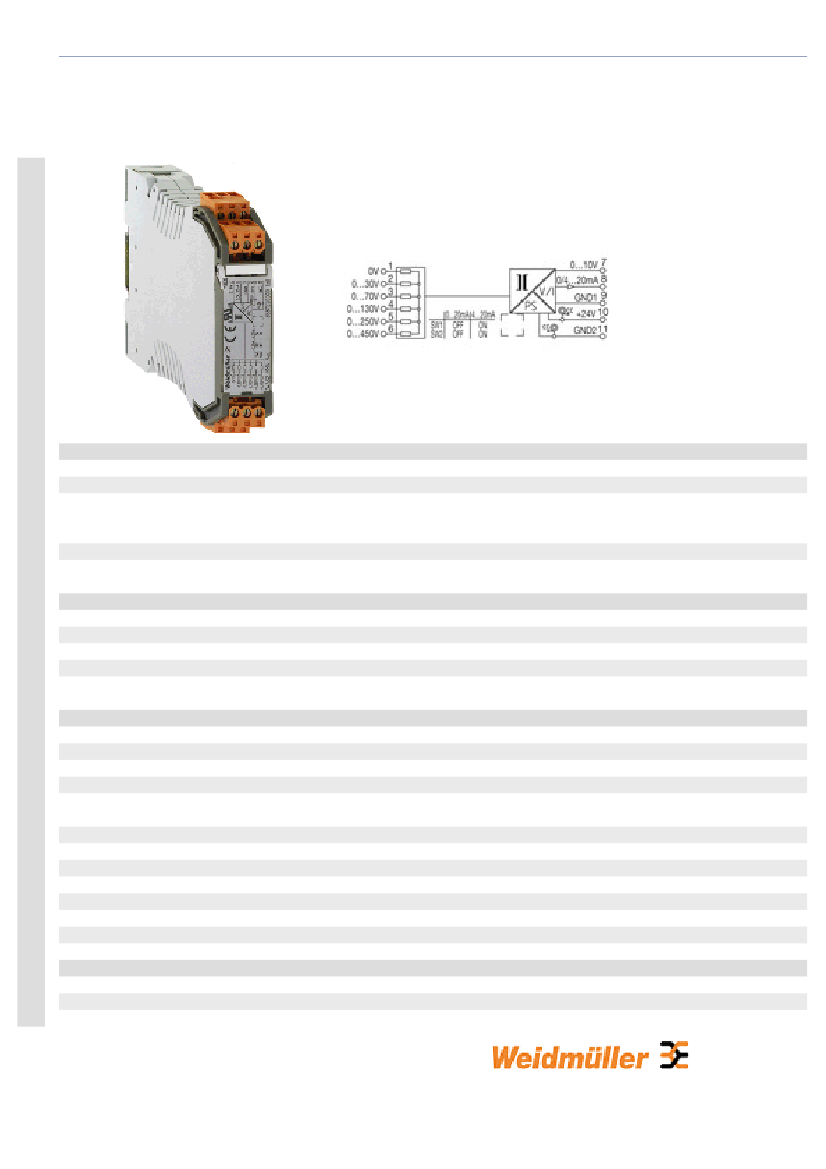

Product catalogue | Electronics | Monitoring modules | Voltage monitoring | Analogue output

General ordering data

Order No.

Part designation

Version

EAN

Qty.

Input

Input voltage

Max. voltage

Input resistance

Input frequency

Number of inputs

Output

Output voltage

Output current

Load resistance, voltage

Load resistance, current

Accuracy

Offset voltage

Offset current

Switching voltage, max.

Step response time

Status indicator

Temperature coefficient

Number of outputs

General data

Function

Input/Output

Galvanic isolation

8581230000

WAZ2 VMA V ac

Voltage monitoring, 0...30 / 0...70 / 0...130 /

0...250 / 0...450 V AC , 1 , 0(4)...20 mA , 0...10 V ,

1 , Tension clamp connection

4032248234639

1 pc(s).

0...30 / 0...70 / 0...130 / 0...250 / 0...450 V AC

45 / 100 / 180 / 270 / 475 V AC (briefly)

30 kΩ / 70 kΩ / 130 kΩ / 250 kΩ / 450 kΩ

40...400 Hz sinus

0...10 V

0(4)...20 mA

≥ 1 kΩ

≤ 600 Ω

1.3% (40...60 Hz) typ. 1% / 2% (70...400Hz) typ.

1.5%

max. 0.02 V

Max. 40 µA

475 V AC

< 300 ms

Green LED

≤ 250 ppm/K

Analogue output

Configurable

3-way isolator

-1-
