This document was generated on 04/19/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0871300200
Active
2.50mm (.098") Pitch Cable Holder, for Discrete Wire, Flat Cable and Ribbon Cable 2
Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-87130-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
LR19980
General
Product Family
Series
Component Type
Glow-Wire Compliant
Product Name
Ribbon Cable / Wire Trap Connectors
87130
One Piece
No
Board-In, Cable Holder
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Entry Angle
Flammability
Lock to Mating Part
Material - Resin
Number of Rows
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Wire Insulation Diameter
Wire Size AWG
Wire/Cable Type
2
2
Natural
Vertical
94V-0
None
Polyester
1
Yes
Yes
0.062 In
1.60 mm
Bag
0.098 In
2.50 mm
0.098 In
2.50 mm
Yes
No
Fully
No
No
-25°C to +85°C
1.60mm (.063") max.
24, 26
Discrete Wire, Ribbon Cable
Search Parts in this Series
87130Series
Mates With
N/A
Use With
Discrete Wire, Flat Cable, or Ribbon Cable
Electrical
Current - Maximum per Contact
Voltage - Maximum
1A
125V
Material Info
Reference - Drawing Numbers
Product Specification

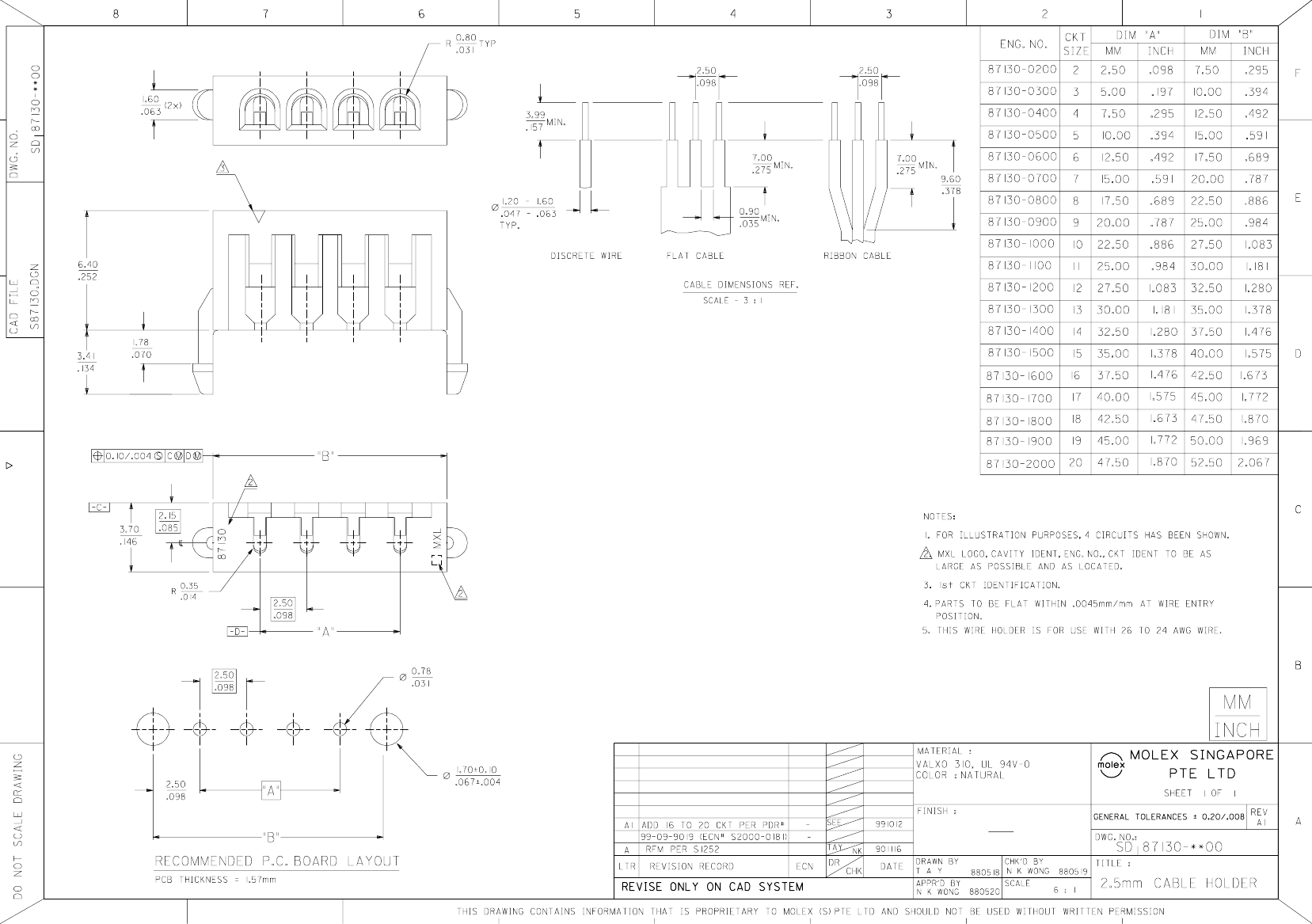

Sales Drawing
PS-87130-001
SD-87130-**00
