Part Number:
Status:
Description:
0877156100
Planned for Obsolescence
1.00mm (.039") Pitch, PCI Express* Connector, 64 Circuits, Nylon6/6 Glass-filled,
Black Housing, Phosphor Bronze, Gold (Au) Flash, with Plastic Pegs, 2.54mm (.100")
Soldertail, Lead Free
Documents:
3D Model
Drawing (PDF)
Product Specification PS-87715-200 (PDF)
RoHS Certificate of Compliance (PDF)
Series

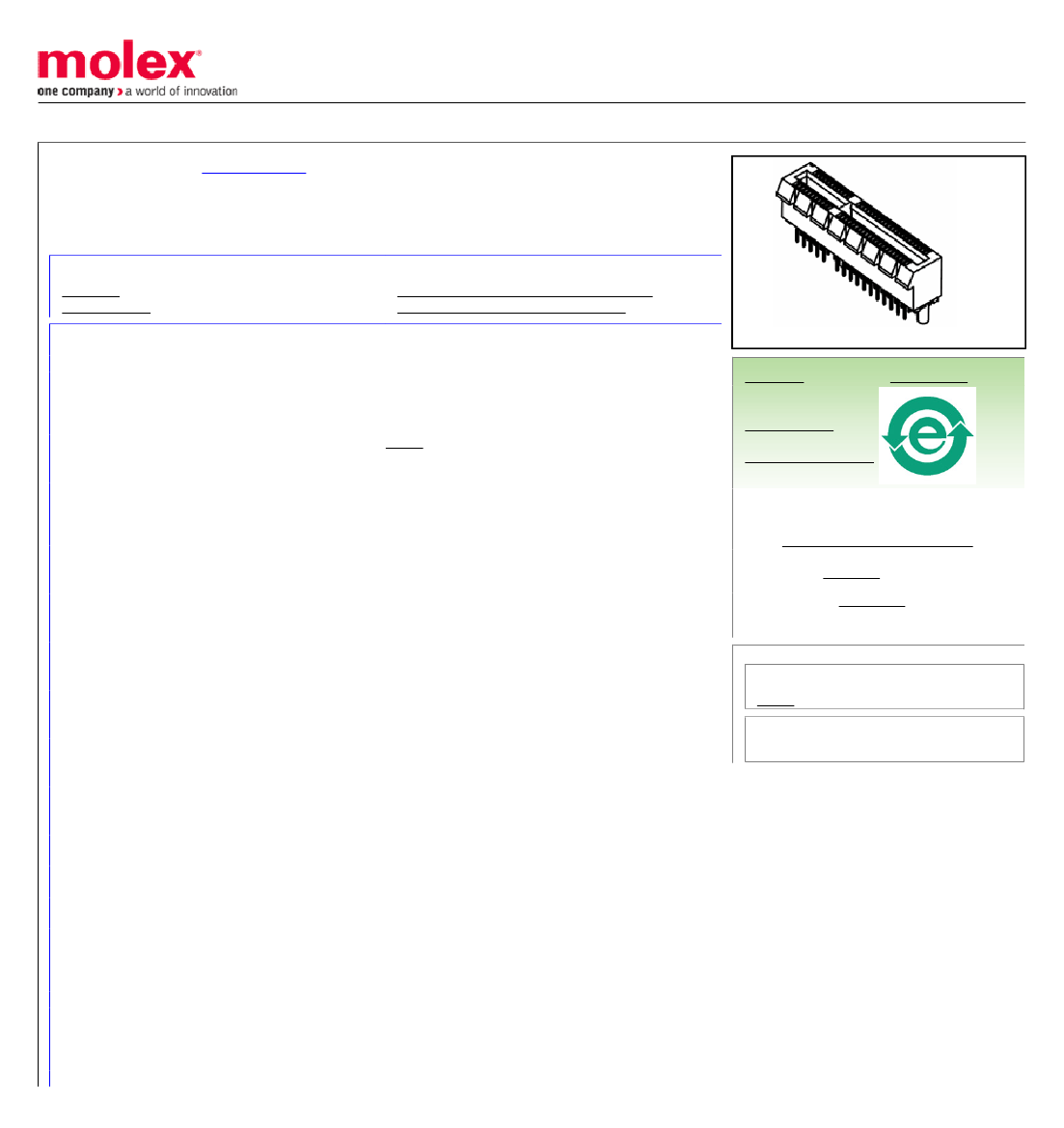

image - Reference only
LR19980
E29179
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
Agency Certification
CSA
UL
General
Product Family
Series
Comments
Component Type
Product Name
Edge Card Connectors
87715
PCI 4 lanes
Edgecard to PCB
PCI Express*
Physical
(p)ower-(s)ignal Configuration
Circuits (Loaded)
Circuits (maximum)
Durability (mating cycles max)
Entry Angle
Flammability
Keying to Mating Part
Material - Plating Mating
Material - Plating Termination
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
Temperature Range - Operating
Termination Interface: Style
64s - 0p
64
64
50
Vertical (Top Entry)
94V-0
Yes
Gold
Tin
2.54mm (.100")
Yes
Yes
1.60mm (.063")
Tray
1.00mm (.039")
1.00mm (.039")
Yes
-55°C to +85°C
Through Hole
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
87715Series
Mates With
PCI Express Card
Electrical
Current - Maximum per Contact
Voltage - Maximum
1.1A
50V AC (RMS)/DC
Solder Process Data
Lead-free Process Capability
Process Temperature max. C
Wave Capable (TH only)
245
Material Info
Country of Origin
CN, HK
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
PK-87715-207
PS-87715-200
SD-87715-207
