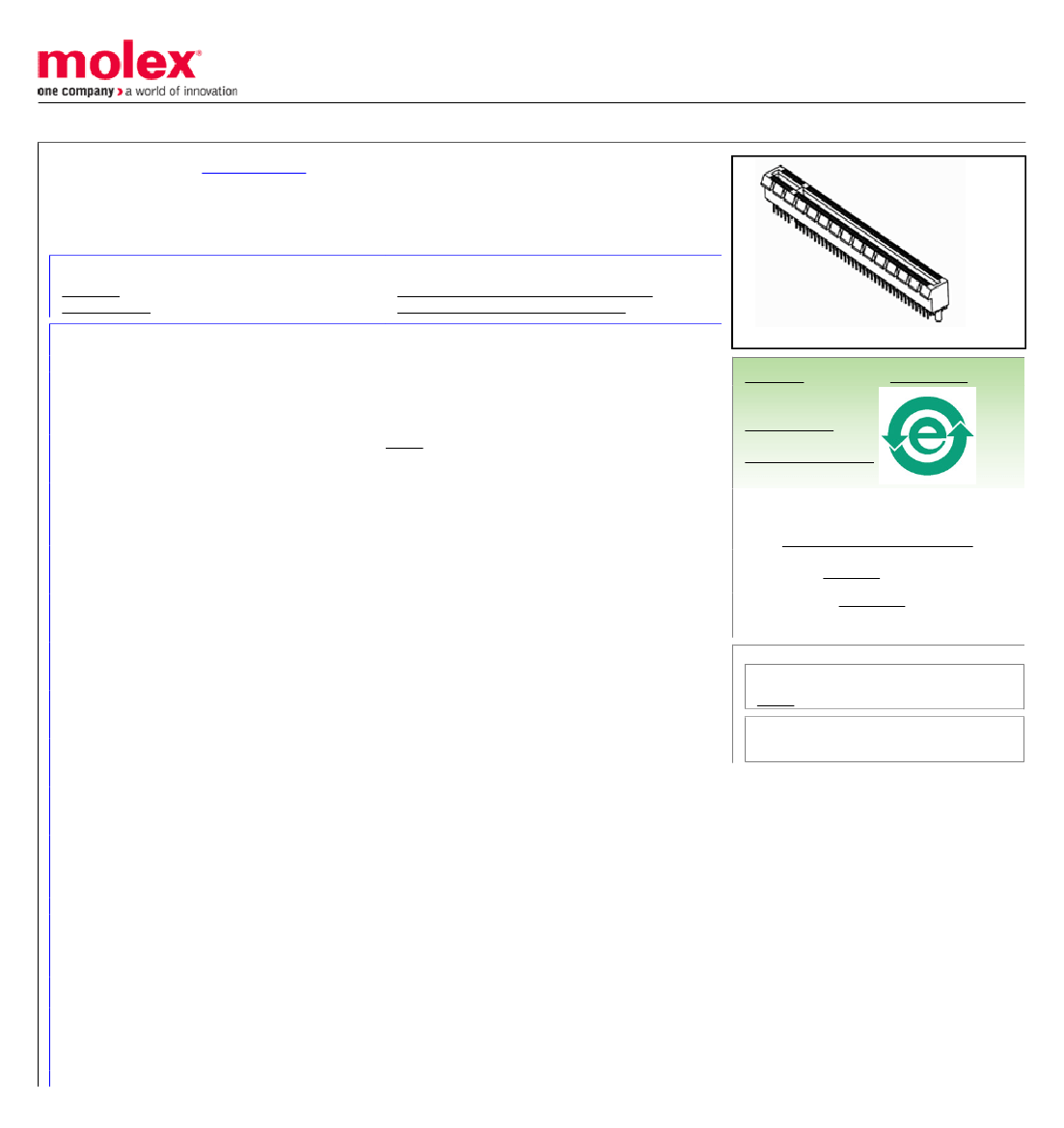

This document was generated on 11/18/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0877156305
Planned for Obsolescence
1.00mm (.039") Pitch, PCI Express* Connector, 164 Circuits, Nylon 6/6 Glass-filled,
Black Housing, Phosphor Bronze, 0.38µm (15µ") Gold (Au) Plating, with Plastic Pegs,
3.00mm (.118") Soldertail, Lead Free
Documents:
3D Model
Drawing (PDF)
Product Specification PS-87715-200 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
LR19980
E29179
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
Agency Certification
CSA
UL
General
Product Family
Series
Comments
Component Type
Product Name
Edge Card Connectors
87715
PCI 16 lanes
Edgecard to PCB
PCI Express*
Physical
(p)ower-(s)ignal Configuration
Circuits (Loaded)
Circuits (maximum)
Durability (mating cycles max)
Entry Angle
Flammability
Keying to Mating Part
Material - Plating Mating
Material - Plating Termination
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Polarized to Mating Part
Temperature Range - Operating
Termination Interface: Style
164s - 0p
164
164
50
Vertical (Top Entry)
94V-0
Yes
Gold
Tin
3.00mm (.118")
Yes
Yes
2.40mm (.094")
Tray
1.00mm (.039")
1.00mm (.039")
0.381µm (15µ")
Yes
-55°C to +85°C
Through Hole
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
87715Series
Mates With
PCI Express Card
Electrical
Current - Maximum per Contact
Voltage - Maximum
1.1A
50V AC (RMS)/DC
Solder Process Data
Lead-free Process Capability
Process Temperature max. C
Wave Capable (TH only)
245
Material Info
Country of Origin
CN, HK
Reference - Drawing Numbers
Packaging Specification
Product Specification
PK-87715-207
PS-87715-200
