87615-1008 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87615-1008

87615-1008: Description6.35mm (.250") pitch power, 2.54mm (.100") pitch signal, extreme powerPlus (ssi) mps header; CategoryThe connector The connector; File Size279KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

87615-1008 Overview

6.35mm (.250") pitch power, 2.54mm (.100") pitch signal, extreme powerPlus (ssi) mps header

87615-1008 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknow
ECCN code	EAR99
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	87616-0001
Mixed contacts	YES
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	GLASS FILLED LIQUID CRYSTAL POLYMER
Termination type	SOLDER
Total number of contacts	35
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/25/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0876151008

Active

extreme_powerplus_ssi

6.35mm (.250") Pitch Power, 2.54mm (.100") Pitch Signal, EXTreme PowerPlus™

(SSI) MPS Header, Through Hole, Right Angle, 35 Circuits, Short Power Blade

Contact, without Beveled Metal Pin, Lead-free

Documents:

3D Model

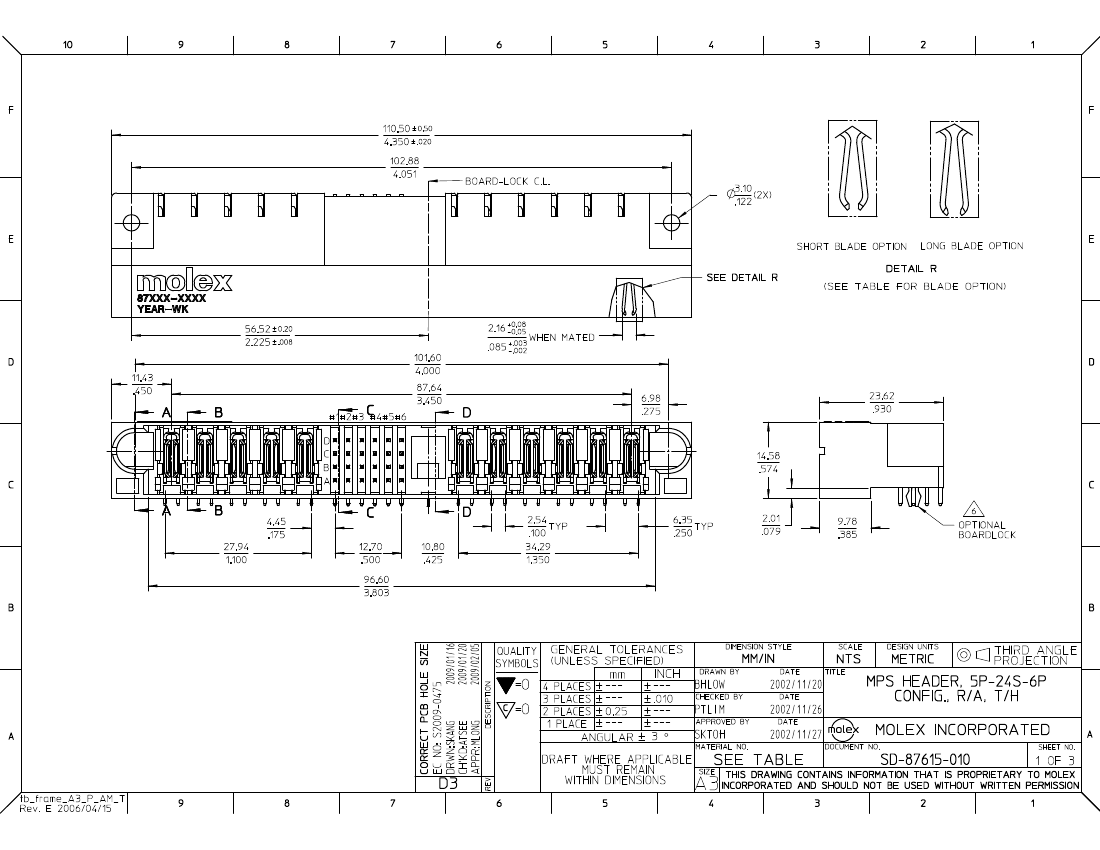

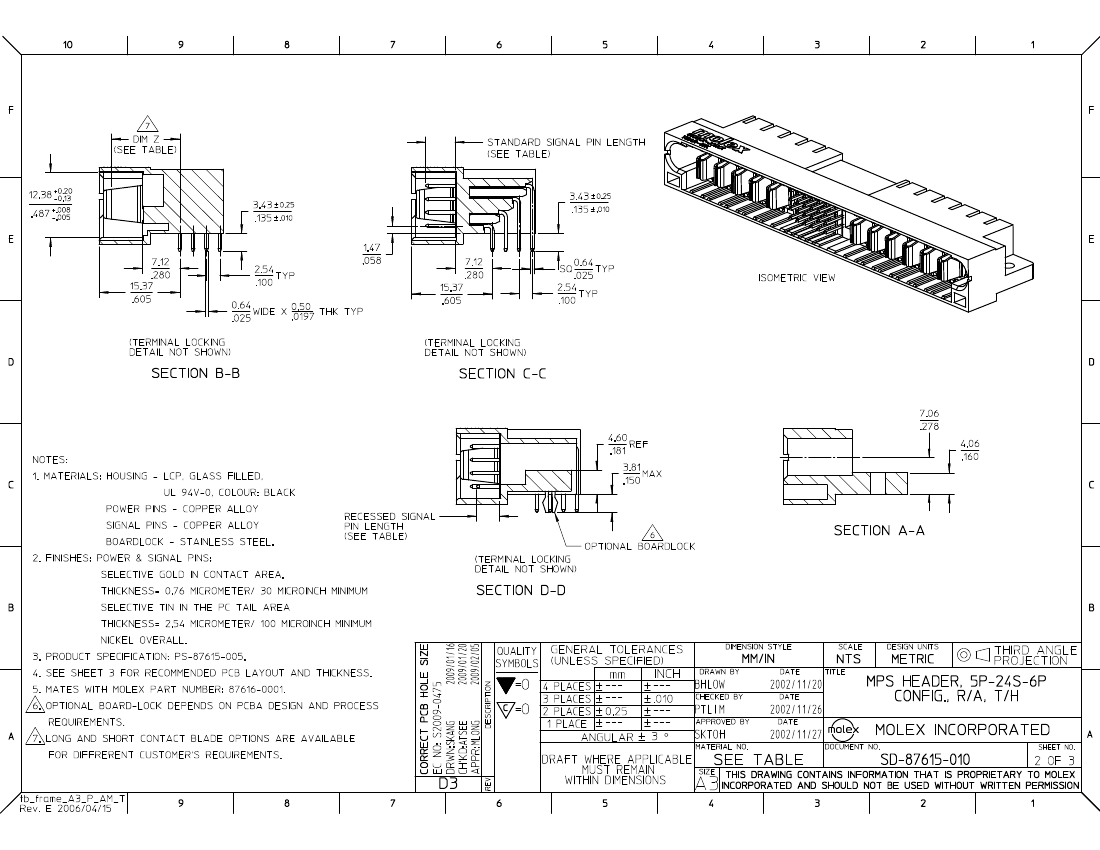

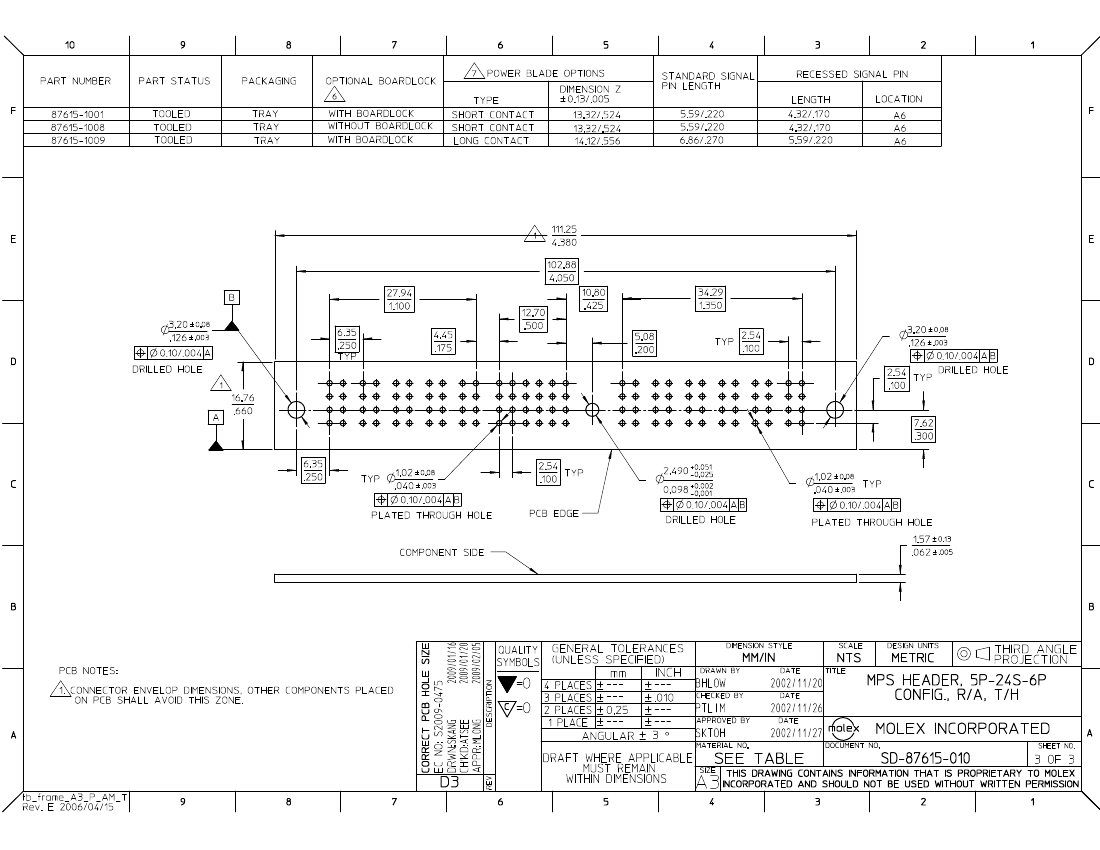

Drawing (PDF)

Product Specification PS-87615-005 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

Series

General

Product Family

Series

Application

Comments

Overview

Product Name

PCB Headers

87615

Board-to-Board

<LI>Short Blade|<LI>Recessed Signal Pin : A6

extreme_powerplus_ssi

EXTreme PowerPlus™

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Breakaway

Circuits (Loaded)

Circuits Detail

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Power Alpha 5, Signal 24, Power Beta 6

Black

100

Yes

None

Yes

Copper Alloy

Gold

Tin

High Temperature Thermoplastic

Right Angle

0.135 In

3.43 mm

Yes

0.062 In

1.60 mm

Tray

0.100 In, 0.250 In

2.54 mm, 6.35 mm

0.76

101.6

2.54

Yes

Fully

-20°C to +70°C

Through Hole

Search Parts in this Series

87615Series

Mates With

87616 EXTreme PowerPlus™ (SSI) MPS

Receptacle, Through Hole. 87665 EXTreme

PowerPlus™ (SSI) MPS Receptacle, Press

Fit

Electrical
