87693-1211

Description
ddr3/ddr2/ddr connector 1.27mm ddrDimm vtpf/ clrlth.76aulf 184ckt
CategoryThe connector    The connector
File Size29KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

87693-1211 Overview

ddr3/ddr2/ddr connector 1.27mm ddrDimm vtpf/ clrlth.76aulf 184ckt

87693-1211 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompli
Other featuresLATCHED
body width0.295 inch
body length5.827 inch
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationGOLD (30) OVER NICKEL
Contact completed and terminatedTIN (60) OVER NICKEL
Contact point genderFEMALE
Contact materialCOPPER ALLOY
DIN complianceNO
Filter functionNO
IEC complianceNO
Insulator colorBLACK
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number87693
Plug contact pitch0.05 inch
Mixed contactsNO
Installation option 1LATCH
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number4
Number of rows loaded2
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
PCB contact row spacing1.905 mm
Plating thickness30u inch
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.169 inch
Terminal pitch1.27 mm
Termination typePRESS FIT
Total number of contacts184
UL Flammability Code94V-0
This document was generated on 11/09/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0876931211
Active
1.27mm (.050") Pitch DDR DIMM Socket, Vertical, Press-fit, 2.5V Voltage Keys (Left),
4.30mm (.169") Tail Length, 0.76µm (30µ") Gold (Au) Selective Plating, Clear Latches,
184 Circuits, Leadfree
Documents:
3D Model
Drawing (PDF)
Product Specification PS-87693-002 (PDF)
RoHS Certificate of Compliance (PDF)
Series

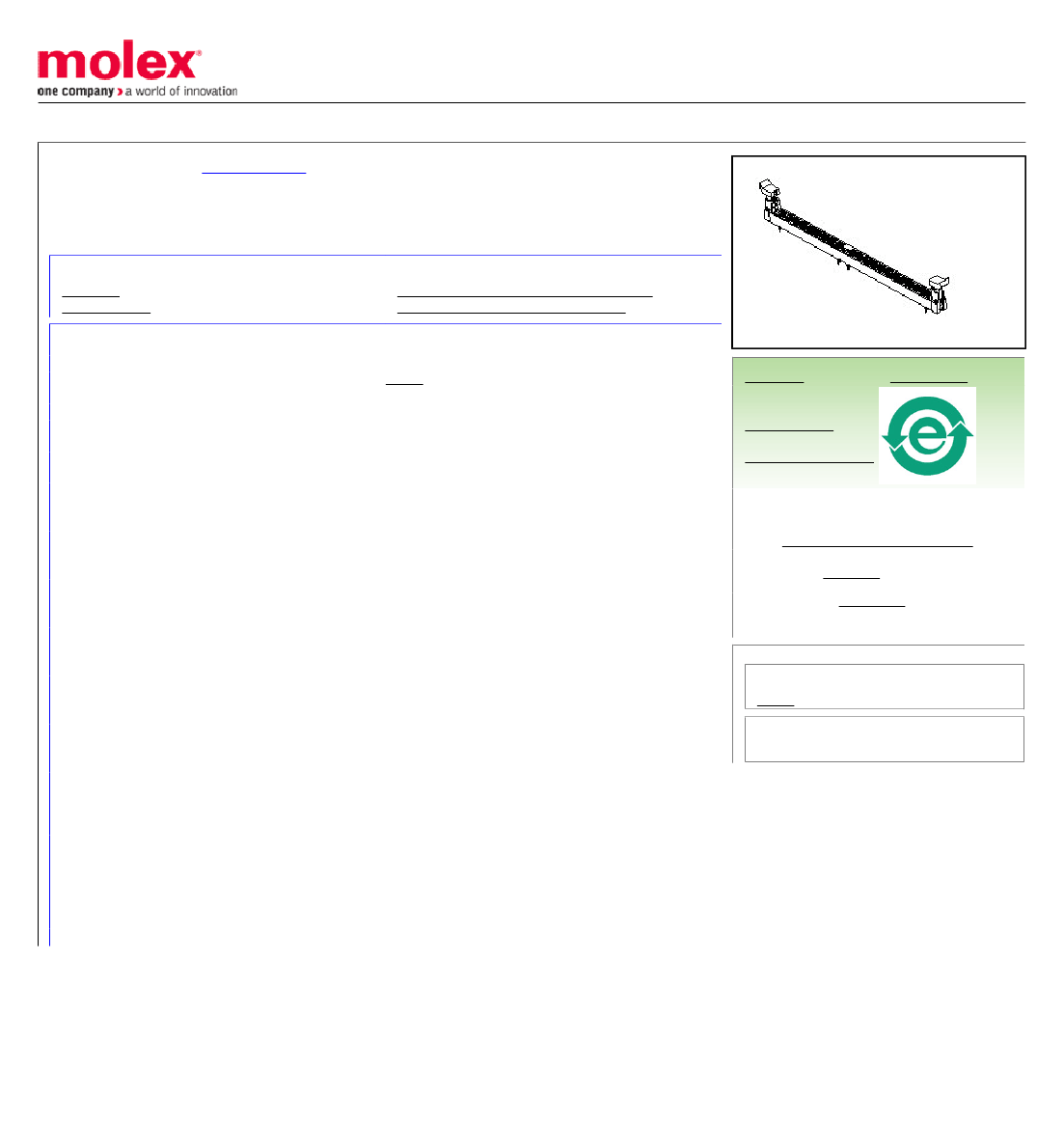

image - Reference only
Memory Module Sockets
87693
Latches in Clear Color
Memory Module
MO-206
DDR DIMM
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
General
Product Family
Series
Comments
Component Type
JEDEC Outline
Product Name
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Entry Angle
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
PC Tail Length
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Plating min - Mating
Plating min - Termination
Temperature Range - Operating
Termination Interface: Style
184
Black, Natural
25
Vertical (Top Entry)
Yes
Phosphor Bronze
Gold
Tin
High Temperature Thermoplastic, Polysulfone
4.30mm (.169")
None
4.60mm (.181")
Tray
1.27mm (.050")
0.762µm (30µ")
0.381µm (15µ")
-10°C to +85°C
Through Hole - Compliant Pin
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
87693Series
Mates With
JEDEC standard 1.27mm modules
Electrical
Current - Maximum per Contact
Voltage - Maximum
Voltage Key
1A
50V
2.5V, Left
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-87693-002
SD-87693-202
This document was generated on 11/09/2010
