87693-2311 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87693-2311

87693-2311: Description1.27mm (.050") pitch ddr dimm socket, vertical, press-fit, 2.5V voltage keys (left), 3.32mm (.131") tail length; CategoryThe connector The connector; File Size396KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

87693-2311 Overview

1.27mm (.050") pitch ddr dimm socket, vertical, press-fit, 2.5V voltage keys (left), 3.32mm (.131") tail length

87693-2311 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknow
Other features	LATCHED
body width	0.295 inch
body length	5.827 inch
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	NATURAL
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.131 inch
Terminal pitch	1.27 mm
Termination type	PRESS FIT
Total number of contacts	184
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

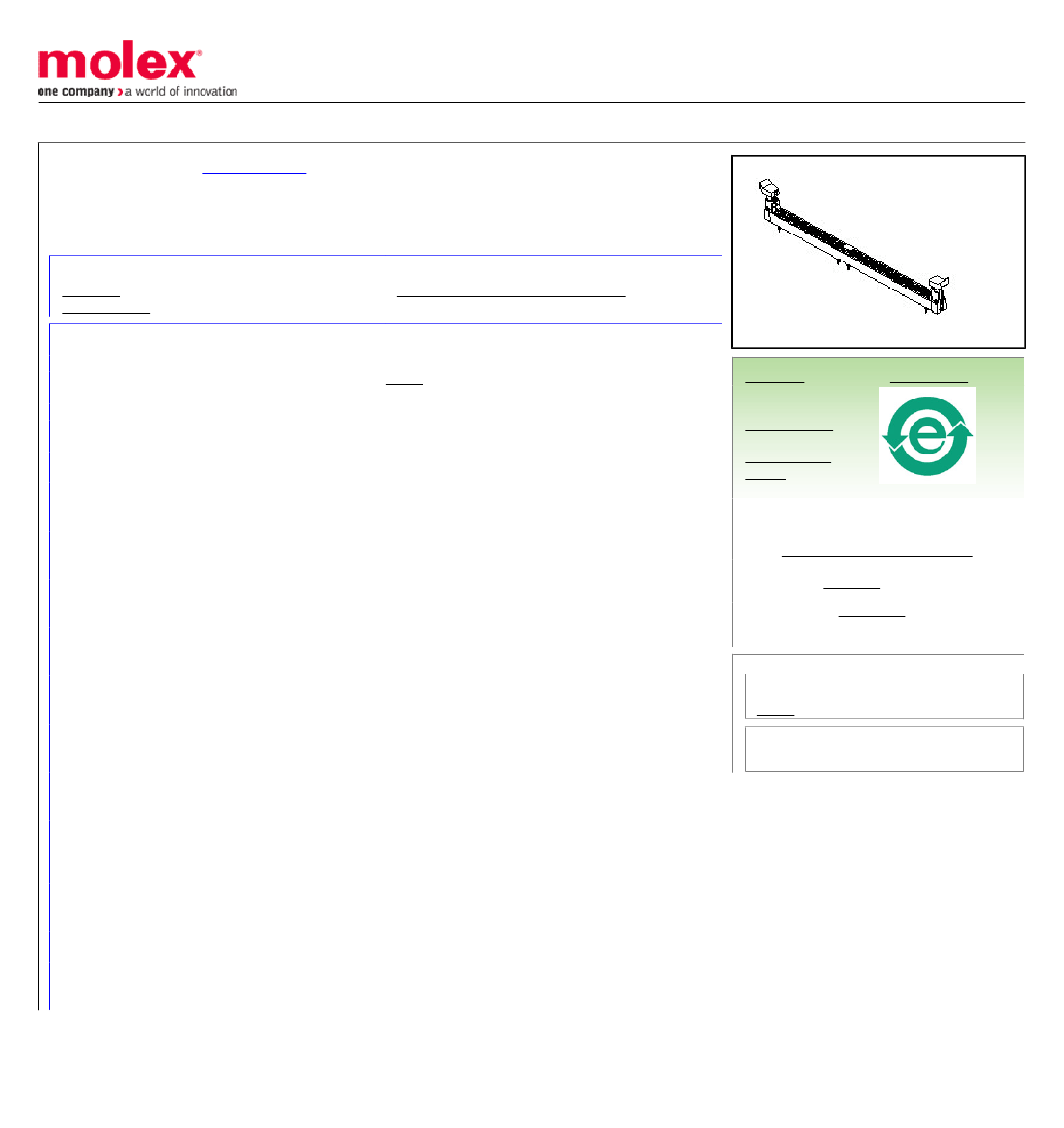

This document was generated on 04/07/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0876932311

Active

1.27mm (.050") Pitch DDR DIMM Socket, Vertical, Press-fit, 2.5V Voltage Keys (Left),

3.32mm (.131") Tail Length, 0.76µm (30µ") Gold (Au) Selective Plating, Clear Latches,

184 Circuits, Leadfree

Documents:

3D Model

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Series

General

Product Family

Series

Comments

Component Type

JEDEC Outline

Product Name

Memory Module Sockets

87693

Latches in Clear Color

Memory Module

MO-206

DDR DIMM

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Entry Angle

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

PC Tail Length (in)

PC Tail Length (mm)

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Temperature Range - Operating

Termination Interface: Style

184

Black, Natural

Vertical (Top Entry)

Yes

Phosphor Bronze

Gold

Tin

High Temperature Thermoplastic, Polysulfone

0.131 In

3.32 mm

None

0.140 In

3.60 mm

Tray

0.050 In

1.27 mm

30.4

0.76

15.2

0.38

-10°C to +85°C

Through Hole - Compliant Pin

Search Parts in this Series

87693Series

Mates With

JEDEC standard 1.27mm modules

Electrical

Current - Maximum per Contact

Voltage - Maximum

Voltage Key

50V

2.5V, Left

Material Info

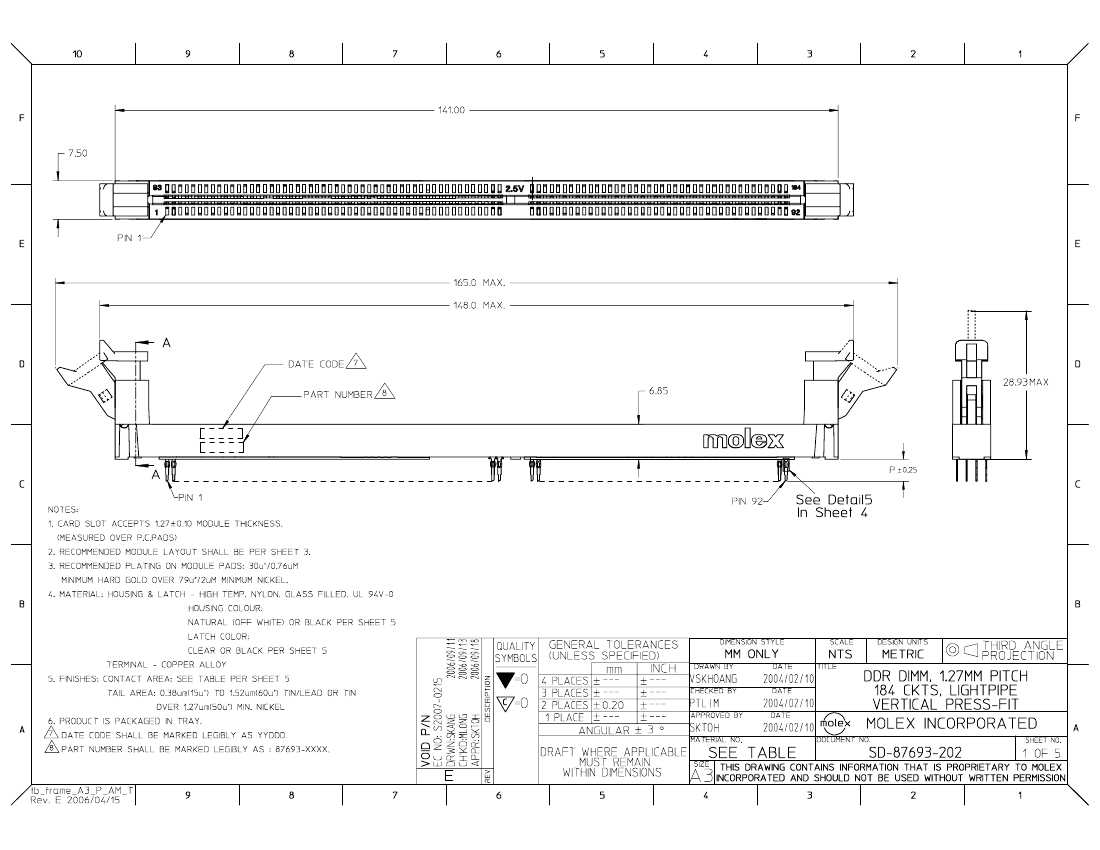

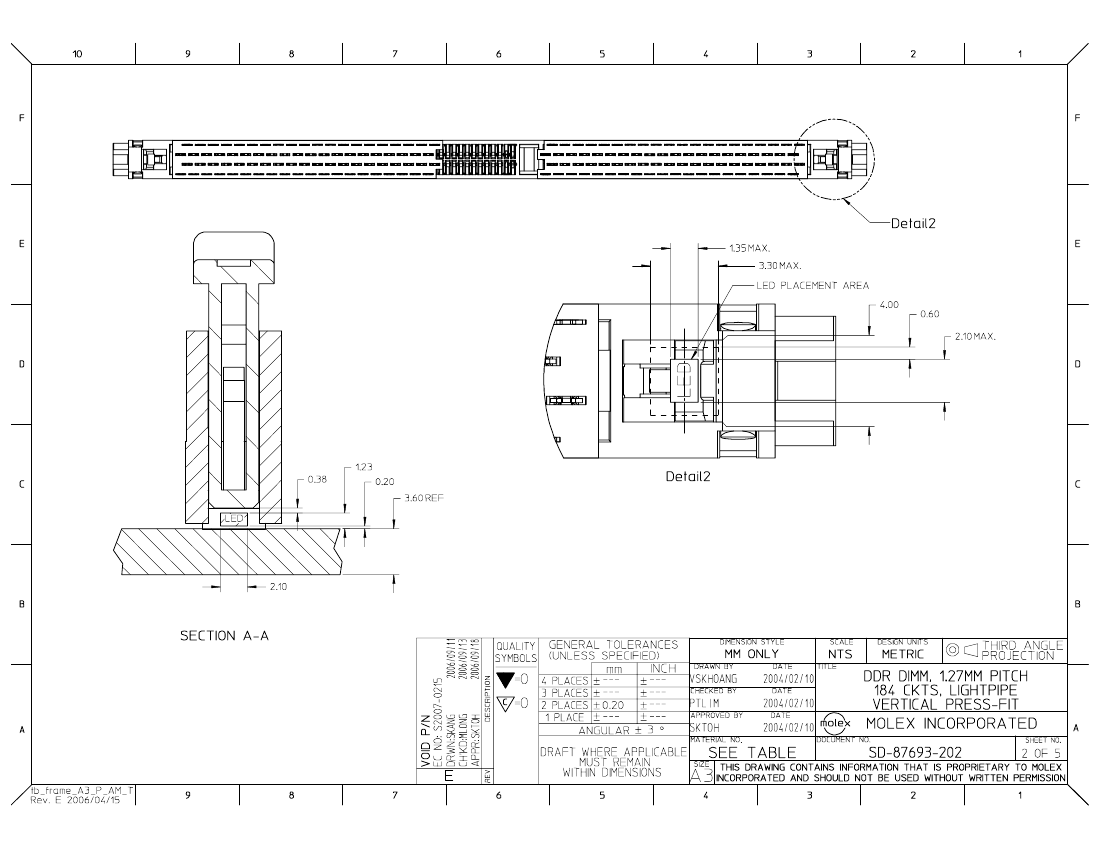

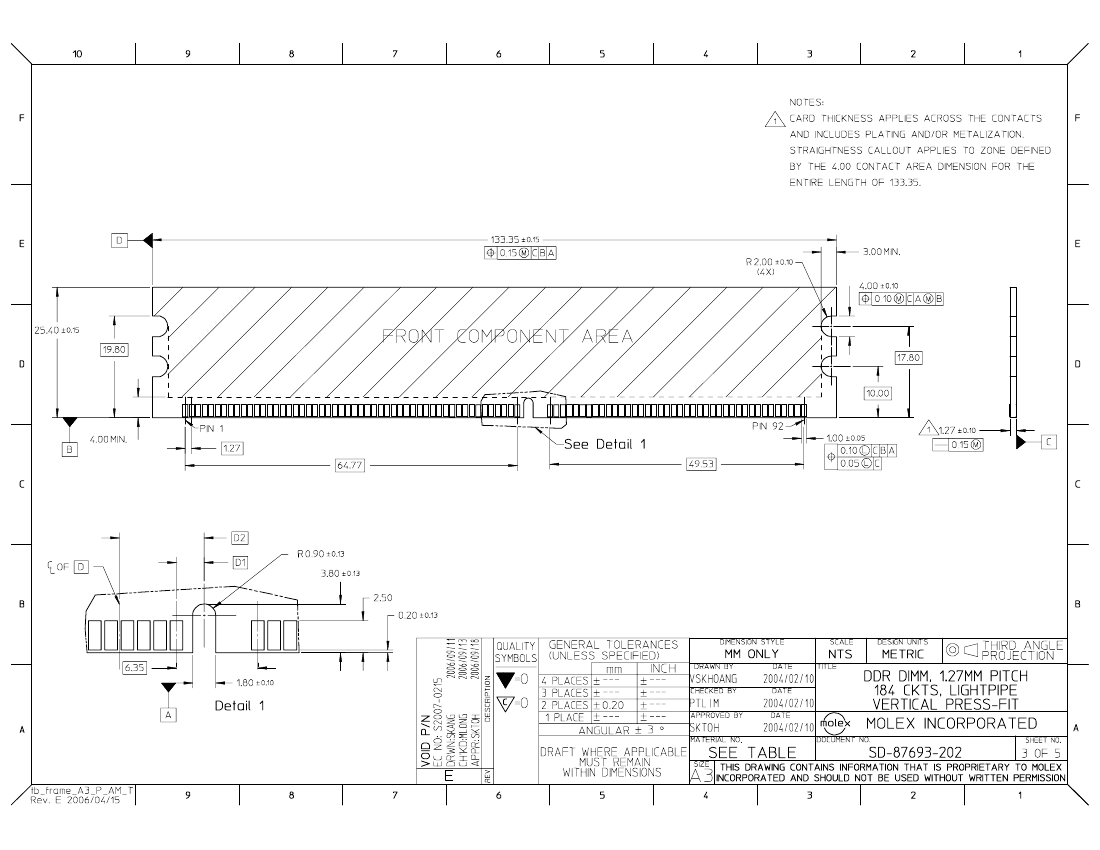

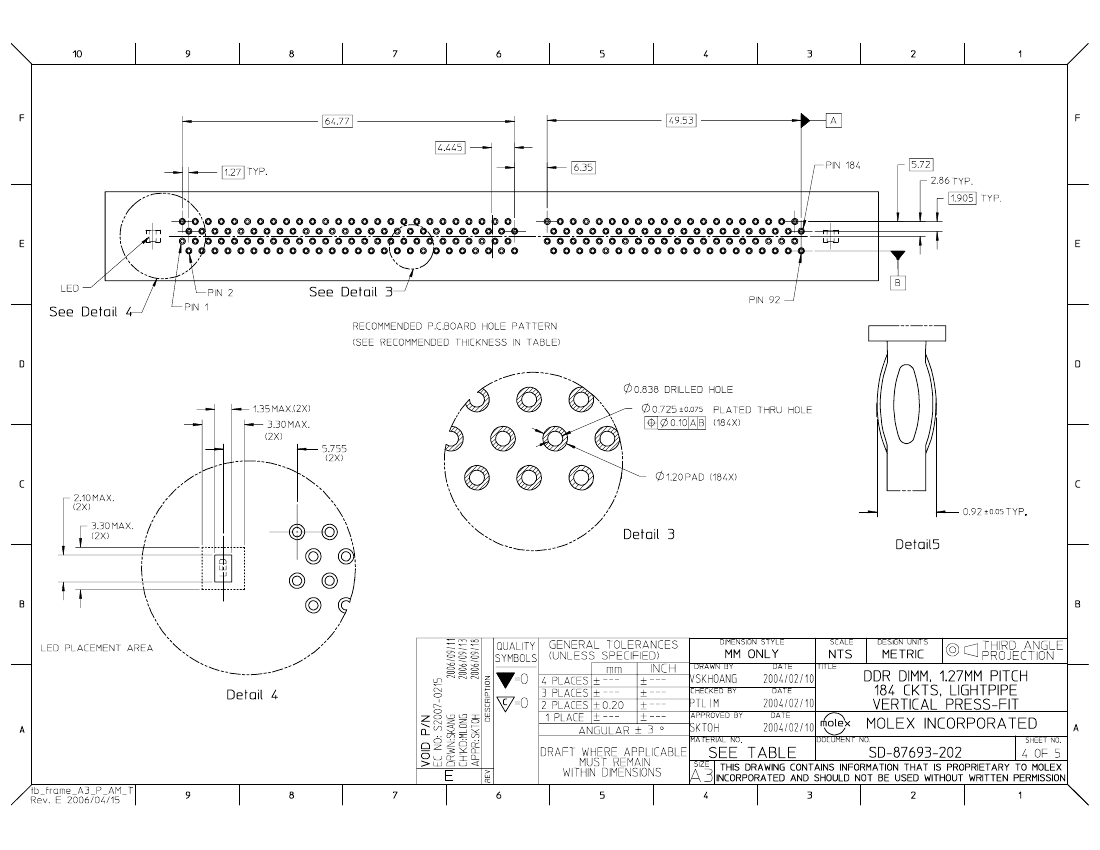

Reference - Drawing Numbers

Sales Drawing

SD-87693-202

This document was generated on 04/07/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

87693-2311 Related Products

	87693-2311	0876932311
Description	1.27mm (.050") pitch ddr dimm socket, vertical, press-fit, 2.5V voltage keys (left), 3.32mm (.131") tail length	184 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, PRESS FIT, SOCKET
Is it Rohs certified?	conform to	conform to
Maker	Molex	Molex
Reach Compliance Code	unknow	unknown
Other features	LATCHED	LATCHED, POLARIZED
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (30)	GOLD (30)
Contact completed and terminated	Tin (Sn)	TIN (15)
Contact point gender	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
JESD-609 code	e3	e3
MIL compliance	NO	NO
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of rows loaded	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.27 mm	1.27 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	184	184
