88766-7700: Description1.90mm (.075) pitch microcross? P&D; analog (M)-to-vga (male) + usb type A (M), 2.0m (6.56) length, leadfree; File Size155KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

88766-7700 Overview

1.90mm (.075) pitch microcross? P&D; analog (M)-to-vga (male) + usb type A (M), 2.0m (6.56) length, leadfree

Preview

Download Datasheet

View All

This document was generated on 05/26/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0887667700

Active

1.90mm (.075") Pitch MicroCross™ P&D Analog (M)-to-VGA (Male) + USB Type A (M),

2.0m (6.56' ) Length, Leadfree

Documents:

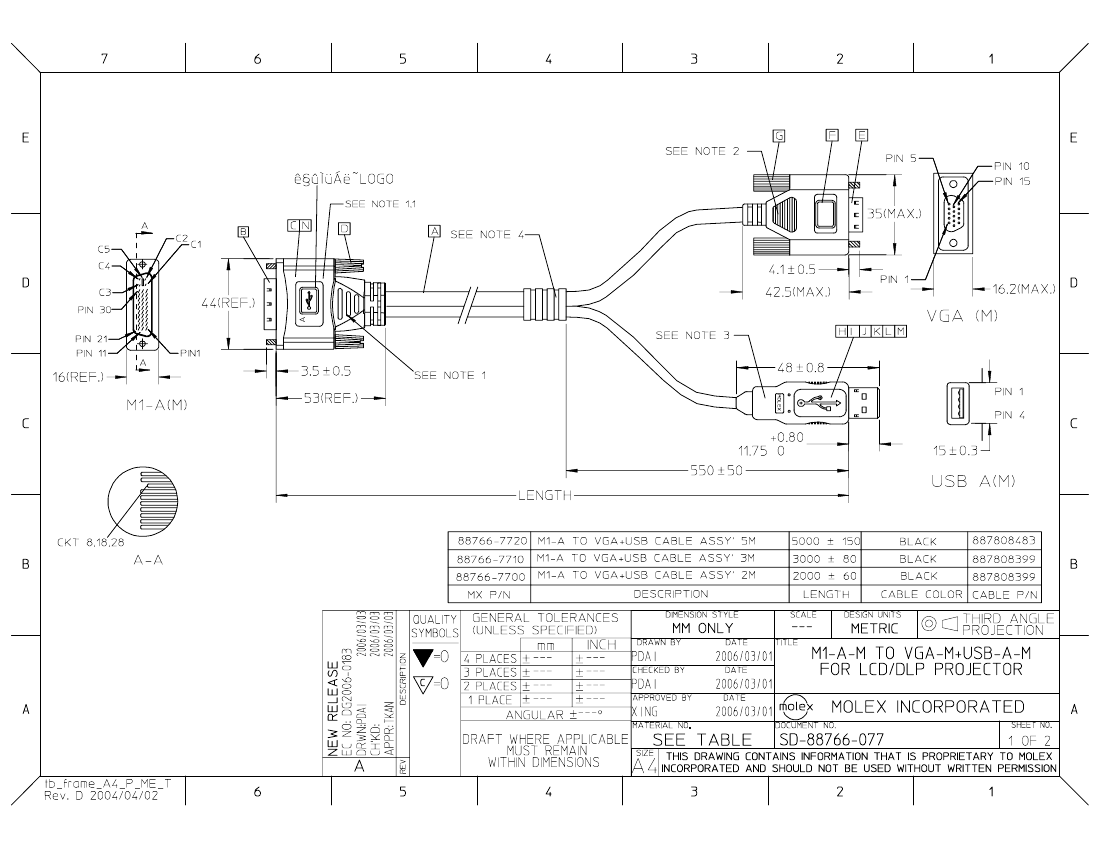

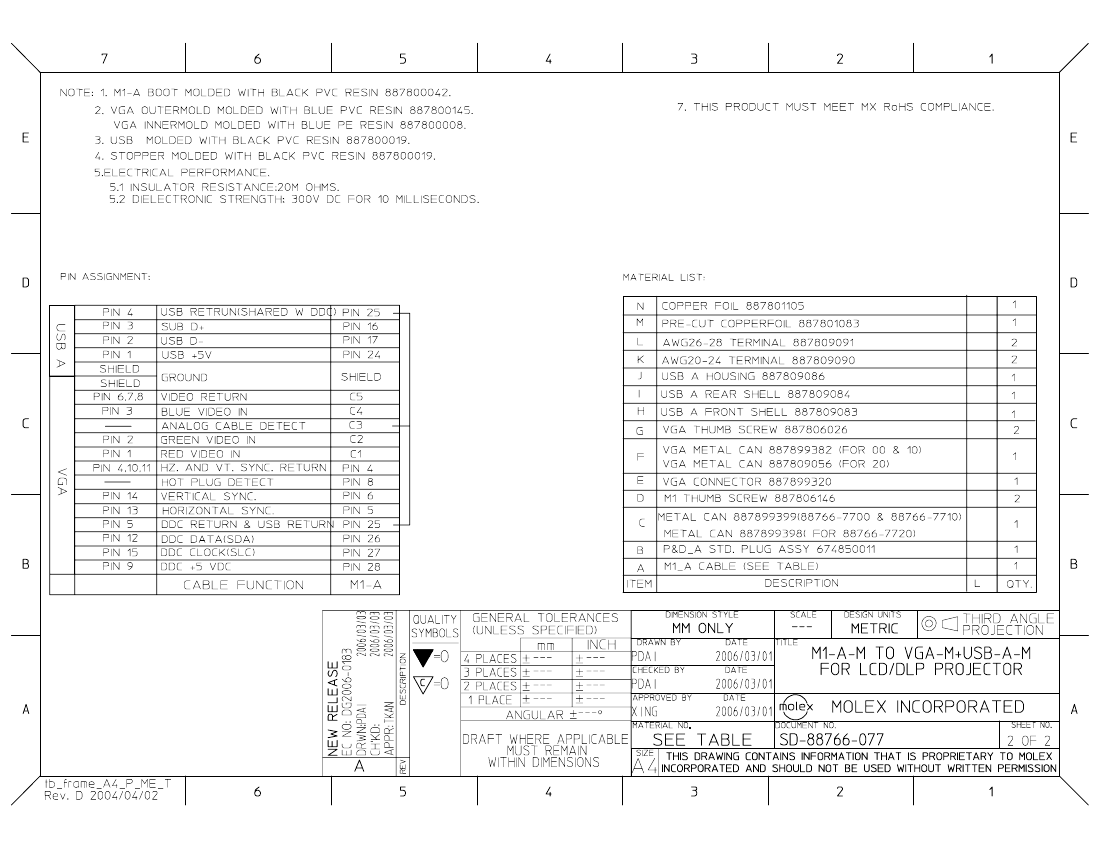

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Connector to Connector

Product Name

Cable Assemblies

88745

MicroCross™ P&D-to-VGA/USB

MicroCross™P&D

EU RoHS

China RoHS

RoHS Compliant by

Exemption

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Cable Length

Circuits (Loaded)

Color - Resin

Gender

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Single Ended

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire/Cable Type

2.0m (6.56' )

Black, Natural

Male-Male

Yes

Brass

Gold

Tin

Low Density Polyethylene, Polyester

Bag

0.075 In

1.90 mm

10, 2

0.05, 0.25

150

3.80

N/A

20, 26

PVC

Search Parts in this Series

88745Series

Mates With

71182 MicroCross™ P&D-A Receptacle

Header . 73712 MicroCross™ P&D-A/D

Receptacle Header . 71781 MicroCross™

Panel Mount Hex Screws

Electrical

Current - Maximum per Contact

Shielded

Voltage - Maximum

0.4A

Yes

40V

Material Info

Reference - Drawing Numbers

Sales Drawing

SD-88766-077

This document was generated on 05/26/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
