0022503125: Description2.54mm (.100") KK idt double cantilever contact, 12 circuits, tin (Sn), feed-through, friction ramp; File Size164KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

0022503125 Overview

2.54mm (.100") KK idt double cantilever contact, 12 circuits, tin (Sn), feed-through, friction ramp

Preview

Download Datasheet

View All

This document was generated on 05/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0022503125

Active

2.54mm (.100") KK® IDT Double Cantilever Contact, 12 Circuits, Tin (Sn), Feed-

Through, Friction Ramp and Polarizing Rib, Green ID Strip

Documents:

3D Model

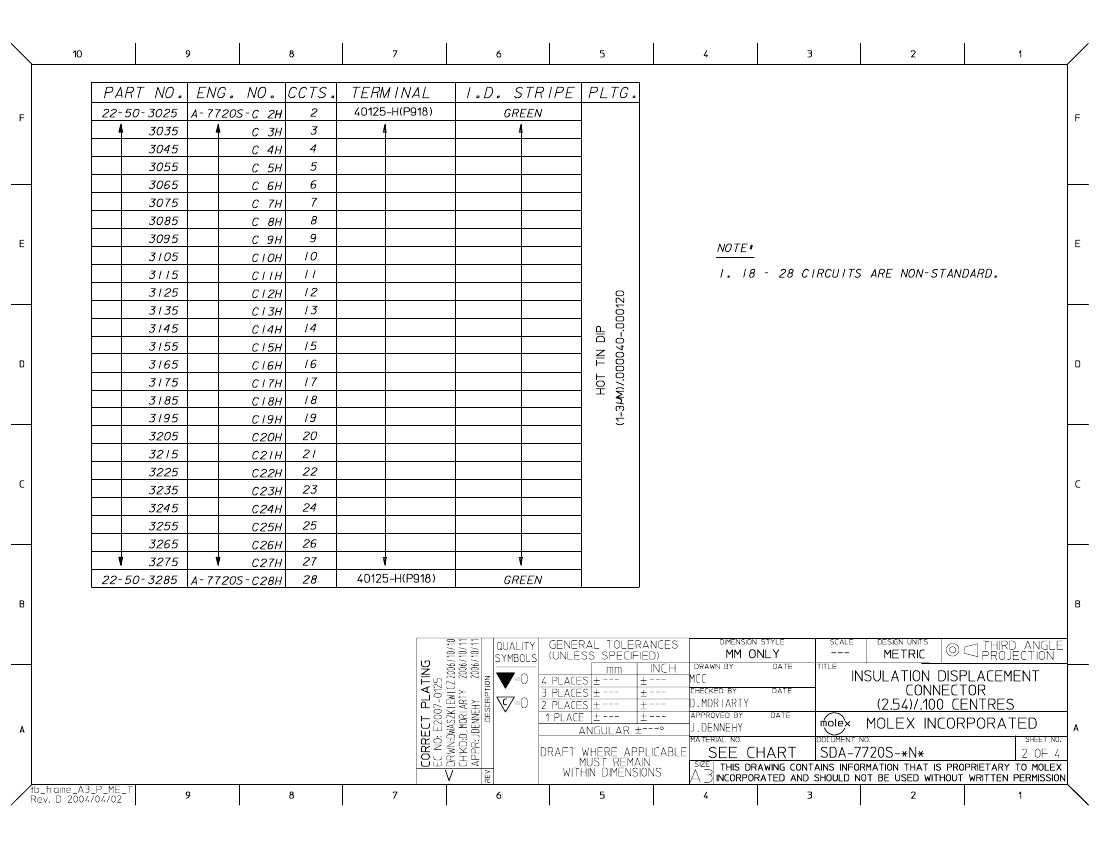

Drawing (PDF)

Product Specification PSX-7690S (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

General

Product Family

Series

Comments

Crimp Quality Equipment

Overview

Product Name

IDT and Solder Connectors

7720

Version H

Yes

KK®

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Gender

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire Size AWG

Natural

94V-2

Female

None

Brass

Tin

Nylon

Bag

0.100 In

2.54 mm

0.100 In

2.54 mm

Yes

0°C to +50°C

IDT or Pierce

24 Stranded, 26 Solid, 26 Stranded Topcoat

Search Parts in this Series

7720Series

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Insertion Tool for

0638133504

2.54mm (.100") Pitch

KK® IDT Crimp

Terminals

IDT - Semi-automatic 0011200412

- Bench-Top

Terminator

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V

Solder Process Data

Lead-free Process Capability

Wave Capable (TH only)

Material Info

Old Part Number

7720SC12H
