89485-8200: Descriptionuniversal serial bus (usb) shielded I/O type A receptacle, single Upright, right angle, terminal length 2.00mm (.079), without mylar, gold (Au) flash; CategoryThe connector The connector; File Size336KB，7 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

89485-8200 Overview

universal serial bus (usb) shielded I/O type A receptacle, single Upright, right angle, terminal length 2.00mm (.079), without mylar, gold (Au) flash

89485-8200 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	compliant
Other features	PANEL MOUNTABLE
Connector type	USB CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL (50)
Contact completed and terminated	TIN (75) OVER NICKEL (50)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYAMIDE
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/25/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0894858200

Active

Universal Serial Bus (USB) Shielded I/O Type A Receptacle, Single Upright, Right

Angle, Terminal Length 2.00mm (.079"), Without Mylar, Gold (Au) Flash, Tube

Package, Lead Free

Documents:

3D Model

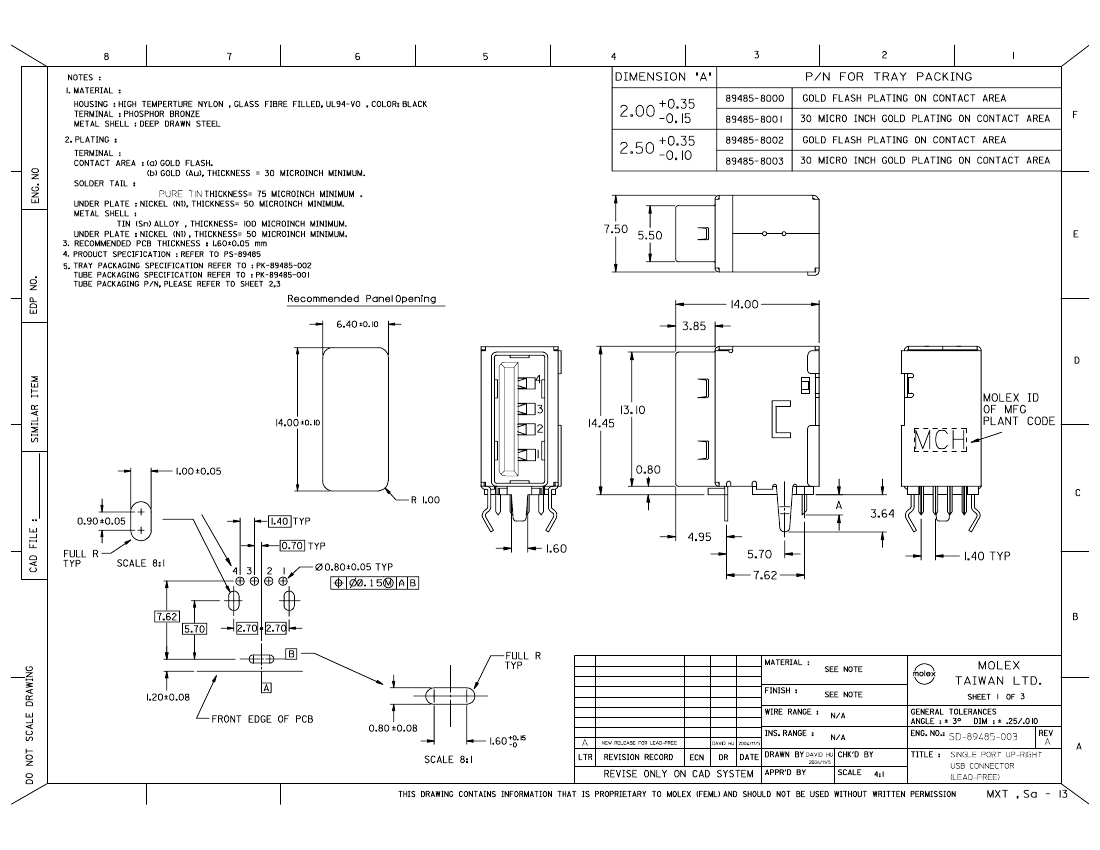

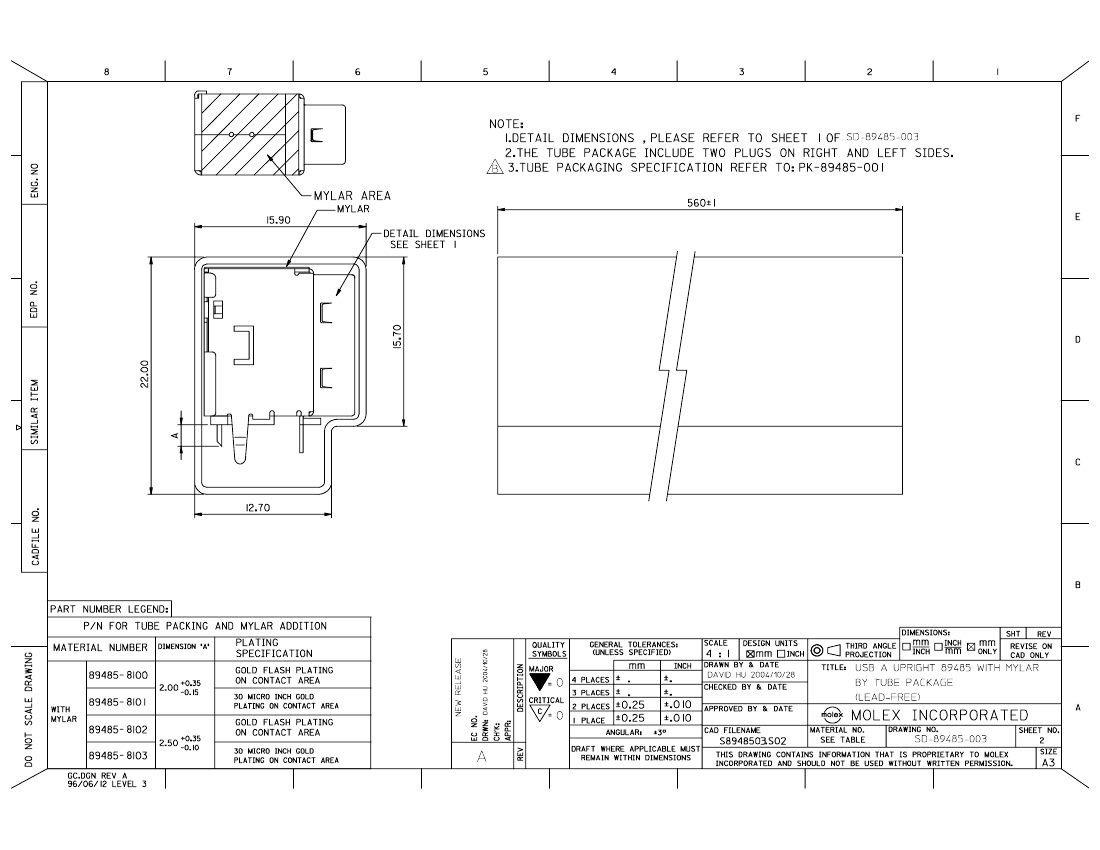

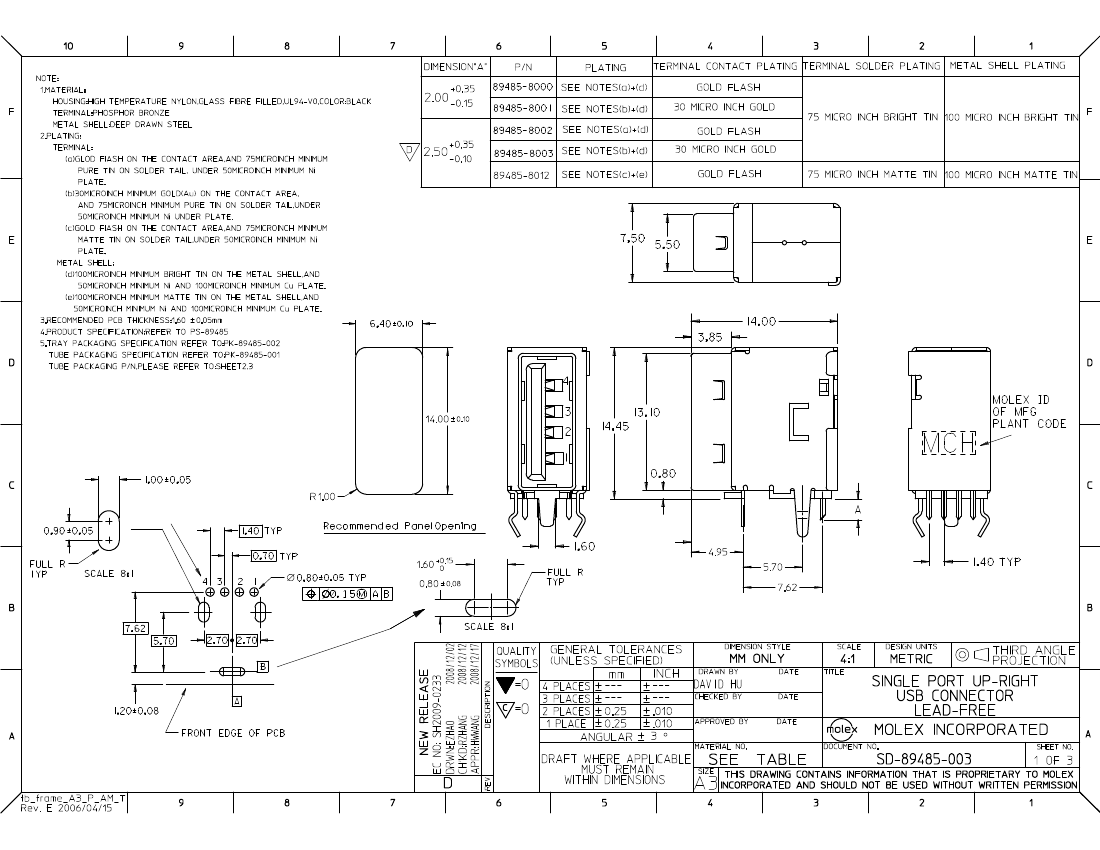

Drawing (PDF)

Product Specification PS-89485 (PDF)

RoHS Certificate of Compliance (PDF)

Series

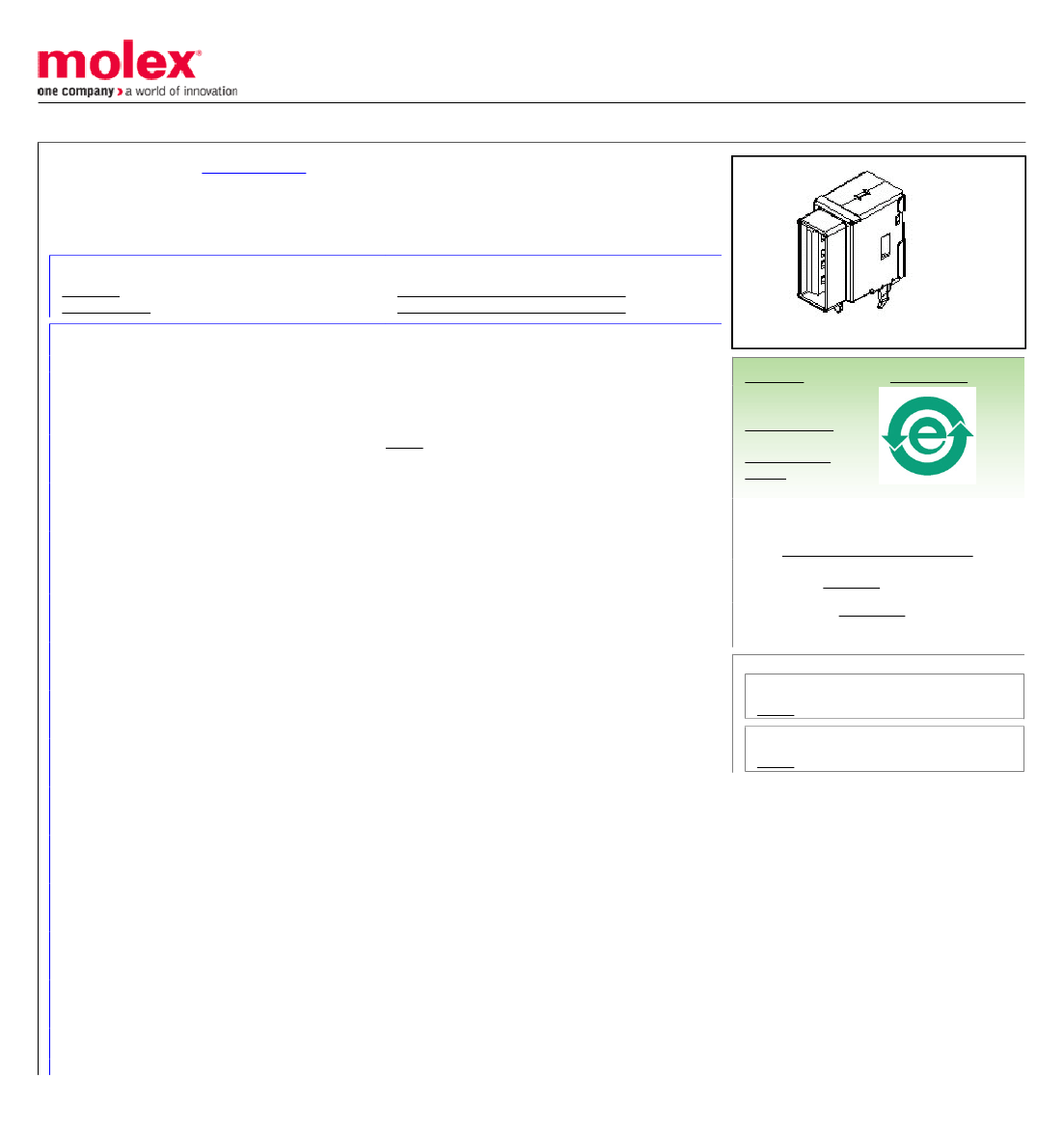

image - Reference only

LR19980

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

General

Product Family

Series

Application

Comments

Component Type

Product Name

Type

I/O Connectors

89485

Wire-to-Board

Without Mylar

Receptacle

USB

Physical

Boot Color

Circuits (Loaded)

Circuits (maximum)

Flammability

Gender

Lock to Mating Part

Material - Plating Mating

Material - Plating Termination

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to Mating Part

Polarized to PCB

Ports

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Waterproof / Dustproof

N/A

94V-0

Male

Yes

Gold

Tin

Upright

0.079 In

2.00 mm

Yes

0.062 In

1.60 mm

Tube

0.079 In, 0.098 In

2.00 mm, 2.50 mm

0.055 In

1.40 mm

Yes

125°C

Through Hole

Search Parts in this Series

89485Series

Mates With

88740 USB Type A Cable Plug

Electrical

Current - Maximum per Contact

89485-8200 Related Products

	89485-8200	PT768_15
Description	universal serial bus (usb) shielded I/O type A receptacle, single Upright, right angle, terminal length 2.00mm (.079), without mylar, gold (Au) flash	DIODE
