Part Number:
Status:
Description:
0879331215
Active
1.27mm (.050") Pitch Wire-to-Board Header, Dual Row, SMT, Vertical, 100 Circuits,
0.05µm (2µ") Gold (Au) Plating, Mating Pin Length 3.05mm (0.120"), with Cap, without
Peg, Tube Packaging, Lead-free
Documents:
3D Model

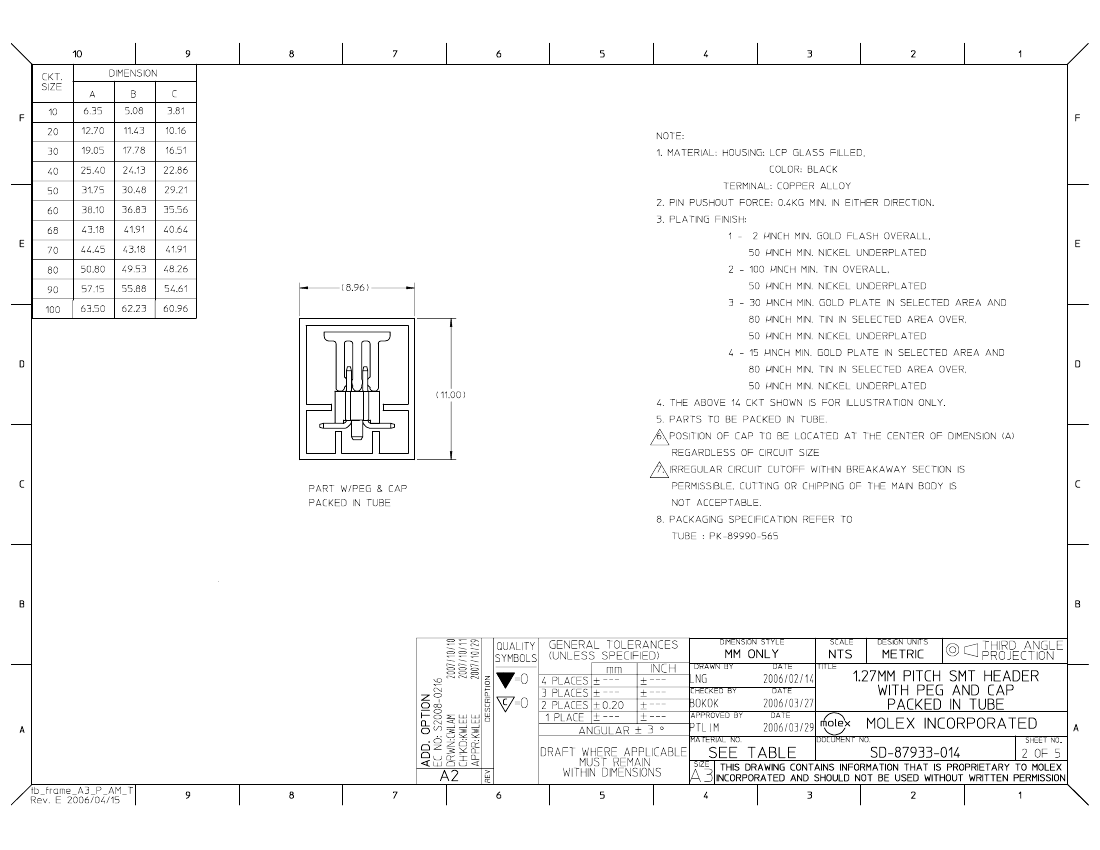

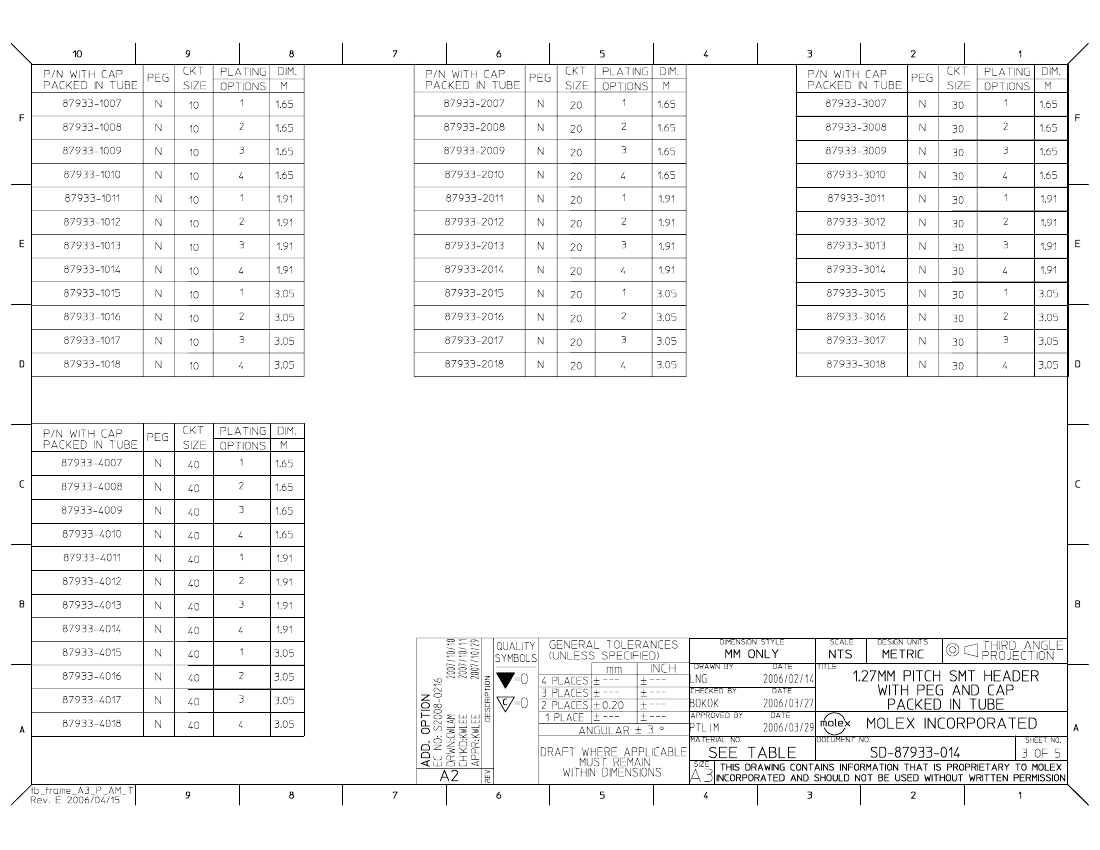

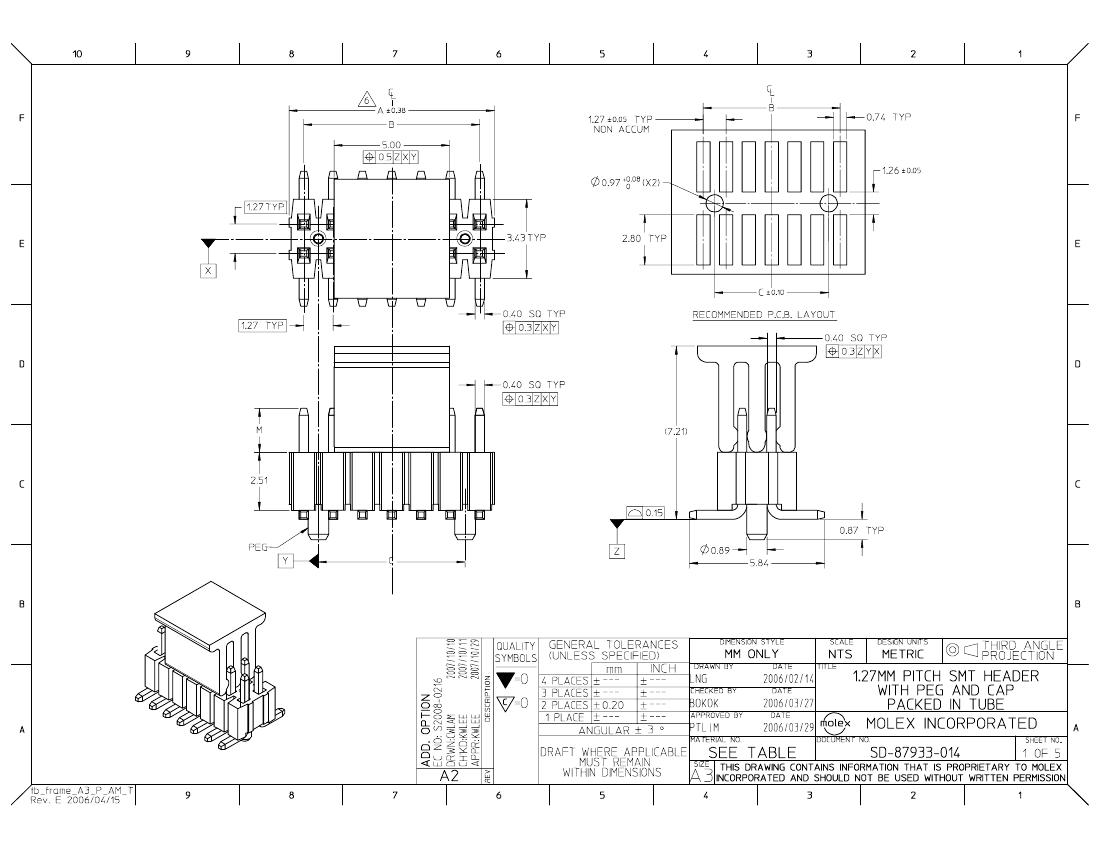

Drawing (PDF)
Product Specification PS-87933-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
PCB Headers
87933
Wire-to-Board
With Cap
N/A
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Comments
Product Name
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Mated Height (in)
Mated Height (mm)
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Robotic Placement
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
Yes
100
100
Black
100
No
No
No
None
No
0.120 In
3.05 mm
Copper Alloy
Gold
Nickel
High Temperature Thermoplastic
2
Vertical
No
None
Tube
0.050 In
1.27 mm
0.050 In
1.27 mm
2
0.05
50
1.27
No
No
Pick and Place Cap
No
No
-55°C to +105°C
Surface Mount
Search Parts in this Series
87933Series
Mates With
78120 Wire-to-Board Receptacles
Electrical
Current - Maximum per Contact
Voltage - Maximum
1.75A
125V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
10
Reflow Capable (SMT only)
3
260
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-87933-001
SD-87933-014
