058/059 PLL-SI
Vishay BCcomponents
Aluminum Capacitors
Power Long Life Snap-In
FEATURES
•
Polarized aluminum
non-solid electrolyte
electrolytic
capacitors,
•
Large types, minimized dimensions, cylindrical
aluminum case, insulated with a blue sleeve
•
Very long useful life: up to 10 000 hours at 105 °C
•
Extended temperature range: 105 °C
Fig.1 Component outlines
RoHS
COMPLIANT
•
Low ESR, high ripple current capability
•
Keyed polarity version available
159 PUL-SI
smaller
dimensions
058/059
PLL-SI
85
°C
056/057
PSM-SI
APPLICATIONS
•
Computer, telecommunication and industrial systems
•
Smoothing and filtering applications
•
Standard and switched mode power supplies
•
Energy storage in pulse systems
QUICK REFERENCE DATA
DESCRIPTION
Nominal case sizes
(Ø D x L in mm)
Rated capacitance range
(E6 series), C
R
Tolerance on C
R
Rated voltage range, U
R
Category temperature range
Endurance test at 105 °C
Useful life at 105
°C
Useful life at 40 °C,
1.9 x I
R
applied
Shelf life at 0 V, 105 °C
Based on sectional specification
Climatic category IEC 60068
VALUE
058
059
MARKING
The capacitors are marked (where possible) with the
following information:
•
Rated capacitance (in µF)
•
Tolerance code on rated capacitance, code letter in
accordance with IEC 60062 (M for ± 20 %)
•
Rated voltage (in V)
•
Date code (YYMM)
•
Name of manufacturer
•
Code for factory of origin
•
‘−’ sign to identify the negative terminal, visible from the top
and side of the capacitor
•
Code number
•
Climatic category in accordance with IEC 60068
22 x 25 to 35 x 50
33 to 47 000 µF
± 20 %
10 to 100 V
200 to 400 V
- 40 to + 105 °C - 25 to 105 °C
≤
50 V: 2000 hours;
≥
63 V: 5000 hours
≤
50 V: 5000 hours;
≥
63 V: 10 000 hours
≤
50 V: 125 000 hours;
≥
63 V: 250 000 hours
500 hours
IEC 60384-4/EN130300
40/105/56
25/105/56
SELECTION CHART FOR C
R
, U
R
AND RELEVANT NOMINAL CASE SIZES FOR 058 SERIES
(Ø D x L in mm)
C
R
(µF)
330
470
680
U
R
(V)
10
-
-
-
-
-
-
-
-
16
-
-
-
-
-
-
-
-
25
-
-
-
-
-
-
-
-
40
-
-
-
-
-
-
22 x 25
-
50
-
-
-
-
22 x 25
-
22 x 30
-
63
-
-
22 x 25
-
22 x 30
-
25 x 30
22 x 40
100
22 x 25
22 x 30
25 x 30
22 x 40
30 x 30
25 x 40
30 x 40
25 x 50
www.vishay.com
1
1000
1500
Document Number: 28342
Revision: 18-Aug-08
For technical questions, contact: aluminumcaps2@vishay.com
058/059 PLL-SI
Vishay BCcomponents
Aluminum Capacitors
Power Long Life Snap-In
SELECTION CHART FOR C
R
, U
R
AND RELEVANT NOMINAL CASE SIZES FOR 058 SERIES
(Ø D x L in mm)
C
R
(µF)
2200
U
R
(V)
10
-
-
-
-
22 x 25
-
22 x 30
-
25 x 30
22 x 40
30 x 30
25 x 40
30 x 40
25 x 50
35 x 40
30 x 50
35 x 50
16
-
-
22 x 25
-
22 x 30
-
25 x 30
22 x 40
30 x 30
25 x 40
30 x 40
25 x 50
35 x 40
30 x 50
35 x 50
-
-
25
22 x 25
-
22 x 30
-
25 x 30
22 x 40
30 x 30
25 x 40
30 x 40
25 x 50
35 x 40
30 x 50
35 x 50
-
-
-
-
40
22 x 30
-
25 x 30
22 x 40
30 x 30
25 x 40
30 x 40
25 x 50
35 x 40
30 x 50
35 x 50
-
-
-
-
-
-
50
25 x 30
22 x 40
30 x 30
25 x 40
30 x 40
25 x 50
35 x 40
30 x 50
35 x 50
-
-
-
-
-
-
-
-
63
30 x 30
25 x 40
30 x 40
25 x 50
35 x 40
30 x 50
35 x 50
-
-
-
-
-
-
-
-
-
-
100
35 x 40
30 x 50
35 x 50
-
-
-
-
-
-
-
-
-
-
-
-
-
-
3300
4700
6800
10 000
15 000
22 000
33 000
47 000
SELECTION CHART FOR C
R
, U
R
AND RELEVANT NOMINAL CASE SIZES FOR 059 SERIES
(Ø D x L in mm)
C
R
(µF)
33
47
68
U
R
(V)
200
-
-
-
-
22 x 25
-
22 x 30
-
22 x 35
25 x 30
30 x 30
25 x 40
30 x 35
25 x 50
35 x 35
30 x 45
35 x 50
250
-
-
22 x 25
-
22 x 30
-
22 x 35
25 x 30
30 x 30
25 x 35
30 x 35
25 x 50
35 x 35
30 x 45
35 x 45
-
-
385
22 x 25
22 x 30
22 x 35
25 x 30
30 x 30
25 x 40
25 x 50
30 x 40
35 x 40
30 x 50
35 x 50
-
-
-
-
-
-
400
-
22 x 30
22 x 35
25 x 30
30 x 30
25 x 40
30 x 35
25 x 50
35 x 40
30 x 50
35 x 50
-
-
-
-
-
-
100
150
220
330
470
680
1000
www.vishay.com
2
For technical questions, contact: aluminumcaps2@vishay.com
Document Number: 28342
Revision: 18-Aug-08
058/059 PLL-SI
Aluminum Capacitors
Power Long Life Snap-In

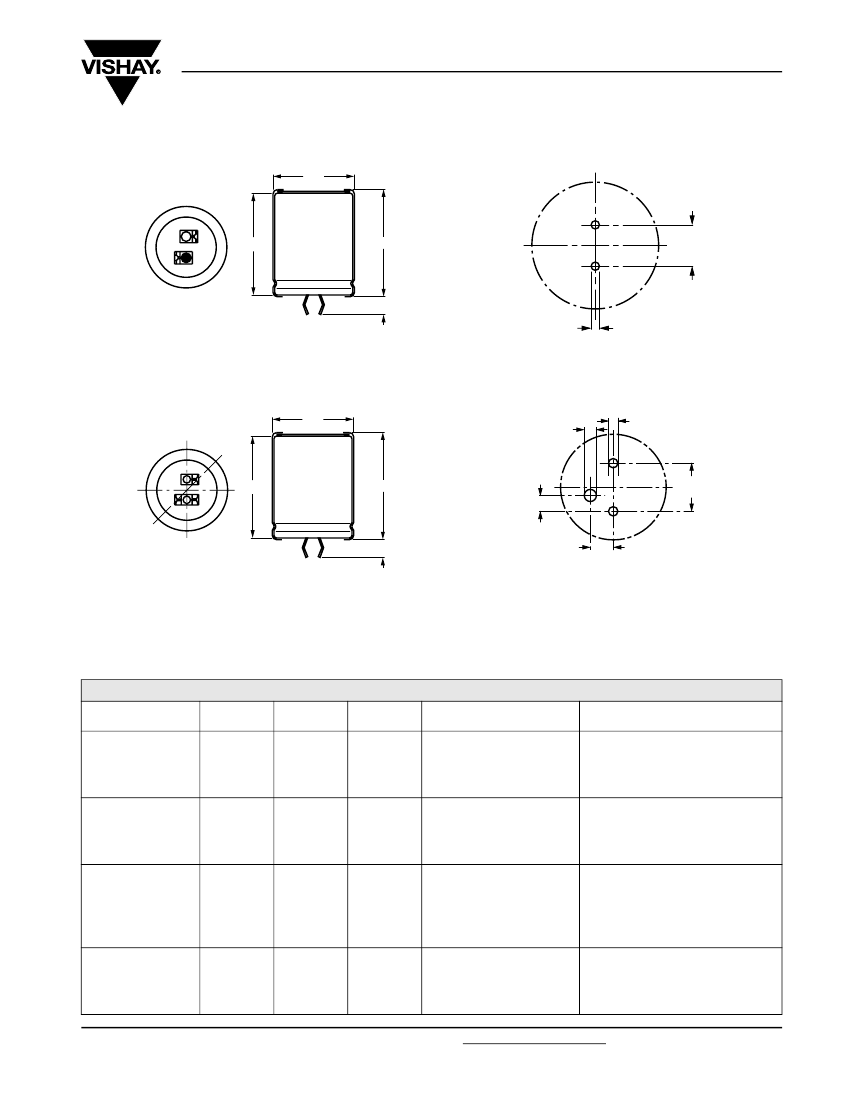

DIMENSIONS
in millimeters
AND AVAILABLE FORMS
TWO TERMINAL SNAP-IN
ØD
Vishay BCcomponents
+ TERMINAL
- TERMINAL
L
L + 2 max.
10 ± 0.1
Bottom view
5.8
-1
mm
Ø 2 ± 0.1 (2 x)
+0
The minus terminal can be marked with a black dot or with an
imprinted ‘−’ sign.
Fig.2 Two terminal snap-in
Fig.3 Mounting hole diagram
THREE TERMINAL SNAP-IN
ØD
Ø 2.5 ± 0.1
Ø 2 ± 0.1 (2 x)
+ TERMINAL
- TERMINAL
minus pole
marking
Bottom view
L
L + 2 max.
3.3 ± 0.1
10 ± 0.1
4 ± 0.5
4.75 ± 0.1
The negative terminal has
TWO
pins which are
BOTH
electrically connected.
The 10 mm spacing of the 2 pin snap-in is used as the base
layout and a third hole is added.
The third hole is closer to the negative primary hole so that
polarization is always maintained, together with added
mechanical stability.
Fig.5 Mounting hole diagram
Fig.4 Three terminal snap-in
Table 1
DIMENSIONS IN MILLIMETERS, MASS AND PACKAGING QUANTITIES
NOMINAL CASE
SIZE Ø D x L
22 x 25
22 x 30
22 x 35
22 x 40
25 x 30
25 x 35
25 x 40
25 x 50
30 x 30
30 x 35
30 x 40
30 x 45
30 x 50
35 x 35
35 x 40
35 x 45
35 x 50
Document Number: 28342
Revision: 18-Aug-08
Ø D
max.
23
23
23
23
26
26
26
26
31
31
31
31
31
36
36
36
36
L
max.
27
32
37
42
32
37
42
52
32
37
42
47
52
37
42
47
52
MASS
(g)
≈
12
≈
16
≈
20
≈
23
≈
22
≈
24
≈
27
≈
38
≈
30
≈
35
≈
40
≈
45
≈
50
≈
48
≈
55
≈
63
≈
72
PACKAGING QUANTITIES
(units per box)
100
100
100
100
100
100
100
100
100
100
100
100
100
50
50
50
50
CARDBOARD BOX DIMENSIONS
LxWxH
260 x 250 x 39
260 x 250 x 44
260 x 250 x 49
260 x 250 x 54
290 x 280 x 44
290 x 280 x 49
290 x 280 x 54
290 x 280 x 64
340 x 330 x 44
340 x 330 x 49
340 x 330 x 54
340 x 330 x 59
340 x 330 x 64
390 x 198 x 49
390 x 198 x 54
390 x 198 x 59
390 x 198 x 64
www.vishay.com
3
For technical questions, contact: aluminumcaps2@vishay.com
058/059 PLL-SI
Vishay BCcomponents
Aluminum Capacitors
Power Long Life Snap-In
ORDERING EXAMPLE
DESCRIPTION
rated capacitance at 100 Hz
rated RMS ripple current at 100 Hz or
≥
10 kHz and 105 °C
max. leakage current after 1 minute at U
R
max. leakage current after 5 minutes at U
R
max. equivalent series resistance at 100 Hz
max. impedance at 10 kHz
ELECTRICAL DATA
SYMBOL
C
R
I
R
I
L1
I
L5
ESR
Z
Electrolytic capacitor 058 series
10 000 µF/25 V; ± 20 %
Nominal case size: Ø 30 x 40 mm
2-terminal snap-in
Ordering code: MAL2 058 56103 E3
Former 12NC: 2222 058 56103
3-terminal snap-in
Ordering code: MAL2 058 76103 E3
Former 12NC: 2222 058 76103
Note
• Unless otherwise specified, all electrical values in Tables 2 and 3
apply at T
amb
= 20
°C,
P = 86 to 106 kPa, RH = 45 to 75 %
Table 2
ELECTRICAL DATA AND ORDERING INFORMATION FOR 058 SERIES
(Ø D x L in mm)
U
R
(V)
C
R
100 Hz
(µF)
4700
6800
10 000
10 000
15 000
15 000
22 000
22 000
33 000
33 000
47 000
3300
4700
6800
6800
10 000
10 000
15 000
15 000
22 000
22 000
33 000
2200
3300
4700
4700
6800
6800
10 000
10 000
15 000
15 000
22 000
1500
2200
3300
3300
4700
4700
6800
6800
10 000
10 000
15 000
NOMINAL
CASE SIZE
ØDxL
(mm)
22 x 25
22 x 30
25 x 30
22 x 40
30 x 30
25 x 40
30 x 40
25 x 50
35 x 40
30 x 50
35 x 50
22 x 25
22 x 30
25 x 30
22 x 40
30 x 30
25 x 40
30 x 40
25 x 50
35 x 40
30 x 50
35 x 50
22 x 25
22 x 30
25 x 30
22 x 40
30 x 30
25 x 40
30 x 40
25 x 50
35 x 40
30 x 50
35 x 50
22 x 25
22 x 30
25 x 30
22 x 40
30 x 30
25 x 40
30 x 40
25 x 50
35 x 40
30 x 50
35 x 50
I
R
100 Hz
105 °C
(A)
1.95
2.44
2.81
3.29
3.53
3.78
4.62
4.68
5.15
5.70
6.23
1.90
2.36
2.75
3.18
3.44
3.66
4.55
4.55
5.07
5.67
6.23
1.76
2.23
2.60
3.00
3.26
3.49
4.37
4.37
4.91
5.43
6.07
1.65
2.04
2.43
2.78
2.96
3.26
3.94
4.10
4.18
4.98
5.21
I
R
≥
10 kHz
105 °C
(A)
2.30
2.88
3.32
3.88
4.17
4.46
5.45
5.52
6.08
6.73
7.35
2.24
2.78
3.25
3.75
4.06
4.32
5.37
5.37
5.98
6.69
7.35
2.08
2.63
3.07
3.54
3.85
4.12
5.16
5.16
5.79
6.41
7.16
2.01
2.49
2.99
3.39
3.61
3.90
4.81
5.00
5.10
6.08
6.36
I
L1
1 min
(µA)
286
412
604
604
904
904
1324
1324
1984
1984
2824
321
455
657
657
964
964
1444
1444
2116
2116
3172
334
499
709
709
1024
1024
1504
1504
2254
2254
3304
364
532
796
796
1132
1132
1636
1636
2404
2404
3604
I
L5
5 min
(µA)
98
140
204
204
304
304
444
444
664
664
944
110
154
222
222
324
324
484
484
708
708
1060
114
169
239
239
344
344
504
504
754
754
1104
124
180
268
268
380
380
548
548
804
804
1204
ESR
100 Hz
(mΩ)
82
61
54
43
42
38
31
31
30
24
24
86
65
56
46
44
40
32
32
31
25
25
100
73
62
52
49
44
35
35
33
27
27
114
87
71
60
59
51
42
39
46
36
36
Z
10 Hz
(mΩ)
57
44
42
32
34
30
25
24
24
21
21
57
44
42
32
34
30
25
24
24
21
21
57
44
42
32
34
30
25
24
24
21
21
65
50
45
37
40
32
29
26
29
24
24
ORDERING CODE
MAL2058.......
2-TERM.
54472E3
54682E3
54103E3
44103E3
54153E3
44153E3
54223E3
44223E3
54333E3
44333E3
54473E3
55332E3
55472E3
55682E3
45682E3
55103E3
45103E3
55153E3
45153E3
55223E3
45223E3
55333E3
56222E3
56332E3
56472E3
46472E3
56682E3
46682E3
56103E3
46103E3
56153E3
46153E3
56223E3
57152E3
57222E3
57332E3
47332E3
57472E3
47472E3
57682E3
47682E3
57103E3
47103E3
57153E3
3-TERM.
74472E3
74682E3
74103E3
24103E3
74153E3
24153E3
74223E3
24223E3
74333E3
24333E3
74473E3
75332E3
75472E3
75682E3
25682E3
75103E3
25103E3
75153E3
25153E3
75223E3
25223E3
75333E3
76222E3
76332E3
76472E3
26472E3
76682E3
26682E3
76103E3
26103E3
76153E3
26153E3
76223E3
77152E3
77222E3
77332E3
27332E3
77472E3
27472E3
77682E3
27682E3
77103E3
27103E3
77153E3
10
16
25
40
www.vishay.com
4
For technical questions, contact: aluminumcaps2@vishay.com
Document Number: 28342
Revision: 18-Aug-08
058/059 PLL-SI
Aluminum Capacitors
Power Long Life Snap-In
Vishay BCcomponents
ELECTRICAL DATA AND ORDERING INFORMATION FOR 058 SERIES
(Ø D x L in mm)
U
R
(V)
C
R
100 Hz
(µF)
1000
1500
2200
2200
3300
3300
4700
4700
6800
6800
10 000
680
1000
1500
1500
2200
2200
3300
3300
4700
4700
6800
330
470
680
680
1000
1000
1500
1500
2200
2200
3300
NOMINAL
CASE SIZE
ØDxL
(mm)
22 x 25
22 x 30
25 x 30
22 x 40
30 x 30
25 x 40
30 x 40
25 x 50
35 x 40
30 x 50
35 x 50
22 x 25
22 x 30
25 x 30
22 x 40
30 x 30
25 x 40
30 x 40
25 x 50
35 x 40
30 x 50
35 x 50
22 x 25
22 x 30
25 x 30
22 x 40
30 x 30
25 x 40
30 x 40
25 x 50
35 x 40
30 x 50
35 x 50
I
R
100 Hz
105 °C
(A)
1.50
1.88
2.27
2.55
2.81
3.07
3.77
3.85
4.01
4.74
5.04
1.17
1.46
1.76
2.00
2.27
2.40
3.07
3.07
3.65
3.88
4.58
0.92
1.14
1.35
1.57
1.79
1.85
2.45
2.38
3.05
3.13
3.84
I
R
≥
10 kHz
105 °C
(A)
1.83
2.29
2.77
3.11
3.43
3.75
4.60
4.70
4.89
5.78
6.15
1.43
1.78
2.15
2.44
2.77
2.93
3.75
3.75
4.45
4.73
5.59
1.12
1.39
1.65
1.92
2.40
2.26
2.99
2.90
3.72
3.82
4.68
I
L1
1 min
(µA)
304
454
664
664
994
994
1414
1414
2044
2044
3004
261
382
571
571
836
836
1251
1251
1781
1781
2574
202
286
412
412
604
604
904
904
1324
1324
1984
I
L5
5 min
(µA)
104
154
124
124
334
334
474
474
684
684
1004
90
130
193
193
281
281
420
420
596
596
861
70
98
140
140
204
204
304
304
444
444
664
ESR
100 Hz
(mΩ)
138
102
82
71
66
57
47
43
49
38
38
228
170
137
115
101
94
70
70
60
53
46
370
280
232
190
163
158
111
116
86
82
64
Z
10 Hz
(mΩ)
69
54
47
38
41
33
30
27
30
24
24
150
115
85
85
70
70
50
50
45
45
35
250
190
140
140
115
115
85
85
65
65
50
ORDERING CODE
MAL2058.......
2-TERM.
51102E3
51152E3
51222E3
41222E3
51332E3
41332E3
51472E3
41472E3
51682E3
41682E3
51103E3
58681E3
58102E3
58152E3
48152E3
58222E3
48222E3
58332E3
48332E3
58472E3
48472E3
58682E3
59331E3
59471E3
59681E3
49681E3
59102E3
49102E3
59152E3
49152E3
59222E3
49222E3
59332E3
3-TERM.
71102E3
71152E3
71222E3
21222E3
71332E3
21332E3
71472E3
21472E3
71682E3
21682E3
71103E3
78681E3
78102E3
78152E3
28152E3
78222E3
28222E3
78332E3
28332E3
78472E3
28472E3
78682E3
79331E3
79471E3
79681E3
29681E3
79102E3
29102E3
79152E3
29152E3
79222E3
29222E3
79332E3
50
63
100
Table 3
ELECTRICAL DATA AND ORDERING INFORMATION FOR 059 SERIES
U
R
(V)
C
R
100 Hz
(µF)
100
150
220
220
330
330
470
470
680
680
1000
68
100
150
150
220
220
330
330
470
470
680
NOMINAL
CASE SIZE
ØDxL
(mm)
22 x 25
22 x 30
22 x 35
25 x 30
30 x 30
25 x 40
30 x 35
25 x 50
30 x 45
35 x 35
35 x 50
22 x 25
22 x 30
22 x 35
25 x 30
25 x 35
30 x 30
30 x 35
25 x 50
30 x 45
35 x 35
35 x 45
I
R
100 Hz
105 °C
(A)
0.53
0.67
0.86
0.87
1.12
1.12
1.46
1.25
1.87
1.85
2.45
0.49
0.62
0.82
0.82
1.03
1.06
1.43
1.40
1.79
1.79
2.25
I
L1
1 min
(µA)
124
184
268
268
400
400
568
568
820
820
1204
106
154
229
229
334
334
499
499
709
709
1024
I
L5
5 min
(µA)
44
64
92
92
136
136
192
192
276
276
404
38
54
79
79
114
114
169
169
239
239
344
ESR
100 kHz
(µΩ)
1280
850
610
610
435
435
335
335
235
235
160
1640
1110
795
795
540
540
385
385
270
270
190
Z
10 kHz
(mΩ)
730
540
430
430
300
300
225
225
155
155
125
760
570
440
440
300
300
225
225
155
155
125
ORDERING CODE
MAL2059.....
2-TERM.
52101E3
52151E3
32221E3
52221E3
52331E3
42331E3
32471E3
42471E3
32681E3
62681E3
52102E3
53689E3
53101E3
33151E3
53151E3
33221E3
53221E3
33331E3
43331E3
33471E3
63471E3
43681E3
3-TERM.
72101E3
72151E3
12221E3
72221E3
72331E3
22331E3
12471E3
22471E3
12681E3
82681E3
72102E3
73689E3
73101E3
13151E3
73151E3
13221E3
73221E3
13331E3
23331E3
13471E3
83471E3
23681E3
www.vishay.com
5
200
250
Document Number: 28342
Revision: 18-Aug-08
For technical questions, contact: aluminumcaps2@vishay.com
京公网安备 11010802033920号
EEWORLD
