Last Update:
11-10-08

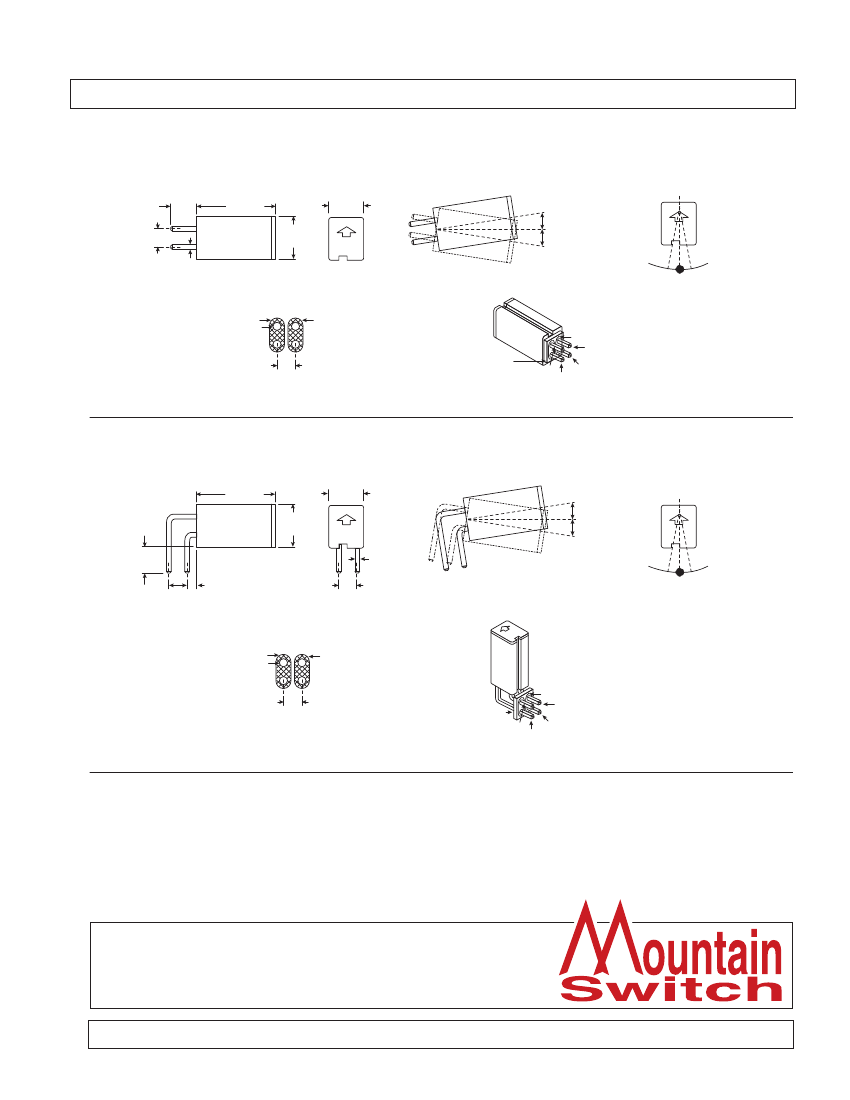

Dimensions: mm (in.)
107-1006
3.5
(.14)
2.54
(.10) sq
.64 (.025) sq
PCB Layout
ø2(ø.079)
ø1(ø.039)
Cu Foil
Cu Foil
1
PCB
2.54 (.10) sq
3
2
4
11(.43)
6
(.236)
5
(.20)
Close
θ
UP
θ
Open
Unstable
Ref. #:
MS-100218
θ
< 10°,
α
> 10°
UP
α
α
Unstable
Stable
Installation
107-1007
11(.43)
6
(.236)
3.5
(.14)
2.54
(.10)
1.5
(.059)
5
(.20)
UP
.64
(.025) sq
2.54 (.10)
UP
Close
θ
θ
Open
θ
< 10°,
α
> 10°
UP
Unstable
α
α
Unstable
Stable
PCB Layout
ø2(ø.079)
Cu Foil
ø1.2(ø.047)
Installation
2.54 (.10) sq
PCB
3
4
Cu Foil
1
2
Mechanical Specifications:
•
Contact rating: 25mA/24VDC
•
Insulation resistance: 1000MΩ min @ 100VDC
•
Dielectric strength: 500VDC min for 1 minute
•
Capacitance: 5pF max
•
Operating: -25°C to 70°C
•
Storage: -40°C to 85°C
•
Operation life: 100,000 cycles
Materials:
•
Body: Glass fiber polyamide, UL 94V-0
•
Cover: Glass fiber polyamide, UL 94V-0
•
Terminal: Copper alloy, gold plated over nickel
•
Cu-Ball: Copper alloy, gold plated over nickel
Solder Specifications:
•
183°C soldering tin (63Sn/37Pb) soldering
Iron 350± 5°C 3 Seconds (max)
Tilt Switches
107-1006, 107-1007
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
