24H1301-2R

Description
DC-DC Regulated Power Supply Module, 1 Output, 48W, Hybrid
CategoryPower/power management    The power supply circuit
File Size976KB,19 Pages
ManufacturerBel Power Solutions
Download Datasheet Parametric View All

24H1301-2R Overview

DC-DC Regulated Power Supply Module, 1 Output, 48W, Hybrid

24H1301-2R Parametric

Parameter NameAttribute value
Brand NamePower-One
Is it Rohs certified?incompatible
Objectid1546651599
package instruction,
Reach Compliance Codecompliant
ECCN codeEAR99
Analog Integrated Circuits - Other TypesDC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage30 V
Minimum input voltage14 V
Nominal input voltage24 V
JESD-30 codeR-XXMA-X
JESD-609 codee0
Number of functions1
Output times1
Maximum operating temperature50 °C
Minimum operating temperature-10 °C
Maximum output voltage12.24 V
Minimum output voltage11.76 V
Nominal output voltage12 V
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formMICROELECTRONIC ASSEMBLY
Certification statusNot Qualified
surface mountNO
technologyHYBRID
Temperature levelCOMMERCIAL
Terminal surfaceTIN LEAD
Terminal formUNSPECIFIED
Terminal locationUNSPECIFIED
Maximum total power output48 W
Fine-tuning/adjustable outputYES
Cassette Style
DC-DC Converters
H Series

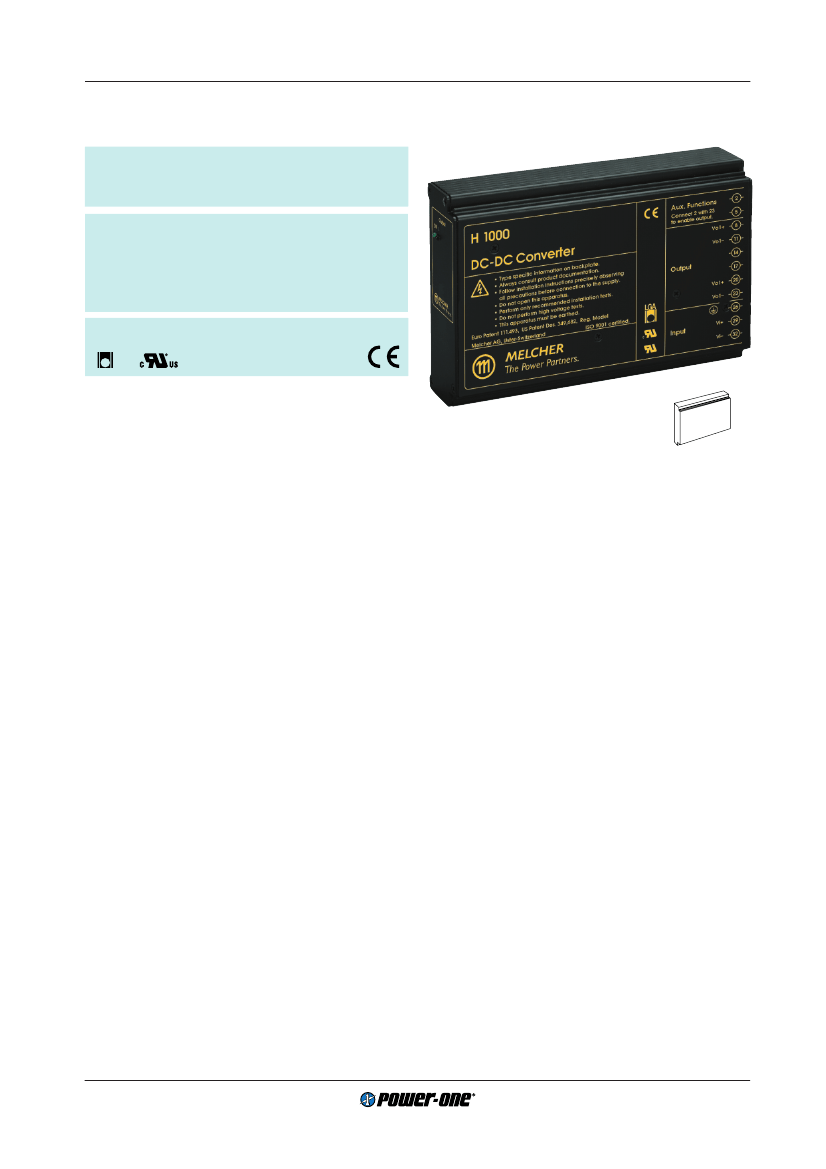

50 Watt DC-DC Converters
Wide input voltage ranges up to 60 V DC
1, 2 or 3 outputs up to 48 V DC
3 kV DC I/O electric strengh test voltage
• Wide input voltage range suitable for battery operation
• Efficient input filter and built-in surge and transient
suppression circuitry
• Outputs individually isolated
• Outputs fully protected against overload
Safety according to IEC/EN 60950
LGA
H Series
Summary
The H series of DC-DC converters represents a broad and
flexible range of power supplies for use in advanced elec-
tronic systems. Features include high efficiency, reliability
and reasonable output voltage noise.
The converter inputs are protected against surges and tran-
sients occuring at the source lines. An input over- and
undervoltage cut-out circuitry disables the outputs if the in-
put voltage is outside the specified range.
All outputs are open- and short-circuit proof and are pro-
tected against overvoltages by means of built-in suppres-
sor diodes. The outputs can be inhibited by a logic signal
applied to the connector pin 2 (i). If the inhibit function is not
used pin 2 should be connected to pin 23 to enable the out-
puts.
LED indicators display the status of the converter and allow
visual monitoring of the system at any time.
Full input to output, input to case, output to case and output
to output isolation is provided. The modules are designed
and built according to the international safety standard
IEC/EN 60950 and have been approved by the safety
39
1.54"
8 TE
168
6.6"
111
4.37"
3U
agencies LGA (Germany) and UL (USA). The UL Mark for
Canada has been officially recognized by regulatory au-
thorities in provinces across Canada.
The case design allows operation at nominal load up to
50°C in a free air ambient temperature. If forced cooling is
provided, the ambient temperature may exceed 50°C but
the case temperature should remain below 80°C under all
conditions.
A temperature sensor generates an inhibit signal which
disables the outputs if the case temperature
T
C
exceeds the
limit. The outputs are automatically re-enabled when the
temperature drops below the limit.
Various options are available to adapt the converters to in-
dividual applications.
The modules may either be plugged into 19 inch rack sys-
tems according to DIN 41494, or be chassis mounted.
Table of Contents
Page
Page
Electromagnetic Compatibility (EMC) ............................ 10
Mechanical Data ............................................................ 11
Immunity to Environmental Conditions ........................... 12
Safety and Installation Instructions ................................ 12
Description of Options .................................................... 15
Accessories .................................................................... 19
Summary .......................................................................... 1
Type Survey and Key Data .............................................. 2
Type Key .......................................................................... 2
Functional Description ...................................................... 3
Electrical Input Data ......................................................... 4
Electrical Output Data ...................................................... 5
Auxiliary Functions ........................................................... 8
Edition 5/5.2000
1/19
