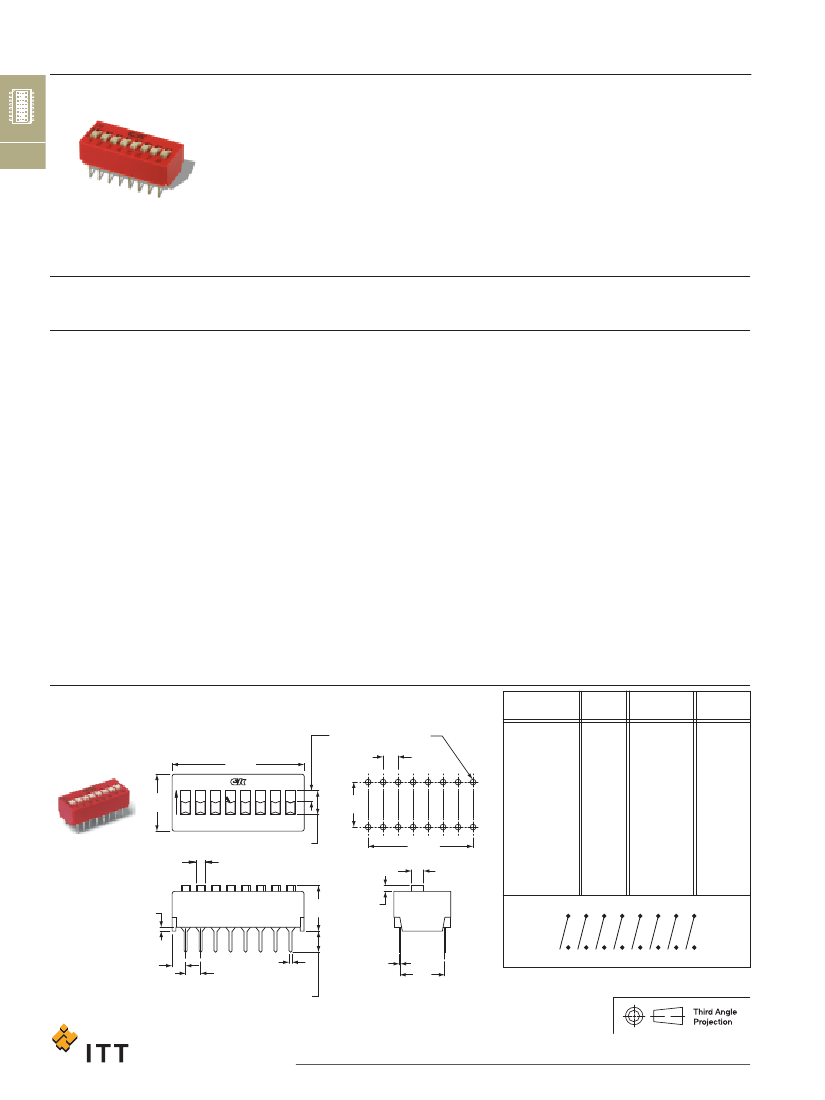

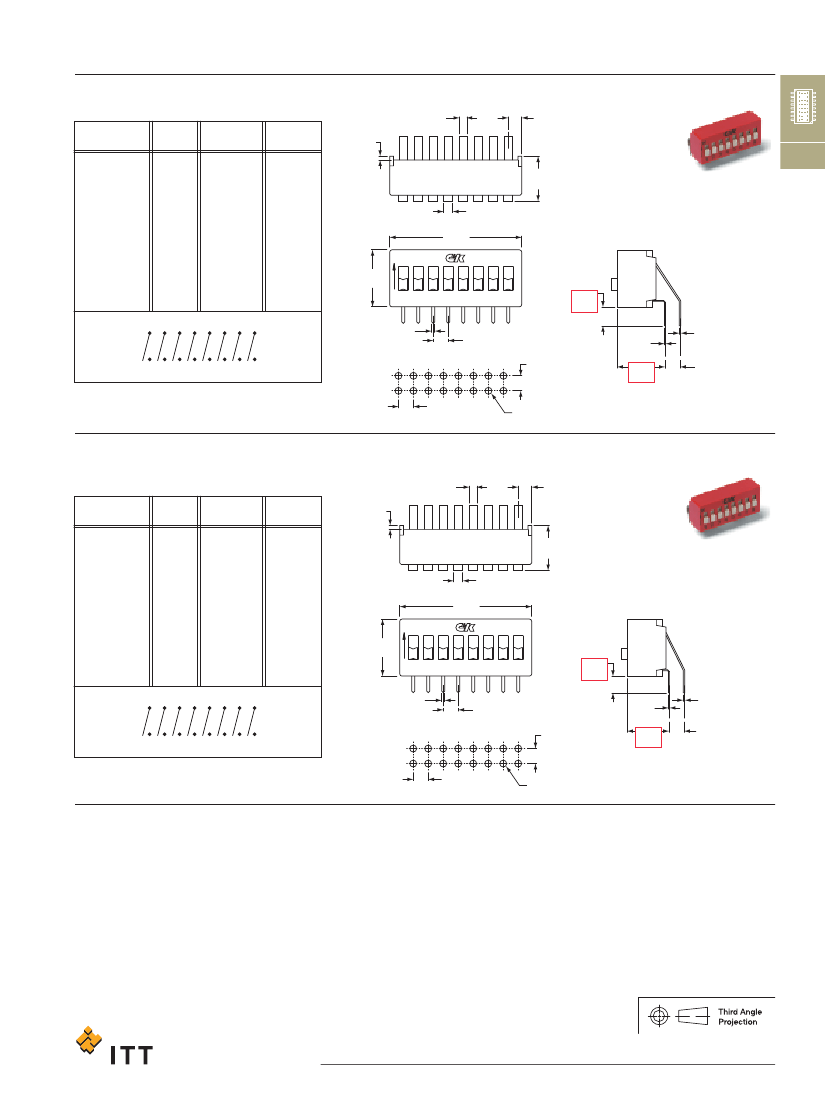

C&K BD Series
Standard Profile DIP Switches
Features/Benefits
•
Traditional full profile DIP switch
•
Extended actuator for easy actuation
•
Open bottom construction allows for
solder washing without the need
for tape seal
Typical Applications
•
Address switch for industrial
controls
•
Logic switching for computers
and peripherals
•
Function controlling for
numerous applications
I
DIP
•
Lead free
•
RoHS compliant
How To Order
Complete part numbers for BD Series are shown on pages I–12 through I–13. All switches supplied in “OFF” position.
Specifications
SWITCH FUNCTION: SPST - 1 thru 12 position available
(except 11 position).
CONTACT RATING:
Carry: 100 mA max. @ 50 V DC.
Switch: 100 mA max. @ 5 V DC or 25 mA max. @ 25 V DC.
MECHANICAL AND ELECTRICAL LIFE: 10,000 make-and-break
cycles at full load, each circuit.
CONTACT RESISTANCE: Below 50 milliohms typ. initial
@ 2-4 V DC 100mA.
INSULATION RESISTANCE: 10 ohms min.
9
VIBRATION: No contact opening greater than 10 microseconds and no
contact closure when exposed to vibration .06 in DA or 5g,
whichever is less, from 10 to 55 Hz, and 10g from 55 to 500 Hz.
SOLDERABILITY: Per MIL-STD-202F method 208D, or EIA RS-186E
method 9 (1 hour steam aging).
PACKAGING: Switches supplied in rigid dispensing tubes in full-tube
quantities only: this may effect order quantity. Number of switches
per tube varies with model. Switch position 1 denotes pin number
1. All switch actuators in ‘OFF’ position, standard.
Materials
CASE & COVER: Glass filled polyester (PBT),
flame retardant (UL 94V-0).
ACTUATOR: Glass filled nylon 6/6, flame retardant,
heat stabilized (UL 94V-0)
CONTACTS: Gold over nickel over phosphor bronze.
TERMINALS: Matte-tin over nickle over phosphor bronze.
NOTE:
For the latest information regarding RoHS compliance, please go to:
www.ittcannon.com/rohs.
Note:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
DIELECTRIC STRENGTH: 500 V RMS min. @ sea level between
adjacent terminals.
CAPACITANCE: 5pF max. between adjacent terminals.
STORAGE & OPERATING TEMPERATURE: -40°C to 85°C.
SHOCK: Withstands 20g 11 ms sawtooth waveform with no con-
tact opening greater than 10 microseconds.
OPERATING FORCE: ?????????.
Vertical Full Profile DIP
.072
(1,83)
ACTUATOR
TRAVEL
.300
(7,62)
Ø.038 TYP.
(0,97)
.100 TYP.
(2,54)
PART NUMBER
NO.POS.
1
2
3
4
5
6
7
8
9
10
12
DIM. ‘A’
.180 (4,57)
.280 (7,11)
.380 (9,65)
.480 (12,19)
.580 (14,73)
.680 (17,27)
.780 (19,81)
.880 (22,35)
.980 (24,89)
1.080 (27,43)
1.280 (32,51)
QUANTITY
PER TUBE
115
74
54
43
35
30
26
23
21
19
16
DIM 'A'
.380
(9,65)
O
N
1
2
3
4
5
6
7
8
DIM 'B'
.080 TYP.
(2,03)
.305
(7,75)
.040
(1,02)
TYP.
BD08
.060 TYP.
(1,52)
.160 TYP.
(4,06)
BD01
BD02
BD03
BD04
BD05
BD06
BD07
BD08
BD09
BD10
BD12
Schematic
.026
(0,66)
.090
(2,29)
.100 TYP.
(2,54)
.020 TYP.
(0,51)
.141 TYP.
(3,58)
.007
(0,18)
SPST
.300
(7,62)
Dimensions are shown: Inch (mm )
Specifications and dimensions subject to change
I-12
www.ittcannon.com
C&K BD Series
Standard Profile DIP Switches
Open Base and AV Right Angle Terminal Style
QUANTITY
PER TUBE
72
52
42
35
29
26
23
20
18
15
.380
(9,65)
1
2
3
4
5
6
7
8
.125
(3,18)
.010
(0,25)
.100
(2,54)
ON
0.061 TYP.
(1,55)
DIM.A
0.300
(7,62)
0.050
(1,27)
0.026
(0,66)
.090
(2,29)
PART NUMBER
NO.POS.
2
3
4
5
6
7
8
9
10
12
DIM. ‘A’
.280 (7,11)
.380 (9,65)
.480 (12,19)
.580 (14,73)
.680 (17,27)
.780 (19,81)
.880 (22,35)
.980 (24,89)
1.080 (27,43)
1.280 (32,51)
BD02AV
BD03AV
BD04AV
BD05AV
BD06AV
BD07AV
BD08AV
BD09AV
BD10AV
BD12AV
Schematic
I
BD08AV
DIP
.020 TYP.
(0,51)
SPST
NOTE:
Box dimensions show difference between AV and AV2 terminal styles.
.100 TYP.
(2,54)
.100
(2,54)
.100 TYP.
(2,54)
.007
(0,18)
.320
(8,13)
.046 DIA TYP.
(1,17ø)
Open Base and AV2 Right Angle Terminal Style
QUANTITY
PER TUBE
72
52
42
35
29
26
23
20
18
15
.380
(9,65)
1
2
3
4
5
6
7
8
ON
0.061 TYP.
(1,55)
DIM.A
0.050
(1,27)
0.026
(0,66)
0.300
(7,62)
.090
(2,29)
PART NUMBER
NO.POS.
2
3
4
5
6
7
8
9
10
12
DIM. ‘A’
.280 (7,11)
.380 (9,65)
.480 (12,19)
.580 (14,73)
.680 (17,27)
.780 (19,81)
.880 (22,35)
.980 (24,89)
1.080 (27,43)
1.280 (32,51)
BD02AV2
BD03AV2
BD04AV2
BD05AV2
BD06AV2
BD07AV2
BD08AV2
BD09AV2
BD10AV2
BD12AV2
Schematic
BD08AV2
.115
(2,92)
.010
(0,25)
.100
(2,54)
.020 TYP.
(0,51)
.100 TYP.
(2,54)
0.100
(2,54)
.007
(0,18)
.280
(7,11)
SPST
NOTE:
Box dimensions show difference between AV and AV2 terminal styles.
0.100 TYP.
(2,54)
0.046 DIA TYP.
(1,17ø)
Installation, Soldering and Cleaning
All BD Series Standard Profile DIP Switches can be hand soldered or machine soldered without the use of boot, caps,
tapes or special attention. Open base washable models have unique design, allowing solvent cleaners and water/detergent
solutions to flush and clean the electrical contacts of the contaminants and fluxes. For best results, follow these directions:
1) Wave soldering recommended at 500° F solder temperature.
2) Hand solder using 30 watt small tip iron controlled at 500° F, 10 seconds max./terminal.
3) Open base washable models: Clean flux using forced rinse, high agitation or triple bath cleaning method.
DO NOT mask or cover switch in any way during cleaning. Switch is designed for easy solvent flush out.
4) All switch actuators must be in ‘OFF’ position during soldering and cleaning processes.
5) Closed base models with epoxy terminal seal available in even positions, consult factory for details.
Dimensions are shown: Inch (mm )
Specifications and dimensions subject to change
I-13
www.ittcannon.com
