291V1DB5F400BA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 291V1DB5F400BA

291V1DB5F400BA: DescriptionRotary Position Encoder, Single, 2 Channels, ROHS COMPLIANT PACKAGE-6; CategoryLED optoelectronic/LED photoelectric; File Size355KB，3 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric View All

291V1DB5F400BA Overview

Rotary Position Encoder, Single, 2 Channels, ROHS COMPLIANT PACKAGE-6

291V1DB5F400BA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1078935168
package instruction	ROHS COMPLIANT PACKAGE-6
Reach Compliance Code	unknown
Configuration	SINGLE, 2 CHANNELS
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	ROTARY POSITION ENCODER

Preview

Download Datasheet

View All

Electrocomponents

Precision, Long-life

Compact 12mm Size

Optical Encoder

Features

• Package Size (12 X 14 X 7 mm)

•

3 Million life cycles (No detent)

•

1 Million life cycles(With detent)

• Durable Metal Shaft & Bushing

•

Optional momentary switch

•

Multiple options for terminations,

resolution, cables,

and

voltage

• RoHS Compliant

Series 291

Data Sheet

Optical Encoder

Electrical and Mechanical Specifications

Encoder:

Operating Voltage

5.0 ± 0.25 VDC

3.3 ± 0.125 VDC

Supply Current

5.0 VDC @ 30mA maximum

3.3 VDC @ 24mA maximum

Output Code

2-Bit Quadrature

Channel A leads channel B by 90°

electrically during clockwise rotation

of the shaft

Minimum Sink Current

2.0 mA for 5.0 VDC

1.0 mA for 3.3 VDC

Power Consumption

150 mW maximum for 5.0 VDC

80 mW maximum for 3.3 VDC

Rotational Torque

Running: 20 ± 10 gf-cm

Detent: 165 ± 95 gf-cm

Detent Options

0,16, 24, 32

1-3

CTS Electrocomponents

Resolution

4, 6, 8 Pulses per Revolution

Rotational Life (@30 RPM)

3 Million cycles (No detent)

1 Million cycles (With detent)

Temperature Range

Operating: - 40°C to 85°C

Storage: - 55°C to 100°C

Push-Pull Strength of Shaft

20 kg minimum for 10 seconds

Terminal Pull-out Strength

6 kg minimum for 10 seconds

Solder Heat Resistance

350°C for 5 seconds

Mechanical Vibration

15G, ( MIL-STD-883F-2004)

Mechanical Shock

100G, ( MIL-STD-883F-2004)

Special

Consult CTS for custom features not

listed

07/11/11

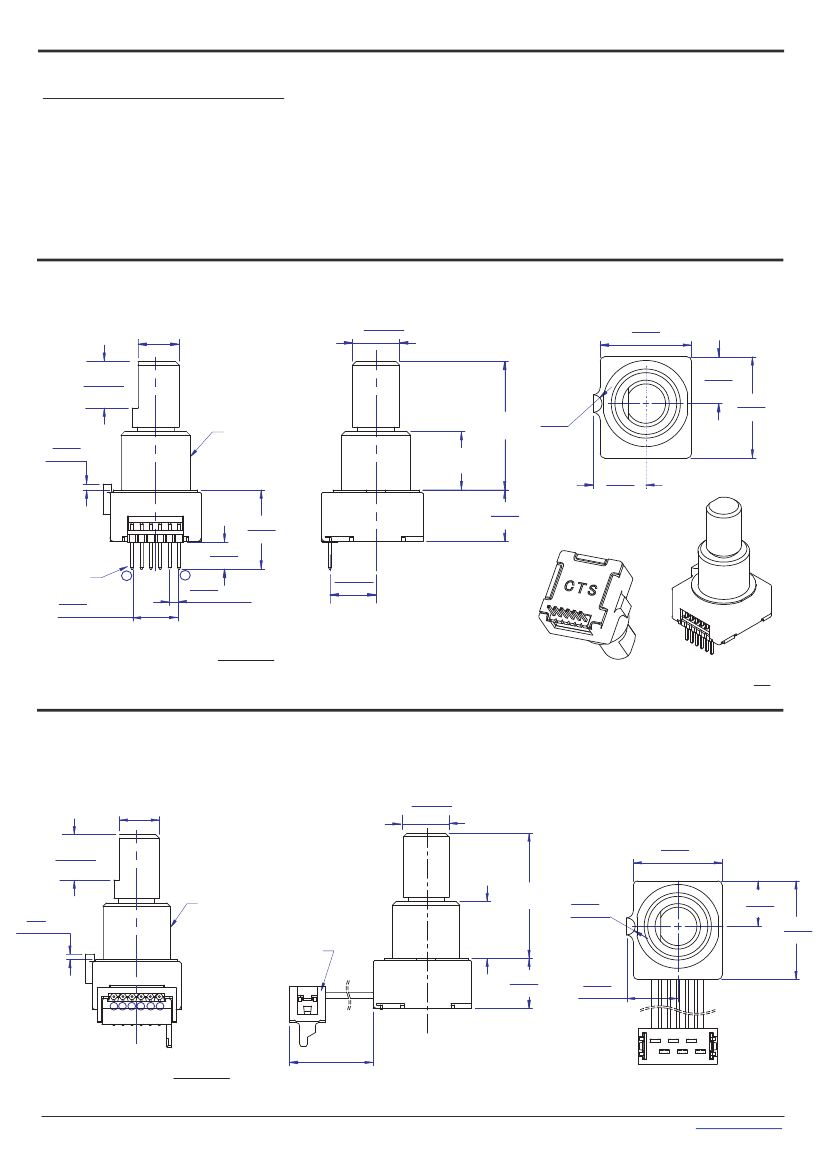

www.ctscorp.com
