0276015.M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> 0276015.M

0276015.M: Descriptionfuse board mnt 15a 32vac/vdc rad; CategoryCircuit protection; File Size77KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric View All

0276015.M Overview

fuse board mnt 15a 32vac/vdc rad

0276015.M Parametric

Parameter Name	Attribute value
Datasheets
275, 276 Series
Standard Package	1,000
Category	Circuit Protecti
Family	Fuses
Packaging	-
Fuse Type	Board Mount (Cartridge Style Excluded)
Current Rating	15A
Voltage Rating - AC	32V
Voltage Rating - DC	32V
Response Time	Fas
Package / Case	Radial Bend Cylinde
Mounting Type	Through Hole
Breaking Capacity @ Rated Voltage	-
Melting I²	-
Approvals	-
Operating Temperature	-55°C ~ 125°C
Col	-
Size / Dimensi	0.093" Dia x 0.280" L (2.36mm x 7.11mm)
DC Cold Resistance	-
Other Names	0276015.M-0276015M276015276015.M276015

Preview

Download Datasheet

View All

Axial and Radial Lead Fuses

Subminiature

PICO

Fuse

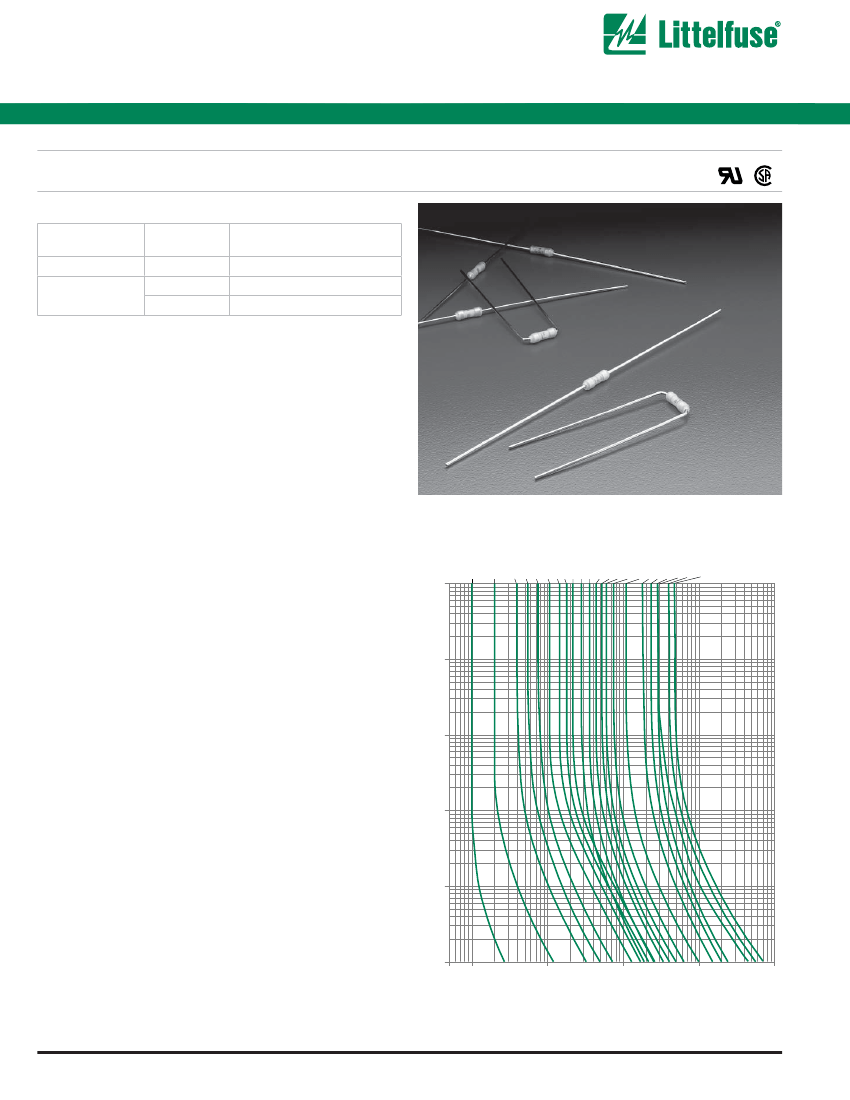

Very Fast-Acting Fuse 275/276 Series

ELECTRICAL CHARACTERISTICS:

% of Ampere

Rating

100%

Ampere

Rating

1/16-30

1/16-10

200%

12-30

Opening

Time

4 hours, Minimum

5 second, Maximum

10 seconds, Maximum

100

PHYSICALSPECIFICATIONS:

Materials:

Solder-Coated Copper Leads. R

Solderability:

MIL-STD-202, Method 208.

Lead Pull Force:

MIL-STD-202, Method 211, Test Condition A

(will withstand a 5 lb. axial pull test).

VARIATIONS IN DESIGN:

Picofuses which differ from the stan-

dard versions as presented on this page can be provided for a

commercial or military use. One such design version is where

the picofuse terminates at one end of a pin for use as a single or

multi-pin connector. Extreme accuracy in blowing time at 300% or

more of rating, makes these picofuses suitable for use in circuits

where sequential switching or redundancy may be required. The

small size of the fuse, its non-hygroscopic characteristic and

inﬁnitesimal weight makes it the ideal fuse for micro-electronic

circuits.

PATENTED

TIME IN SECONDS

0.1

0.01

0.001

0.05 0.1

1/4A

3/8A

1/2A

3/4A

1 1/4A

1 1/2A

2 1/2A

3 1/2A

10A

12A

15A

20A

25A

30A

100

CURRENT IN AMPERES

1/16A

1/8A

AGENCY APPROVALS:

Recognized under the Components

Program of Underwriters Laboratories and Certiﬁed by CSA.

AGENCY FILE NUMBERS:

UL E10480, CSA LR 29862.

INTERRUPTING RATINGS:

300 amperes at rated VDC

50 amperes at rated VAC

ENVIRONMENTALSPECIFICATIONS:

Operating Temperature:

–55°C to 125°C.

Shock:

MIL-STD-202, Method 213, Test Condition I

(100 G’s peak for 6 milliseconds) and per method 2028 (78 G‘s

peak for 11 millseconds).

Vibration:

MIL-STD-202, Method 204A; Test Condition D (vibra-

tions of 10-2000 cps at 20 G‘s).

Insulation Resistance (After Opening):

MIL-STD-202, Method

302, Test Condition A (1/2 Megohm minimum).

Moisture Resistance:

MIL-STD-202, Method 106.

Average Time Current Curves

1000
