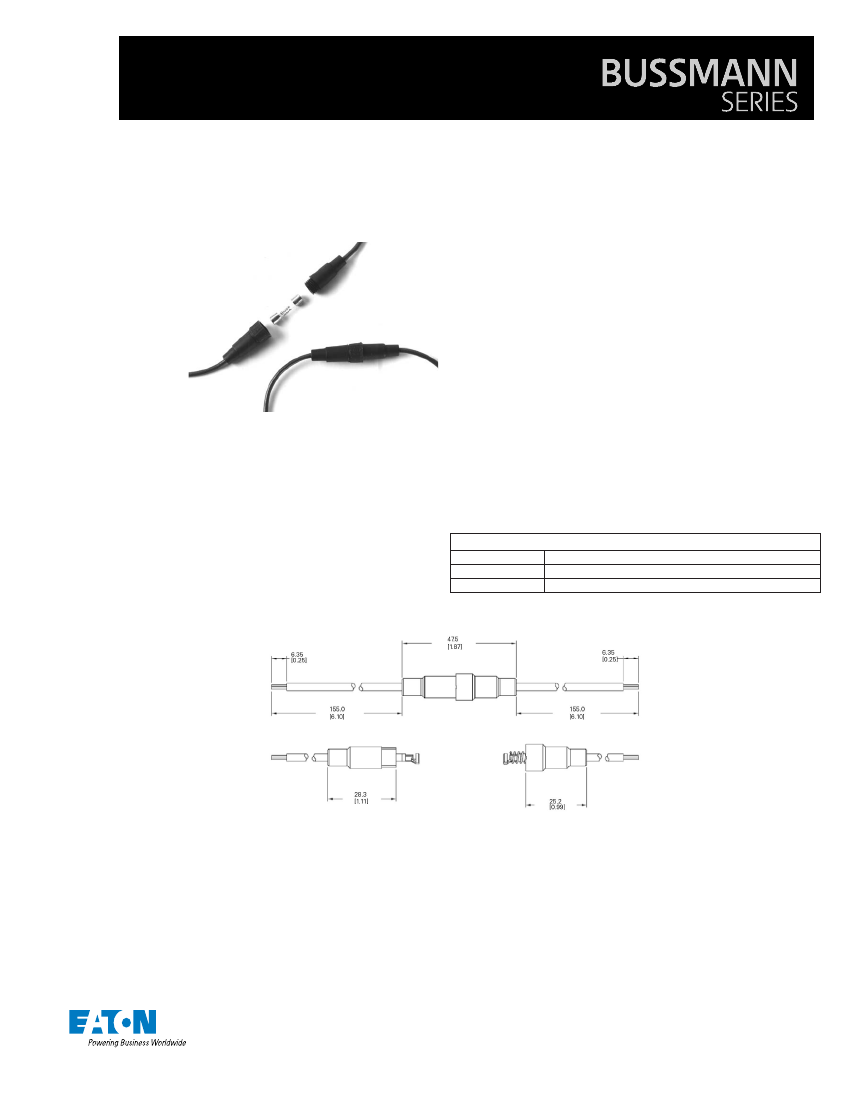

Technical Data
2138
Effective
June
2017
Supersedes
December
2011
HHT
5 mm
x
15 mm and 5 mm x 20 mm
in-line fuse holder
Part number:
HHT
Body Material:
Black thermoplastic
16 Awg; color: red
Wire Leads:
Brass
Terminals:
Overall
Length:
14” ± .25”
Body
Dimensions:
1.87”
Length, 0.42" Diameter
Product
Weight:
17.5 lbs. per 1000 pieces
Electrical Ratings:
•
5
mm
x 15mm
fuses: 250 Vac/32 Vdc,
5
A
•
5
mm
x 20mm
fuses: 250 Vac/32 Vdc, 10 A
Product features
•
•
•
•
•
Environmental
Data:
•
Temperature Range: -40 °C to +80 °C
•
Lead Pull Test: 10 lbs. pull force
Ordering
•
Specify packaging
code
and
part
number
(HHT
or
BK-
HHT)
Accepts
both
5
mm
x 15mm or 5
mm
x
20mm fuses.
Two piece screw together assembly.
An economical and versatile fuseholder
Ideal
for normal environments.
Wire leads included.
Packaging Code-
(specify when ordering)
Packaging Code
Pre x
Blank
BK
Description
100 piece
carton (standard packaging)
1000
piece
box
(bulk packaging)
Dimensions- mm [in]
