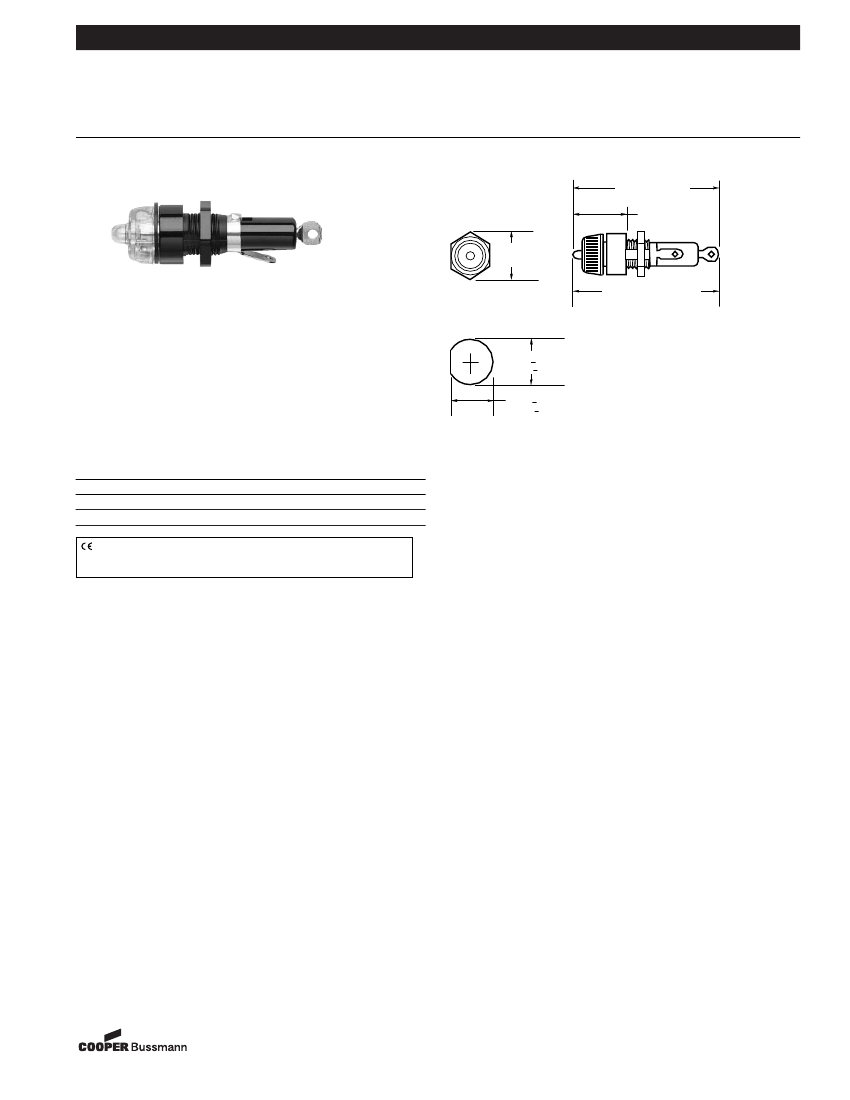

Bussmann
®
Visual Indicating Fuseholder
For
⁄Ω¢∑ ≈ 1⁄Ω¢∑
(6.3mm
≈
32mm) Pin Indicating Fuses
Dimensional Data
2.5" Max.
(HLD)
(63.5mm Max.)
HLD
HLD-HH
0.86"
(21.8mm)
0.69"
(17.5mm)
2.75" Max.
(HLD-HH)
(69.9mm Max.)
Catalog Symbol:
HLD and HLD-HH
Visual Indicating Fuseholder
Ampere Rating:
15A
Voltage Rating:
250V
Temperature Rating (RTI):
130°C
Agency Information:
UL Recognized, HLD Guide IZLT2, File E14853
Electrical Ratings
Symbol
HLD
HLD-HH
Amps
15
15
Volts AC
250
250
Features
Solder terminals
⁄Ω¢∑
quick-connect terminals
Punched Mounting Hole
.505" + .005"
(12.8mm + .13mm)
(12.0mm + .13mm)
.473" + .005"
General Information:
• For use with GBA and GLD fuses.
• Bayonet-type transparent knob permits visual indication of
“opened” pin indicating fuses.
• Do not put tension on line (rear) terminal.
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 314-527-1270 for more information.
The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this document are by definition uncontrolled.This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information con-
tained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
6-3-04
SB04184
Form No. HLD
Page 1 of 1
Data Sheet: 2120
