Thermal Overcurrent Circuit Breaker 2-4100-...
Description
Single pole thermal circuit breaker with push-to-reset, tease-free, trip-
free, snap action mechanism (R-type TO CBE to EN 60934). Options
include an additional unprotected circuit tap (-A3) and -KF housing
particularly suited to high humidity and other damp conditions.
Designed for threadneck panel mounting.
Approved to CBE standard EN 60934 (IEC 60934).
1
Typical applications
Motors, transformers, solenoids, hand tools, appliances.
Ordering information
Type No.
2-4100
threadneck panel mounting
(hardware bulk shipped)
Terminal design
L10
solder terminals
P10
blade terminals A6.3-0.8 mm (QC .250)
P50
blade terminals A4.8-0.8 mm (QC .190)
Shunt terminal (optional)
A3
shunt terminal (3 A max. load)
Current ratings
0.05...10 A
2-4100 - L10 - .. - .. - 5 A
ordering example
2-4100-...
Technical data
For further details please
Voltage rating
Current rating range
Typical life
AC 250 V / DC 28 V:
DC 28 V: 0.05...10 A
Ambient temperature
Insulation co-ordination
(IEC 60664 and 60664 A)
see chapter: Technical Information
AC 250 V; DC 28 V
0.05...10 A
2,000 operations at 2 x I
N
, resistive
1,000 operations at 2 x I
N
, inductive
-20...+60 °C (-4...+140 °F)
rated impulse
pollution
withstand voltage
degree
2.5 kV
2
reinforced insulation in operating area
test voltage
AC 3,000 V
> 100 MΩ (DC
0.05...2 A
2.5...6 A
7...10 A
The exact part number required can be built up from the table of choices shown
above. Ordering references for optional features should be omitted if not required.
Standard current ratings and typical internal resistance values
Currrent
rating (A)
0.05
0.08
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
1
1.2
1.5
Internal
resistance (Ω)
322
125
101
25
11
6.3
4.1
2.8
2.1
1.6
0.97
0.66
0.4
Current
rating (A)
1.8
2
2.5
3
3.5
4
4.5
5
6
7
8
10
Internal
resistance (Ω)
0.34
0.29
0.18
0.14
0.1
0.08
0.069
0.053
< 0.05
< 0.05
< 0.05
< 0.05
Dielectric strength
(IEC 60664 and 60664 A)
operating area
Insulation resistance
Interrupting capacity I
cn
500 V)
10 x I
N
8 x I
N
6 x I
N
Interrupting capacity
(UL 1077)
Degree of protection
(IEC 60529/DIN 40050)
Vibration
Shock
Corrosion
Humidity
Mass
I
N
U
N
0.05...4.5 A
AC 250 V
200 A
5A
AC 250 V
1,000 A
operating area IP40
terminal area IP00
10 g (57-500 Hz) ± 0.76 mm (10-57 Hz),
to IEC 60068-2-6, test Fc,
10 frequency cycles/axis
25 g (11 ms)
to IEC 60068-2-27, test Ea
96 hours at 5 % salt mist,
to IEC 60068-2-11, test Ka
240 hours at 95 % RH
to IEC 60068-2-78, test Cab
approx. 15 g
Approvals
Authority
Voltage rating
VDE (EN 60934)
AC 250 V; DC 28 V
CSA
AC 250 V
UL
AC 250 V
-A3 versions are not UL approved
Current rating
0.05...10 A
0.05...3.5A
0.05... 5 A
All dimensions without tolerances are for reference only. In the interest of improved design,
performance and cost effectiveness the right to make changes in these specifications
without notice is reserved.Product markings may not be exactly as the ordering codes.
Errors and omissions excepted.
Issue B
www.e-t-a.com
1
- 95
Thermal Overcurrent Circuit Breaker 2-4100-...

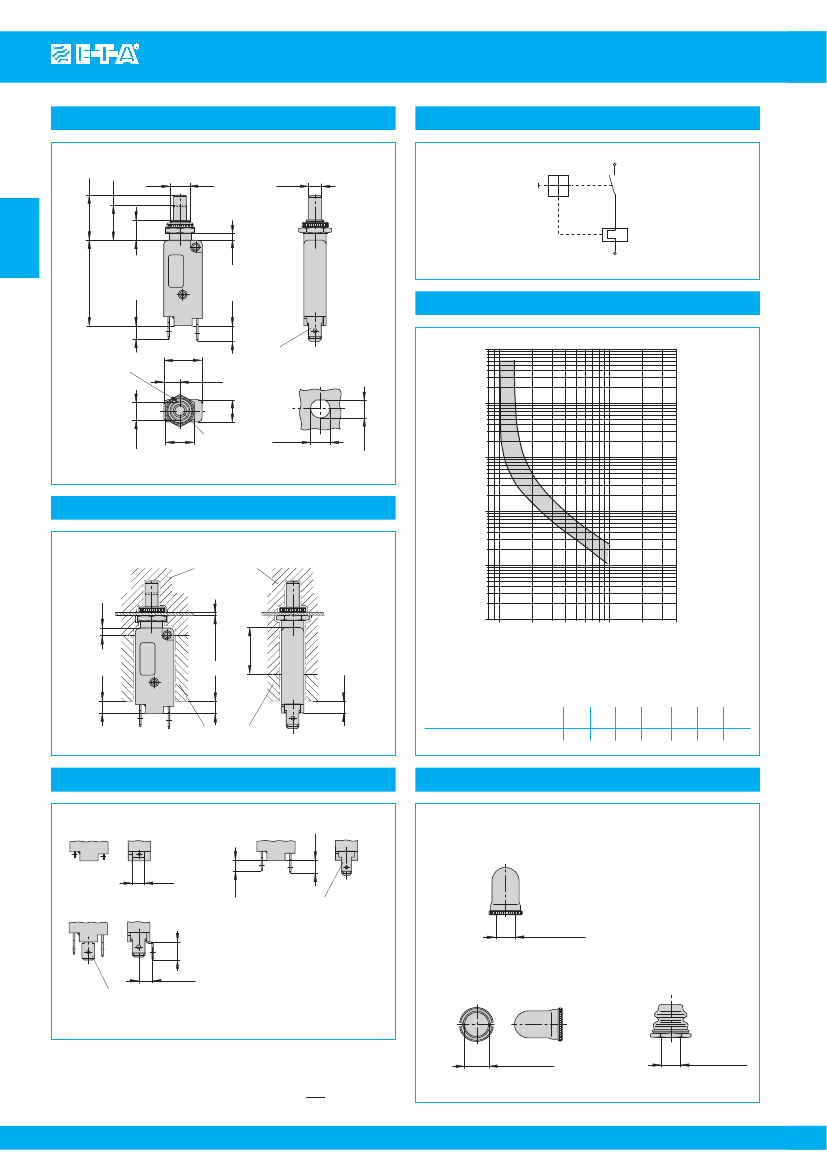

Dimensions
Internal connection diagram
1
OFF
ON
tightening torque 1 Nm
3/8-27 UNS-2A
ø6.4
.252
22.5
1
42.5
.886
17.5
.689
10
.394
3.5
.138
2
1.67
6.5
.256
1
3
2
7.5
.296
Typical time/current characteristics at +23 °C/+73.4 °F
D-shaped threadneck
19
.748
8
.315
2
blade terminals DIN46244-A6.3-0.8
(QC .250)
mounting hole
10000
.433
11
1000
8.9
-0.1
.350
-.004
Trip time in
seconds
SW
14 current rating in A 9.6
-0.1
.378
-.004
.551
8.8
.346
100
Installation drawing
10
operating area
1
4
.157
0.1
max 2.5
max .098
1
23
.906
2
4
6 8 10
… times rated current
20
40
1
3
2
mounting area
The time/current characteristic curve depends on the ambient temperature
prevailing. In order to eliminate nuisance tripping, please multiply the circuit
breaker current ratings by the derating factor shown below. See also
section 9 – Technical information.
Ambient temperature °F
-4
+14 +32 +73.4 +104 +122 +140
°C
-20 -10 0
+23 +40 +50 +60
Derating factor
0.76 0.84 0.92 1
1.08 1.16 1.24
6
.236
6
.236
Terminal design
-L10
1
3
2
6
.236
Accessories
-P50
1
3
2
Water
splash
cover, transparent Y 300 538 01,
bonded to
knurled
nut Y 300 628 01
X 200 799 01
(IP64)
5.5
.217
6
.236
-P10-A3
blade terminals DIN46244-4.8-0.8
(QC .190)
3/8-27 UNS-2B
9
.354
6.5
.256
max. 7
max .276
blade terminals DIN46244-6.3-0.8
(QC .250)
Water
splash
cover, transparent
bonded to
special knurled
nut
X 200 798 02
(IP64)
Hex nut with
splash
cover,
black X 210 739 01
(IP64)
Water
splash
cover,
transparent with hex nut
X 201 296 03
(IP64)
3/8-27 UNS-2B
3/8-27 UNS-2B
This is a metric design and millimeter dimensions take precedence ( mm )
inch
1
- 96
www.e-t-a.com
Issue B
