Product Data Sheet

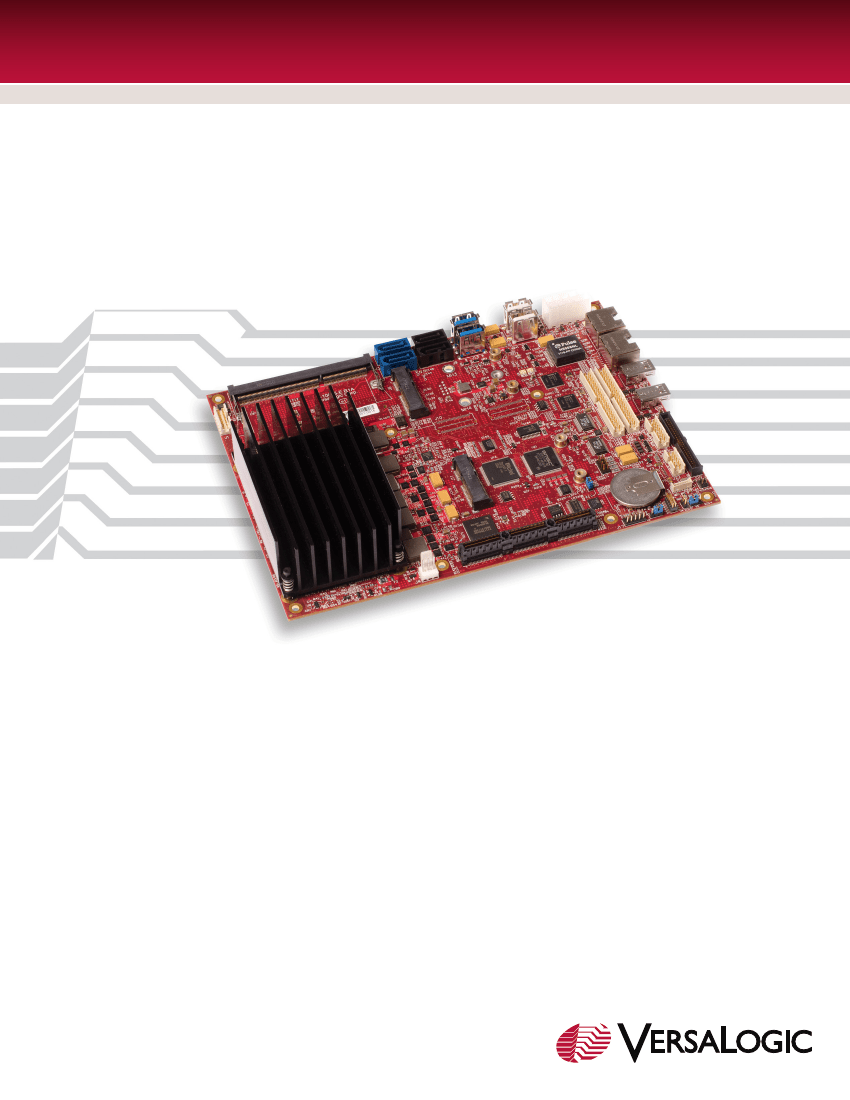

Copperhead
EBX Single Board Computer
Overview
The Copperhead is a high-performance embedded computer
powered by the 3rd Generation Intel “Ivy Bridge” family of processors.
Its performance level and extensive I/O allows for the integration of
multiple high-bandwidth functions, such as digital signal processing
and real-time video processing, onto a single board. This can
drastically reduce system cost and size when used to replace
multi-board chassis-based systems or custom hardware.
For systems that require video processing or intense computation,
the Copperhead features a high-speed memory interface, up to
16 GB on-board RAM capacity, and up to three independent display
outputs. The PCIe/104 expansion site with a PCIe x16 lane is ideal
for add-on cards, such as frame grabbers.
Based on the industry-standard EBX format, the Copperhead
provides a choice of Intel core i7, core i3, and Celeron processor
options to meet a variety of price/performance application
requirements. It features several heat management configurations
and offers options for I/O interfaces and interface connectors.
The Copperhead enables scalability, simplifies design, and lowers
overall system cost.
Highlights
Industrial temp (-40° to +85°C)
operating temperature versions
Shock & vibration per
MIL-STD-202G
EBX™ form factor
Very high performance!
3rd Generation Intel processor
(“Ivy Bridge”)
- Core i7-3615QE (quad core) or
- Core i7-3517UE (dual core) or
- Core i3-3217UE (dual core) or
- Celeron 1047UE (dual core)
Up to 16 GB SO-DIMM RAM
system memory
Wide input voltage (9V–15V)
PCIe/104 or SUMIT expansion
Gigabit Ethernet
VGA, LVDS, and mini
DisplayPort video
Mini PCIe socket / with mSATA
support
USB 3.0 and USB 2.0 ports
Serial I/O (4 RS-232/422)
SATA (6 Gb/s and 3 Gb/s)
Digital I/O (32 lines)
Fanless versions
Trusted Platform Module (TPM)
security chip (optional)
VersaAPI programming support
Customization available in
quantities as low as 100 pcs.
C
O
R
P
O
R
A
T
I
O
N
Product Data Sheet

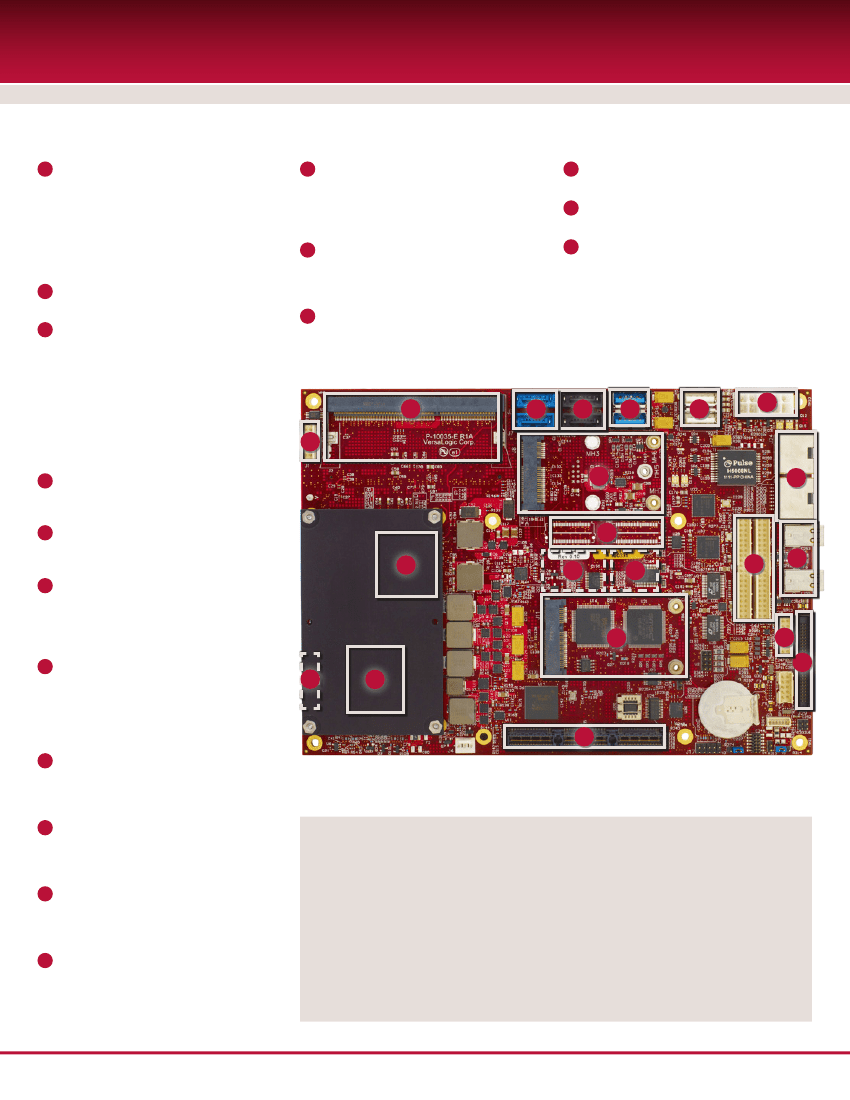

Features
1
Intel® 3rd Generation Core™
Processor
Core i7, Core i3, and Celeron CPU options allow
selecting best price/performance for the application.
Copperhead provides high performance with
advanced technology features: Intel Turbo Boost 2.0*,
Intel vPro*, Hyper-threading* (two threads per core),
and Advanced Vector Extensions* (AVX).
12
Trusted Platform Module
(optional)
On-board security option defends against attacks
from unauthorized hardware and software for
applications that require enhanced hardware-level
security functions.
Industrial Temperature Versions
-40° to +85°C operation for harsh environments.
MIL-STD-202G
Qualified for high shock and vibration environments.
13
SPX Expansion
Add low cost analog, digital, and CANbus modules.
SPX interface supports up to four external SPX
devices.
Software Support
Compatible with a variety of popular x86 operating
systems including Windows, Windows Embedded,
Linux, and VxWorks.
Supports VersaAPI programming support for onboard
I/O devices.
2
3
Intel QM77 Platform Controller Hub
The PCH provides extensive I/O support to the CPU
High-performance Video
Integrated Intel HD graphics core with GPU Turbo
Boost*. DirectX 11, MPEG-2, H.264, OGL 3.1
compliant and MPEG-2 video encoding and decoding.
Supports up to three independent displays.
Standard video outputs include LVDS (3a
– on back
side)
for flat panel displays, dual mini DisplayPort™
(3b), and an analog VGA output (3c). All outputs
support multiple display modes including Extended
Desktop and Clone.
14
EBX™ Format
Industry-standard format with SUMIT™(14a) or
PCIe/104 Type 1
(14b)
expansion.
5
3c
6a
6b
7a
7b
11
4
Network Support
Dual Ethernet interfaces, autodetect 10BaseT /
100BaseTX / 1000BaseT with network boot capability.
9
4
5
RAM
Up to 16 GB DDR3L socket memory up to 1600 MT/s.,
two SO-DIMM sockets (one each on top and bottom.)
14a
1
10b
12
8
3b
6
SATA
Two SATA 6 Gb/s (6a) and two SATA 3 Gb/s (6b)
ports support high-capacity storage (rotating media or
solid-state drives).
Includes hardware RAID 0/1/5/10 support
10a
3a
2
13
7c
7
Device I/O
Two USB 3.0 ports (7a), ten USB 2.0 ports (7b)
support keyboard, mouse, and other devices.
Four RS-232/422 serial ports, three 8254 timer/
counters (7c),
and Intel High Definition Audio (HDA)
compatible.
14b
* CPU model dependent, see specifications for more details.
8
Analog + Digital I/O
On-board data acquisition support. Sixteen analog
inputs, eight analog outputs, and thirty-two digital
I/O lines.
9
Mini PCIe Socket
Supports Wi-Fi modems, Ethernet, Analog I/O, Serial
ports, GPS, MIL-STD-1553, Ethernet, solid-state
storage, and other plug-in devices.
Tailor Copperhead to Your Exact Requirements
Customization options are available in quantities as low as 100 pieces.
Conformal Coating
Custom Cabling
Connector & I/O
Changes
Custom Testing
Custom Labeling
BGA Underfill
BIOS Modifications
Software and Drivers
Revision Locks
Custom Screening
Application-Specific
Testing
And more –
10
Flash Memory
Dedicated mSATA socket (10a) and eUSB interface
(10b
– on back side)
provides additional solid-state
drive (SSD) options.
11
Wide Input Voltage Range
Accepts 9 to 15 volts (12V nominal) simplifies system
power supply requirements. Copperhead is fully
compatible with 12V automotive applications.
VersaLogic Corporation, 12100 SW Tualatin Rd., Tualatin, OR 97062 | (503) 747-2261 | Info@VersaLogic.com | www.VersaLogic.com
Copperhead
EBX Single Board Computer
Specifications
General
Board Size
Processor
EBX standard: 5.75” x 8” (146 mm x 203 mm)
Intel 3rd Generation 64-bit CPU platform.
Trusted
L3 Cache
AES New
Execution
Processor
Size
Instructions Technology
i7-3615QE
6 MB
Yes
Yes
i7-3517UE
4 MB
Yes
Yes
i3-3217UE
3 MB
No
No
Celeron 1047UE
2 MB
No
No
Embedded Intel QM77
12V (9V–15V)
Model
Idle
Typical
Max.
VL-EBXe-41SJF
16.2W
37.2W
58.1W
VL-EBXe-41EJP
16.2W
37.2W
58.1W
VL-EBXs-41SAK
7.6W
20.7W
33.7W
VL-EBXs-41EAF
7.6W
20.7W
33.7W
VL-EBXe-41EHF
7.6W
20.7W
33.7W
VL-EBXe-41ELF
8.8W
14.4W
20.0W
VL-EBXe-41SLK
8.8W
14.4W
20.0W
VL-EBXe-41SMK
9.8W
13.3W
16.9W
VL-EBXe-41EMF
9.8W
13.3W
16.9W
All voltage rails monitored. Two watchdog timers with
programmable timeout. CPU temperature and fan speed
monitoring. Push-button sleep, reset, and power.
SUMIT or PCIe/104 Type 1 expansion site
Standard
IPC-A-610 Class 2 modified
Special Order
IPC-A-610 Class 3 modified
Compliant
Security
TPM
(optional)
Support for Intel Trusted Platform Module 1.2 devices
Memory
System RAM
Two SO-DIMM sockets. Up to 16 GB DDR3L SDRAM
total. Supports 1066, 1333, and 1600 MT/s. 1.35V.
Video
General
Integrated high-performance video.
Simultaneous Graphics
Independent Hardware
Processor
Graphics Core
Displays
Accel.
i7-3615QE
Intel HD Graphics 4000
3
Yes
i7-3517UE
Intel HD Graphics 4000
3
Yes
i3-3217UE
Intel HD Graphics 4000
3
Yes
Celeron 1047UE
Intel HD Graphics
2
No
Up to 512 MB shared DRAM
Standard analog output (VGA). Up to 2048 x 1536
(75 Hz). 32-bit.
LVDS interface. 18/24-bit. Up to 1280 x 800 (60 Hz).
8 bpp. CMOS-selectable TFT panel types. Support for
LVDS Backlight Control and FPD power control.
Two mini DisplayPort outputs. Up to 2560 x 1600 (60 Hz).
10 bpp.
Controller Hub
Input Voltage
Power Requirements
(@ +12V) §
VRAM
Desktop Display
Interface ‡
OEM Flat Panel
Interface #
DisplayPort
System Reset &
Hardware Monitors
Stackable Bus
Manufacturing
Standards
RoHS
Mass Storage
Rotating Drives /
Flash / Solid-State
Drives
- Two SATA 6 Gb/s ports (latching connectors)
- Two SATA 3 Gb/s ports (latching connectors)
Supports RAID 0, 1, 5, and 10.
mSATA socket (SATA signaling, bootable)
eUSB site (USB signaling, bootable)
Environmental
Operating
Temperature
◊
Storage Temperature
Altitude
0° to +60°C and -40° to +85°C
See Ordering Information for Specific Models
-40° to +85°C
Operating *
To 4,570m (15,000 ft.)
Storage
To 12,000m (40,000 ft.)
Airflow Requirements
Thermal Solution Temp. Range
Airflow
Heat plate
0° to +60°C
Zero airflow
(Heat plate must
-40° to +85°C 100 Linear Feet per Minute
be kept below
90°C)
(0.5 Linear Meters per Second)
Network Interface
Ethernet ‡ †
Two autodetect 10BaseT/100BaseTX/1000BaseT ports
Standard
RJ45 connectors
Special Order
Ruggedized connectors
Via BIOS extension built into Ethernet controller flash
Network Boot Option
Device I/O
USB # ‡
COM 1 / 2 / 3 / 4 ‡
Analog Input
Analog Output
Digital I/O
Audio
Counter/Timers
Ten USB 2.0 host ports. Two USB 3.0 host ports.
RS-232/422 selectable. 16C550 compatible.
Sixteen channels. 12-bit single-ended. 100 Ksps. 16-bit
by special order.
Eight channels. 12-bit single-ended. 100 Ksps.
Thirty-two TTL I/O lines (3.3V). Independently
configurable.
Intel High-Definition Audio (HDA)
Three general-purpose 16-bit timers
Heat sink
(fanless)
0° to +60°C
100 Linear Feet per Minute
(0.5 Linear Meters per Second)
Fan + Heat sink
Thermal Shock
Humidity
Vibration, Sinusoidal
Sweep ¥
Vibration, Random ¥
Mechanical Shock ¥
-40° to +85°C 100 Linear Feet per Minute
(0.5 Linear Meters per Second)
5°C/min. over operating temperature
Less than 95%, noncondensing
MIL-STD-202G, Method 204, Modified Condition A: 2g
constant acceleration from 5 to 500 Hz, 20 min. per axis
MIL-STD-202G, Method 214A, Condition A: 5.35g rms,
5 min. per axis
MIL-STD-202G, Method 213B, Condition G: 20g half-sine,
11 ms duration per axis
Other I/O
Mini PCIe / Socket
Full-size Mini PCIe socket. Supports Wi-Fi modems, GPS
receivers, non-volatile flash data storage with auto-detect
mSATA support, and other plug-in modules.
Supports low cost analog, digital, and CANbus SPX
modules
VersaLogic SPX
Interface
§ Represents operation at +25°C and +12V running Windows 7 with 4 GB RAM, LVDS display, SATA, GbE, COM,
and USB keyboard/mouse. Typical power computed as the mean value of Idle and Maximum power specifications.
Maximum power measured with 95% CPU utilization.
‡ TVS protected port (enhanced ESD protection)
# Power pins are overload protected
† IEEE 1588 Precision Time Protocol (PTP) compatible
◊ Derate -1.1°C per 305m (1,000 ft.) above 2,300m (7,500 ft.)
* For extended altitude information contact VersaLogic Sales Dept.
¥ MIL-STD-202G shock and vibe levels were used to illustrate the overall ruggedness of this product. Certification
at higher levels or different types of shock or vibration methods per the specific requirements of the application is
available. Contact a VersaLogic Sales Engineer for further information.
Specifications are subject to change without notification. Intel and Core are trademarks of Intel Corp. EBX and
PCIe/104 are trademarks of the PC/104 Consortium. SUMIT is a trademark of the SFF-SIG. PCI Express is a
registered trademark of the PCI-SIG. DisplayPort is a trademark of VESA. All other trademarks are the property of
their respective owners.
Software
BIOS
American Megatrends (AMI) Aptio UEFI BIOS with OEM
enhancements. Field reprogrammable. Support for USB
keyboard/mouse and USB boot. User-configurable CMOS
defaults.
VersaLogic Application Programming Interface to support
on-board I/O devices.
ACPI 4.0a. Support for S3 and S4 suspend states
Compatible with most x86 operating systems including
Windows, Windows Embedded, Linux, and VxWorks
VersaAPI
Sleep Mode
Operating Systems
C
O
R
P
O
R
A
T
I
O
N

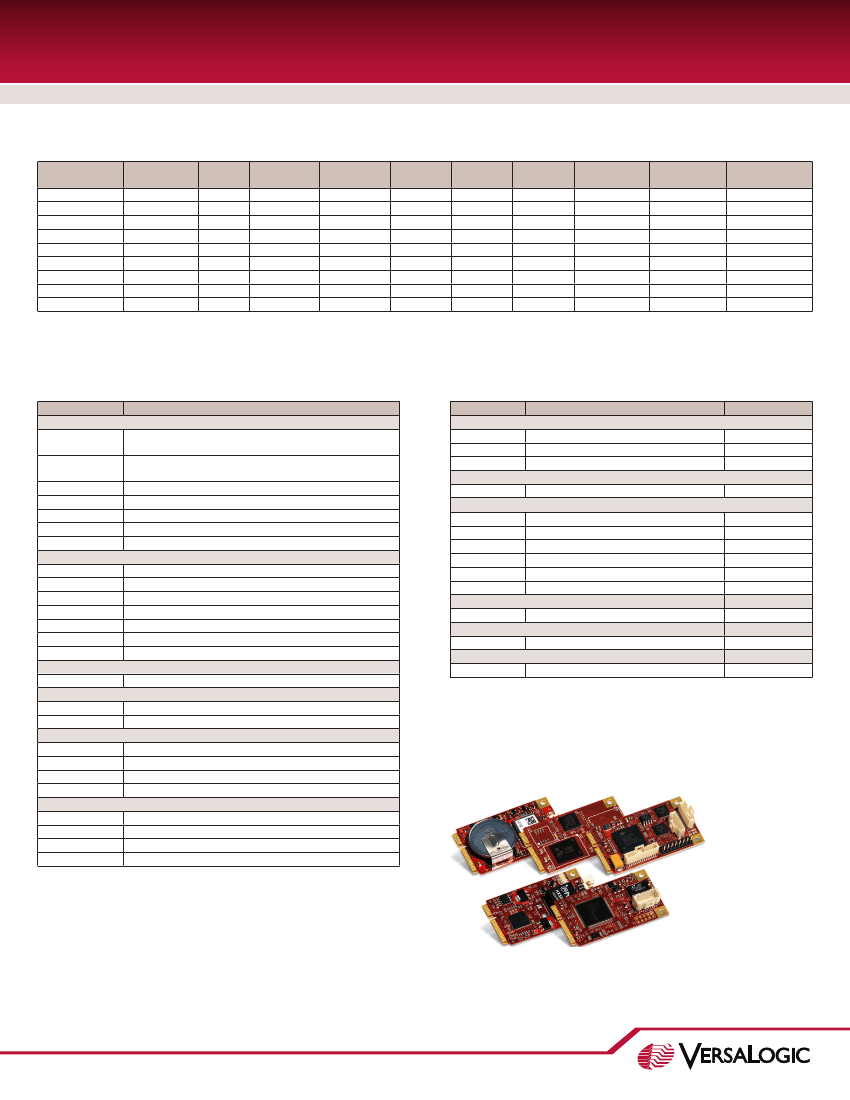

Copperhead
Product Data Sheet
EBX Single Board Computer
Other configurations are possible. Please contact
VersaLogic Sales at (503) 747-2261 to discuss requirements!
Max Turbo
Speed
3.3 GHz
3.3 GHz
2.8 GHz
2.8 GHz
2.8 GHz
N/A
N/A
N/A
N/A
Hyper-
Threading
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
No
vPro
Technology
Yes
Yes
Yes
Yes
Yes
No
No
No
No
AVX
Instructions
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
No
Expansion
PCIe/104
PCIe/104
SUMIT
SUMIT
PCIe/104
PCIe/104
PCIe/104
PCIe/104
PCIe/104
Operating Temp.
0° to +60°C
-40° to +85°C
0° to +60°C
-40° to +85°C
-40° to +85°C
-40° to +85°C
0° to +60°C
0° to +60°C
-40° to +85°C
Cooling
Fan + heat sink
Heat plate (fanless)
Heat sink (fanless)
Fan + heat sink
Fan + heat sink
Fan + heat sink
Heat sink (fanless)
Heat sink (fanless)
Fan + heat sink
Ordering Information
Model
VL-EBXe-41SJF
VL-EBXe-41EJP
VL-EBXs-41SAK*
VL-EBXs-41EAF*
VL-EBXe-41EHF*
VL-EBXe-41ELF
VL-EBXe-41SLK*
VL-EBXe-41SMK
VL-EBXe-41EMF*
Processor
i7-3615QE
i7-3615QE
i7-3517UE
i7-3517UE
I7-3517UE
i3-3217UE
i3-3217UE
Celeron 1047UE
Celeron 1047UE
Cores
Quad
Quad
Dual
Dual
Dual
Dual
Dual
Dual
Dual
Nominal Speed
2.3 GHz
2.3 GHz
1.7 GHz
1.7 GHz
1.7 GHz
1.6 GHz
1.6 GHz
1.4 GHz
1.4 GHz
* Special Order Product – Contact VersaLogic Sales for minimum order quantities and lead time.
Accessories
Part Number
Cable Kit
VL-CKR-COPPR
VL-CBR-5013
VL-CBR-1201
VL-CBR-0702
VL-CBR-0808
VL-CBR-4004
VL-HDW-105 (x2)
Cables
VL-CBR-0401
VL-CBR-1401
VL-CBR-1402
VL-CBR-2010
VL-CBR-2011
VL-CBR-2012
VL-CBR-2031
Memory
VL-MM9-xxxx
Drives
VL-HDS35-xxx
VL-F15-xxxx
Hardware
VL-PS-ATX12-300A
VL-HDW-106
VL-HDW-108
VL-HDW-109
Miscellaneous
VL-HDW-111
VL-HDW-203
VL-HDW-401
VL-EPH-V6
Description
Copperhead cable kit. Includes VL-CBR-0702, 0808, 1201, 4004,
5013, and VL-HDW-105 (x2).
Primary breakout cable (4 USB, 4 RS-232/422, programmable LED,
speaker, audio, reset push button, power push button)
12-pin 2 mm (latching) / 15-pin VGA adapter
20" SATA cable. Latching.
12” power adapter cable. ATX12 to Copperhead.
Cable & paddleboard for the A/D, D/A, DIO, CTC
15.24 mm standoffs, metric thread (four per kit)
6.25" ATX to SATA power cable
6" 14-pin cable assembly for (2) SPX modules
12" 14-pin cable assembly for (4) SPX modules
20” 18-bit LVDS flat panel cable (Hirose)
20” 18-bit LVDS flat panel cable (JAE)
20” 24-bit LVDS flat panel cable (Hirose)
36” miniDisplayPort to MiniDisplayPort
DDR3 PC3-12800 SO-DIMM memory module (1.35v)
3.5” hard drive (SATA)
eUSB flash module
ATX12 development power supply
0.6” standoffs, English thread (four per kit)
Mini PCIe / mSATA hardware kit (metric thread) 2.5 mm
eUSB hardware kit
Half to Full Size MiniPCIe Adapter kit. Metal adapter and screws (2).
PC/104 extractor tool (metal)
Thermal compound paste (1.75g)
Display Port to Dual Channel LVDS converter
Expansion Modules
Part Number
Description
Network
VL-MPEe-W2E
Wi-Fi 802.11 a/b/g/n
VL-SPX-3
CANbus Module single-channel V2.0B
VL-MPEe-E3E
Gigabit Ethernet adapter
Serial I/O
VL-MPEe-U2E
Quad serial plus twelve GPIOs
Analog & Digital I/O
VL-MPEe-A1E
Analog input (12-bit resolution)
VL-MPEe-A2E
Analog input (16-bit resolution)
VL-SPX-1
Analog Input Module 8-Channels
VL-SPX-2
Digital I/O Module 16-lines
VL-SPX-4
Analog Output Module 4-channels 12-bit
VL-SPX-5
Solid State Switch Module 8-channel
GPS
VL-MPEu-G2E
GPS receiver
Solid-State Storage (flash memory)
VL-MPEs-F1Exx mSATA module (4/16/32 GB) (SATA)
Adapters
VL-MPEs-S3E
SATA adapter
Form Factor
Mini PCIe
SPX
Mini PCIe
Mini PCIe
Mini PCIe
Mini PCIe
SPX
SPX
SPX
SPX
Mini PCIe
Mini PCIe
Mini PCIe
Mini PCIe Modules
07/29/16
12100 SW Tualatin Rd., Tualatin, OR 97062 | (503) 747-2261 | Info@VersaLogic.com | www.VersaLogic.com
C
O
R
P
O
R
A
T
I
O
N
Talking
京公网安备 11010802033920号
EEWORLD
