IDT XO HCMOS Crystal Oscillator
XLH
DATASHEET
Description
The XLH is an HCMOS Crystal Oscillator with 750fs typical
phase jitter over 12kHz to 20 MHz bandwidth. Available in a
wide frequency range from 0.750MHz to 250MHz, the IDT
XLH Series Crystal Oscillator utilizes a family of proprietary
ASICs, with a key focus on noise reduction technologies.
The 3rd order Delta Sigma Modulator reduces noise to the
levels that are comparable to traditional Bulk Quartz and SAW
oscillators. With short lead-time, low cost, low noise, wide
frequency range, excellent ambient performance, the XLH is
an excellent choice over the conventional technologies. The
XLH has stabilities as tight as ±20ppm with extremely quick
delivery for both standard and custom frequencies
Features
•
Frequency range: 0.750 to 250MHz
•
Output Type: HCMOS/LVCMOS Compatible
•
Frequency Stability: ± 20ppm, ± 25ppm, ± 50ppm, or ± 100
•
•
•
•
•
ppm
Supply Voltage: 2.5V or 3.3V
Phase Jitter (1.875MHz to 20MHz): 225fs typical
Phase Jitter (12kHz to 20MHz): 750fs typical
Package options: 3.2mm x 2.5mm x 1.0mm (JX4)
5.0mm x 3.2mm x 1.2mm (JS4)
7.0mm x 5.0mm x 1.3mm (JU4)
Operating Temperatures: -20°C to +70°C or -40°C to +85°C
Pin Assignment
4
NC
OUT
VDD
3
1
E/D
NC
2
GND
Description
Output
Supply voltage
6-pin CLCC
Pin Descriptions
Pin Number
1
2
3
4
1. Pulled high internally.
Pin Name
E/D
GND
OUT
VDD
Enable/Disable
1
(0=Output Disabled)
Connect to ground
XLH JUNE 13, 2017
1
©2017 Integrated Device Technology, Inc.
XLH DATASHEET
Absolute Maximum Ratings
Stresses above the ratings listed below can cause permanent damage to the XLH. These ratings, which are standard values for
IDT commercially rated parts, are stress ratings only. Functional operation of the device at these or any other conditions above
those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions
for extended periods can affect product reliability. Electrical parameters are guaranteed only over the recommended operating
temperature range.
Item
VDD
E/D
OUT
Storage Temperature
Theta Ja (Junction to Ambient)
-0.5 to +5.0V
-0.5 V to VDD + 0.5V
-0.5 V to VDD + 0.5
-55°C to 125°C
102°C/W – Still Air
Rating
ESD Compliance
Human Body Model (HBM
Machine Model (MM)
1000V
150V
Mechanical Testing
Parameter
Mechanical Shock
Mechanical Vibration
High Temperature Burn-in
Hermetic Seal
Test Method
Drop from 75cm to hardwood surface–3 times
10~55Hz, 1.5mm amplitude, 1 minute sweep
2 hours each in 3 directions (X, Y, Z)
Under power at 125°C for 2000 hours
He pressure: 4 ±1kgf/cm
2
2 hour soak
Solder Reflow Profile
t
P
260°C
Ramp up 3°C/s Max
225°C
180°C
160°C
120 ±20 seconds
in pre-heating
area
50 ±10
seconds
above 225°C
reflow area
10 seconds Max within
5°C of 260°C peak
Ramp down not
to exceed 6°C/s
25°C
400 seconds MAX from +25°C to 260°C peak
IDT XO HCMOS CRYSTAL OSCILLATOR
2
JUNE 13, 2017
XLH DATASHEET
DC Characteristics
(V
DD
= 3.3V
±5%, T
A
= - 20°C to +70°C; -40° to +85°C)
Parameter
Power Supply Current
Output HIGH Voltage
Output LOW Voltage
Enable/Disable Input HIGH Voltage
(Output enabled)*
Enable/Disable Input LOW Voltage
(Output disabled)
Symbol
I
DD
V
OH
V
OL
V
IH
V
IL
Condition
Standard Frequencies
Fout = 0.750 to 150MHz
Fout = 150+ to 250MHz
Fout = 0.750 to 150MHz
Fout = 150+ to 250MHz
Min
90%V
DD
80%V
DD
Typ
Max
55
Units
mA
V
10%V
DD
20%V
DD
70%V
DD
30%V
DD
V
V
V
* A pullup resistor from pin 4 (VDD) to pin 1 (E/D) enables output when pin 1 is left open.
AC Characteristics
(V
DD
= 3.3V
±5%, T
A
= - 20°C to +70°C; -40° to +85°C)
Parameter
Output Frequency Range
Frequency Stability
Aging (1
st
year)
Aging (10 years)
Output Load
Start-up Time
Output Rise Time
Output Fall Time
Duty Cycle
Output Enable/ Disable Time
Period Jitter, RMS
Random Jitter
Deterministic Jitter
Total Jitter
Phase Jitter (12kHz – 20MHz)
Phase Noise Performance
Frequency = 125MHz
T
DTCY
T
OE
J
PER
R
J
D
J
T
J
JITTER
NOISE
Symbol
F
OUTR
Condition
Temperature = -20°C to +70°C
Temperature = -40°C to +85°C
Ta = 25°C
Ta = 25°C
Min
0.750
±20
±25
Typ
Max
250
±100
±100
±3
±10
15
Units
MHz
ppm
ppm
pF
ms
ns
ns
%
ns
psec
psec
psec
psec
psec
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
T
ST
Output valid time after VDD meets
minimum specified level
20% to 80% V
DD
80% to 20% V
DD
At 50% V
DD
Frequency = 125MHz
Frequency = 125MHz
Per MJSQ spec (Methodologies for
Jitter and Signal Quality specifications)
Frequency = 125MHz
100Hz of Carrier
1kHz of Carrier
10kHz of Carrier
100kHz of Carrier
1MHz of Carrier
10MHz of Carrier
45
10
3
3
55
100
3
1.2
8
25.2
0.75
-95
-118
-120
-124
-143
-153
Output Frequency (Standards)
F
OUT
10MHz, 12MHz, 12.288MHz, 16MHz, 20MHz, 24MHz, 24.576MHz, 25MHz,
33.333MHz, 40MHz, 48MHZ, 50MHz, 100MHz, 125MHz, 156.25MHz
(Contact IDT for additional frequencies)
Note: Inclusive of initial frequency accuracy, operating temperature range, supply variation, load variation, 3 times solder reflow, shock, vibration and 1 year aging at 25°C. We do not
recommend hand soldering the devices
JUNE 13, 2017
3
IDT XO HCMOS CRYSTAL OSCILLATOR
XLH DATASHEET
DC Characteristics
(V
DD
= 2.5V
±5%, T
A
= - 20°C to +70°C; -40° to +85°C)
Parameter
Power Supply Current
Output HIGH Voltage
Output LOW Voltage
Enable/Disable Input HIGH Voltage
(Output enabled)*
Enable/Disable Input LOW Voltage
(Output disabled)
Symbol
I
DD
V
OH
V
OL
V
IH
V
IL
Condition
Standard Frequencies
Fout = 0.750 to 160MHz
Fout = 160+ to 180MHz
Fout = 0.750 to 160MHz
Fout = 160+ to 180MHz
Min
10%V
DD
20%V
DD
Typ
Max
35
Units
mA
V
10%V
DD
20%V
DD
70%V
DD
30%V
DD
V
V
V
* A pullup resistor from pin 4 (VDD) to pin 1 (E/D) enables output when pin 1 is left open.
AC Characteristics
(V
DD
= 2.5V
±5%, T
A
= - 20°C to +70°C; -40° to +85°C)
Parameter
Output Frequency Range
Frequency Stability
Symbol
F
OUTR
Condition
Temperature = -20°C to +70°C
Temperature = -40°C to +85°C
Min
0.750
±20
±25
Typ
Max
180
±100
±100
15
Units
MHz
ppm
ppm
pF
ms
ns
ns
%
ns
psec
psec
psec
psec
psec
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
Output Load
Start-up Time
Output Rise Time
Output Fall Time
Duty Cycle
Output Enable/ Disable Time
Period Jitter, RMS
Random Jitter
Deterministic Jitter
Total Jitter
Phase Jitter (12kHz – 20MHz)
Phase Noise Performance
Frequency = 125MHz
T
DTCY
T
OE
J
PER
R
J
D
J
T
J
JITTER
NOISE
T
ST
Output valid time after VDD meets
minimum specified level
20% to 80% V
DD
80% to 20% V
DD
At 50% V
DD
Frequency = 125MHz
Frequency = 125MHz
Per MJSQ spec (Methodologies for
Jitter and Signal Quality specifications)
Frequency = 125MHz
100Hz of Carrier
1kHz of Carrier
10kHz of Carrier
100kHz of Carrier
1MHz of Carrier
10MHz of Carrier
45
10
3
3
55
100
3.3
1.3
6.7
25.6
0.85
-91
-107
-117
-123
-140
-149
Output Frequency (Standards)
F
OUT
10MHz, 12MHz, 12.288MHz, 16MHz, 20MHz, 24MHz, 24.576MHz, 25MHz,
33.333MHz, 40MHz, 48MHZ, 50MHz, 100MHz, 125MHz, 156.25MHz
(Contact IDT for additional frequencies)
Note: Inclusive of initial frequency accuracy, operating temperature range, supply variation, load variation, 3 times solder reflow, shock, vibration and 1 year aging at 25°C. We do not
recommend hand soldering the devices
IDT XO HCMOS CRYSTAL OSCILLATOR
4
JUNE 13, 2017
XLH DATASHEET

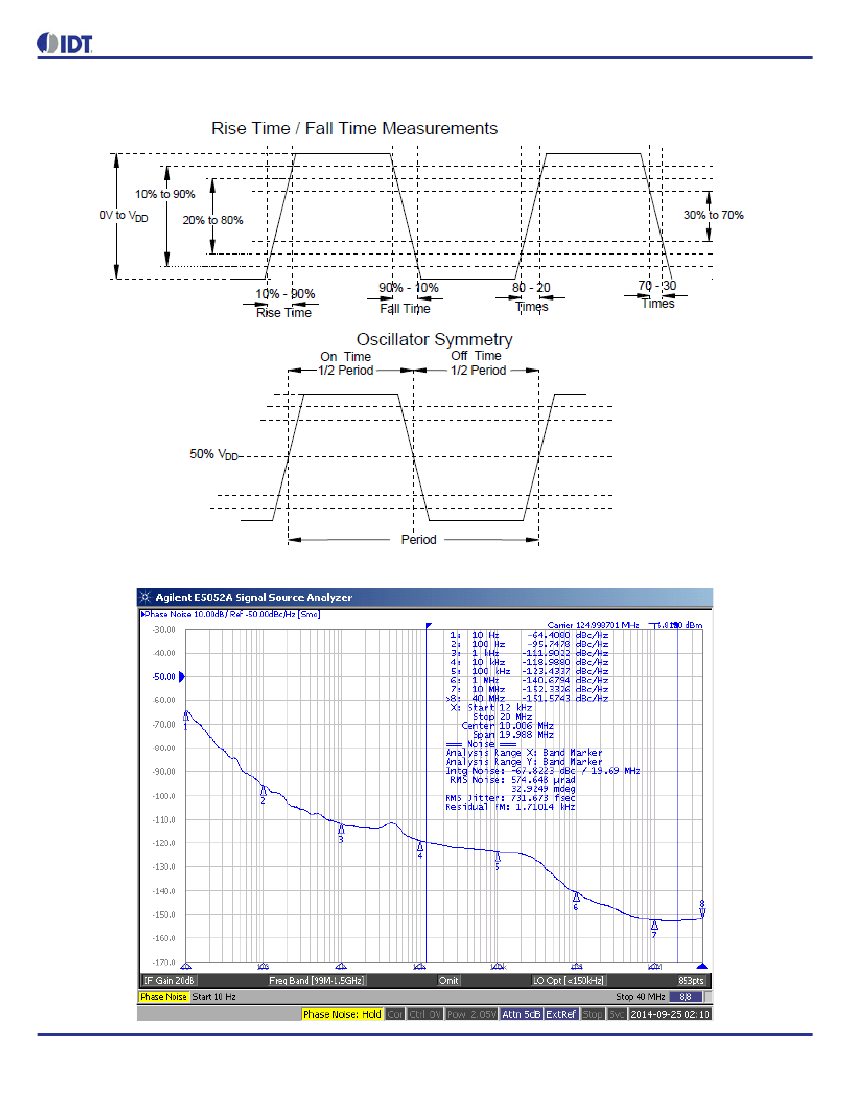

Output Waveform
Typical Phase Noise (3.3V)
JUNE 13, 2017
5
IDT XO HCMOS CRYSTAL OSCILLATOR
