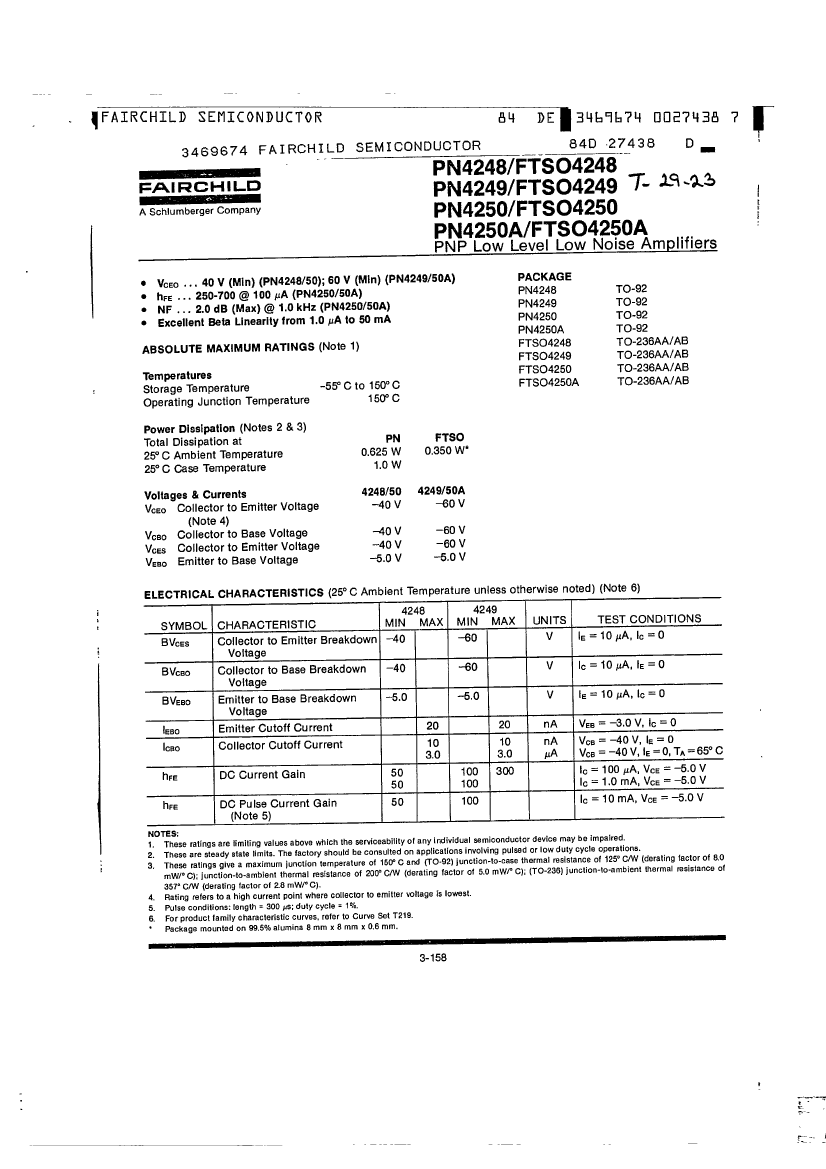

PN4248 Overview

500 mA, 60 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
Parts packaging code	TO-92
package instruction	CYLINDRICAL, O-PBCY-W3
Contacts	3
Reach Compliance Code	unknow
Maximum collector current (IC)	0.05 A
Collector-emitter maximum voltage	40 V
Configuration	SINGLE
Minimum DC current gain (hFE)	50
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-W3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.6 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	AMPLIFIER
Transistor component materials	SILICON

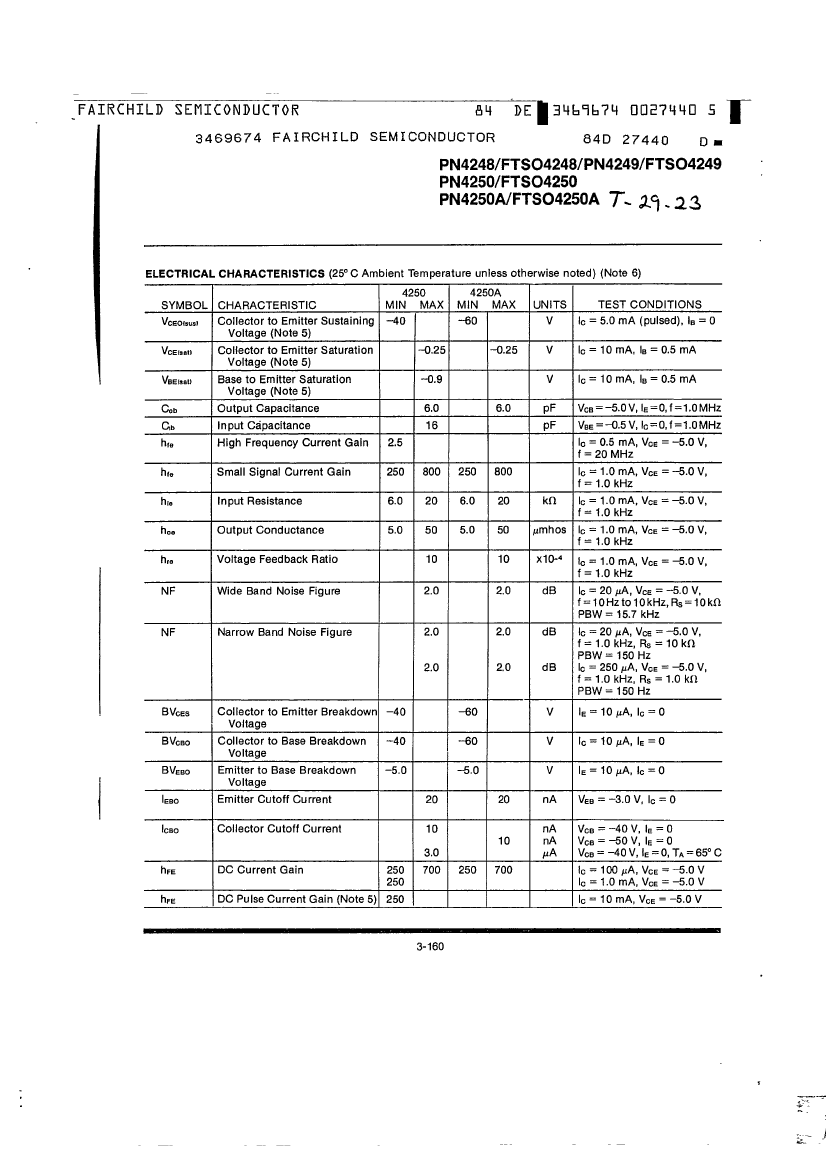

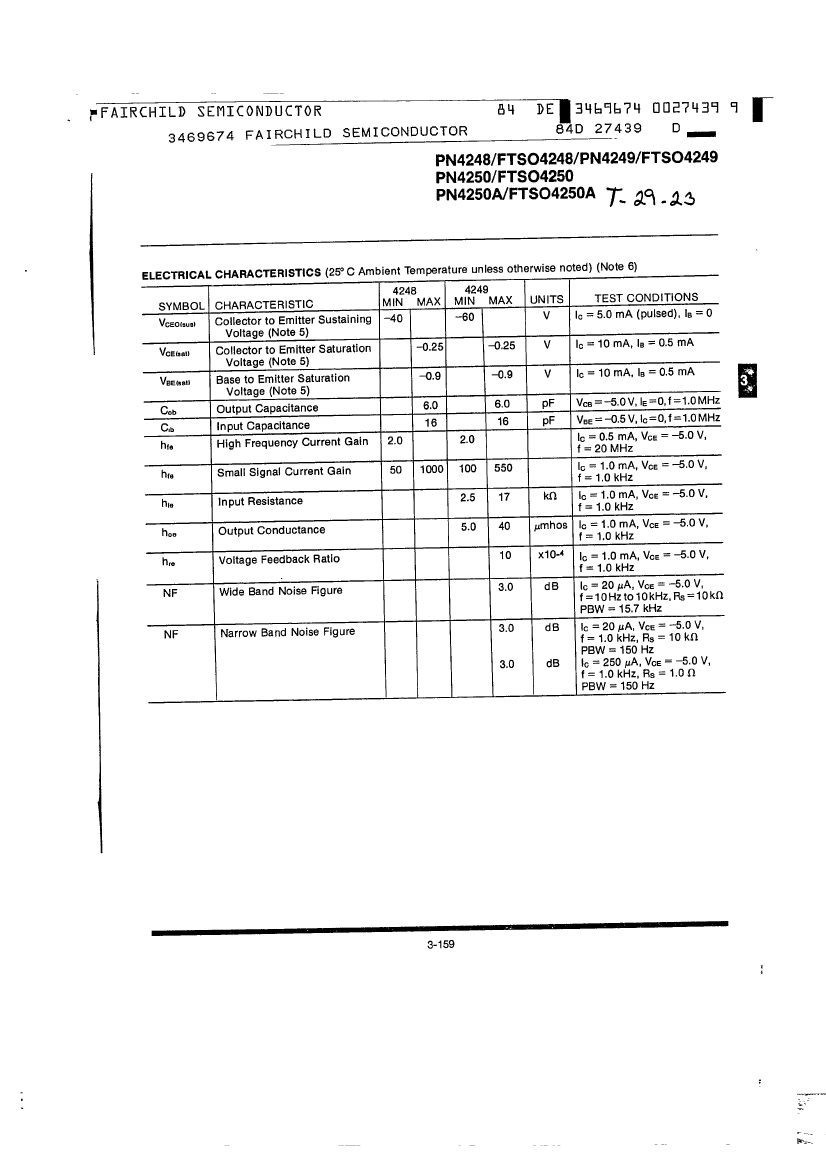

	PN4248	FTSO4248	FTSO4250	FTSO4249	FTSO4250A
Description	500 mA, 60 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92	500 mA, 60 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92	500 mA, 60 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92	500 mA, 60 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92	500 mA, 60 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92
Number of components	1	1	1	1	1
Number of terminals	3	3	3	3	3
Terminal form	WIRE	THROUGH-hole	THROUGH-hole	THROUGH-hole	THROUGH-hole
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
transistor applications	AMPLIFIER	switch	switch	switch	switch
Transistor component materials	SILICON	silicon	silicon	silicon	silicon
Transistor polarity	-	PNP	PNP	PNP	PNP
Maximum collector current	-	0.5000 A	0.5000 A	0.5000 A	0.5000 A
Maximum Collector-Emitter Voltage	-	60 V	60 V	60 V	60 V
Lead-free	-	Yes	Yes	Yes	Yes
EU RoHS regulations	-	Yes	Yes	Yes	Yes
state	-	DISCONTINUED	DISCONTINUED	DISCONTINUED	DISCONTINUED
packaging shape	-	round	round	round	round
Package Size	-	cylindrical	cylindrical	cylindrical	cylindrical
terminal coating	-	tin silver copper	tin silver copper	tin silver copper	tin silver copper
Packaging Materials	-	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy
structure	-	single	single	single	single
Maximum ambient power consumption	-	0.6250 W	0.6250 W	0.6250 W	0.6250 W
Transistor type	-	Universal small signal	Universal small signal	Universal small signal	Universal small signal
Minimum DC amplification factor	-	250	250	250	250
