2N7002K
GENERAL FEATURES
●
V
DS
= 60V,I
D
= 0.3A
R
DS(ON)
< 3Ω @ V
GS
=5V
R
DS(ON)
< 2Ω @ V
GS
=10V
ESD Rating：1000V HBM
●
High Power and current handing capability
●
Lead free product is acquired
●
Surface Mount Package
Schematic diagram
APPLICATION
●Direct
Logic-Level Interface: TTL/CMOS
●Drivers:
Relays, Solenoids, Lamps,
Hammers,Display, Memories, Transistors, etc.
●Battery
Operated Systems
●Solid-State
Relays
Marking and pin Assignment
SOT23 top view
PACKAGE MARKING AND ORDERING INFORMATION
Device Marking
Device
Device Package
Reel Size
S72K
2N7002K
SOT23
Ø180mm
Tape width
8 mm
Quantity
3000 units
ABSOLUTE MAXIMUM RATINGS(TA=25℃unless otherwise noted)
Parameter
Symbol
Drain-Source Voltage
Gate-Source Voltage
Drain Current-Continuous@ Current-Pulsed (Note 1)
Maximum Power Dissipation
Operating Junction and Storage Temperature Range
Limit
60
±20
0.3
0.8
0.35
-55 To 150
Unit
V
V
A
A
W
℃
V
DS
V
GS
I
D
I
DM
P
D
T
J
,T
STG
THERMAL CHARACTERISTICS
Thermal Resistance,Junction-to-Ambient (Note 2)
R
θJA
350
℃
/W
ELECTRICAL CHARACTERISTICS (TA=25℃unless otherwise noted)
Parameter
Symbol
Condition
OFF CHARACTERISTICS
Drain-Source Breakdown Voltage
BV
DSS
V
GS
=0V I
D
=250μA
Min
60
Typ
Max
Unit
V
©Silikron Semiconductor CO.,LTD.
1
http://www.silikron.com
v1.0
2N7002K
Zero Gate Voltage Drain Current
I
DSS
V
DS
=50V,V
GS
=0V
V
DS
=60V,V
GS
=0V
V
GS
=±5V,V
DS
=0V
Gate-Body Leakage Current
I
GSS
V
GS
=±10V,V
DS
=0V
V
GS
=±20V,V
DS
=0V
Gate-Source Breakdown Voltage
ON CHARACTERISTICS (Note 3)
Gate Threshold Voltage
Drain-Source On-State Resistance
Forward Transconductance
DYNAMIC CHARACTERISTICS (Note4)
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
SWITCHING CHARACTERISTICS (Note 4)
Turn-on Delay Time
Turn-Off Delay Time
Total Gate Charge
DRAIN-SOURCE DIODE CHARACTERISTICS
Diode Forward Voltage (Note 3)
V
SD
V
GS
=0V,I
S
=0.2A
1.3
V
t
d(on)
t
d(off)
Q
g
V
DD
=30V,V
GS
=10V,
R
GEN
=10Ω，R
L
=150Ω
I
D
=0.2A
V
DS
=10V,I
D
=0.25A,V
GS
=4.5V
0.4
25
35
0.6
nS
nS
nC
C
lss
C
oss
C
rss
V
DS
=25V,V
GS
=0V,
F=1.0MHz
30
6
3
PF
PF
PF
V
GS(th)
R
DS(ON)
g
FS
V
DS
=V
GS
,I
D
=250μA
V
GS
=10V, I
D
=0.5A
V
GS
=5V, I
D
=0.05A
V
DS
=10V,I
D
=0.2A
0.08
1
2.5
2
3
V
Ω
S
BV
GSO
V
DS
=0V, I
G
=±250uA
±20
10
1
100
150
10
nA
μA
nA
nA
uA
V
NOTES:
1.
Repetitive Rating: Pulse width limited by maximum junction temperature.
2.
Surface Mounted on FR4 Board, t
≤
10 sec.
3.
Pulse Test: Pulse Width
≤
300μs, Duty Cycle
≤
2%.
4.
Guaranteed by design, not subject to production testing.
©Silikron Semiconductor CO.,LTD.
2
http://www.silikron.com
v1.0

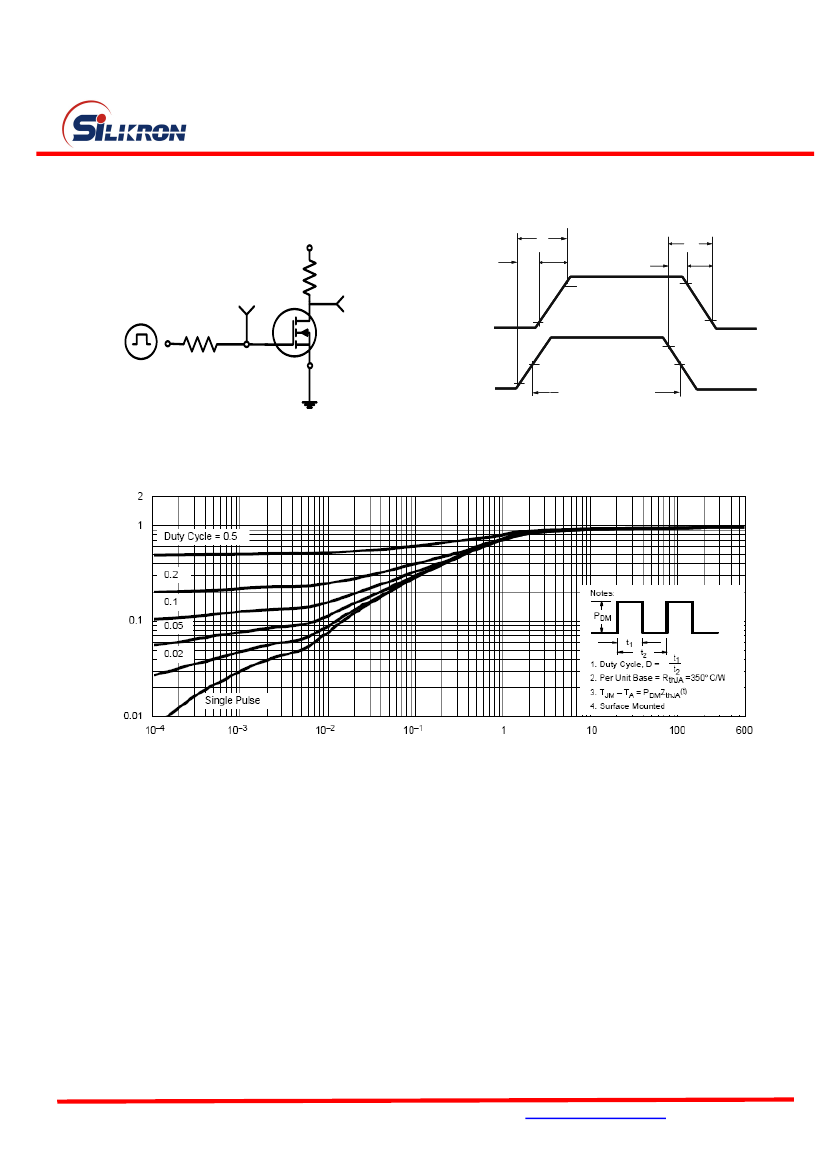

2N7002K

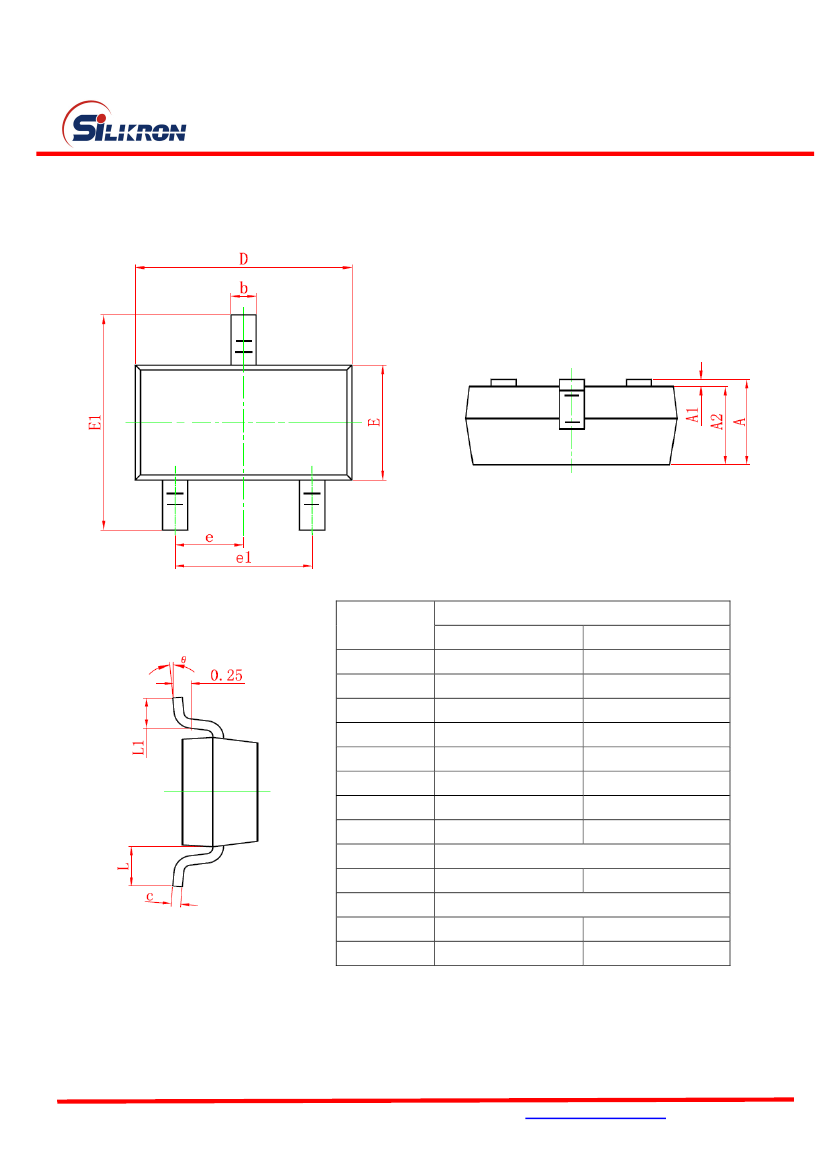

SOT-23 PACKAGE INFORMATION
Dimensions in Millimeters (UNIT:mm)
Symbol
A
A1
A2
b
c
D
E
E1
e
e1
L
L1
θ
NOTES
Dimensions in Millimeters
MIN.
MAX.
0.900
1.150
0.000
0.100
0.900
1.050
0.300
0.500
0.080
0.150
2.800
3.000
1.200
1.400
2.250
2.550
0.950TYP
1.800
2.000
0.550REF
0.300
0.500
0°
8°
1. All dimensions are in millimeters.
2. Tolerance ±0.10mm (4 mil) unless otherwise specified
3. Package body sizes exclude mold flash and gate burrs. Mold flash at the non-lead sides should be less than 5 mils.
4. Dimension L is measured in gauge plane.
5. Controlling dimension is millimeter, converted inch dimensions are not necessarily exact.
©Silikron Semiconductor CO.,LTD.
4
http://www.silikron.com
v1.0
2N7002K
ATTENTION:
■
