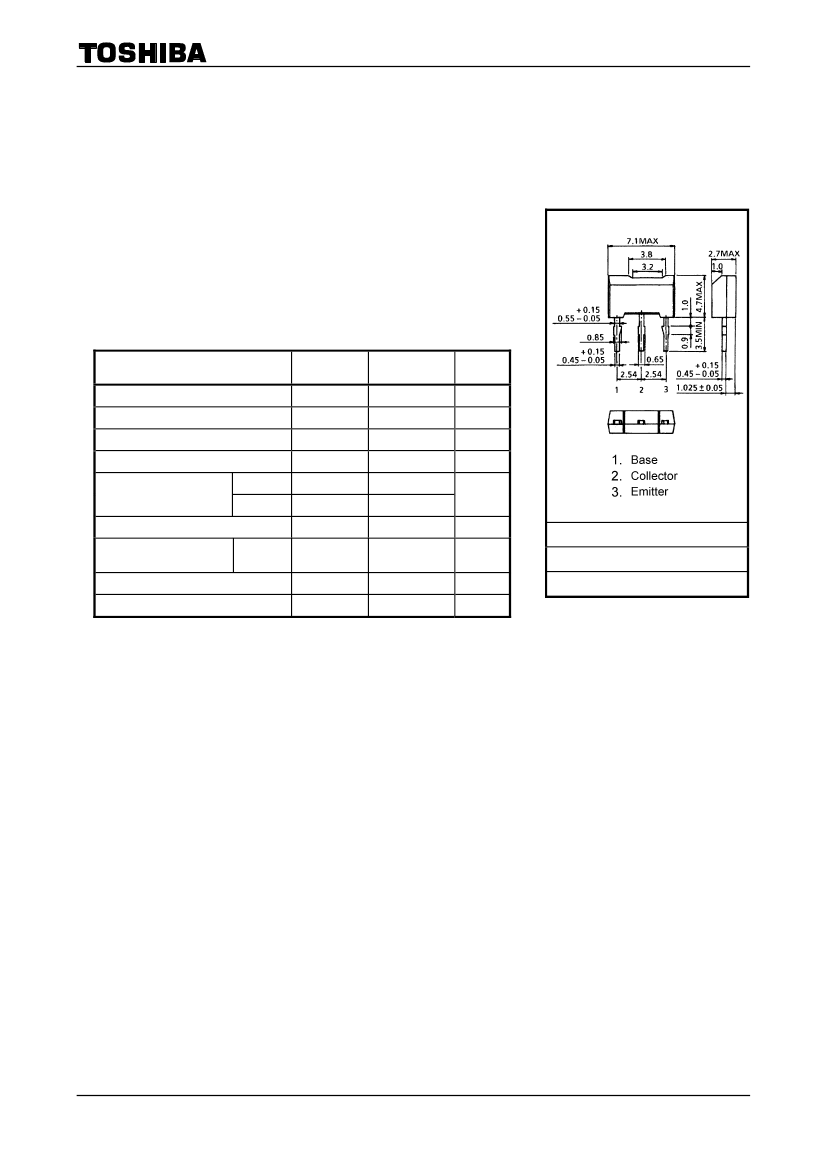

2SC5930
TOSHIBA Transistor
Silicon NPN Triple Diffused Type (PCT Process)
2SC5930
High-Speed and High-Voltage Switching Applications
Switching Regulator Applications
DC-DC Converter Applications
•
High-speed switching: t
f
= 0.3
μs
(max) (I
C
= 0.3 A)
Unit: mm
Absolute Maximum Ratings
(Ta = 25°C)
Characteristics
Collector-base voltage
Collector-emitter voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Collector power
dissipation
Junction temperature
Storage temperature range
Ta
=
25°C
DC
Pulse
Symbol
V
CBO
V
CEX
V
CEO
V
EBO
I
C
I
CP
I
B
P
C
T
j
T
stg
Rating
600
600
285
7
1.0
2.0
0.5
1.0
150
−55
to 150
Unit
V
V
V
V
A
A
W
°C
°C
JEDEC
JEITA
TOSHIBA
―
―
2-7D101A
Weight: 0.2 g (typ.)
Note: Using continuously under heavy loads (e.g. the application of high
temperature/current/voltage and the significant change in temperature, etc.) may cause this product to
decrease in the reliability significantly even if the operating conditions (i.e. operating
temperature/current/voltage, etc.) are within the absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/Derating Concept and Methods) and individual reliability data (i.e. reliability test report
and estimated failure rate, etc).
1
2006-11-13
2SC5930
Electrical Characteristics
(Ta
=
25°C)
Characteristics
Collector cut-off current
Emitter cut-off current
Collector-base breakdown voltage
Collector-emitter breakdown voltage
DC current gain
Collector-emitter saturation voltage
Base-emitter saturation voltage
Rise time
Switching time
Storage time
Fall time
Symbol
I
CBO
I
EBO
V
(BR) CBO
V
(BR) CEO
h
FE
(1)
h
FE
(2)
V
CE (sat)
V
BE (sat)
t
r
t
stg
t
f
Test Condition
V
CB
=
600 V, I
E
=
0
V
EB
=
7 V, I
C
=
0
I
C
=
1 mA, I
B
=
0
I
C
=
10 mA, I
B
=
0
V
CE
=
5 V, I
C
=
1 mA
V
CE
=
5 V, I
C
=
0.2 A
I
C
=
0.6 A, I
B
=
0.075 A
I
C
=
0.6 A, I
B
=
0.075 A
See Figure 1.
V
CC
≈
200 V, R
L
=
667
Ω
I
B1
=
20 mA,
−I
B2
=
50 mA
Min
⎯
⎯
600
285
30
40
⎯
⎯
⎯
⎯
⎯
Typ.
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
Max
100
100
⎯
⎯
100
100
1.0
1.3
0.5
3.0
0.3
μs
V
V
Unit
μA
μA
V
V
V
CC
20
μs
I
B1
I
B1
R
L
Output
Input
I
B2
I
B2
Duty cycle
<
1%
Figure 1
Switching Time Test Circuit &
Timing Chart
Marking
C5930
Part No. (or abbreviation code)
Lot No.
A line indicates
lead (Pb)-free package or
lead (Pb)-free finish.
2
2006-11-13

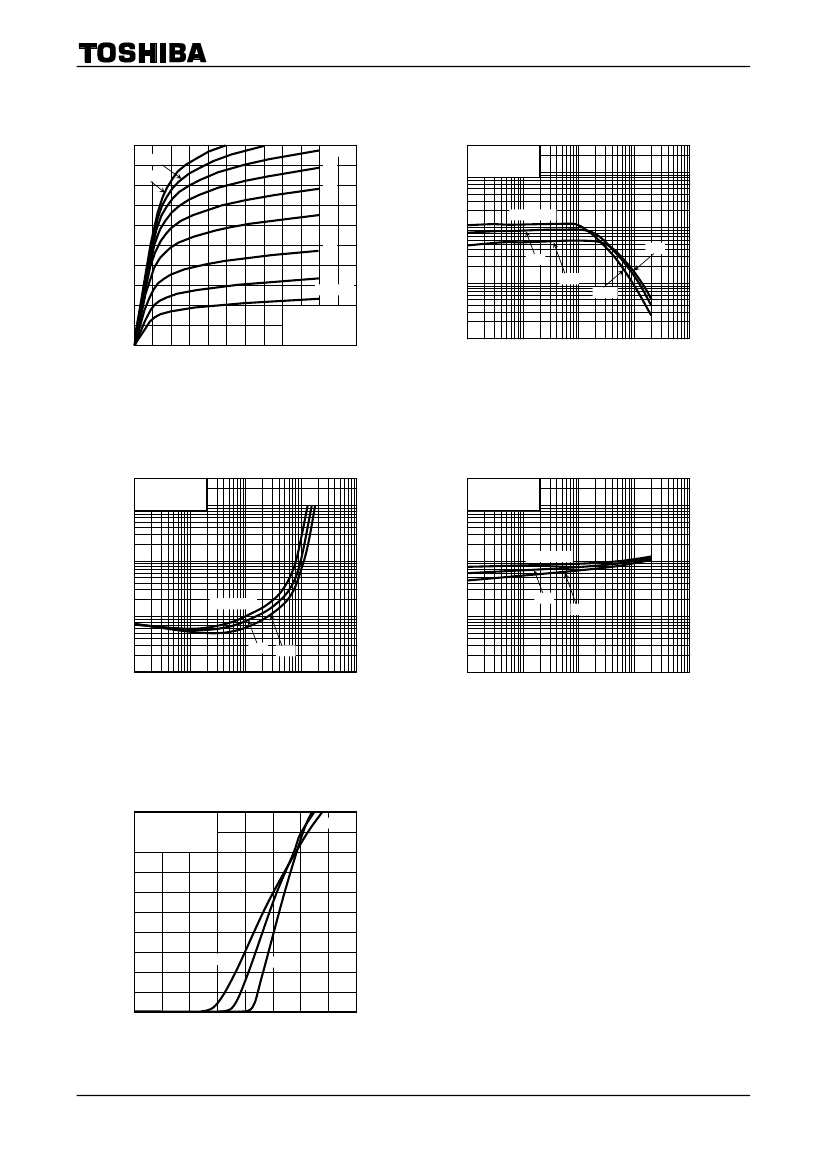

2SC5930
