TLWJ1100(T11)
TOSHIBA LED Lamps
TLWJ1100(T11)
Panel Circuit Indicator
•
•
•
•
•
•
•
•
•
•
Surface-mount devices
3.2 (L) × 2.8 (W) × 1.9 (H) mm
LED chip + phosphor
Luminous intensity : Iv = 750 mcd (typ.) @20mA
Color: White
Chromaticity (typ.) : Cx=0.32,Cy=0.31
Topr / Tstg = -40 to 100°C
Reflow soldering is possible
Applications: automotive use,
backlighting etc.
Standard embossed tape packing: T11 (2000/reel)
8-mm tape reel
Unit: mm
Color and Material
Product Name
TLWJ1100
Color
White
Material
InGaN
JEDEC
JEITA
TOSHIBA
―
―
4-3R1
Absolute Maximum Ratings
(Ta
=
25°C)
Characteristics
Forward Current
Power Dissipation
Operating Temperature
Storage Temperature
(Note 1)
Symbol
I
F
P
D
T
opr
T
stg
Rating
30
120
−40~100
−40~100
Unit
mA
mW
°C
°C
Weight: 0.035 g (typ.)
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even
if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum
ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
Note 1: Forward current derating
I
F
– Ta
(mA)
I
F
Allowable forward current
25
20
15
10
5
0
0
35
30
20
40
60
80
100
120
Ambient temperature
Ta
(°C)
1
2007-10-01
TLWJ1100(T11)
Electrical Characteristics
(Ta
=
25°C)
Characteristics
Forward Voltage
Reverse Voltage
Symbol
V
F
V
R
Test condition
I
F
=
20 mA
I
R
=
10 mA
Min.
2.8
⎯
Typ.
3.3
0.75
Max.
4.0
⎯
Unit
V
V
Optical Characteristics
(Ta
=
25°C)
Characteristics
Chromaticity
Luminous Intensity
(Note 3)
Symbol
C
x
C
y
I
V
Test condition
I
F
=
20 mA
I
F
=
20 mA
I
F
=
20 mA
400
Min.
Typ.
(Note 2)
(Note 2)
750
1250
Max.
Unit
⎯
⎯
mcd
Note 2: The product is tested at the following chromaticity coordinate groups.
Test conditions: IF=20mA, Ta=25°C
Tolerance: +/-0.01
0.42
0.41
0.40
0.39
0.38
0.37
0.36
0.35
0.34
0.33
0.32
0.31
0.30
0.29
0.28
0.27
0.26
0.25
0.24
0.23
0.22
0.21
0.20
8L
7L
6L
5L
4L
3L
4K
3K
0.25 0.26 0.27 0.28 0.29 0.30 0.31 0.32 0.33 0.34 0.35 0.36 0.37
Cx
8K
7K
6K
Cy
5K
3K
3L
4K
4L
Cx
0.273
0.266
0.280
0.286
0.266
0.258
0.273
0.280
0.286
0.280
0.291
0.296
0.280
0.273
0.285
0.291
Cy
0.227
0.232
0.252
0.244
0.232
0.239
0.261
0.252
0.244
0.252
0.268
0.259
0.252
0.261
0.279
0.268
5K
5L
6K
6L
Cx
0.296
0.291
0.310
0.313
0.291
0.285
0.307
0.310
0.313
0.310
0.330
0.330
0.310
0.307
0.330
0.330
Cy
0.259
0.268
0.297
0.284
0.268
0.279
0.312
0.297
0.284
0.297
0.330
0.310
0.297
0.312
0.347
0.330
7K
7L
8K
8L
Cx
0.330
0.330
0.338
0.352
0.330
0.330
0.347
0.345
0.352
0.338
0.364
0.360
0.345
0.347
0.367
0.364
Cy
0.310
0.330
0.342
0.344
0.330
0.347
0.371
0.352
0.344
0.342
0.380
0.357
0.352
0.371
0.401
0.380
2
2007-10-01
TLWJ1100(T11)
Note 3: Iv rank classification
Test conditions: IF=20mA, Ta=25°C
Product name
TLWJ1100(T11)
UA
VA
Unit
Luminous intensity I
V
min
400
400
630
typ
750
⎯
⎯
mcd
max
1250
800
1250
mA
20
I
F
The specification on the above table is used for Iv classification of LEDs in Toshiba facility.
Each reel includes the same rank LEDs. Let the delivery ratio of each rank be unquestioned.
Note 4: Caution
This product is designed as a general display light source usage, and it has applied the measurement standard
that matched with the sensitivity of human's eyes. Therefore, it is not intended for usage of functional application
(ex. Light source for sensor, optical communication and etc) except general display light source.
3
2007-10-01
TLWJ1100(T11)

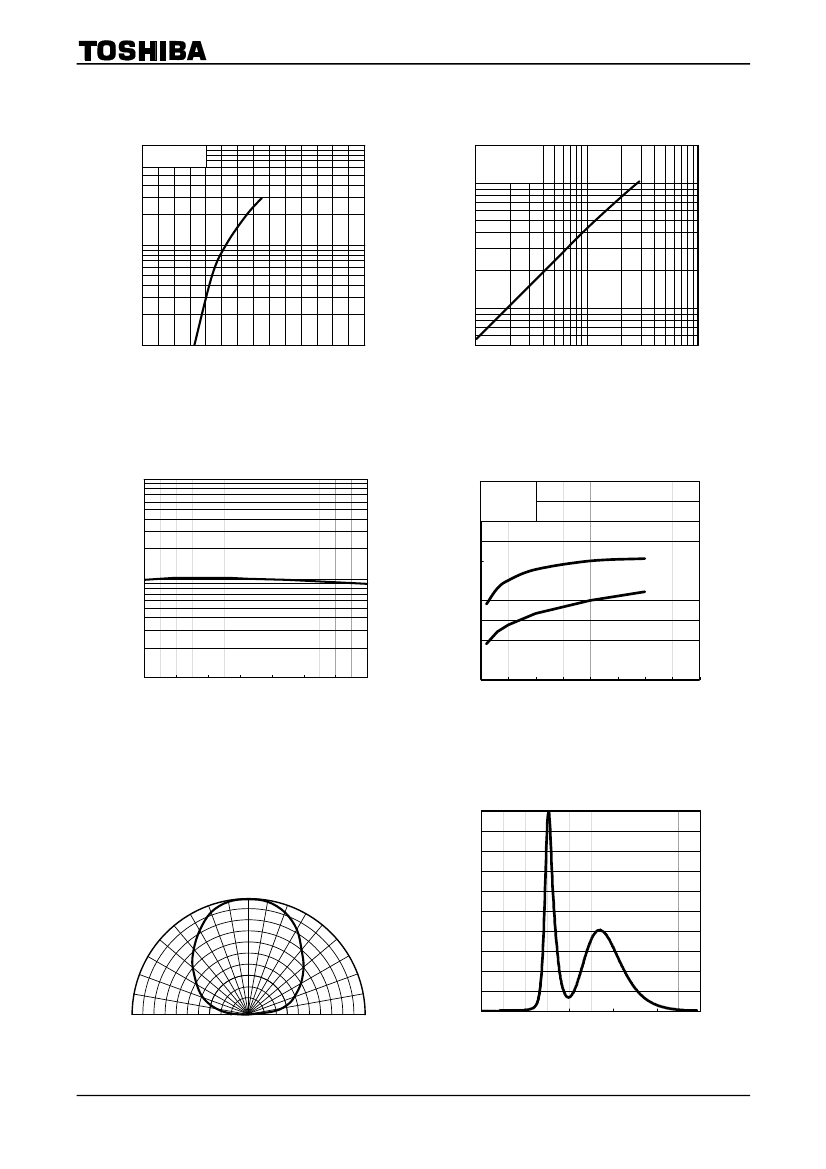

TLWJ1100
I
F
– V
F
100
Ta
=
25°C
(typ.)
2000
Ta
=
25°C
I
V
– I
F
(typ.)
I
V
(mcd)
Luminous intensity
2.4
2.8
3.2
3.6
4.0
4.4
4.8
(mA)
1000
30
I
F
500
300
Forward current
10
3
100
1
2.0
50
1
3
5
10
30
50
100
Forward voltage
V
F
(V)
Forward current
I
F
(mA)
Relative I
V
– Tc
10
(typ.)
0.34
Cx, Cy – I
F
Ta
=
25°C
(typ.)
Relative luminous Intensity I
V
0.33
Chromaticity Cx, Cy
Cx
0.32
1
0.31
Cy
0.3
0.1
-40
-20
0
20
40
60
80
100
0.29
0
5
10
15
20
25
30
35
40
Case Temperature
Tc
(°C)
Forward current
I
F
(mA)
Radiation pattern
Ta
=
25°C
(typ.)
Relative luminous Intensity
Wavelength characteristic
1.0
(typ.)
0.8
30
°
40
°
50
°
60
°
70
°
80
°
90
°
20
°
10
°
0
°
10
°
20
°
0.6
30
°
40
°
50
°
60
°
70
°
80
°
90
°
1.0
0.4
0.2
0
0.2
0.4
0.6
0.8
0.0
300
400
500
600
700
800
Wavelength
λ
(nm)
4
2007-10-01
TLWJ1100(T11)
Packaging
These LED devices are packed in an aluminum envelope with a silica gel and a moisture indicator to avoid
moisture absorption. The optical characteristics of the devices may be affected by exposure to moisture in the air
before soldering and they should therefore be stored under the following conditions:
1. This moisture proof bag may be stored unopened within 12 months at the following conditions.
Temperature: 5°C~30°C
Humidity: 90% (max)
2. After opening the moisture proof bag, the devices should be assembled within 168 hours in an environment of
5°C to 30°C/60% RH or below.
3. If upon opening, the moisture indicator card shows humidity 30% or above (Color of indication changes to
pink) or the expiration date has passed, the devices should be baked in taping with reel.
After baking, use the baked devices within 72 hours, but perform baking only once.
Baking conditions: 60±5°C, for 12 to 24 hours.
Expiration date: 12 months from sealing date, which is imprinted on the same side as this label affixed.
4. Repeated baking can cause the peeling strength of the taping to change, then leads to trouble in mounting.
Furthermore, prevent the devices from being destructed against static electricity for baking of it.
5. If the packing material of laminate would be broken, the hermeticity would deteriorate. Therefore, do not
throw or drop the packed devices.
Mounting Method
Soldering
•
Reflow soldering
Temperature profile (example)
10 s max
(*)
(*)
240°C max
Package surface
temperature (°C)
140~160°C max
(*)
4°C/s max
(*)
4°C/s max
(*)
60~120 s max
(*)
Time
(s)
•
•
•
•
•
The product is evaluated using above reflow soldering conditions. No additional test is performed exceed the
condition (i.e. the condition more than (*)MAX values) as a evaluation. Please perform reflow soldering under
the above conditions.
Please perform the first reflow soldering with reference to the above temperature profile and within 168 h of
opening the package.
Second reflow soldering
In case of second reflow soldering should be performed within 168 h of the first reflow under the above
conditions.
Storage conditions before the second reflow soldering: 30°C, 60% RH (max)
Make any necessary soldering corrections manually.
(only once at each soldering point)
Soldering iron
: 25 W
Temperature
: 300°C or less
Time
: within 3 s
If the product needs to be performed by other soldering method (ex. wave soldering), please contact Toshiba
sales representative.
Recommended soldering pattern
1.65
1.15
1.65
2.41
Unit: mm
5
2007-10-01
