8Mb: 512K x 18, 256K x 32/36
3.3V I/O, PIPELINED, DCD SYNCBURST SRAM
8Mb SYNCBURST
SRAM
FEATURES
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
™
MT58L512L18D, MT58L256L32D,
MT58L256L36D
3.3V V
DD
, 3.3V I/O, Pipelined, Double-
Cycle Deselect
Fast clock and OE# access times
Single +3.3V +0.3V/-0.165V power supply (V
DD
)
Separate +3.3V isolated output buffer supply (V
DD
Q)
SNOOZE MODE for reduced-power standby
Common data inputs and data outputs
Individual BYTE WRITE control and GLOBAL WRITE
Three chip enables for simple depth expansion and
address pipelining
Clock-controlled and registered addresses, data I/Os
and control signals
Internally self-timed WRITE cycle
Burst control (interleaved or linear burst)
Automatic power-down for portable applications
100-pin TQFP package
165-pin FBGA package
Low capacitive bus loading
x18, x32, and x36 versions available
100-Pin TQFP*
165-Pin FBGA
(Preliminary Package Data)
OPTIONS
• Timing (Access/Cycle/MHz)
3.5ns/6ns/166 MHz
4.0ns/7.5ns/133 MHz
5ns/10ns/100 MHz
• Configurations
512K x 18
256K x 32
256K x 36
• Packages
100-pin TQFP (2-chip enable)
100-pin TQFP (3-chip enable)
165-pin, 13mm x 15mm FBGA
• Operating Temperature Range
Commercial (0°C to +70°C)
Part Number Example
MARKING
-6
-7.5
-10
MT58L512L18D
MT58L256L32D
MT58L256L36D
T
S
F
None
*JEDEC-standard MS-026 BHA (LQFP).
GENERAL DESCRIPTION
The Micron
®
SyncBurst
™
SRAM family employs
high-speed, low-power CMOS designs that are fabri-
cated using an advanced CMOS process.
Micron’s 8Mb SyncBurst SRAMs integrate a 512K x
18, 256K x 32, or 256K x 36 SRAM core with advanced
synchronous peripheral circuitry and a 2-bit burst
counter. All synchronous inputs pass through registers
controlled by a positive-edge-triggered single-clock in-
put (CLK). The synchronous inputs include all ad-
dresses, all data inputs, active LOW chip enable (CE#),
two additional chip enables for easy depth expansion
(CE2, CE2#), burst control inputs (ADSC#, ADSP#,
MT58L512L18DT-7.5
* A Part Marking Guide for the FBGA devices can be found on Micron’s
web site—http://www.micron.com/support/index.html.
8Mb: 512K x 18, 256K x 32/36 3.3V I/O, Pipelined, DCD SyncBurst SRAM
MT58L512L18D_2.p65 – Rev. 8/00
1
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©2000, Micron Technology, Inc.
8Mb: 512K x 18, 256K x 32/36
3.3V I/O, PIPELINED, DCD SYNCBURST SRAM

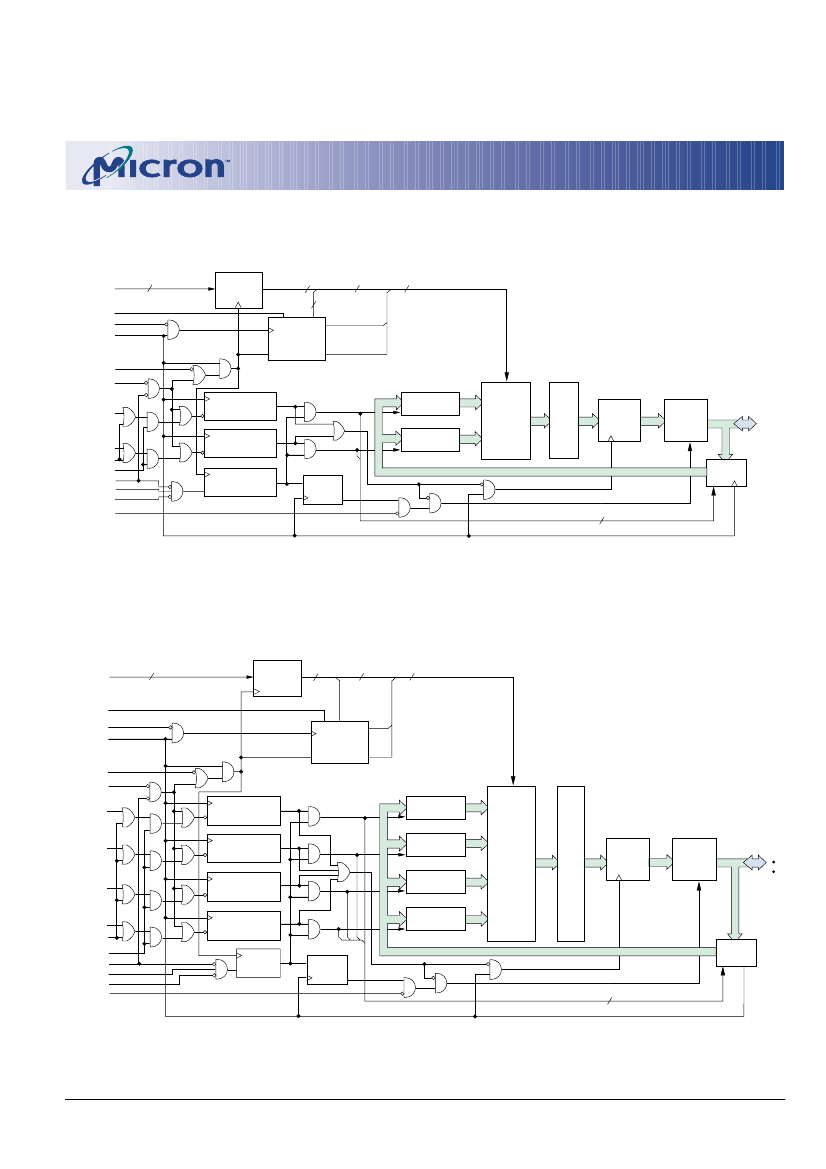

FUNCTIONAL BLOCK DIAGRAM
512K x 18
18
SA0, SA1, SA
MODE
ADV#
CLK
ADDRESS
REGISTER
18
16
18
2
SA0-SA1
SA1'
BINARY Q1
COUNTER AND
LOGIC
CLR
Q0
SA0'
ADSC#
ADSP#
BYTE “b”
WRITE REGISTER
9
BYTE “b”
WRITE DRIVER
9
256K x 9 x 2
MEMORY
ARRAY
9
18
SENSE 18
AMPS
BWb#
OUTPUT
18
REGISTERS
OUTPUT
BUFFERS
E
18
BWa#
BWE#
GW#
CE#
CE2
CE2#
OE#
BYTE “a”
WRITE REGISTER
9
BYTE “a”
WRITE DRIVER
DQs
DQPa
DQPb
ENABLE
REGISTER
18
PIPELINED
ENABLE
2
INPUT
REGISTERS
FUNCTIONAL BLOCK DIAGRAM
256K x 32/36
17
SA0, SA1, SA
ADDRESS
REGISTER
17
SA0-SA1
17
MODE
ADV#
CLK
Q1
SA1'
BINARY
COUNTER
SA0'
CLR
Q0
ADSC#
ADSP#
BWd#
BYTE “d”
WRITE REGISTER
BYTE “c”
WRITE REGISTER
9
BYTE
“d”
WRITE DRIVER
BYTE
“c”
WRITE DRIVER
BYTE
“b”
WRITE DRIVER
BYTE
“a”
WRITE DRIVER
9
BWc#
9
9
128K x 8 x 4
(x32)
128K x 9 x 4
(x36)
36
SENSE
AMPS
36
OUTPUT
REGISTERS
36
BWb#
BYTE “b”
WRITE REGISTER
9
9
MEMORY
ARRAY
OUTPUT
BUFFERS
E
DQs
DQPa
36
DQPd
BWa#
BWE#
GW#
CE#
CE2
CE2#
OE#
BYTE “a”
WRITE REGISTER
9
9
ENABLE
REGISTER
36
PIPELINED
ENABLE
4
INPUT
REGISTERS
NOTE:
Functional block diagrams illustrate simplified device operation. See truth tables, pin descriptions, and timing diagrams for
detailed information.
8Mb: 512K x 18, 256K x 32/36 3.3V I/O, Pipelined, DCD SyncBurst SRAM
MT58L512L18D_2.p65 – Rev. 8/00
2
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©2000, Micron Technology, Inc.
8Mb: 512K x 18, 256K x 32/36
3.3V I/O, PIPELINED, DCD SYNCBURST SRAM
GENERAL DESCRIPTION (CONTINUED)
ADV#), byte write enables (BWx#) and global write
(GW#). Note that CE2# is not available on the
T Version.
Asynchronous inputs include the output enable
(OE#), clock (CLK) and snooze enable (ZZ). There is also
a burst mode input (MODE) that selects between inter-
leaved and linear burst modes. The data-out (Q), en-
abled by OE#, is also asynchronous. WRITE cycles can
be from one to two bytes wide (x18) or from one to four
bytes wide (x32/x36), as controlled by the write control
inputs.
Burst operation can be initiated with either address
status processor (ADSP#) or address status controller
(ADSC#) inputs. Subsequent burst addresses can be
internally generated as controlled by the burst advance
input (ADV#).
Address and write control are registered on-chip to
simplify WRITE cycles. This allows self-timed WRITE
cycles. Individual byte enables allow individual bytes
to be written. During WRITE cycles on the x18 device,
BWa# controls DQas and DQPa; BWb# controls DQbs
and DQPb. During WRITE cycles on the x32 and x36
devices, BWa# controls DQas and DQPa; BWb# con-
trols DQbs and DQPb; BWc# controls DQcs and DQPc;
BWd# controls DQds and DQPd. GW# LOW causes all
bytes to be written. Parity bits are only available on the
x18 and x36 versions.
This device incorporates an additional pipelined
enable register which delays turning off the output
buffer an additional cycle when a deselect is executed.
This feature allows depth expansion without penaliz-
ing system performance.
Micron’s 8Mb SyncBurst SRAMs operate from a
+3.3V V
DD
power supply, and all inputs and outputs are
TTL-compatible. The device is ideally suited for
Pentium
®
and PowerPC pipelined systems and systems
that benefit from a very wide, high-speed data bus. The
device is also ideal in generic 16-, 18-, 32-, 36-, 64-, and
72-bit-wide applications.
Please refer to Micron’s Web site (www.micron.com/
products/datasheets/syncds.html)
for the latest data
sheet.
TQFP PINOUTS
At the time of the writing of this data sheet, there are
two pinouts in the industry. Micron will support both
pinouts for this part.
