54121FMQC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54121FMQC

54121FMQC: DescriptionMonostable Multivibrator, TTL/H/L Series, 1-Func, TTL, CDFP14, FP-14; Categorylogic logic; File Size123KB，4 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54121FMQC Overview

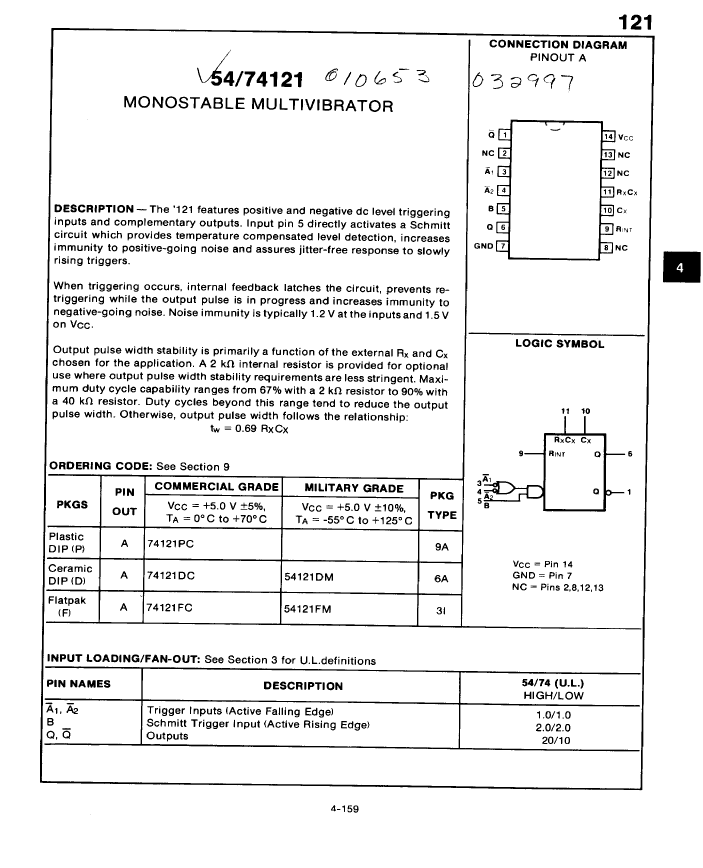

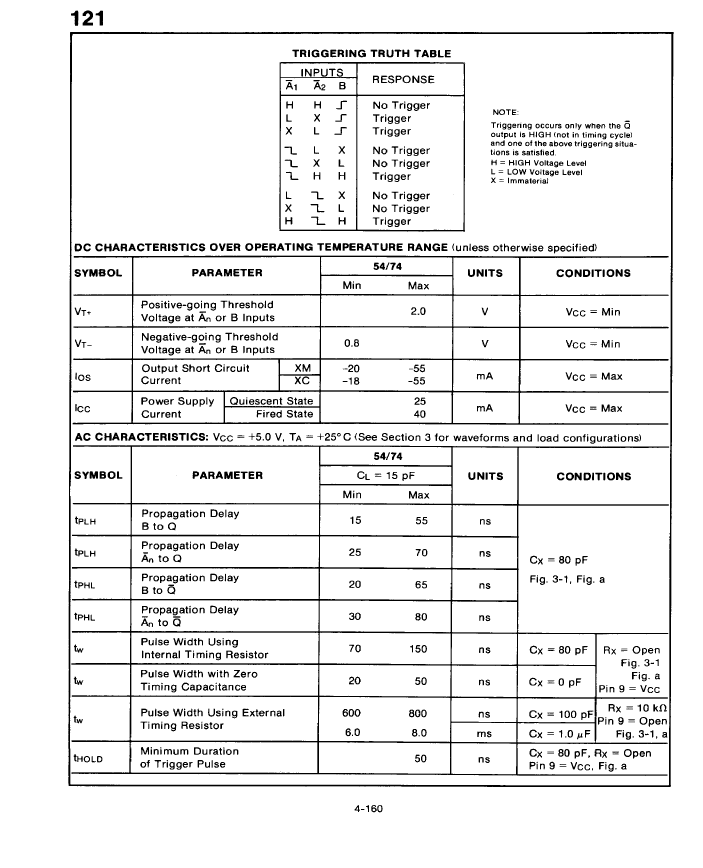

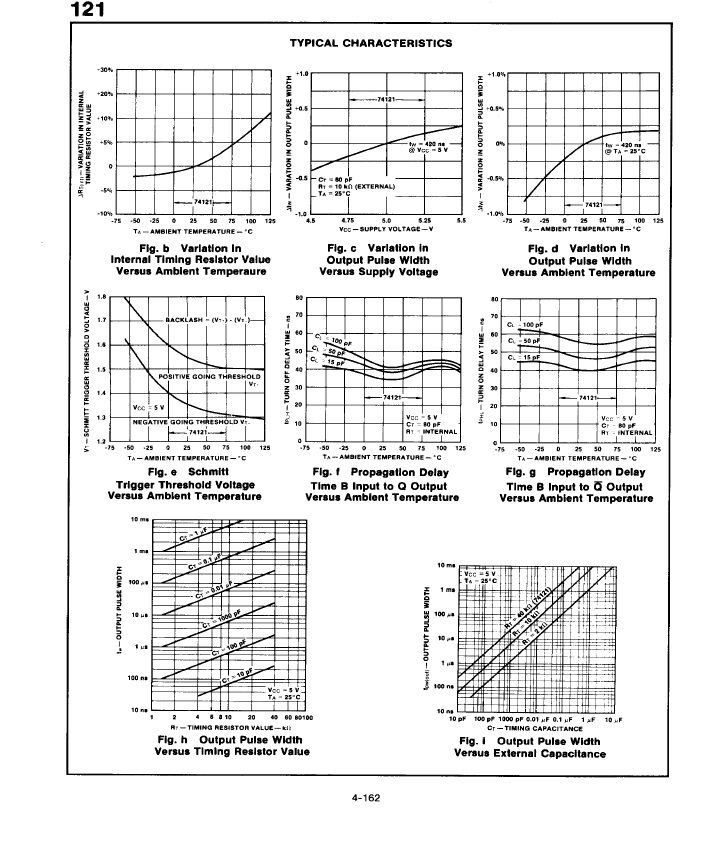

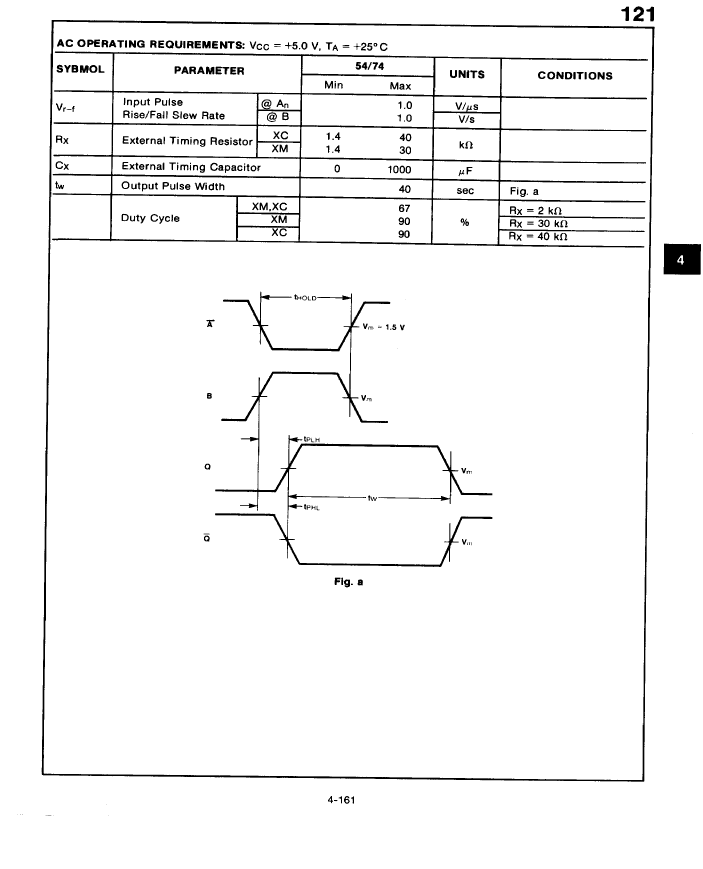

Monostable Multivibrator, TTL/H/L Series, 1-Func, TTL, CDFP14, FP-14

54121FMQC Parametric

Parameter Name	Attribute value
Parts packaging code	DFP
package instruction	DFP,
Contacts	14
Reach Compliance Code	unknow
Other features	NON-RETRIGGERABLE; OPTIONAL INTERNAL TIMING RESISTOR
series	TTL/H/L
JESD-30 code	R-GDFP-F14
Logic integrated circuit type	MONOSTABLE MULTIVIBRATOR
Number of data/clock inputs	3
Number of functions	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	80 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	FLAT
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

54121FMQC Related Products

	54121FMQC	54121DM	74121PC	74121FC	74121DC
Description	Monostable Multivibrator, TTL/H/L Series, 1-Func, TTL, CDFP14, FP-14	Monostable Multivibrator, TTL/H/L Series, 1-Func, TTL, CDIP14, CERAMIC, DIP-14	Monostable Multivibrator, TTL/H/L Series, 1-Func, TTL, PDIP14, PLASTIC, DIP-14	Monostable Multivibrator, TTL, CDFP14,	Monostable Multivibrator, TTL, CDIP14,
package instruction	DFP,	DIP, DIP14,.3	DIP, DIP14,.3	DFP, FL14,.3	DIP, DIP14,.3
Reach Compliance Code	unknow	unknown	unknown	compliant	compliant
JESD-30 code	R-GDFP-F14	R-GDIP-T14	R-PDIP-T14	R-XDFP-F14	R-XDIP-T14
Logic integrated circuit type	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR
Number of terminals	14	14	14	14	14
Maximum operating temperature	125 °C	125 °C	70 °C	70 °C	70 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC	CERAMIC
encapsulated code	DFP	DIP	DIP	DFP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	IN-LINE	FLATPACK	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES	NO
technology	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	FLAT	THROUGH-HOLE	THROUGH-HOLE	FLAT	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Parts packaging code	DFP	DIP	DIP	-	-
Contacts	14	14	14	-	-
series	TTL/H/L	TTL/H/L	TTL/H/L	-	TTL/H/L
Number of data/clock inputs	3	3	1	-	-
Number of functions	1	1	1	-	1
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	-	-
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.25 V	-	-
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.75 V	-	-
Base Number Matches	1	1	1	1	-
Is it Rohs certified?	-	incompatible	incompatible	incompatible	incompatible
JESD-609 code	-	e0	e0	e0	e0
Encapsulate equivalent code	-	DIP14,.3	DIP14,.3	FL14,.3	DIP14,.3
power supply	-	5 V	5 V	5 V	5 V
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	-	2.54 mm	2.54 mm	1.27 mm	2.54 mm
