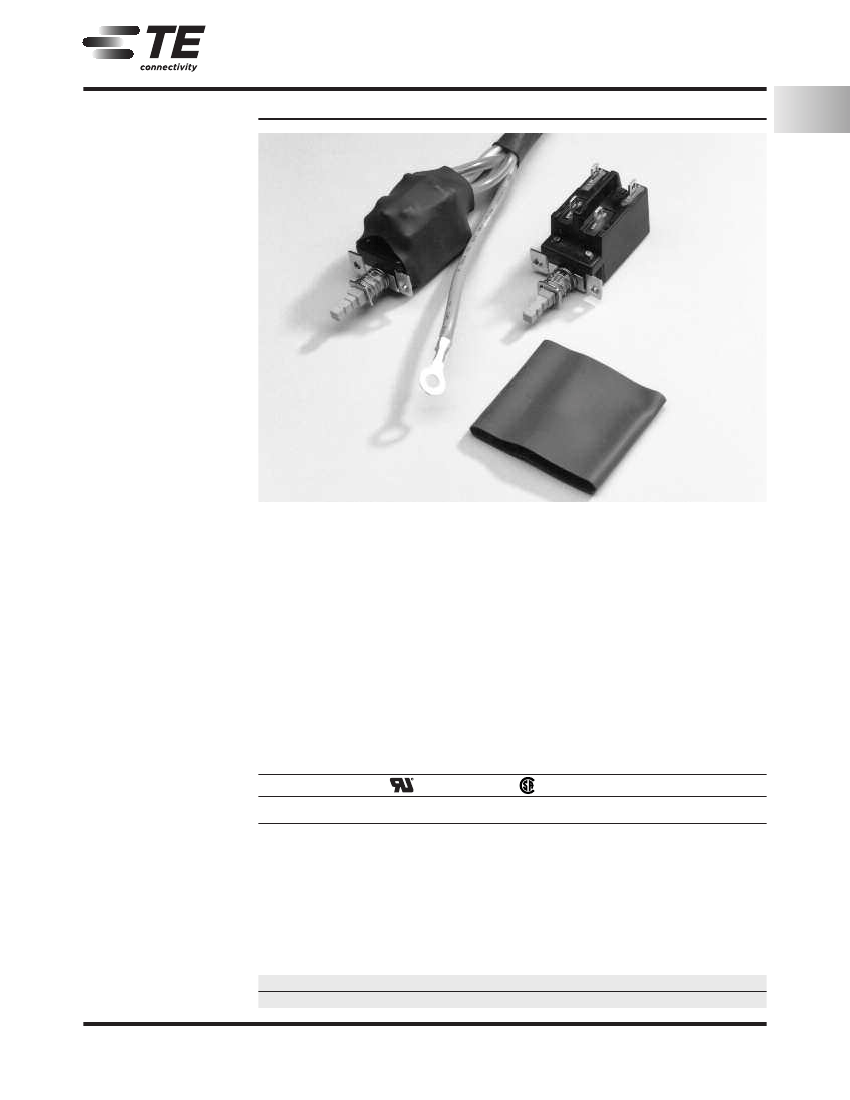

RAYCHEM Tubing Products
Versafit V2
Highly Flame-Retardant,
Very Flexible, Low-Shrink-
Temperature, Polyolefin
Tubing
Product Facts
2:1 shrink ratio
I
Low shrink temperature
reduces installation time
and the risk of damage to
temperature-sensitive
components
I
Very flexible; doesn’t easily
wrinkle when bent
I
Highly flame-retardant
I
Hot stamps extremely well
I
Higher temperature rating,
better thermal stability, and
higher resistance to physical
abuse than noncrosslinked
materials
I
Free of polybrominated
biphenyls (PBBs) and
polybrominated biphenyl
oxides and ethers (PBBOs
and PBBEs), which are
classified as environmentally
hazardous substances
I
RoHS compliant
I
1
Heat-shrinkable Tubing
Applications
Cost-effective choice
for many commercial
applications; electrically
insulates and protects
in-line components,
disconnect terminals, and
splices. Bundles wires for
very flexible light-duty
harnesses. Strain-relieves
electrical wire connections.
Identifies or color-codes
wires, cables, terminals,
and components.
Installation
Minimum shrink
temperature: 70°C [158°F]
Minimum full recovery
temperature: 90°C [194°F]
Operating Temperature Range
-30°C to 125°C
[-22°F to 257°F]
Specifications/Approvals
Series
Versafit V2
UL
E35586 VW-1
600 V, 125°C
CSA
®
Raychem
RW-3023
LR31929 VW-1
600 V, 125°C
Available in:
Americas
I
Europe
I
Asia Pacific
I
1-135
9-1773447-9
CIS WR 08/2011
te.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-475-6222
Mexico: 52-55-1106-0800
L. & S. America: 54-11-4733-2200
Germany: 49-6251-133-1999
China: 86-400-820-6015
Japan: 81-44-844-8013
UK: 44-800-267-666
RAYCHEM Tubing Products
Versafit V2
(Continued)
Product Dimensions
Size
1.0
1.5
2.0
2.5
3.0
3.5
4.0
5.0
6.0
7.0
8.0
9.0
10.0
11.0
12.0
13.0
14.0
15.0
16.0
18.0
20.0
22.0
25.0
27.0
28.0
30.0
Inside Diameter
Maximum
Expanded
as Supplied
Recovered
After Heating
1.5 ± 0.2 [0.059 ± 0.008]
0.50 [0.020]
2.1 ± 0.2 [0.075 ± 0.008]
0.75 [0.030]
2.6 ± 0.2 [0.102 ± 0.008]
1.00 [0.039]
3.1 ± 0.2 [0.122 ± 0.008]
1.25 [0.049]
3.6 ± 0.2 [0.142 ± 0.008]
1.50 [0.059]
4.1 ± 0.3 [0.161 ± 0.012]
1.75 [0.069]
4.6 ± 0.3 [0.181 ± 0.012]
2.00 [0.079]
5.6 ± 0.3 [0.221 ± 0.012]
2.50 [0.098]
6.6 ± 0.3 [0.260 ± 0.012]
3.00 [0.118]
7.6 ± 0.3 [0.299 ± 0.012]
3.50 [0.138]
8.6 ± 0.3 [0.339 ± 0.012]
4.00 [0.158]
9.6 ± 0.3 [0.378 ± 0.012]
4.50 [0.177]
10.4 ± 0.3 [0.409 ± 0.012]
5.00 [0.197]
11.4 ± 0.3 [0.449 ± 0.012]
5.50 [0.217]
12.7 ± 0.3 [0.500 ± 0.012]
6.00 [0.236]
13.5 ± 0.3 [0.532 ± 0.012]
6.50 [0.256]
14.4 ± 0.4 [0.567 ± 0.016]
7.00 [0.276]
15.7 ± 0.4 [0.618 ± 0.016]
7.50 [0.295]
16.9 ± 0.4 [0.665 ± 0.016]
8.00 [0.315]
19.0 ± 0.4 [0.748 ± 0.016]
9.00 [0.354]
21.4 ± 0.4 [0.843 ± 0.016]
10.00 [0.394]
23.2 ± 0.4 [0.913 ± 0.016]
11.00 [0.433]
26.8 ± 0.4 [1.055 ± 0.016]
12.50 [0.492]
28.2 ± 0.5 [1.110 ± 0.020]
12.50 [0.492]
30.0 ± 0.5 [1.181 ± 0.020]
14.00 [0.551]
32.1 ± 0.5 [1.264 ± 0.020]
15.00 [0.591]
Wall Thickness
Expanded as
Recovered*
Supplied
After Heating
(Nominal)
(Minimum)
0.20 [0.008]
0.33 [0.013]
0.20 [0.008]
0.35 [0.014]
0.25 [0.010]
0.43 [0.017]
0.25 [0.010]
0.43 [0.017]
0.25 [0.010]
0.43 [0.017]
0.25 [0.010]
0.43 [0.017]
0.25 [0.010]
0.43 [0.017]
0.30 [0.012]
0.56 [0.022]
0.30 [0.012]
0.56 [0.022]
0.30 [0.012]
0.56 [0.022]
0.30 [0.012]
0.56 [0.022]
0.30 [0.012]
0.56 [0.022]
0.30 [0.012]
0.56 [0.022]
0.30 [0.012]
0.56 [0.022]
0.30 [0.012]
0.56 [0.022]
0.35 [0.014]
0.66 [0.026]
0.35 [0.014]
0.68 [0.027]
0.35 [0.014]
0.68 [0.027]
0.35 [0.014]
0.68 [0.027]
0.40 [0.016]
0.76 [0.030]
0.40 [0.016]
0.76 [0.030]
0.45 [0.018]
0.89 [0.035]
0.45 [0.018]
0.89 [0.035]
0.45 [0.018]
0.89 [0.035]
0.45 [0.018]
0.89 [0.035]
0.45 [0.018]
0.89 [0.035]
*Wall thickness will be less if tubing recovery is restricted during shrinkage.
Ordering Information
Color
Standard
Nonstandard
Size selection
Standard packaging
Ordering description
Black (-0)
White (-9), red (-2), blue (-6), yellow (-4), green (-5), orange (-3),
violet (-7), brown (-1), gray (-8)
Always order the largest size that will shrink snugly over the component to be covered.
Special order sizes are available upon request.
On spools.
Specify product name, size and color (for example, V2-3.0-0).
