DMS-EB-DC/DC
DC/DC Converter and Isolation Board for
DMS-30PC/LCD Meters
FEATURES
■
■
■
■
■
■
Provide isolated +5V power for DMS-30 Series meters
750V minimum isolation
Ideal for high-side dc ammeters shunts
Provisions for +12V operation
Includes all the features of the standard DMS-EB board
Use with all DMS-30PC and DMS-30LCD
(5V models only)
–25 to +60°C operating temperature range
■
Functional Specifications
T
A
= 25°C, V
CC
= +5V
Input Voltage
Input Current:
Typical
Maximum
Regulator Input Voltage Range
(LM7805CT):
DMS-30PC-X-XS
DMS-30PC-X-RL
DMS-30LCD-X-5(B)
Output Voltage
Isolation
Operating Temperature
Storage Temperature
Dimensions:
Humidity
(Non-condensing)
+5V (±5%)
+150mA
+250mA
+7.5 to +9.5Vdc
+7.5 to +18Vdc
+7.5 to +18Vdc
+5V (±5%)
750V, minimum
0 to +60°C
– 20 to +75°C
2.02" (51.31mm)L
0.83" (21.08mm)W
0 to 95%
Description:

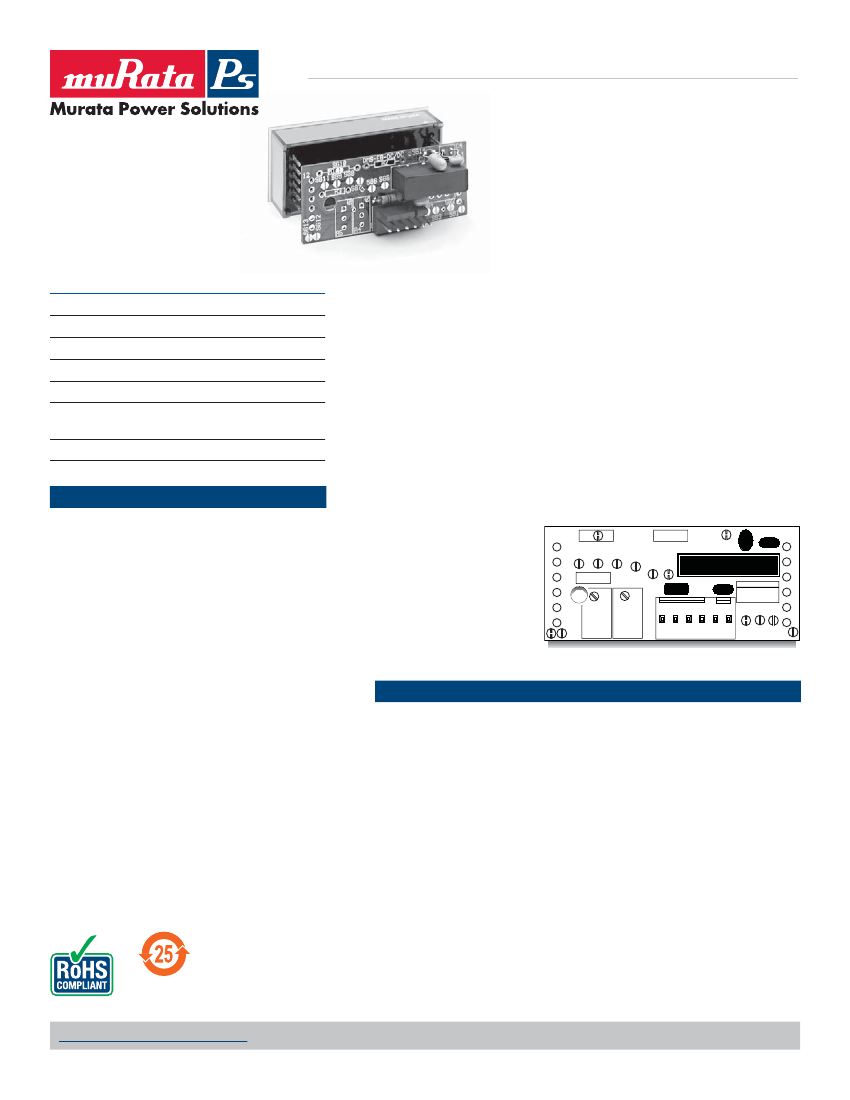

The DMS-EB-DC/DC Application Board provides isolated +5V power for
Murata Power Solutions’ DMS-30PC/LCD Series, 3½ Digit, LED/LCD Display, Digital Panel
Voltmeters. This add-on board is ideal for applications requiring isolation (up to 750V)
between the input signal and the meter's +5V supply.
Features:
The DMS-EB-DC/DC is an excellent choice for dc ammeter applications.
These ammeters typically have the current shunt located on the positive side of the power
supply — a condition which usually exceeds the meter's common mode voltage limit.
Input-to-output isolation is required if the power source being measured also powers the
DMS-30. See dc ammeters application note DMS-AN6 at
http://www.murata-ps.com/data/meters/dms-an6.pdf.
Applications:
The DMS-EB-DC/DC incorporates all standard features of the DMS-EB
board; the only exception being the smaller allowable range of power supply voltage when
using the LM7805 3-terminal regulator. Use the DMS-EB-DC/DC with any DMS-30PC meter
or DMS-30LCD meter (5V-powered models only).
+7.5-18V Operation (Optional): Open SG4 and install U2 (LM7805CT) with its metal
tab adjacent to U1. Applications requiring a lower dropout voltage should consider the
LM2931T-5. Exceeding the
C4
12
1
R1
SG14
R2
allowable regulator input voltage
SG10
C3
SG11 SG9 SG8 SG7
ranges (see Functional Specifica-
SG6 SG5
U1
tions) will cause device over-
R3
R6
C2
heating! As is the case when
U2
specifying any electronic power
SG2
SG4
component, be sure to consult all
J1
SG12
R5
R4
SG3 SG1
1 2 3 4 5 6
applicable manufacturer's data
sheets.
Ordering Information
DMS-EB-DC/DC-C
DMS-BZL1-C
DMS-BZL2-C
DC/DC converter board (with mating connector)
Bezel assembly
Bezel assembly with sealing gasket
For full details go to
www.murata-ps.com/rohs
www.murata-ps.com/support
MPM_DMS-EB-DCDC.C01
Page 1 of 2
SG13
DMS-EB-DC/DC
DC/DC Converter and Isolation Board for
DMS-30PC/LCD Meters
(–) INPUT LO
12
SG14
(+) INPUT HI
ANALOG
COMMON
11
10
SG9
R3
10.5k
R4
2k
R1
R6
4.7k
SG7
C4
0.1μF
50V
SG3
4
SG2
+V
IN
SG13
REF. IN
7
SG12
SG5
R5
50k
LM7805CT
SG1
C2
0.22μF
50V
DP 3
3
SG10
R2
-V
IN
+V
IN
U1
-V
OUT
+V
OUT
+
C3
22μF
10V
1
+5V SUPPLY/
+BATTERY
TEST/
BACKLIGHT
2
5V RETURN/
–BATTERY
+1.23V
REF. OUT
9
SG8
SG11
SG6
SG4
+V
OUT
U2
REF. OUT
8
5
DP 2
6
DP 1
J1
Components are user-supplied
and not part of the standard product
Components are part of the resistor accessory
kit RN-DMS (see Ordering Information).
1
2
3
4
5
6
Open solder gap
Closed solder gap
HI LO TST TST +V –V
(+) (–) IN OUT
GND
Figure 1. DMS-EB-DC/DC Schematic Diagram
Murata Power Solutions, Inc.
11 Cabot Boulevard, Mansfield, MA 02048-1151 U.S.A.
ISO 9001 and 14001 REGISTERED
This product is subject to the following operating requirements
and the Life and Safety Critical Application Sales Policy:
Refer to:
http://www.murata-ps.com/requirements/
Murata Power Solutions, Inc. makes no representation that the use of its products in the circuits described herein, or the use of other
technical information contained herein, will not infringe upon existing or future patent rights. The descriptions contained herein do not imply
the granting of licenses to make, use, or sell equipment constructed in accordance therewith. Specifications are subject to change without
notice.
© 2015 Murata Power Solutions, Inc.
www.murata-ps.com/support
MPM_DMS-EB-DCDC.C01
Page 2 of 2
