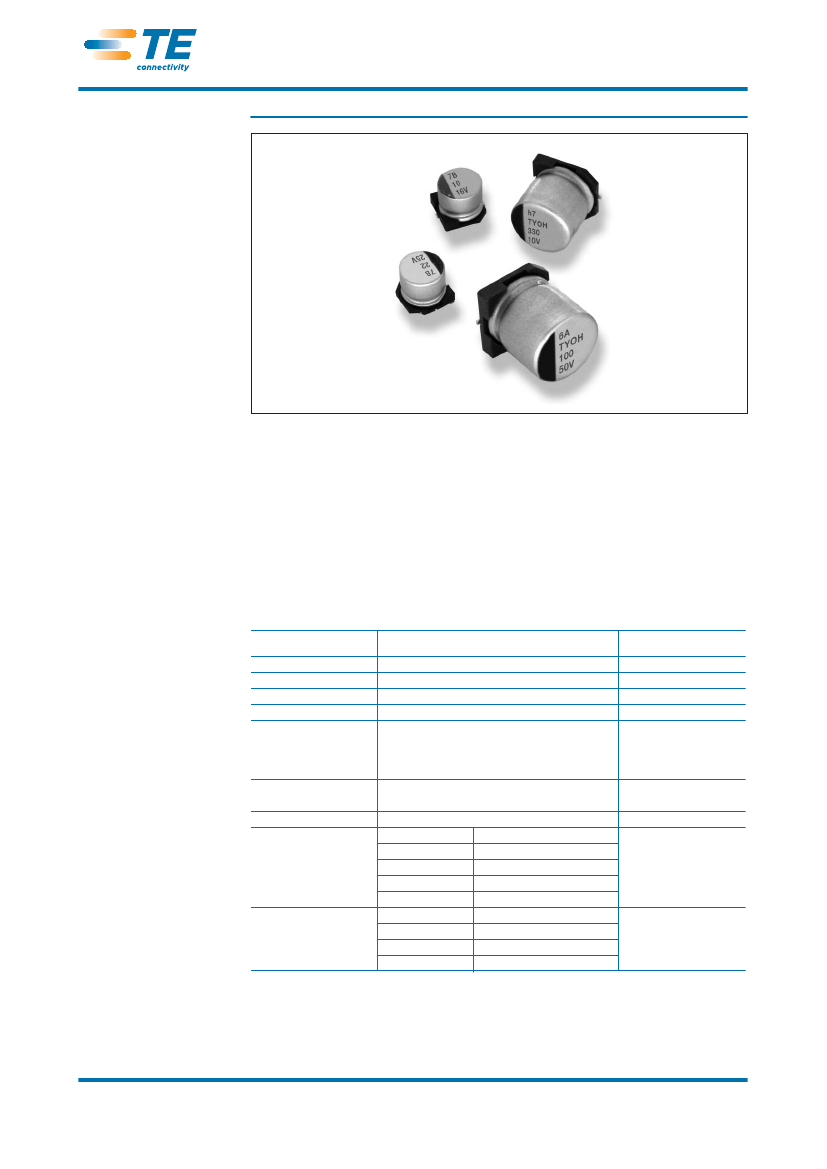

TE Connectivity’s vertical chip-type aluminum electrolytic capacitors are designed for surface
mounting in high density PCB population.
Supplied on tape and reel for use with automatic placement equipment.
The TYOH series are constructed from an Organic Conductive Polymer electrolyte. This offers
ultra-low ESR and high ripple current handling capability over a wide operating temperature
range (-55°C to +105°C). Designed for use in high frequency applications e.g. noise limiting
circuits, switch mode power supplies, where high reliability is required under extreme
conditions.
Characteristics -
Electrical
Test Conditions
JIS C5101-1,-18
Operating Temp. Range
Rated Voltage
Capacitance
Capacitance Tolerance
Leakage Current
-55°C ~ +105°C
DC 2.5 ~ 25V
6.8 ~ 1500μF
±20%
See Standard Product Table
—
105°C
105°C
120Hz, 20°C
C = rated capacitance (μF)
V = rated DC working
voltage (V)
Temperature = 20°C
Dissipation Factor
(Tan∂)
ESR
Load Life Test
See Standard Product Table
See Standard Product Table
Test Time
Capacitance Change
Dissipation Factor
ESR
Leakage Current
Moisture Resistance
Test Time
Capacitance Change
Dissipation Factor
Leakage Current
1000 Hrs
Within ±20% of initial value
Less than 150% of specified value
Less than 150% of specified value
Within specified value
2000 Hrs
Within ±20% of initial value
Less than 150% of specified value
Within specified value
120Hz, 20°C
100kHz to 300kHz, 20°C
Specification satisfied when
the capacitors are restored
to 20°C after the rated
voltage is applied for
2,000 hrs at 105°C
Store at 60°C,
90 to 95% R.H
Leakage current should be
tested after voltage treatment
3-1773448-0 CIS BI 06/2011
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
For email, phone or live chat, go to:
te.com/help
Surface Mount Aluminum Electrolytic Capacitors
Type TYOH Organic Conductive Polymer Series
Product Availability Chart
Rated Voltage (V.DC)
Capacitance
μF
6.8
10
22
33
47
56
82
100
120
150
180
220
330
470
560
680
820
1000
1200
1500
Code
685
106
226
336
476
566
826
107
127
157
187
227
337
477
567
687
827
108
128
158
10 x 8
10 x 10
10 x 12.7
10 x 12.7
8x7
8 x 12
6.3 x 6
8x7
8x7
10 x 8
8 x 12
10 x 8
10 x 10
10 x 12.7
6.3 x 7
8x7
10 x 8
8 x 12
10 x 8
10 x 10
10 x 12.7
8 x 12
10 x 8
10 x 10
10 x 12.7
6.3 x 6
6.3 x 6
6.3 x 6
6.3 x 7
6.3 x 7
8x7
8 x 12
10 x 8
10 x 10
8x7
10 x 12.7
6.3 x 6
8x7
10 x 8
8 x 12
10 x 10
6.3 x 6
8x7
10 x 12.7
6.3 x 6
8 x 12
2.5
Dia x L
4.0
Dia x L
6.3
Dia x L
10
Dia x L
16
Dia x L
20
Dia x L
25
Dia x L
6.3 x 6
6.3 x 6
3-1773448-0 CIS BI 06/2011
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
For email, phone or live chat, go to:
te.com/help
Surface Mount Aluminum Electrolytic Capacitors
Type TYOH Organic Conductive Polymer Series
Standard Product Table
Rated
Voltage
V.DC
2.5
2.5
2.5
2.5
2.5
2.5
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
10
10
10
10
10
10
16
16
16
16
16
16
20
20
20
20
20
20
25
25
25
25
Capacitance
μF
Code
220
560
680
1000
1200
1500
150
220
330
470
560
680
820
1200
82
100
120
150
150
220
220
330
470
470
560
820
56
150
330
330
470
560
47
82
180
180
220
330
22
47
82
100
100
150
6.8
10
33
56
227
567
687
108
128
158
157
227
337
477
567
687
827
128
826
107
127
157
157
227
227
337
477
477
567
827
566
157
337
337
477
567
476
826
187
187
227
337
226
476
826
107
107
157
685
106
336
566
Case
Size
Dia x L
6.3x6
8x7
8x12
10x8
10x10
10x12.7
6.3x6
8x7
8x7
10x8
8x12
10x8
10x10
10x12.7
6.3x6
6.3x6
6.3x7
6.3x7
8x7
6.3x7
8x7
10x8
8x12
10x8
10x10
10x12.7
6.3x6
8x7
8x12
10x8
10x10
10x12.7
6.3x6
8x7
8x12
10x8
10x10
10x12.7
6.3x6
8x7
10x8
8x12
10x10
10x12.7
6.3x6
6.3x6
8x12
10x12.7
Case
Code
F62
G72
G12
H82
H10
H13
F62
G72
G72
H82
G12
H82
H10
H13
F62
F62
F72
F72
G72
F72
G72
H82
G12
H82
H10
H13
F62
G72
G12
H82
H10
H13
F62
G72
G12
H82
H10
H13
F62
G72
H82
G12
H10
H13
F62
F62
G12
H13
Dissipation
Factor
(%)*
12
12
18
12
18
18
12
12
12
12
18
12
18
18
12
12
12
12
12
12
12
12
15
12
15
15
10
10
15
10
15
15
10
10
15
10
15
15
10
10
10
15
15
15
10
12
12
12
DC Leakage
Current
(μA)*
110
280
340
500
750
500
120
176
264
376
448
544
656
960
103
126
151
189
189
277
277
416
592
592
706
1033
112
300
660
660
940
1360
150
262
576
576
704
1056
88
188
328
400
400
608
170
120
413
700
ESR
(mΩ)*
25
23
12
20
13
10
26
25
25
22
12
22
13
10
27
27
30
30
25
45
25
22
12
22
16
10
31
27
14
25
18
12
50
30
16
33
20
14
50
45
40
24
25
20
80
80
30
28
Ripple
Current
(mA)*
2500
3100
4770
3800
5200
5500
2450
3020
3020
3800
4770
3800
5200
5500
2400
2400
2010
2250
3020
2320
3020
3500
4770
3500
4700
5500
2250
2800
4420
3200
4400
5300
1650
2700
4360
3000
4200
5050
1650
2000
2500
3320
3700
4320
1200
1500
2980
3800
Part
Number
TYOH0E227F62MTR
TYOH0E567G72MTR
TYOH0E687G12MTR
TYOH0E108H82MTR
TYOH0E128H10MTR
TYOH0E158H13MTR
TYOH0G157F62MTR
TYOH0G227G72MTR
TYOH0G337G72MTR
TYOH0G477H82MTR
TYOH0G567G12MTR
TYOH0G687H82MTR
TYOH0G827H10MTR
TYOH0G128H13MTR
TYOH0J826F62MTR
TYOH0J107F62MTR
TYOH0J127F72MTR
TYOH0J157F72MTR
TYOH0J157G72MTR
TYOH0J227F72MTR
TYOH0J227G72MTR
TYOH0J337H82MTR
TYOH0J477G12MTR
TYOH0J477H82MTR
TYOH0J567H10MTR
TYOH0J827H13MTR
TYOH1A566F62MTR
TYOH1A157G72MTR
TYOH1A337G12MTR
TYOH1A337H82MTR
TYOH1A477H10MTR
TYOH1A567H13MTR
TYOH1C476F62MTR
TYOH1C826G72MTR
TYOH1C187G12MTR
TYOH1C187H82MTR
TYOH1C227H10MTR
TYOH1C337H13MTR
TYOH1D226F62MTR
TYOH1D476G72MTR
TYOH1D826H82MTR
TYOH1D107G12MTR
TYOH1D107H10MTR
TYOH1D157H13MTR
TYOH1E685F62MTR
TYOH1E106F62MTR
TYOH1E336G12MTR
TYOH1E566H13MTR
* DF measured at 120Hz, 20°C
* DCL measured at 20°C
* ESR measured at 100kHz to 300kHz, 20°C
* RC measured at 100kHz, 105°C
3-1773448-0 CIS BI 06/2011
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
For email, phone or live chat, go to:
te.com/help
Surface Mount Aluminum Electrolytic Capacitors
Type TYOH Organic Conductive Polymer Series
Dimensions
Case
Code
F62
F72
G72
G12
H82
H10
H13
Dimensions (mm)
Dia
6.3
6.3
8.0
8.0
10
10
10
L
6.0±0.2
7.0±0.2
7.0±0.2
11.8±0.5
8.0±0.2
10±0.5
12.7±0.5
A
6.6
6.6
8.4
8.4
10.4
10.4
10.4
B
6.6
6.6
8.4
8.4
10.4
10.4
10.4
C
2.7
2.7
3.0
3.0
3.3
3.3
3.3
W
0.5 to 0.8
0.5 to 0.8
0.7 to 1.1
0.7 to 1.1
0.7 to 1.1
0.7 to 1.1
0.7 to 1.1
P±0.2
2.0
2.0
3.1
3.1
4.7
4.7
4.7
How to Order
TYOH
Common Part
0E
Voltage Code
0E (2.5V)
0G (4.0V)
0J (6.3V)
1A (10V)
1C (16V)
1D (20V)
1E (25V)
227
Capacitance
F62
Case Code
M
Tolerance
TR
Packaging
TR = 15" Reels
F62, F72 and G72
Case - 1000pcs
H82 and H10
Case - 500pcs
G12 and H13
Case - 400pcs
TYOH
e.g. 227
e.g. F62
M (20%)
TE Connectivity, TE connectivity (logo) and TE (logo) are trademarks.
Other logos, product and Company names mentioned herein may be trademarks of their respective owners.
While TE has made every reasonable effort to ensure the accuracy of the information in this datasheet, TE does not guarantee that it is error-free, nor does TE make any other
representation, warranty or guarantee that the information is accurate, correct, reliable or current. TE reserves the right to make any adjustments to the information contained herein
at any time without notice. TE expressly disclaims all implied warranties regarding the information contained herein, including, but not limited to, any implied warranties of merchantabili-
ty or fitness for a particular purpose. The dimensions in this datasheet are for reference purposes only and are subject to change without notice. Specifications are subject to change
without notice. Consult TE for the latest dimensions and design specifications.
How to disable the system's automatic pop-up low battery warning in Wince! Because we made a shell ourselves, we need to disable all the system's automatic pop-up messages, otherwise the interface wil...
I would like to ask the engineers who make MP4, when you do power management, do you use the charging circuit, DC/DC, and LDO in one circuit, or separately, or does the main chip include the charging ...
Sorry for the jokes~~~ [u] Question 1: What wireless technology do wireless routers generally use? Question 2: What CPU and OS do wireless routers from manufacturers like CISCO, Huawei, TPLINK, D-LINK...
When doing a project, I used STM32 and voice chip WM8974. The I2S interface of STM32 is standard 1. LRCLK 2. BCLK 3. SD, but the interface of WM8974 is 1. LRCLK 2. BCLK 3. VIN 4. VOUT. How to connect ...
The FPGA is used to collect frequency pulses, but the rising edge of the incoming pulse square wave rises too slowly. Since the FPGA clock is fast, the intermediate value will be collected. How can I ...
1. Introduction
RFID (radio frequency identification) is a non-contact automatic identification technology that emerged in the 1990s. It uses the characteristics of radio frequency signal prop...[Details]
All electronic design engineers and scientists have performed electrical signal analysis, or signal analysis for short. Through this basic measurement, they can gain insight into signal details and...[Details]
Electronic systems are located at different points on the automotive power bus and therefore often need to operate under very stringent power requirements. These include load dump, cold crank, very lo...[Details]
1. Introduction
At present, most lighting equipment still uses traditional energy for lighting. Making full use of solar energy as the energy supply for lighting equipment is of great si...[Details]
1. What is temperature?
Heat is a type of molecular motion. The hotter an object is, the faster its molecules move. Absolute zero is defined as the temperature at which all molecular motion ...[Details]
Overview:
This paper introduces a method of connecting a CAN-bus network with Ethernet to form a medium-sized remote monitoring/data transmission network.
CAN (Controller Area Network) is ...[Details]
1. Introduction
Testing the temperature of steel billets before rolling is an important measure to ensure the quality of steel. Traditional manual testing is difficult to ensure product qu...[Details]
Many battery-powered systems require a visual indicator to show when the battery needs to be replaced. LEDs are commonly used for this purpose, but they consume at least 10mA of current. This con...[Details]
Investment in
the
medical device
industry has been on the rise in recent years. In the past two years, venture capital for medical devices has almost doubled, reaching $4 billion in 2007. Fr...[Details]
Recently, news came from the certification department that the photovoltaic grid-connected inverter of Samil New Energy Co., Ltd. (hereinafter referred to as "Samil New Energy") has once again obta...[Details]
At present, a large number of cooling tower fans, speed fans and special fans are in use in petroleum, chemical, pharmaceutical, metallurgical and other enterprises. Some fans have no monitoring in...[Details]
The future energy storage hotspot is not coal or iron ore, but lithium. This lightest metal in nature may be the heaviest resource in the future energy landscape. China launched an ambitious electr...[Details]
The power consumption of a switching power supply includes fixed losses caused by parasitic resistances such as semiconductor switches, magnetic components, and wiring, as well as switching losses ...[Details]
In recent years, with the increasing maturity of LED technology, LED light sources have been increasingly widely used due to their advantages of using low-voltage power supply, low energy consumpti...[Details]
Multimedia processors are often the most power-hungry devices in portable electronic devices. Common ways to reduce CPU power requirements are to reduce clock frequency or operating voltage, but th...[Details]
Embedded System
京公网安备 11010802033920号
EEWORLD
