Product Brief
PMB 7860

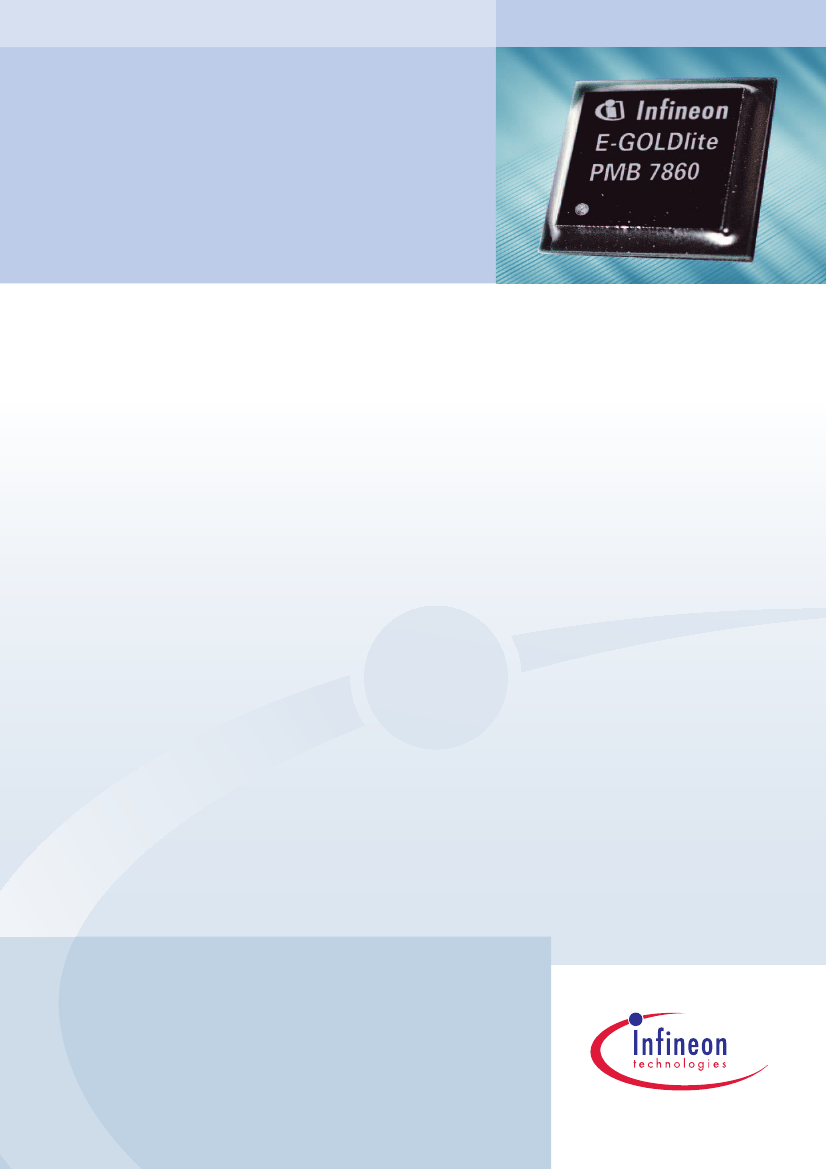

E-GOLDlite
Lowest Cost GSM/GPRS/Baseband IC
E - G O L D l i t e
is a very cost optimised and compact integrated
mixed signal baseband IC for complete GSM/GPRS modems.
Its flexible systems architecture fits at best to future entry level
phones with GPRS and basic MMS functionality.
In conjunction with Infineon’s single chip CMOS RF-transceiver
SMARTi SD and the power management IC E-POWERlite the single chip
IC E-GOLDlite reaches best-in-class system costs.
Package
■
■
Highest integration with Flip Chip
package LF2BGA-201
Smallest board footprint of 8 x 8 mm
Documentation/ Development
and Support
■
■
■
Applications
■
Future GSM/GPRS entry level phones with basic MMS functionality
and cost optimised highly integrated modems and data modules
■
Features
■
■
■
■
■
■
■
■
■
■
■
■
Supports a wide variety of RF architectures
1.5 V design in 0.13 µ drawn C11-technology
Microcontroller C166s CPU with 52 MHz
DSP TEAKLite
®
with 104 MHz
All Interfaces required for scalable systems (ASCs, I
2
Cs, I
2
Ss, ISSs)
Voice memo and voice activity detection
Echo cancellation for handsfree
CSD up to 14.4 kbit/s, HSCD class 4
GPRS CS1 to CS4, up to class 10
Speech codecs HR, FR, EFR and AMR
E-OTD and TTY support
Integrated Polyringer
■
■
■
Product Overview
Specification
Mature GPRS protocol stack including
Applications from COMNEON
Complete system designs including PCB, SW
and respective services
User Manual
Application Note
Evaluation Board
www.infineon.com/mobilesolutions
Mobile Solutions
N e v e r
s t o p
t h i n k i n g .
Product Brief
S y s t e m A r ch i t e c t u r e w i t h R F -Tr a n s ce i v e r S M A RT i S D a n d E - G O L D l i t e
SMARTi SD
Earpiece
D
Ringer
Viterbi HW
Accelerator
Car Kit
A
D
Speach
and Channel
Encoding
GMSK
Modulator
TEAKLite
®
D
D
A
Speech
and Channel
Decoding
A
Equalizer
A
D
Q
D
A
GSM
Cipher Unit
A
A
26 MHz
AFC
Interfaces
On-chip SRAM
1
4
7
*
2
5
8
0
3
6
9
#
I
1800 MHz
1900 MHz
D
LNA
900 MHz
DMI
Gauss BT 0.3
Σ∆
Modulator
Fractional
-N-PLL
850 MHz
Optional:
Digital Tx
Interface
E-GOLDlite
SSC
I
2
C
I
2
S
DAI
ASC
C166S
Infineon 16-Bit Core
JTAG
Realtime
Clock
GPRS
Cipher Unit
GSM
Timer
Power
Mgmt.
CLK
DAT
ENA
/2
Control
Logic
3.8 GHz
/4
1900-
1800 MHz
900-
850 MHz
Power
Amplifier
LF
RF Control
Display
FLASH
SIM
S/M POWER/E-POWERlite
(PMB 6811/PMB 6814)
Note: TEAKLite
®
is a registered trademark of ParthusCeva, Inc.
