FHT2412S: DescriptionSmall Signal Bipolar Transistor, 0.15A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, SOT-23, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size105KB，2 Pages; ManufacturerFenghua (HK) Electronics Ltd.

Download Datasheet Parametric Compare View All

FHT2412S Overview

Small Signal Bipolar Transistor, 0.15A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, SOT-23, 3 PIN

FHT2412S Parametric

Parameter Name	Attribute value
Maker	Fenghua (HK) Electronics Ltd.

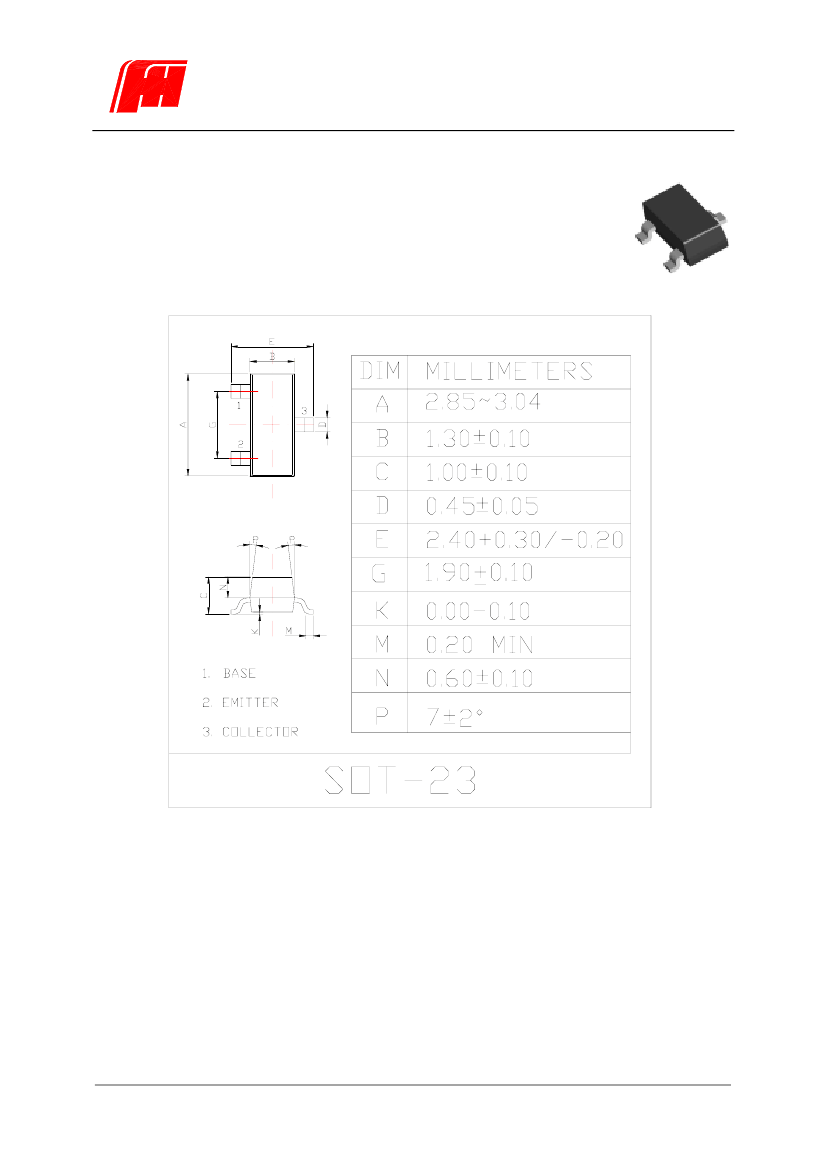

Parts packaging code	SOT-23
package instruction	SMALL OUTLINE, R-PDSO-G3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW NOISE
Maximum collector current (IC)	0.15 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE
Minimum DC current gain (hFE)	270
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.2 W
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Transistor component materials	SILICON
Nominal transition frequency (fT)	180 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

广东肇庆风华新谷微电子有限公司

广东省肇庆市风华路

18

号风华电子工业城三号楼一楼

TEL:0758-2865088 2865091

FAX:0758-2849749

General Purpose Transistors

三极管

NPN Silicon (FHT2412)

FEATURES

特点

· Excellent h

FE

Linearity h

FE

线性特性极½

h

FE

(0.1mA)/h

FE

(2mA)=0.95(Typ.)

·Low Noise

½噪声:NF=1dB(Typ.),10dB(Max.).

· Complementary to FHT1037

与

FHT1037

互补

MAXIMUM RATINGS

(T

a

=25℃)

最大额定值

CHARACTERISTIC

特性参数

Collector-Base Voltage

集电极-基极电压

Collector-Emitter Voltage

集电极-发射极电压

Emitter-Base Voltage

发射极-基极电压

Collector Current—Continuous

集电极电流-连续

Collector Power Dissipation

集电极耗散功率

Junction Temperature

结温

Storage Temperature Range

储存温度

Symbol

符号

V

CBO

V

CEO

V

EBO

Ic

P

C

T

j

T

stg

Rating

额定值

60

50

7.0

150

200

150

-55½150

Unit

单½

Vdc

mAdc

mW

℃

DEVICE MARKING

打标

h

FE

(1)FHT2412Q=BQ(120½270), FHT2412R=BR(180½390), FHT2412S=BS(270½560)

ELECTRICAL CHARACTERISTICS

电特性

(T

A

=25

℃

unless otherwise noted

如无特殊说明，温度为

25

℃

)

Symbol

符号

I

CBO

Collector Cutoff Current

集电极截止电流

Characteristic

特性参数

Emitter Cutoff Current

发射极截止电流

Collector-Base Breakdown Voltage

集电极-基极击穿电压

Collector-Emitter Breakdown Voltage

集电极-发射极击穿电压

Emitter-Base Breakdown Voltage

发射极-基极击穿电压

DC Current Gain

直流电流增益

Collector-Emitter Saturation Voltage

集电极-发射极饱和压降

Transition Frequency

特征频率

Collector Output Capacitance

输出电容

I

EBO

V

(BR)CBO

V

(BR)CEO

V

(BR)EBO

h

FE

V

CE(sat)

f

T

C

ob

Test Condition

测试条件

V

CB

=60V,I

E

=0

V

EB

=7V,I

C

=0

I

C

=50μA

I

C

=1.0mA

I

E

=50μA

V

CE

=6V,I

C

=1mA

I

C

=50mA,I

B

=5mA

V

CE

=12V,I

E

=-2mA,

f=100MHz

V

CB

=12V,I

E

=0,f=1MHz

Min TYP Max Unit

最小值典型最大值单½

—

0.1

μA

—

60

50

7

120

—

180

2.0

0.1

—

560

0.4

—

3.5

μA

V

—

V

MHz

pF

Page 0 of

6

*2005

年第

2

版*
