Factory Prog. 4 Output CMOS TCXO
•
•
•
•
•
•
•
CARDINAL COMPONENTS
Full Custom Multi-Frequency Programmable Osc
Reduced EMI by turning off unused output
Factory Programmable
Industry-standard packaging saves on board space
Mult. outputs 1 pkg vs. mult. osc & assoc. comp.
Performs well under all conditions
Increased Integration
Applications
•
•
•
•
•
•
•
High-end multimedia
Communications
Industrial
A/D converters
Consumer Applications
Low tolerance applications
Low-power applications
Series
CCT4C
Part Numbering Example: CCT4C 1A 200.0 / 150.0 / 125.0 / 100.0
CCT4C
SERIES
1A
200
150
125
100
PACKAGE STYLE
FREQUENCY A
1A=14 pin dip
0.2 - 200 MHz
9=9.6x11.4 SMD
FREQUENCY B
0.2 - 200 MHz
FREQUENCY C FREQUENCY D
0.2 - 200 MHz
0.2 - 200 MHz
Specifications:
Frequency Range:
Output A CMOS
Output B CMOS
Output C CMOS
Output D CMOS
Available Stability Options:
Supply Voltage:
Operating Temperature
Range Options:
Storage Temperature:
Duty Cycle:
Start-Up Time:
Aging (PPM/1st Year):
Ta=25C, Vdd=3.3V
Static Discharge Voltage
Mil-Std 883, method 3015
Output Load:
CMOS, < 40 MHz
CMOS, > 40 MHz
Output Level:
Packaging:
Min
0.2
0.2
0.2
0.2
-2.5
3.135
-40
Typ
Max
200
200
200
200
2.5
Unit
MHz
MHz
MHz
MHz
ppm
V
°C
3.3
3.465
85
-55
40
45
3
125
60
55
10
±1
°C
%
%
mS
ppm
2000
V
30
15
CMOS
25 / Tube
Tape & Reel
pF
pF
14 pin
SMD
Notes: Recommended .01
µF
bypass capacitor from Vcc to GND. Capacitor should be as close to oscillator as possible.
155 Route 46 West
Wayne, NJ 07470
Rev:
M-090414-14
Cardinal Components, Inc.
M-21
TEL:
(973)785-1333
E-MAIL: sales@cardinalxtal.com
WEB: http://www.cardinalxtal.com
Factory Prog. 4 Output CMOS TCXO
Electrical Characteristics
D
ESCRIPTION
Ioh
Iol
Vih
Vil
Iih
Iil
Ioz
Idd
Output High Current
Output Low Current
High Level Input Voltage
Low-Level Input Voltage
Input High Current
Input Low Current
Output Leakage Current
Total Power Supply Current
CARDINAL COMPONENTS
Series
CCT4C
C
ONDITIONS
Voh = (L)Vdd - 0.5, (L)Vdd = 3.3 V
Vol = .5, (L)Vdd = 3.3 V
CMOS levels, % of Vdd
CMOS levels, % of Vdd
Vin = AVdd - 0.3 V
Vin = + 0.3 V
tri-state outputs
Example 1:
1 output@19.44 MHz; 1 output@38.88 MHz
1 output@77.76 Mhz; 1 output@155.52 MHz
Example 2:
1 output@50 MHz; 1 output@106.25 MHz
1 output@200 Mhz; 1 output@155.52 MHz
Shutdown active
M
IN
12
12
0.7
T
YP
24
24
M
AX
U
NIT
mA
mA
V
0.3
<1
<1
10
10
10
26
V
µA
µA
µA
mA
38
mA
Idds
Shutdown Power Supply Curr
5
20
µA
Output Clock Switching Characteristics
D
ESCRIPTION
1/t1
t3
t4
t5
t6
Output Frequency
Rising Edge Slew Rate
Falling Edge Slew Rate
Output tri-state timing
after SD/OE switches
Clock Jitter
measured at Vdd/2
C
ONDITIONS
Clock output limit, CMOS, Commercial
Output clock rise time, 20% – 80% Vdd
Output clock fall time, 20% – 80% Vdd
Time for output to enter/leave tri-state mode
Peak-to-Peak period jitter, CLK outputs
M
IN
0.75
0.75
T
YP
1.4
1.4
150
200
M
AX
200
U
NIT
MHz
nS
nS
300
nS
pS
155 Route 46 West
Wayne, NJ 07470
Rev:
M-090414-14
Cardinal Components, Inc.
M-22
TEL:
(973)785-1333
E-MAIL: sales@cardinalxtal.com
WEB: http://www.cardinalxtal.com
CARDINAL COMPONENTS
Series
ALL OUTPUTS, DUTY CYCLE, RISE/FALL TIME
CCT4C
t
1
t
2
OUTPUT
t
3
t
4
OUTPUT 3-STATE TIMING
OE
t
5
ALL
THREE-STATE
OUTPUTS
CLK OUTPUT JITTER
t
5
t
6
CLK
OUTPUT
155 Route 46 West
Wayne, NJ 07470
Rev:
M-090414-14
Cardinal Components, Inc.
M-23
TEL:
(973)785-1333
E-MAIL: sales@cardinalxtal.com
WEB: http://www.cardinalxtal.com
CARDINAL COMPONENTS
DIP
PIN FUNCTION
PIN 1 OE (CONNECT TO VDD)
PIN 2 SUSPEND (CONNECT TO GND)
PIN 3 VDD
PIN 4 CLK C OUTPUT
PIN 5 CONNECT TO PIN 6
PIN 6 CONNECT TO PIN 5
PIN 7 GND
PIN 8 FACTORY USE (MAKE NO CONNECTION)
PIN 9 CLK D OUTPUT
PIN10 FACTORY USE (MAKE NO CONNECTION)
PIN 11 FACTORY USE (MAKE NO CONNECTION)
PIN 12 FACTORY USE (MAKE NO CONNECTION)
PIN 13 CLK A OUTPUT
PIN 14 CLK B OUTPUT
SMD
PIN FUNCTION
PIN 1 FACTORY USE (MAKE NO CONNECTION)
PIN 2 OE
PIN 3 VDD
PIN 4 CLK C OUTPUT
PIN 5 CONNECT TO PIN 6
PIN 6 CONNECT TO PIN 5
PIN 7 GND
PIN 8 FACTORY USE (MAKE NO CONNECTION)
PIN 9 CLK D OUTPUT
PIN10 FACTORY USE (MAKE NO CONNECTION)
PIN 11 FACTORY USE (MAKE NO CONNECTION)
PIN 12 FACTORY USE (MAKE NO CONNECTION)
PIN 13 CLK A OUTPUT
PIN 14 CLK B OUTPUT

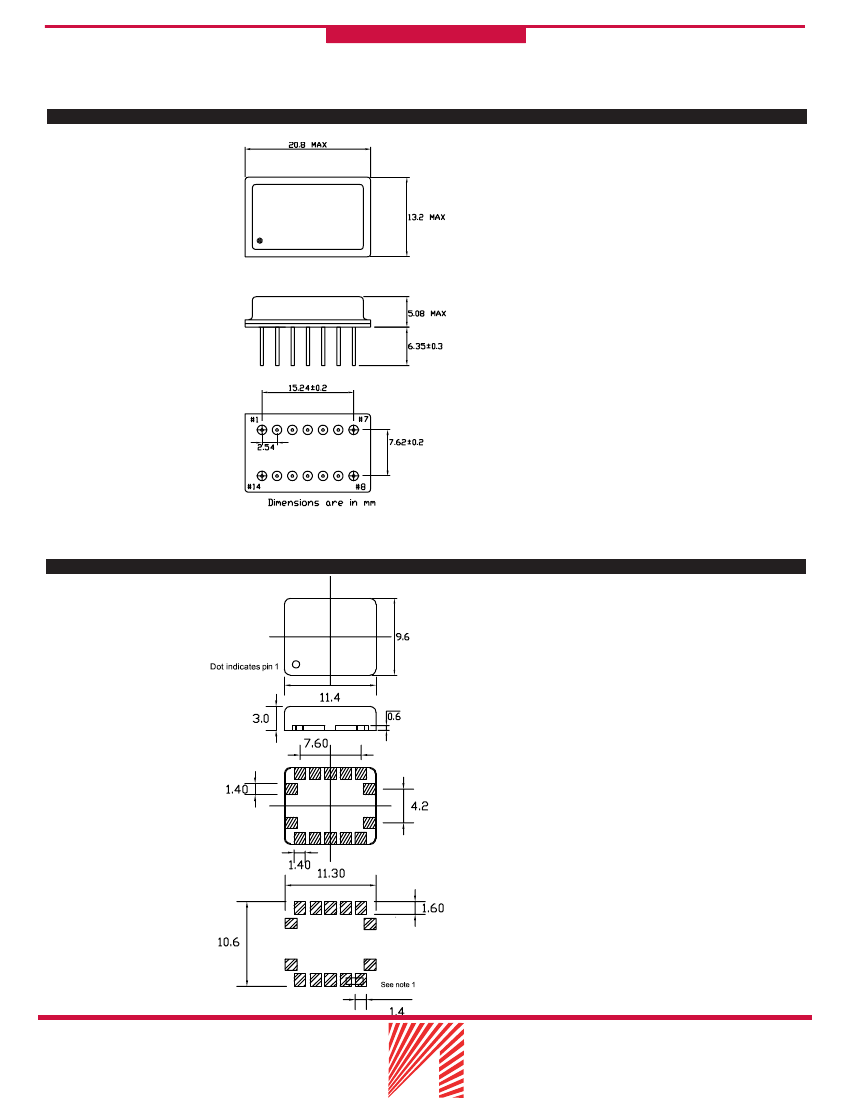

Dimensions in mm
Recommended solder pad layout
Note1:
For proper operation pin 5 must be connected to pin 6
155 Route 46 West
Wayne, NJ 07470
Cardinal Components, Inc.
M-24
TEL:
(973)785-1333
E-MAIL: sales@cardinalxtal.com
WEB: http://www.cardinalxtal.com
