CKR12BX682MM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> CKR12BX682MM

CKR12BX682MM: DescriptionCeramic Capacitor, Multilayer, Ceramic, 100V, 20% +Tol, 20% -Tol, X7R, 15% TC, 0.0068uF, Through Hole Mount, AXIAL LEADED; CategoryPassive components capacitor; File Size846KB，6 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]

Download Datasheet Parametric View All

CKR12BX682MM Overview

Ceramic Capacitor, Multilayer, Ceramic, 100V, 20% +Tol, 20% -Tol, X7R, 15% TC, 0.0068uF, Through Hole Mount, AXIAL LEADED

CKR12BX682MM Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1634422965
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.0068 µF
Capacitor type	CERAMIC CAPACITOR
diameter	2.3 mm
dielectric materials	CERAMIC
JESD-609 code	e0
length	6.4 mm
Installation features	THROUGH HOLE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
Package form	Axial
method of packing	Bulk
positive tolerance	20%
Rated (DC) voltage (URdc)	100 V
Guideline	MIL-C-11015/19
surface mount	NO
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WIRE

Preview

Download Datasheet

View All

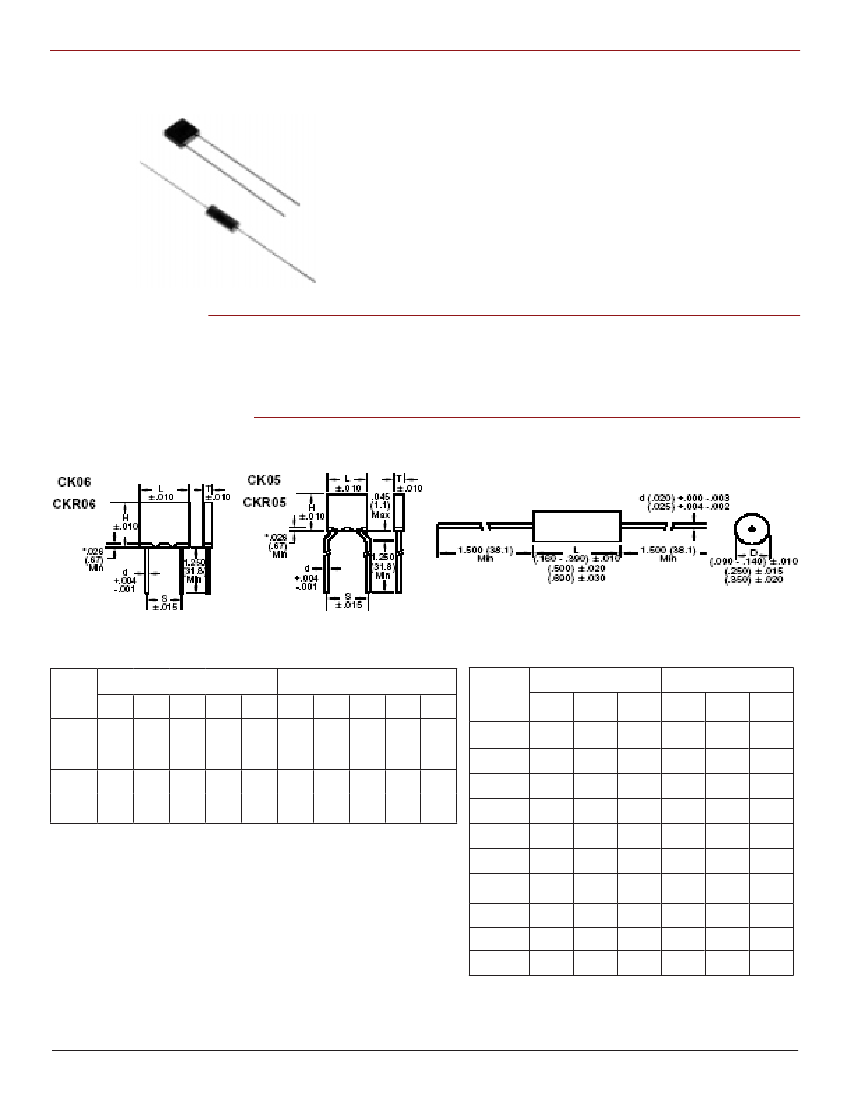

MIL-C-11015 & 39014

Multilayer Ceramic Capacitors

CK and CKR Military Grade Capacitors

MIL-C-11015 & 39014 - CK and CKR - military grade ca-

pacitors are available as radial and axial leaded

ca-

pacitors with the option of hot solder dipped leads

on the CKRs.

•

Available on tape and reel

Molded case construction

CKR available with stand-of

Hot solder dip leads on Type CKR

Specifcations

Capacitance Range:

Voltage Range:

Temperature Coefcient:

10 pF to 3.3 µF

50, 100, 200 Vdc

X7R (Mil BX or BR)

Outline Drawings

MIL-C-11015/20, MIL-C-39014/05

Radial

Type

CK05

CKR05

CK06

CKR06

Inches

.190

.290

.190

.290

.090

.200

Axial

5.1

.64

Type

CK12

CKR11

CK13

CKR12

CK14

CKR14

CK15

CKR15

CK16

CKR16

Inches

.090

.140

.250

.350

.160

.250

.390

.500

.690

.020

.025

2.3

3.6

6.4

8.9

4.0

6.4

9.9

12.7

17.5

.51

.64

4.8

7.4

2.3

.025

4.8

7.4

Order by CK part number shown in Ratings Table

Example: CK05BX104M

TO ORDER MIL-C-39014 PARTS:

Indicate the prefix M39014/-- followed by the applicable

MIL dash number. Example: For M39014/01-1594

(CKR05BX104MS); order M39014/011594
